ANF10-AEXVB (2009)
Toyota Lexus Hs250h
Production
Jul 2009
-
Jan 2013
Engine
2AZFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0907-1301)

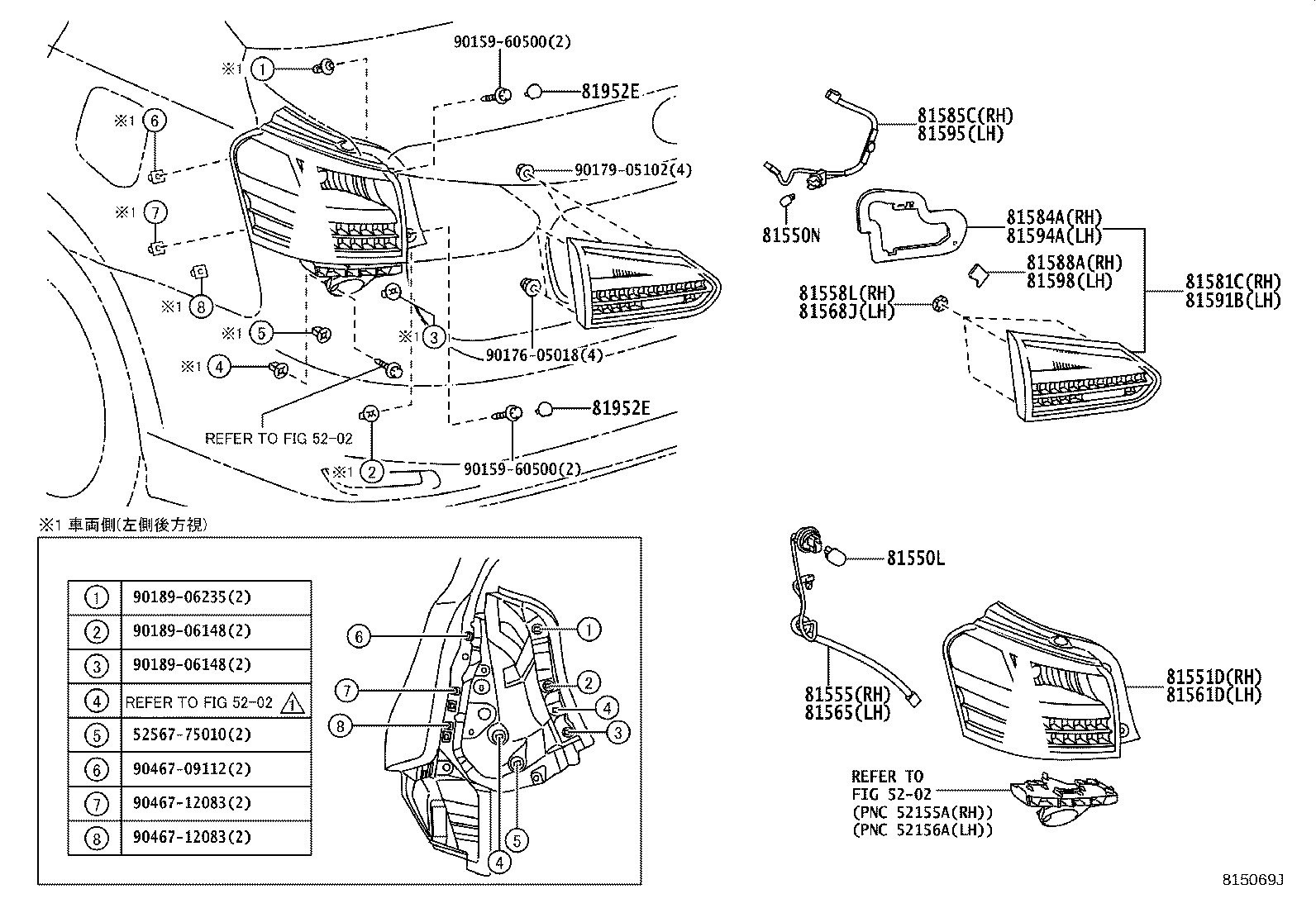

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-1502179 |
ANF10 |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-1105979 |
ANF10 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-75040 |
ANF10 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-75040 |
ANF10 |
1 | ||
| 81558L - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81558-24040 |
ANF10 |
3 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-75040 |
ANF10 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-75040 |
ANF10 |
1 | ||
| 81568J - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81558-24040 |
ANF10 |
3 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-75010 |
ANF10 |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-75010 |
ANF10 |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-75010 |
ANF10 |
1 | ||
| 81588A - PROTECTOR, REAR LAMP, RH | ||||
| 81588-75030 |
ANF10 |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-75010 |
ANF10 |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-75010 |
ANF10 |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-75010 |
ANF10 |
1 | ||
| 81598 - PROTECTOR, REAR LAMP, LH | ||||
| 81588-75030 |
ANF10 |
1 | ||
| 81952E - COVER, REAR LAMP | ||||
| 81952-22010 |
ANF10 |
4 | ||
| 81952E - COVER, REAR LAMP | ||||
| 81952-22010 |
ANF10 |
4 | ||
| Common parts | ||||
| 52567-75010 | ||||
| 90159-60500 | ||||
| 90176-05018 | ||||
| 90179-05102 | ||||
| 90189-06148 | ||||
| 90189-06235 | ||||
| 90467-09112 | ||||
| 90467-12083 | ||||
| Linked diagrams | ||||
| 5202 | ||||
