Toyota Lexus hs250h ANF10 FOG LAMP

Home Blog About Contact Search

ANF10-AEXVB (2009)

Toyota Lexus Hs250h

Production Jul 2009 - Jan 2013

Engine 2AZFXE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

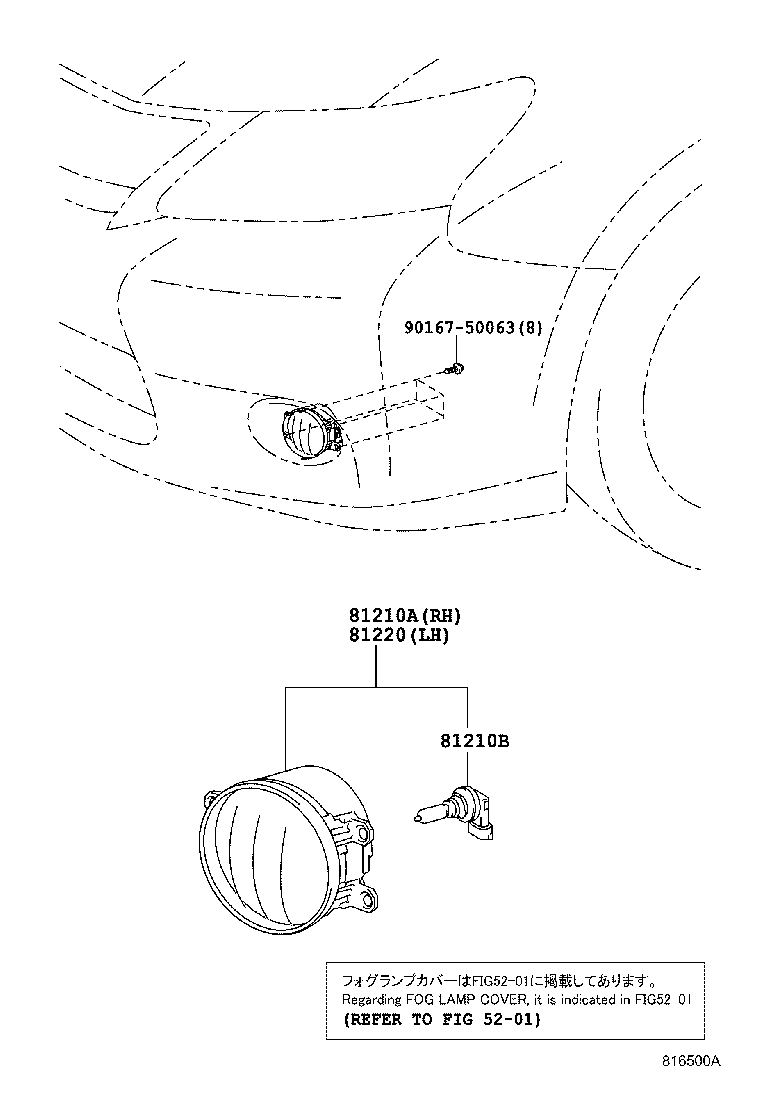

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210A - LAMP ASSY, FOG, RH
81210-0D041	ANF10	07/2009 - 04/2010	1
81210-0D042	ANF10	05/2010 - 01/2013	1
81210B - BULB, FOG LAMP
90981-1308179	ANF10 12V 55W,ﾊﾛｹﾞﾝ,OSRAM	07/2009 - 12/2999	2
90981-1307579	ANF10 12V 55W,ﾊﾛｹﾞﾝ,PHILIPS	07/2009 - 12/2999	2
81220 - LAMP ASSY, FOG, LH
81220-0D041	ANF10	07/2009 - 04/2010	1
81220-0D042	ANF10	05/2010 - 01/2013	1
Common parts
90167-50063
