ANF10-AEXVB (2009)
Toyota Lexus Hs250h
Production
Jul 2009
-
Jan 2013
Engine
2AZFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0907- )

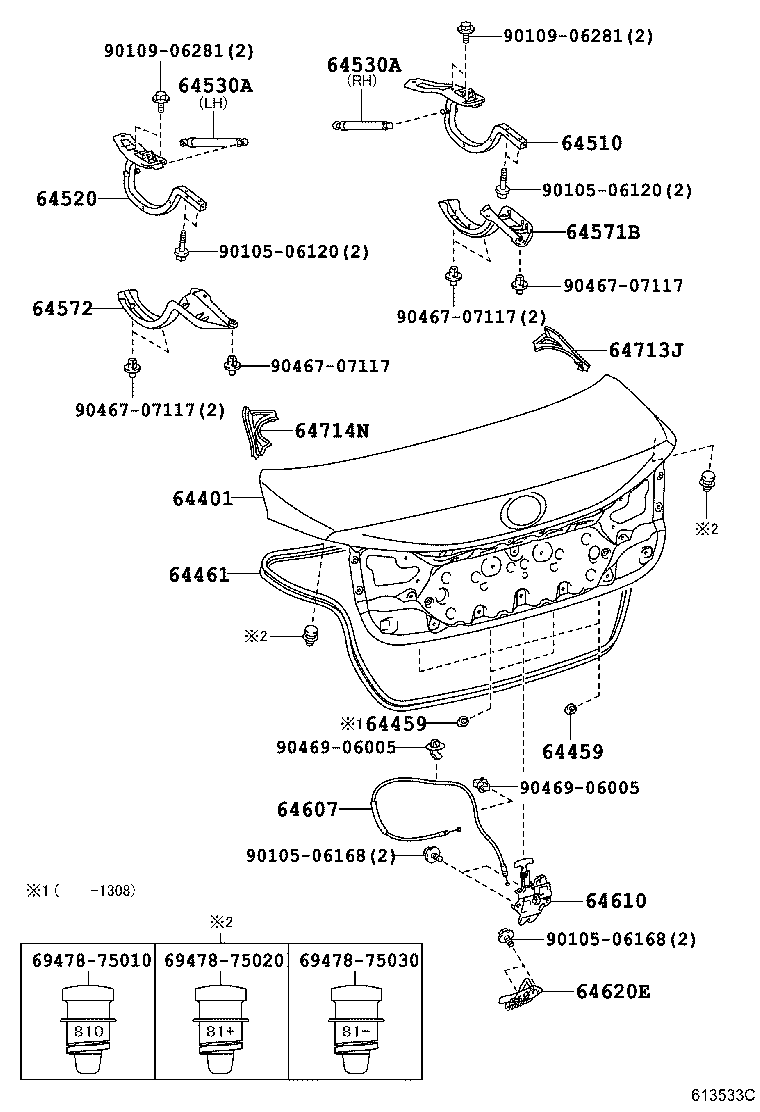

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-75030 |
ANF10 |
1 | ||
| 64401-75090 |
ANF10 ﾘﾔｽﾎﾟｲﾗ−有り(ﾗｯｹﾞｰｼﾞ&ﾊﾞﾝﾊﾟ) |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09124 |
ANF10 |
4 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09124 |
ANF10 |
4 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-75010 |
ANF10 |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-75010 |
ANF10 |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-75010 |
ANF10 |
1 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64530-75050 |
ANF10 ﾘﾔｽﾎﾟｲﾗ−有り(ﾗｯｹﾞｰｼﾞ&ﾊﾞﾝﾊﾟ),右側 |
1 | ||
| 64530-75061 |
ANF10 右側 |
1 | ||
| 64530-75051 |
ANF10 ﾘﾔｽﾎﾟｲﾗ−有り(ﾗｯｹﾞｰｼﾞ&ﾊﾞﾝﾊﾟ),右側 |
1 | ||
| 64540-75060 |
ANF10 左側 |
1 | ||
| 64540-75050 |
ANF10 ﾘﾔｽﾎﾟｲﾗ−有り(ﾗｯｹﾞｰｼﾞ&ﾊﾞﾝﾊﾟ),左側 |
1 | ||
| 64540-75051 |
ANF10 ﾘﾔｽﾎﾟｲﾗ−有り(ﾗｯｹﾞｰｼﾞ&ﾊﾞﾝﾊﾟ),左側 |
1 | ||
| 64540-75061 |
ANF10 左側 |
1 | ||
| 64530-75060 |
ANF10 右側 |
1 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64530-75050 |
ANF10 ﾘﾔｽﾎﾟｲﾗ−有り(ﾗｯｹﾞｰｼﾞ&ﾊﾞﾝﾊﾟ),右側 |
1 | ||
| 64530-75061 |
ANF10 右側 |
1 | ||
| 64530-75051 |
ANF10 ﾘﾔｽﾎﾟｲﾗ−有り(ﾗｯｹﾞｰｼﾞ&ﾊﾞﾝﾊﾟ),右側 |
1 | ||
| 64540-75060 |
ANF10 左側 |
1 | ||
| 64540-75050 |
ANF10 ﾘﾔｽﾎﾟｲﾗ−有り(ﾗｯｹﾞｰｼﾞ&ﾊﾞﾝﾊﾟ),左側 |
1 | ||
| 64540-75051 |
ANF10 ﾘﾔｽﾎﾟｲﾗ−有り(ﾗｯｹﾞｰｼﾞ&ﾊﾞﾝﾊﾟ),左側 |
1 | ||
| 64540-75061 |
ANF10 左側 |
1 | ||
| 64530-75060 |
ANF10 右側 |
1 | ||
| 64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64571-75010 |
ANF10 |
1 | ||
| 64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64572-75010 |
ANF10 |
1 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-75010 |
ANF10 |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-75010 |
ANF10 |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-51010 |
ANF10 |
1 | ||
| 64713J - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH | ||||
| 64713-75030 |
ANF10 |
1 | ||
| 64714N - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH | ||||
| 64714-75010 |
ANF10 |
1 | ||
| Common parts | ||||
| 69478-75010 | ||||
| 69478-75020 | ||||
| 69478-75030 | ||||
| 90105-06120 | ||||
| 90105-06168 | ||||
| 90109-06281 | ||||
| 90467-07117 | ||||
| 90469-06005 | ||||
