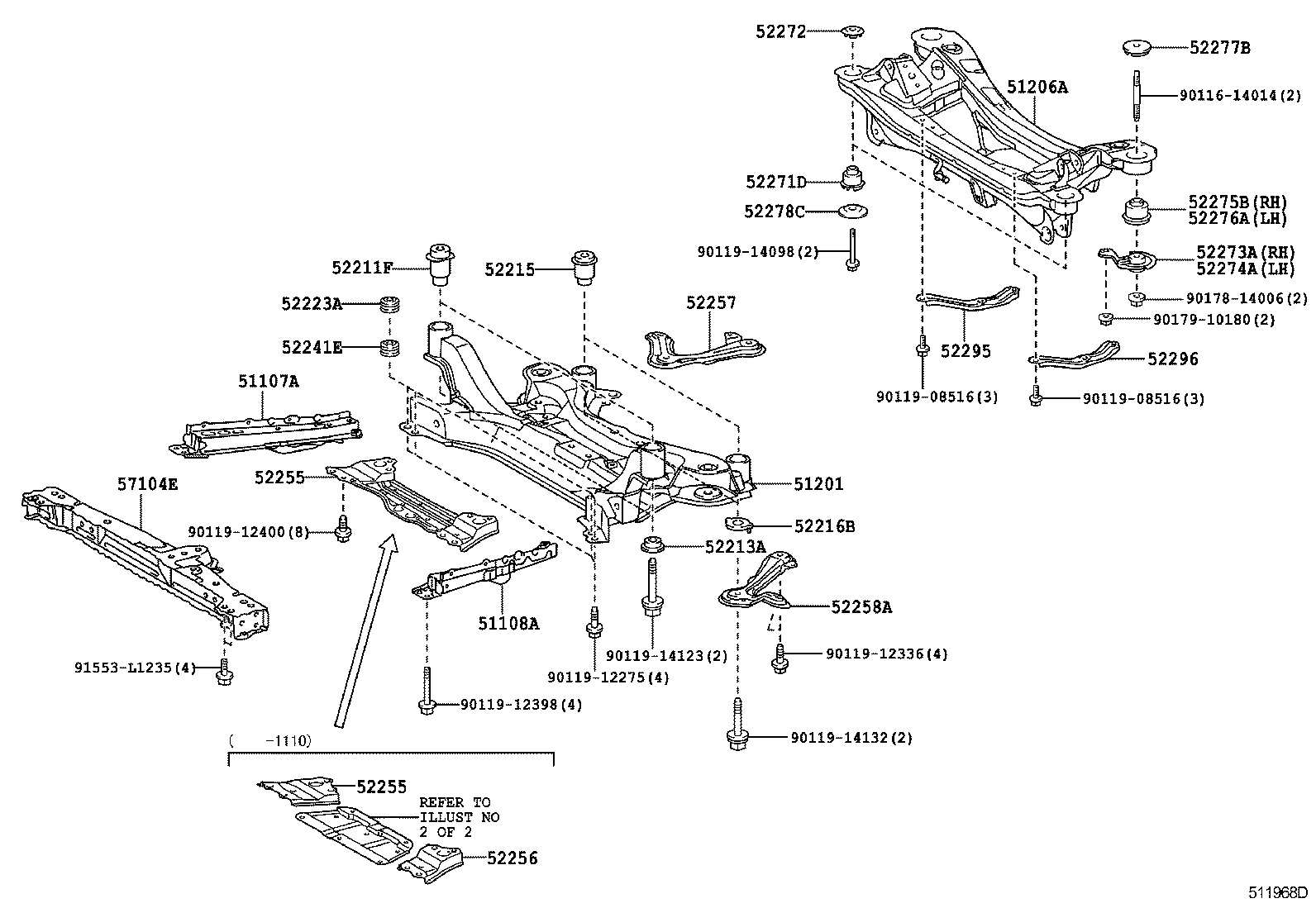

Toyota Lexus hs250h ANF10 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-28030	ANF10	07/2009 - 01/2013	1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-28030	ANF10	07/2009 - 01/2013	1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-72010	ANF10	07/2009 - 12/2009	1
51201-72011	ANF10	12/2009 - 01/2013	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-75020	ANF10	08/2010 - 01/2013	1
51206-75011	ANF10	07/2009 - 08/2010	1
52211F - CUSHION, BODY MOUNTING, FRONT UPPER
52211-75020	ANF10	07/2009 - 01/2013	2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-28040	ANF10	07/2009 - 01/2013	2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-75010	ANF10	07/2009 - 01/2013	2
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-28030	ANF10	07/2009 - 01/2013	2
52223A - SPACER, CAB REAR MOUNTING, LOWER
52223-28010	ANF10	07/2009 - 01/2013	4
52241E - CUSHION, CAB REAR MOUNTING
52241-28010	ANF10	07/2009 - 01/2013	4
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-76010	ANF10	10/2011 - 01/2013	1
52255-12010	ANF10	07/2009 - 10/2011	1
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-76010	ANF10	10/2011 - 01/2013	1
52255-12010	ANF10	07/2009 - 10/2011	1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-12010	ANF10	07/2009 - 10/2011	1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-72022	ANF10	07/2009 - 01/2013	1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-72022	ANF10	07/2009 - 01/2013	1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-75010	ANF10	07/2009 - 01/2013	2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-75010	ANF10	07/2009 - 01/2013	2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52203-12010	ANF10	07/2009 - 01/2013	1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52203-12010	ANF10	07/2009 - 01/2013	1
52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH
52275-75010	ANF10	07/2009 - 01/2013	1
52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52276-75010	ANF10	07/2009 - 01/2013	1
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-75010	ANF10	07/2009 - 01/2013	2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-75010	ANF10	07/2009 - 01/2013	2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-12051	ANF10	07/2009 - 01/2013	1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-12051	ANF10	07/2009 - 01/2013	1
57104E - MEMBER SUB-ASSY, FRONT CROSS
57104-12270	ANF10	07/2009 - 01/2013	1
Common parts
90116-14014
90119-08516
90119-12275
90119-12336
90119-12398
90119-12400
90119-14098
90119-14123
90119-14132
90178-14006
90179-10180
91553-L1235

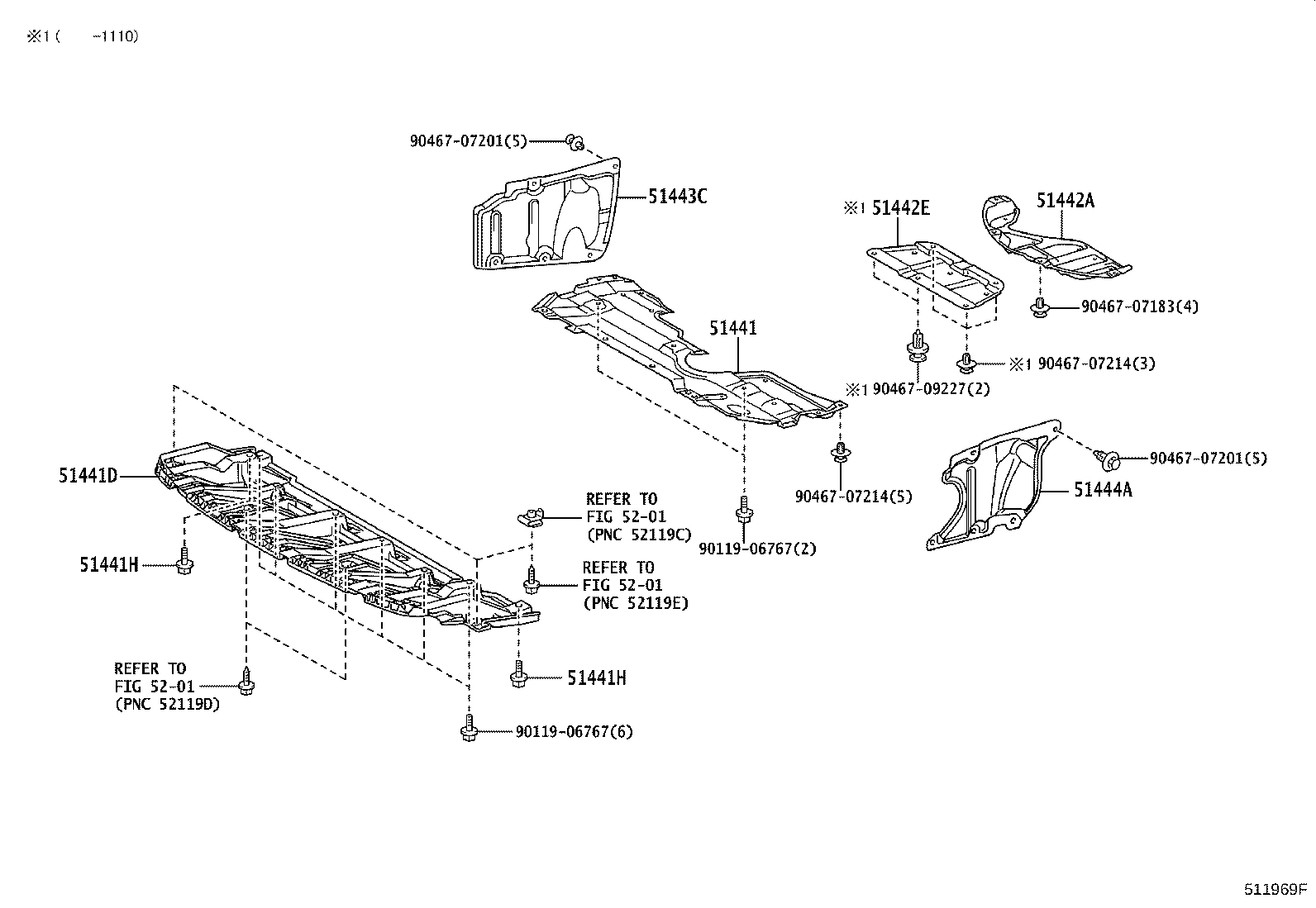

Part #	Description	Period	Qty
51441 - COVER, ENGINE UNDER, NO.1
51441-12270	ANF10	07/2009 - 01/2013	1
51441D - COVER, ENGINE UNDER
52618-75030	ANF10	07/2009 - 01/2013	1
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ANF10	07/2009 - 01/2013	2
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90119-06767	ANF10	07/2009 - 01/2013	2
51442A - COVER, ENGINE UNDER, FRONT NO.3
51442-12210	ANF10	07/2009 - 01/2013	1
51442E - COVER, ENGINE UNDER, NO.2
51442-12270	ANF10	07/2009 - 10/2011	1
51443C - COVER, ENGINE UNDER, REAR RH
51443-12080	ANF10	07/2009 - 01/2013	1
51444A - COVER, ENGINE UNDER, REAR LH
51444-75010	ANF10	07/2009 - 01/2013	1
Common parts
90119-06767
90467-07183
90467-07201
90467-07214
90467-09227
Linked diagrams
5201

ANF10-AEXVB (2009)

ILLUST NO. 1 OF 2(0907-1301)

ILLUST NO. 2 OF 2(0907-1301)
