ANF10-AEXVB (2009)
Toyota Lexus Hs250h
Production
Jul 2009
-
Jan 2013
Engine
2AZFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0907- )

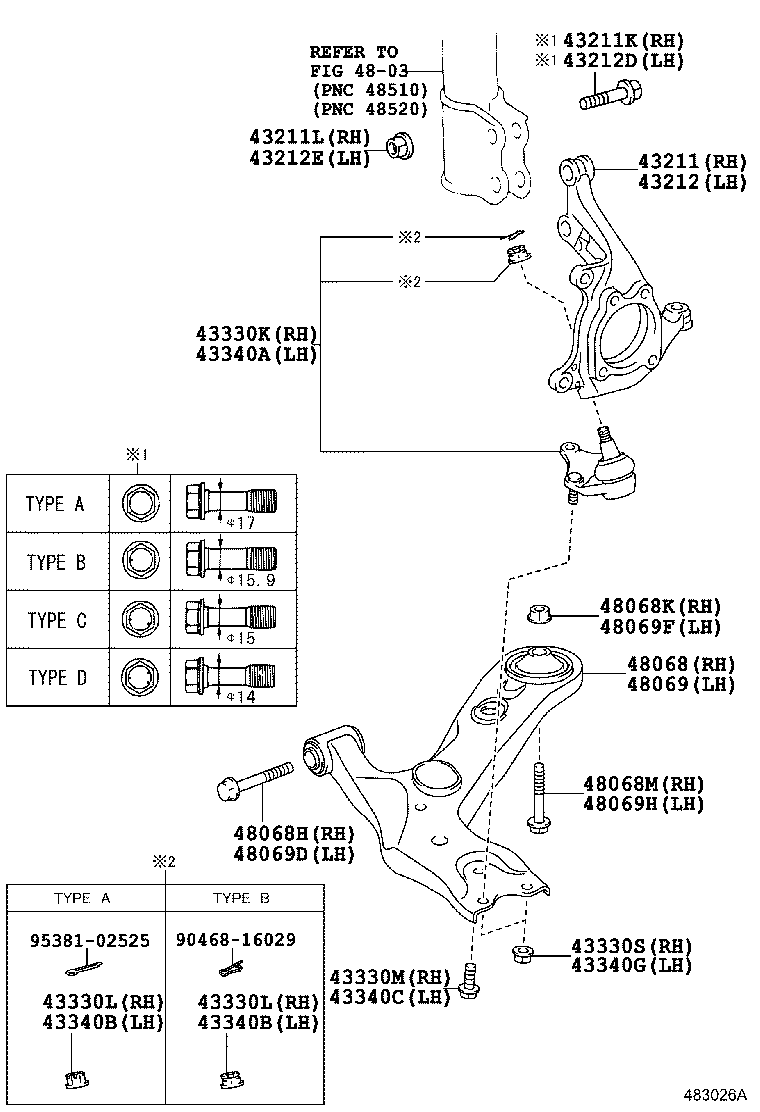

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-42081 |
ANF10 |
1 | ||
| 43211-42080 |
ANF10 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17012 |
ANF10 外径=17,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90105-17008 |
ANF10 外径=17,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90105-17009 |
ANF10 外径=15.9,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17010 |
ANF10 外径=15,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17011 |
ANF10 外径=14,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90178-17002 |
ANF10 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-42081 |
ANF10 |
1 | ||
| 43212-42080 |
ANF10 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17011 |
ANF10 外径=14,TYPE D:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17008 |
ANF10 外径=17 |
2 | ||
| 90105-17009 |
ANF10 外径=15.9,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17010 |
ANF10 外径=15,TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 90105-17012 |
ANF10 外径=17 |
2 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90178-17002 |
ANF10 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-49195 |
ANF10 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
ANF10 ﾀｲﾌﾟ A |
1 | ||
| 90171-14011 |
ANF10 ﾀｲﾌﾟ B |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
ANF10 ﾀｲﾌﾟ A |
1 | ||
| 90171-14011 |
ANF10 ﾀｲﾌﾟ B |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12346 |
ANF10 |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90178-12019 |
ANF10 |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-49195 |
ANF10 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
ANF10 ﾀｲﾌﾟ A |
1 | ||
| 90171-14011 |
ANF10 ﾀｲﾌﾟ B |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
ANF10 ﾀｲﾌﾟ A |
1 | ||
| 90171-14011 |
ANF10 ﾀｲﾌﾟ B |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12346 |
ANF10 |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90178-12019 |
ANF10 |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-12300 |
ANF10 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-16090 |
ANF10 |
1 | ||
| 91554-L1690 |
ANF10 |
1 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90178-16006 |
ANF10 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-16090 |
ANF10 |
1 | ||
| 91554-L1690 |
ANF10 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-12300 |
ANF10 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 91554-L1690 |
ANF10 |
1 | ||
| 90105-16090 |
ANF10 |
1 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90178-16006 |
ANF10 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 91554-L1690 |
ANF10 |
1 | ||
| 90105-16090 |
ANF10 |
1 | ||
| Common parts | ||||
| 90468-16029 | ||||
| 95381-02525 | ||||
| Linked diagrams | ||||
| 4803 | ||||
