ANF10-AEXVB (2009)

Toyota Lexus Hs250h

Production Jul 2009 - Jan 2013
Engine 2AZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

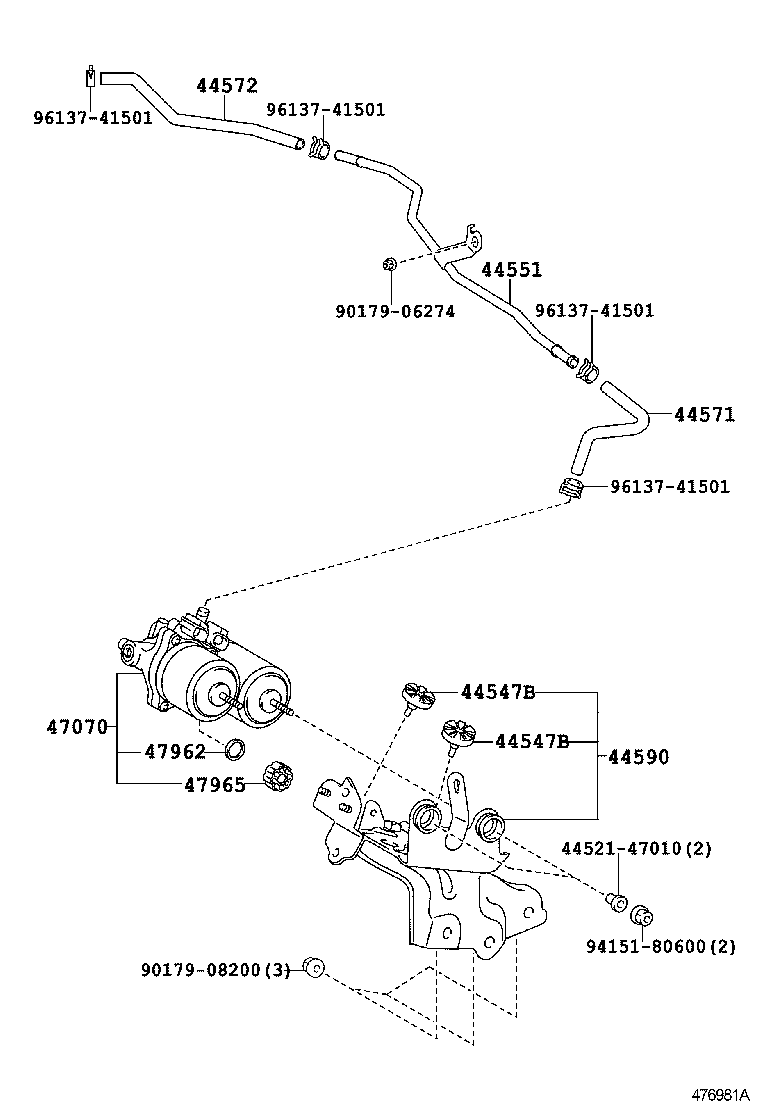

ILLUST NO. 2 OF 2(0907- )

Click highlighted areas on diagram

diagram 4452147010 44547B 44547B 44551 44571 44572 44590 47070 47962 47965 9017906274 9017908200 9415180600 9613741501 9613741501 9613741501 9613741501
Part # Description Qty Price
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47070

ANF10

 2
47131-47080

ANF10

 2
47131-47070

ANF10

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
47131-47070

ANF10

 2
47131-47080

ANF10

 2
47131-47070

ANF10

 2
44551 - TUBE, BRAKE ACTUATOR, NO.1
44551-47040

ANF10

 1
44571 - HOSE, BRAKE ACTUATOR
44571-47040

ANF10

 1
44572 - HOSE, BRAKE ACTUATOR, NO.2
44572-75010

ANF10

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-75010

ANF10

 1
47070 - PUMP ASSY, BRAKE BOOSTER
47070-47060

ANF10

 1
47962 - COLLAR, BRAKE BOOSTER PUMP
47962-60090

ANF10

 1
47965 - BUSH, BRAKE BOOSTER PUMP
47965-30010

ANF10

 2
Common parts
44521-47010
90179-06274
90179-08200
94151-80600
96137-41501

ILLUST NO. 1 OF 2(0907- )

Click highlighted areas on diagram

diagram 4702 47311 47311A 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47351B 47352B 47352B 47371A 47371B 47371C 47371F 47371G 47372 47373B 47374B 47375 47381 9011908C39 9011908C39 9011908C40 9011908C40 9046808035 9046808035 9046808035 9046808035 9167180614 9167180614 9167180616 9167180816 9167180816 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-75030

ANF10

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10279

ANF10

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-75010

ANF10

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02F97

ANF10

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ANF10

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ANF10

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02F98

ANF10

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ANF10

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ANF10

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-75010

ANF10

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-75010

ANF10

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-75010

ANF10

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ANF10

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ANF10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ANF10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ANF10

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G67

ANF10

 1
90947-02F99

ANF10

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G00

ANF10

 1
90947-02G68

ANF10

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-75010

ANF10

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-75010

ANF10

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-12210

ANF10

NO.1

 1
47351-12220

ANF10

NO.2

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-12210

ANF10

NO.1

 1
47351-12220

ANF10

NO.2

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-12190

ANF10

NO.2

 1
47352-12180

ANF10

NO.1

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-12190

ANF10

NO.2

 1
47352-12180

ANF10

NO.1

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00857

ANF10

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-47060

ANF10

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90461-10781

ANF10

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D17

ANF10

 7
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01D29

ANF10

 3
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00883

ANF10

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D08

ANF10

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D63

ANF10

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D77

ANF10

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-75010

ANF10

 1
Common parts
90119-08C39
90119-08C40
90468-08035
91671-80614
91671-80616
91671-80816
91671-A0616
Linked diagrams
4702
