ANF10-AEXVB (2009)
Toyota Lexus Hs250h

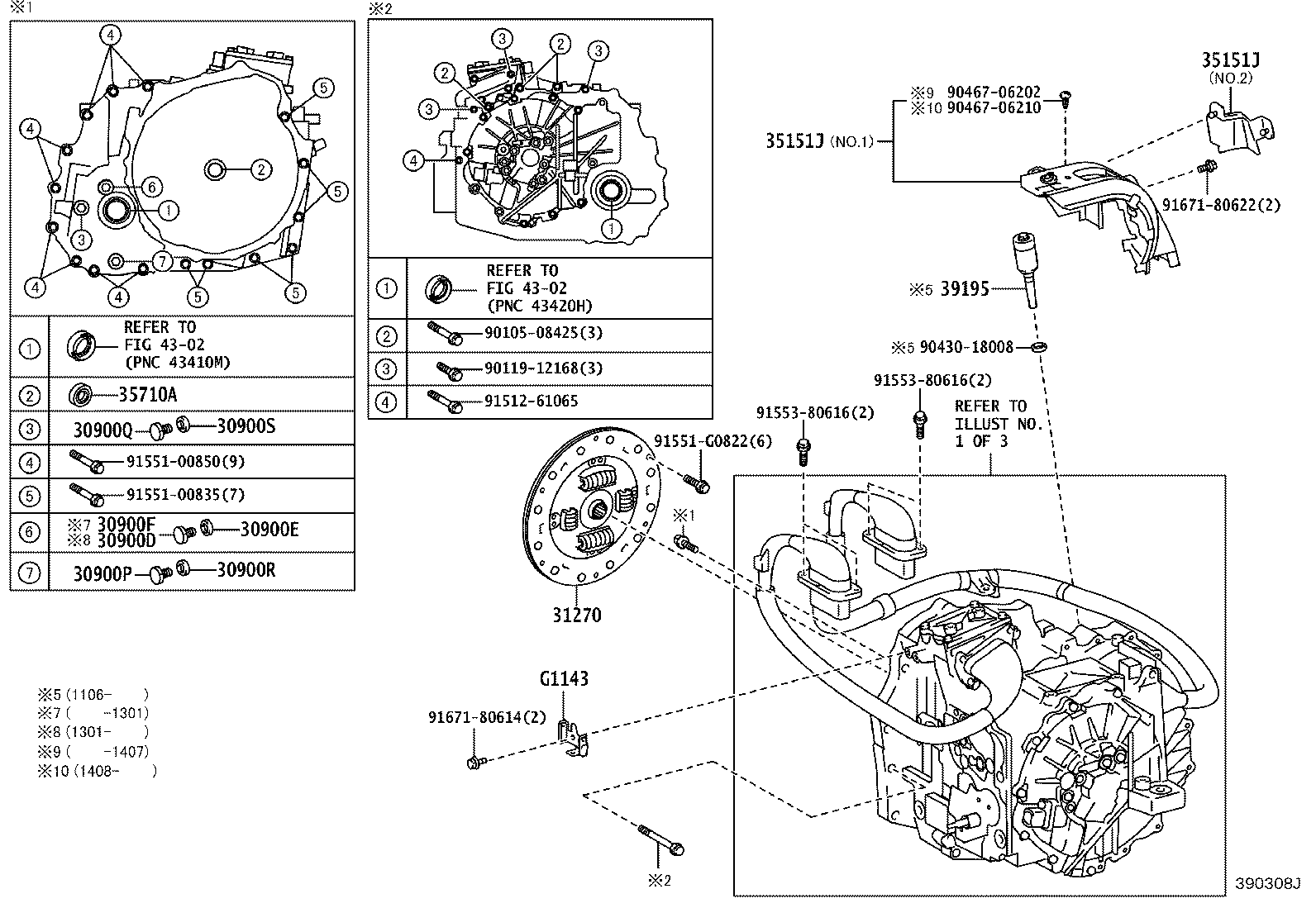

ILLUST NO. 2 OF 3(0907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
ANF10 |
2 | ||
| 30900F - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & C | ||||
| 90341-18016 |
ANF10 |
2 | ||
| 30900P - PLUG, DRAIN(HV) | ||||
| 90341-18016 |
ANF10 |
1 | ||
| 30900Q - PLUG, FILLER(HV) | ||||
| 90341-18016 |
ANF10 |
1 | ||
| 30900R - GASKET, DRAIN PLUG(HV) | ||||
| 90430-18008 |
ANF10 |
1 | ||
| 30900S - GASKET, FILLER PLUG(HV) | ||||
| 90430-18008 |
ANF10 |
1 | ||
| 31270 - DAMPER ASSY, TRANSMISSION INPUT | ||||
| 31270-33010 |
ANF10 |
1 | ||
| 35151J - COVER, AUTOMATIC TRANSMISSION CASE | ||||
| 35151-33090 |
ANF10 NO.2 |
1 | ||
| 35151-75010 |
ANF10 NO.1 |
1 | ||
| 35151J - COVER, AUTOMATIC TRANSMISSION CASE | ||||
| 35151-33090 |
ANF10 NO.2 |
1 | ||
| 35151-75010 |
ANF10 NO.1 |
1 | ||
| 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) | ||||
| 90311-25027 |
ANF10 |
1 | ||
| 39195 - DAMPER, HV TRANSAXLE MASS | ||||
| 39195-33010 |
ANF10 |
1 | ||
| G1143 - BRACKET, MOTOR CABLE | ||||
| G1143-75020 |
ANF10 |
1 | ||
| Common parts | ||||
| 90105-08425 | ||||
| 90119-12168 | ||||
| 90430-18008 | ||||
| 90467-06202 | ||||
| 90467-06210 | ||||
| 91512-61065 | ||||
| 91551-00835 | ||||
| 91551-00850 | ||||
| 91551-G0822 | ||||
| 91553-80616 | ||||
| 91671-80614 | ||||
| 91671-80622 | ||||
| Linked diagrams | ||||
| 4302 | ||||
ILLUST NO. 3 OF 3(0907- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G2100C - GENERATOR ASSY, HYBRID VEHICLE | ||||
| G2100-75020 |
ANF10 |
1 | ||

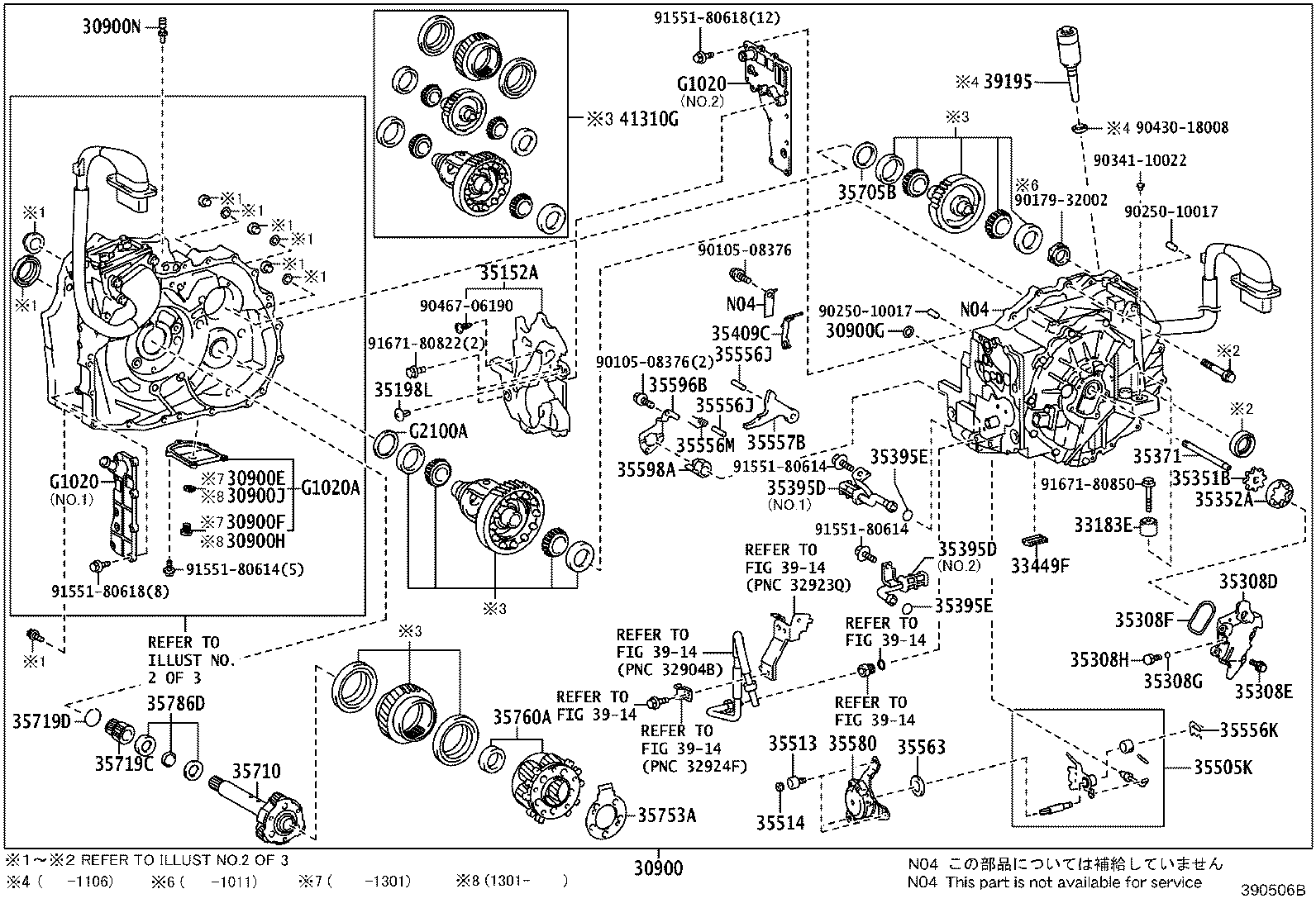

ILLUST NO. 1 OF 3(0907-1510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900 - TRANSAXLE ASSY, HYBRID VEHICLE | ||||
| 30900-75020 |
ANF10 |
1 | ||
| 30900-75040 |
ANF10 |
1 | ||
| 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
ANF10 |
2 | ||
| 30900F - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & C | ||||
| 90341-18016 |
ANF10 |
2 | ||
| 30900G - GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) | ||||
| 35145-48010 |
ANF10 |
1 | ||
| 30900N - PLUG, BREATHER(FOR TRANSAXLE) | ||||
| 90930-03179 |
ANF10 |
1 | ||
| 33183E - DAMPER, DYNAMIC | ||||
| 33183-48010 |
ANF10 |
1 | ||
| 33449F - MAGNET, TRANSMISSION NO.1 | ||||
| 33449-33010 |
ANF10 |
1 | ||
| 33449-12020 |
ANF10 |
1 | ||
| 35152A - COVER, AUTOMATIC TRANSMISSION CASE, NO.2 | ||||
| 35151-75020 |
ANF10 |
1 | ||
| 35198L - CLIP, WIRE HARNESS BRACKET CLAMP | ||||
| 90467-05063C0 |
ANF10 BLACK |
1 | ||
| 35308D - COVER SUB-ASSY, TRANSMISSION OIL PUMP | ||||
| 35308-33011 |
ANF10 |
1 | ||
| 35308-33010 |
ANF10 |
1 | ||
| 35308E - BOLT, W/WASHER (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90105-06300 |
ANF10 |
5 | ||
| 35308F - RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90903-01009 |
ANF10 |
1 | ||
| 35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-06196 |
ANF10 |
1 | ||
| 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90341-08001 |
ANF10 |
1 | ||
| 35351B - ROTOR, TRANSAXLE OIL PUMP DRIVE | ||||
| 35351-47030 |
ANF10 |
1 | ||
| 35352A - ROTOR, TRANSMISSION OIL PUMP DRIVEN | ||||
| 35352-47020 |
ANF10 |
1 | ||
| 35371 - SHAFT, OIL PUMP DRIVE | ||||
| 35371-33060 |
ANF10 |
1 | ||
| 35371-33050 |
ANF10 |
1 | ||
| 35395D - STRAINER, TRANSMISSION OIL | ||||
| 35395-33010 |
ANF10 NO.1 |
1 | ||
| 35395-48020 |
ANF10 NO.2 |
1 | ||
| 35395-48010 |
ANF10 NO.1 |
1 | ||
| 35395D - STRAINER, TRANSMISSION OIL | ||||
| 35395-33010 |
ANF10 NO.1 |
1 | ||
| 35395-48020 |
ANF10 NO.2 |
1 | ||
| 35395-48010 |
ANF10 NO.1 |
1 | ||
| 35395E - RING, O(FOR TRANSAXLE OIL STRAINER) | ||||
| 90301-11019 |
ANF10 |
2 | ||
| 35395E - RING, O(FOR TRANSAXLE OIL STRAINER) | ||||
| 90301-11019 |
ANF10 |
2 | ||
| 35409C - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-75010 |
ANF10 |
1 | ||
| 35505K - LEVER SUB-ASSY, PARKING LOCK, NO.1 | ||||
| 35505-79005 |
ANF10 |
1 | ||
| 35513 - BOLT, SHIFT CONTROL ACTUATOR | ||||
| 35513-47010 |
ANF10 |
3 | ||
| 35514 - CAP, SHIFT CONTROL ACTUATOR BOLT | ||||
| 35514-47010 |
ANF10 |
3 | ||
| 35556J - SHAFT, PARKING LOCK PAWL | ||||
| 35556-48010 |
ANF10 |
2 | ||
| 35556J - SHAFT, PARKING LOCK PAWL | ||||
| 35556-48010 |
ANF10 |
2 | ||
| 35556K - SPRING, RETAINER | ||||
| 90524-09001 |
ANF10 |
1 | ||
| 35556M - SPRING, TORSION | ||||
| 90949-03134 |
ANF10 |
1 | ||
| 35557B - PAWL, PARKING LOCK | ||||
| 35557-48010 |
ANF10 |
1 | ||
| 35563 - SEAL, SHIFT CONTROL ACTUATOR | ||||
| 35563-75010 |
ANF10 |
1 | ||
| 35580 - ACTUATOR ASSY, SHIFT CONTROL | ||||
| 35580-75010 |
ANF10 |
1 | ||
| 35596B - PLATE, PAWL STOPPER | ||||
| 35596-48010 |
ANF10 |
1 | ||
| 35598A - SLEEVE, PARKING LOCK | ||||
| 35598-47020 |
ANF10 |
1 | ||
| 35705B - SHIM(FOR COUNTER DRIVEN GEAR) | ||||
| 90564-60104 |
ANF10 厚さ=1.83,ﾏｰｸ 5 |
1 | ||
| 90564-60100 |
ANF10 厚さ=1.75,ﾏｰｸ 1 |
1 | ||
| 90564-60105 |
ANF10 厚さ=1.85,ﾏｰｸ 6 |
1 | ||
| 90564-60107 |
ANF10 厚さ=1.89,ﾏｰｸ 8 |
1 | ||
| 90564-60108 |
ANF10 厚さ=1.91,ﾏｰｸ 9 |
1 | ||
| 90564-60103 |
ANF10 厚さ=1.81,ﾏｰｸ 4 |
1 | ||
| 90564-60101 |
ANF10 厚さ=1.77,ﾏｰｸ 2 |
1 | ||
| 90564-60106 |
ANF10 厚さ=1.87,ﾏｰｸ 7 |
1 | ||
| 90564-60109 |
ANF10 厚さ=1.93,ﾏｰｸ 10 |
1 | ||
| 90564-60114 |
ANF10 厚さ=2.03,ﾏｰｸ 15 |
1 | ||
| 90564-60113 |
ANF10 厚さ=2.01,ﾏｰｸ 14 |
1 | ||
| 90564-60112 |
ANF10 厚さ=1.99,ﾏｰｸ 13 |
1 | ||
| 90564-60121 |
ANF10 厚さ=2.17,ﾏｰｸ 22 |
1 | ||
| 90564-60110 |
ANF10 厚さ=1.95,ﾏｰｸ 11 |
1 | ||
| 90564-60123 |
ANF10 厚さ=2.21,ﾏｰｸ 24 |
1 | ||
| 90564-60122 |
ANF10 厚さ=2.19,ﾏｰｸ 23 |
1 | ||
| 90564-60124 |
ANF10 厚さ=2.23,ﾏｰｸ 25 |
1 | ||
| 90564-60129 |
ANF10 厚さ=2.33,ﾏｰｸ 30 |
1 | ||
| 90564-60118 |
ANF10 厚さ=2.11,ﾏｰｸ 19 |
1 | ||
| 90564-60115 |
ANF10 厚さ=2.05,ﾏｰｸ 16 |
1 | ||
| 90564-60116 |
ANF10 厚さ=2.07,ﾏｰｸ 17 |
1 | ||
| 90564-60130 |
ANF10 厚さ=2.35,ﾏｰｸ 31 |
1 | ||
| 90564-60132 |
ANF10 厚さ=2.39,ﾏｰｸ 33 |
1 | ||
| 90564-60119 |
ANF10 厚さ=2.13,ﾏｰｸ 20 |
1 | ||
| 90564-60102 |
ANF10 厚さ=1.79,ﾏｰｸ 3 |
1 | ||
| 90564-60127 |
ANF10 厚さ=2.29,ﾏｰｸ 28 |
1 | ||
| 90564-60111 |
ANF10 厚さ=1.97,ﾏｰｸ 12 |
1 | ||
| 90564-60133 |
ANF10 厚さ=2.41,ﾏｰｸ 34 |
1 | ||
| 90564-60137 |
ANF10 厚さ=2.49,ﾏｰｸ 38 |
1 | ||
| 90564-60138 |
ANF10 厚さ=2.51,ﾏｰｸ 39 |
1 | ||
| 90564-60134 |
ANF10 厚さ=2.43,ﾏｰｸ 35 |
1 | ||
| 90564-60125 |
ANF10 厚さ=2.25,ﾏｰｸ 26 |
1 | ||
| 90564-60144 |
ANF10 厚さ=2.63,ﾏｰｸ 45 |
1 | ||
| 90564-60140 |
ANF10 厚さ=2.55,ﾏｰｸ 41 |
1 | ||
| 90564-60142 |
ANF10 厚さ=2.59,ﾏｰｸ 43 |
1 | ||
| 90564-60128 |
ANF10 厚さ=2.31,ﾏｰｸ 29 |
1 | ||
| 90564-60147 |
ANF10 厚さ=2.69,ﾏｰｸ 48 |
1 | ||
| 90564-60136 |
ANF10 厚さ=2.47,ﾏｰｸ 37 |
1 | ||
| 90564-60145 |
ANF10 厚さ=2.65,ﾏｰｸ 46 |
1 | ||
| 90564-60120 |
ANF10 厚さ=2.15,ﾏｰｸ 21 |
1 | ||
| 90564-60131 |
ANF10 厚さ=2.37,ﾏｰｸ 32 |
1 | ||
| 90564-60141 |
ANF10 厚さ=2.57,ﾏｰｸ 42 |
1 | ||
| 90564-60117 |
ANF10 厚さ=2.09,ﾏｰｸ 18 |
1 | ||
| 90564-60150 |
ANF10 厚さ=2.75,ﾏｰｸ 51 |
1 | ||
| 90564-60139 |
ANF10 厚さ=2.53,ﾏｰｸ 40 |
1 | ||
| 90564-60143 |
ANF10 厚さ=2.61,ﾏｰｸ 44 |
1 | ||
| 90564-60135 |
ANF10 厚さ=2.45,ﾏｰｸ 36 |
1 | ||
| 90564-60149 |
ANF10 厚さ=2.73,ﾏｰｸ 50 |
1 | ||
| 90564-60146 |
ANF10 厚さ=2.67,ﾏｰｸ 47 |
1 | ||
| 90564-60126 |
ANF10 厚さ=2.27,ﾏｰｸ 27 |
1 | ||
| 90564-60148 |
ANF10 厚さ=2.71,ﾏｰｸ 49 |
1 | ||
| 90564-60153 |
ANF10 厚さ=2.81,ﾏｰｸ 54 |
1 | ||
| 90564-60152 |
ANF10 厚さ=2.79,ﾏｰｸ 53 |
1 | ||
| 90564-60151 |
ANF10 厚さ=2.77,ﾏｰｸ 52 |
1 | ||
| 35710 - SHAFT ASSY, INPUT | ||||
| 35710-33040 |
ANF10 |
1 | ||
| 35710-33030 |
ANF10 |
1 | ||
| 35719C - GEAR, PLANETARY SUN | ||||
| 35719-48010 |
ANF10 |
1 | ||
| 35719D - RING, SNAP(FOR PLANETARY SUN GEAR) | ||||
| 90520-37021 |
ANF10 厚さ=4.00,ﾏｰｸ 5 |
1 | ||
| 90520-37018 |
ANF10 厚さ=3.91,ﾏｰｸ 2 |
1 | ||
| 90520-37025 |
ANF10 厚さ=4.12,ﾏｰｸ 9 |
1 | ||
| 90520-37024 |
ANF10 厚さ=4.09,ﾏｰｸ 8 |
1 | ||
| 90520-37019 |
ANF10 厚さ=3.94,ﾏｰｸ 3 |
1 | ||
| 90520-37017 |
ANF10 厚さ=3.88,ﾏｰｸ 1 |
1 | ||
| 90520-37026 |
ANF10 厚さ=4.15,ﾏｰｸ 10 |
1 | ||
| 90520-37020 |
ANF10 厚さ=3.97,ﾏｰｸ 4 |
1 | ||
| 90520-37028 |
ANF10 厚さ=4.21,ﾏｰｸ 12 |
1 | ||
| 90520-37027 |
ANF10 厚さ=4.18,ﾏｰｸ 11 |
1 | ||
| 90520-37033 |
ANF10 厚さ=4.33,ﾏｰｸ 16 |
1 | ||
| 90520-37029 |
ANF10 厚さ=4.24,ﾏｰｸ 13 |
1 | ||
| 90520-37039 |
ANF10 厚さ=4.51,ﾏｰｸ 22 |
1 | ||
| 90520-37043 |
ANF10 厚さ=4.63,ﾏｰｸ 26 |
1 | ||
| 90520-37034 |
ANF10 厚さ=4.36,ﾏｰｸ 17 |
1 | ||
| 90520-37023 |
ANF10 厚さ=4.06,ﾏｰｸ 7 |
1 | ||
| 90520-37031 |
ANF10 厚さ=4.30,ﾏｰｸ 15 |
1 | ||
| 90520-37036 |
ANF10 厚さ=4.42,ﾏｰｸ 19 |
1 | ||
| 90520-37040 |
ANF10 厚さ=4.54,ﾏｰｸ 23 |
1 | ||
| 90520-37030 |
ANF10 厚さ=4.27,ﾏｰｸ 14 |
1 | ||
| 90520-37041 |
ANF10 厚さ=4.57,ﾏｰｸ 24 |
1 | ||
| 90520-37035 |
ANF10 厚さ=4.39,ﾏｰｸ 18 |
1 | ||
| 90520-37038 |
ANF10 厚さ=4.48,ﾏｰｸ 21 |
1 | ||
| 90520-37042 |
ANF10 厚さ=4.60,ﾏｰｸ 25 |
1 | ||
| 90520-37045 |
ANF10 厚さ=4.69,ﾏｰｸ 28 |
1 | ||
| 90520-37022 |
ANF10 厚さ=4.03,ﾏｰｸ 6 |
1 | ||
| 90520-37044 |
ANF10 厚さ=4.66,ﾏｰｸ 27 |
1 | ||
| 90520-37046 |
ANF10 厚さ=4.72,ﾏｰｸ 29 |
1 | ||
| 90520-37037 |
ANF10 厚さ=4.45,ﾏｰｸ 20 |
1 | ||
| 35753A - RECEIVER, PLANETARY OIL | ||||
| 35753-48021 |
ANF10 |
1 | ||
| 35760A - GEAR ASSY, REAR PLANETARY NO.1 | ||||
| 35760-48030 |
ANF10 |
1 | ||
| 35786D - RACE, THRUST BEARING, NO.1(FOR INPUT SHAFT) | ||||
| 35786-49015 |
ANF10 |
1 | ||
| 39195 - DAMPER, HV TRANSAXLE MASS | ||||
| 39195-33010 |
ANF10 |
1 | ||
| 41310G - GEAR KIT, DIFFERENTIAL & COUNTER DRIVEN | ||||
| 41310-33901 |
ANF10 |
1 | ||
| G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 | ||||
| G1020-33010 |
ANF10 NO.1 |
1 | ||
| G1020-33010 |
ANF10 |
1 | ||
| G1020-48040 |
ANF10 NO.2 |
1 | ||
| G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 | ||||
| G1020-33010 |
ANF10 NO.1 |
1 | ||
| G1020-33010 |
ANF10 |
1 | ||
| G1020-48040 |
ANF10 NO.2 |
1 | ||
| G1020A - COVER ASSY, MOTOR WATER JACKET, NO.2 | ||||
| G1020-48030 |
ANF10 |
1 | ||
| G2100A - SHIM(FOR DIFFERENTIAL CASE RH) | ||||
| 90564-74003 |
ANF10 厚さ=2.04,ﾏｰｸ 3 |
1 | ||
| 90564-74008 |
ANF10 厚さ=2.14,ﾏｰｸ 8 |
1 | ||
| 90564-74014 |
ANF10 厚さ=2.26,ﾏｰｸ 14 |
1 | ||
| 90564-74001 |
ANF10 厚さ=2.00,ﾏｰｸ 1 |
1 | ||
| 90564-74009 |
ANF10 厚さ=2.16,ﾏｰｸ 9 |
1 | ||
| 90564-74018 |
ANF10 厚さ=2.34,ﾏｰｸ 18 |
1 | ||
| 90564-74002 |
ANF10 厚さ=2.02,ﾏｰｸ 2 |
1 | ||
| 90564-74010 |
ANF10 厚さ=2.18,ﾏｰｸ 10 |
1 | ||
| 90564-74020 |
ANF10 厚さ=2.38,ﾏｰｸ 20 |
1 | ||
| 90564-74006 |
ANF10 厚さ=2.10,ﾏｰｸ 6 |
1 | ||
| 90564-74012 |
ANF10 厚さ=2.22,ﾏｰｸ 12 |
1 | ||
| 90564-74016 |
ANF10 厚さ=2.30,ﾏｰｸ 16 |
1 | ||
| 90564-74007 |
ANF10 厚さ=2.12,ﾏｰｸ 7 |
1 | ||
| 90564-74025 |
ANF10 厚さ=2.48,ﾏｰｸ 25 |
1 | ||
| 90564-74022 |
ANF10 厚さ=2.42,ﾏｰｸ 22 |
1 | ||
| 90564-74004 |
ANF10 厚さ=2.06,ﾏｰｸ 4 |
1 | ||
| 90564-74017 |
ANF10 厚さ=2.32,ﾏｰｸ 17 |
1 | ||
| 90564-74021 |
ANF10 厚さ=2.40,ﾏｰｸ 21 |
1 | ||
| 90564-74028 |
ANF10 厚さ=2.54,ﾏｰｸ 28 |
1 | ||
| 90564-74027 |
ANF10 厚さ=2.52,ﾏｰｸ 27 |
1 | ||
| 90564-74031 |
ANF10 厚さ=2.60,ﾏｰｸ 31 |
1 | ||
| 90564-74013 |
ANF10 厚さ=2.24,ﾏｰｸ 13 |
1 | ||
| 90564-74036 |
ANF10 厚さ=2.70,ﾏｰｸ 36 |
1 | ||
| 90564-74023 |
ANF10 厚さ=2.44,ﾏｰｸ 23 |
1 | ||
| 90564-74032 |
ANF10 厚さ=2.62,ﾏｰｸ 32 |
1 | ||
| 90564-74035 |
ANF10 厚さ=2.68,ﾏｰｸ 35 |
1 | ||
| 90564-74026 |
ANF10 厚さ=2.50,ﾏｰｸ 26 |
1 | ||
| 90564-74015 |
ANF10 厚さ=2.28,ﾏｰｸ 15 |
1 | ||
| 90564-74029 |
ANF10 厚さ=2.56,ﾏｰｸ 29 |
1 | ||
| 90564-74019 |
ANF10 厚さ=2.36,ﾏｰｸ 19 |
1 | ||
| 90564-74030 |
ANF10 厚さ=2.58,ﾏｰｸ 30 |
1 | ||
| 90564-74005 |
ANF10 厚さ=2.08,ﾏｰｸ 5 |
1 | ||
| 90564-74042 |
ANF10 厚さ=2.82,ﾏｰｸ 42 |
1 | ||
| 90564-74034 |
ANF10 厚さ=2.66,ﾏｰｸ 34 |
1 | ||
| 90564-74024 |
ANF10 厚さ=2.46,ﾏｰｸ 24 |
1 | ||
| 90564-74041 |
ANF10 厚さ=2.80,ﾏｰｸ 41 |
1 | ||
| 90564-74011 |
ANF10 厚さ=2.20,ﾏｰｸ 11 |
1 | ||
| 90564-74033 |
ANF10 厚さ=2.64,ﾏｰｸ 33 |
1 | ||
| 90564-74044 |
ANF10 厚さ=2.86,ﾏｰｸ 44 |
1 | ||
| 90564-74039 |
ANF10 厚さ=2.76,ﾏｰｸ 39 |
1 | ||
| 90564-74040 |
ANF10 厚さ=2.78,ﾏｰｸ 40 |
1 | ||
| 90564-74043 |
ANF10 厚さ=2.84,ﾏｰｸ 43 |
1 | ||
| 90564-74037 |
ANF10 厚さ=2.72,ﾏｰｸ 37 |
1 | ||
| 90564-74038 |
ANF10 厚さ=2.74,ﾏｰｸ 38 |
1 | ||
| Common parts | ||||
| 90105-08376 | ||||
| 90179-32002 | ||||
| 90250-10017 | ||||
| 90341-10022 | ||||
| 90430-18008 | ||||
| 90467-06190 | ||||
| 91551-80614 | ||||
| 91551-80618 | ||||
| 91671-80822 | ||||
| 91671-80850 | ||||
| Linked diagrams | ||||
| 3914 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
