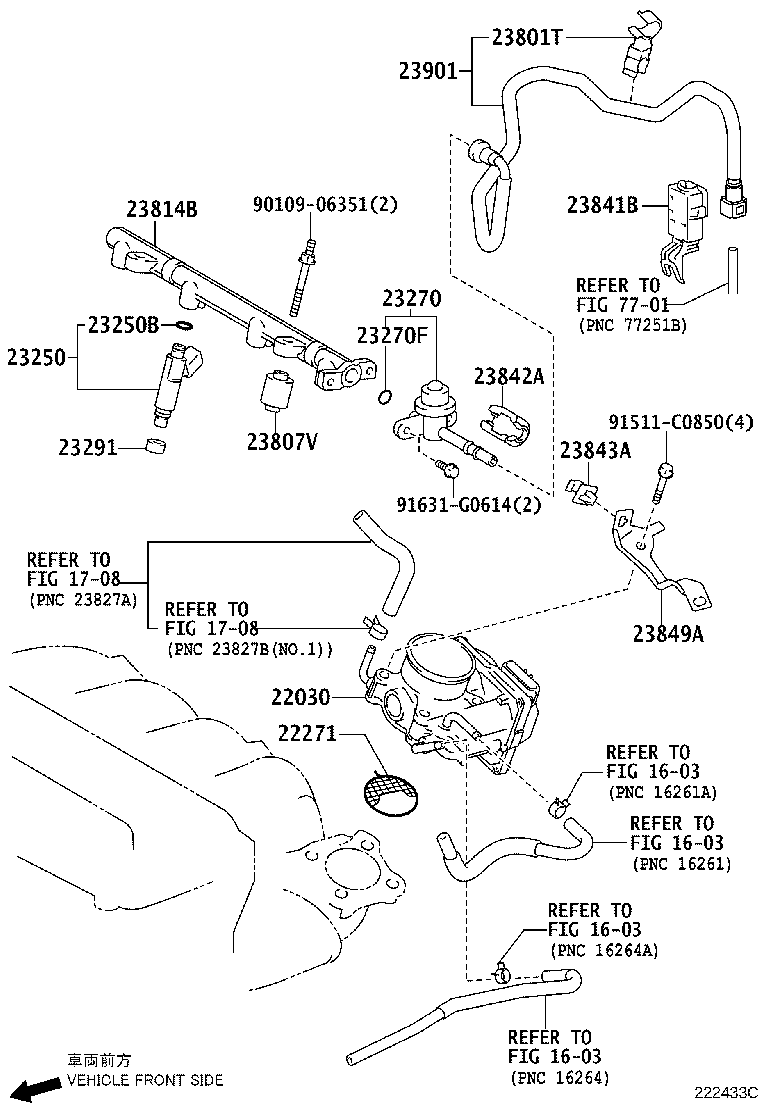

Toyota Lexus hs250h ANF10 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-28071	2AZFXE..ANF10	07/2009 - 01/2013	1
22271 - GASKET, THROTTLE BODY
22271-75031	2AZFXE..ANF10	07/2009 - 01/2013	1
23250 - INJECTOR ASSY, FUEL
23209-28060	2AZFXE..ANF10	07/2009 - 01/2013	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037	2AZFXE..ANF10	07/2009 - 01/2013	4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28052	2AZFXE..ANF10	07/2009 - 01/2013	1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037	2AZFXE..ANF10	07/2009 - 01/2013	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-28020	2AZFXE..ANF10	07/2009 - 01/2013	4
23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI)
23841-28060	2AZFXE..ANF10	07/2009 - 01/2013	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08053	2AZFXE..ANF10	07/2009 - 01/2013	2
23814B - PIPE, FUEL DELIVERY
23814-28031	2AZFXE..ANF10	07/2009 - 01/2013	1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-21040	2AZFXE..ANF10	07/2009 - 11/2012	1
23841-37090	2AZFXE..ANF10	11/2012 - 01/2013	1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-28010	2AZFXE..ANF10	07/2009 - 01/2013	1
23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI)
90469-12012	2AZFXE..ANF10	07/2009 - 01/2013	1
23849A - SUPPORT, FUEL PIPE
23849-28090	2AZFXE..ANF10	07/2009 - 01/2013	1
23901 - TUBE SUB-ASSY, FUEL
23901-28090	2AZFXE..ANF10	07/2009 - 01/2013	1
Common parts
90109-06351
91511-C0850
91631-G0614
Linked diagrams
1603
1708
7701

ANF10-AEXVB (2009)
