Toyota Lexus hs250h ANF10 ENGINE OIL COOLER

ANF10-AEXVB (2009)

Toyota Lexus Hs250h

Production Jul 2009 - Jan 2013

Engine 2AZFXE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

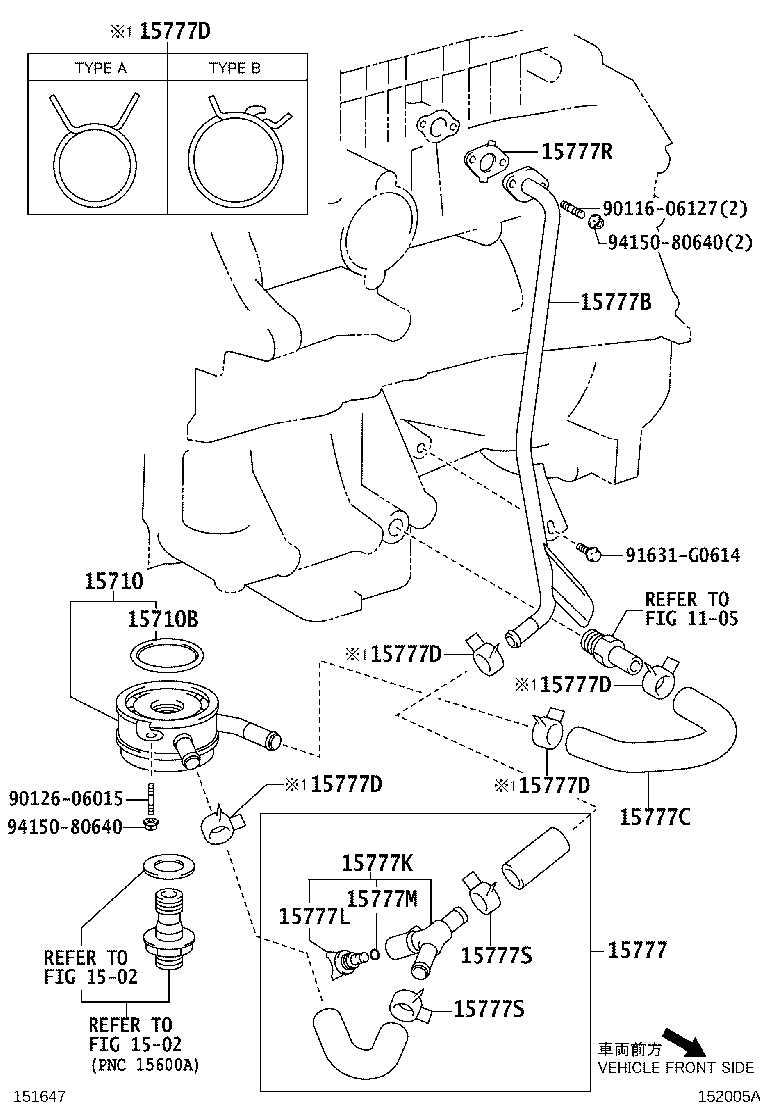

(0907-1212)

Click highlighted areas on diagram

Part #	Description	Period	Qty
15710 - COOLER ASSY, OIL
15710-28020	2AZFXE..ANF10	07/2009 - 01/2013	1
15710B - RING, O(FOR OIL COOLER)
90301-52006	2AZFXE..ANF10	07/2009 - 01/2013	1
15777 - HOSE, OIL COOLER
16267-28020	2AZFXE..ANF10	07/2009 - 12/2012	1
16267-28080	2AZFXE..ANF10	12/2012 - 01/2013	1
15777B - PIPE, OIL COOLER
16279-28010	2AZFXE..ANF10	07/2009 - 01/2013	1
15777C - HOSE, OIL COOLER
16281-28010	2AZFXE..ANF10	07/2009 - 01/2013	1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777K - COCK ASSY, DRAIN(FOR OIL COOLER HOSE)
90910-09119	2AZFXE..ANF10	07/2009 - 12/2012	1
15777L - PLUG,AIR(FOR OIL COOLER DRAIN COCK)
23322-54010	2AZFXE..ANF10	07/2009 - 12/2012	1
15777M - RING, O(FOR OIL COOLER DRAIN COCK)
16492-21050	2AZFXE..ANF10	07/2009 - 12/2012	1
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
16258-28040	2AZFXE..ANF10	07/2009 - 01/2013	1
15777S - CLAMP OR CLIP, HOSE
96134-41900	2AZFXE..ANF10	07/2009 - 12/2012	2
15777S - CLAMP OR CLIP, HOSE
96134-41900	2AZFXE..ANF10	07/2009 - 12/2012	2
Common parts
90116-06127
90126-06015
91631-G0614
94150-80640
Linked diagrams
1105
1502

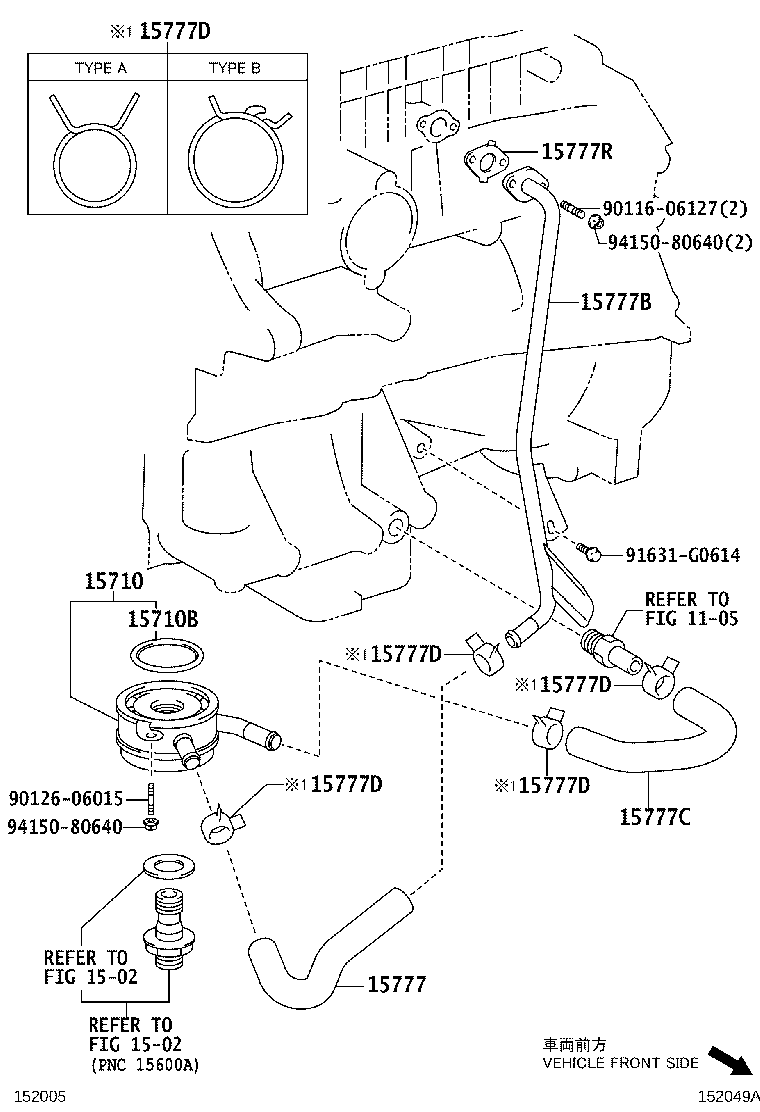

(1212- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
15710 - COOLER ASSY, OIL
15710-28020	2AZFXE..ANF10	07/2009 - 01/2013	1
15710B - RING, O(FOR OIL COOLER)
90301-52006	2AZFXE..ANF10	07/2009 - 01/2013	1
15777 - HOSE, OIL COOLER
16267-28020	2AZFXE..ANF10	07/2009 - 12/2012	1
16267-28080	2AZFXE..ANF10	12/2012 - 01/2013	1
15777B - PIPE, OIL COOLER
16279-28010	2AZFXE..ANF10	07/2009 - 01/2013	1
15777C - HOSE, OIL COOLER
16281-28010	2AZFXE..ANF10	07/2009 - 01/2013	1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900	2AZFXE..ANF10 TYPE A:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96136-42201	2AZFXE..ANF10 TYPE B:ｲﾗｽﾄ参照	07/2012 - 01/2013	4
96134-41900	2AZFXE..ANF10	07/2009 - 07/2012	4
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
16258-28040	2AZFXE..ANF10	07/2009 - 01/2013	1
Common parts
90116-06127
90126-06015
91631-G0614
94150-80640
Linked diagrams
1105
1502
