ANF10-AEXVB (2009)

Toyota Lexus Hs250h

Production Jul 2009 - Jan 2013
Engine 2AZFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0907- )

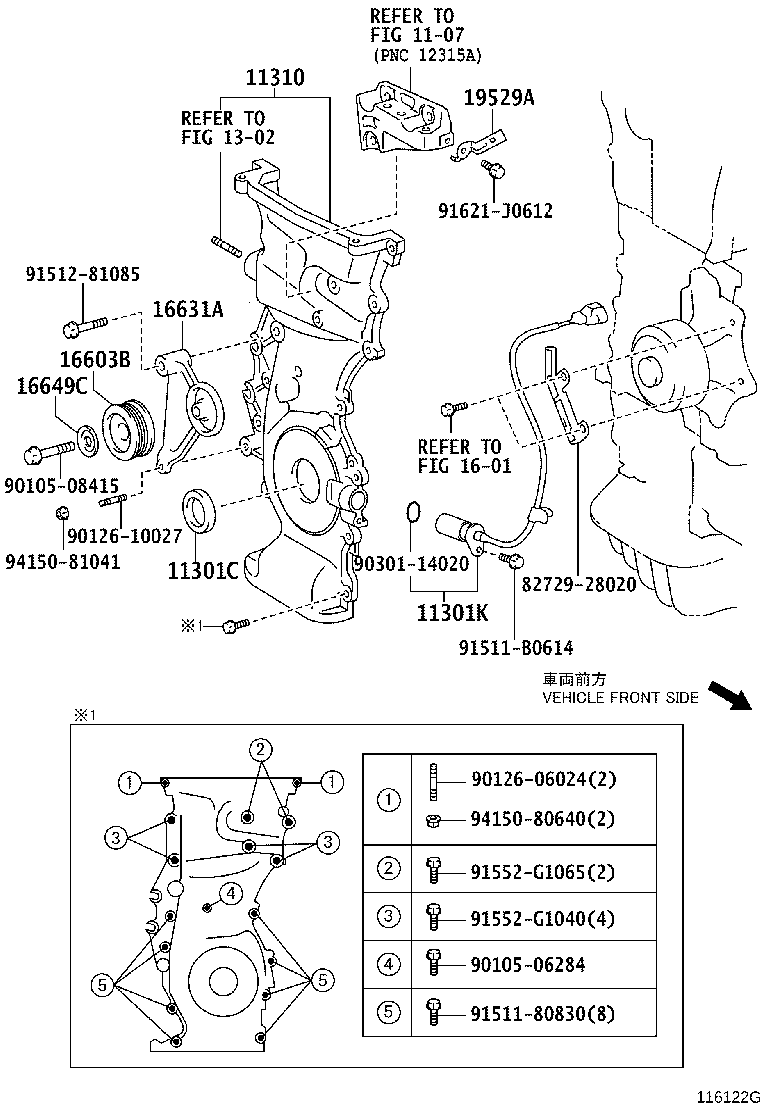

Click highlighted areas on diagram

diagram 1107 11301C 11301K 11310 1302 1601 16603B 16631A 16649C 19529A 8272928020 9010506284 9010508415 9012606024 9012610027 9030114020 9151180830 91511B0614 9151281085 91552G1040 91552G1065 91621J0612 9415080640 9415081041
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-38098

2AZFXE..ANF10

 1
90311-38089

2AZFXE..ANF10

 1
11301K - SENSOR, CRANK POSITION
90919-05047

2AZFXE..ANF10

 1
11310 - COVER ASSY, TIMING CHAIN
11310-28090

2AZFXE..ANF10

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-28030

2AZFXE..ANF10

 1
16631A - BRACKET, IDLER PULLEY
16631-28020

2AZFXE..ANF10

 1
16649C - PLATE, IDLER PULLEY COVER
16649-28010

2AZFXE..ANF10

 1
19529A - CLAMP
19529-28030

2AZFXE..ANF10

 1
Common parts
82729-28020
90105-06284
90105-08415
90126-06024
90126-10027
90301-14020
91511-80830
91511-B0614
91512-81085
91552-G1040
91552-G1065
91621-J0612
94150-80640
94150-81041
Linked diagrams
1107
1302
1601
