GWL10-BEXQB (2012)
Toyota Lexus Gs Series
(1112-1409)

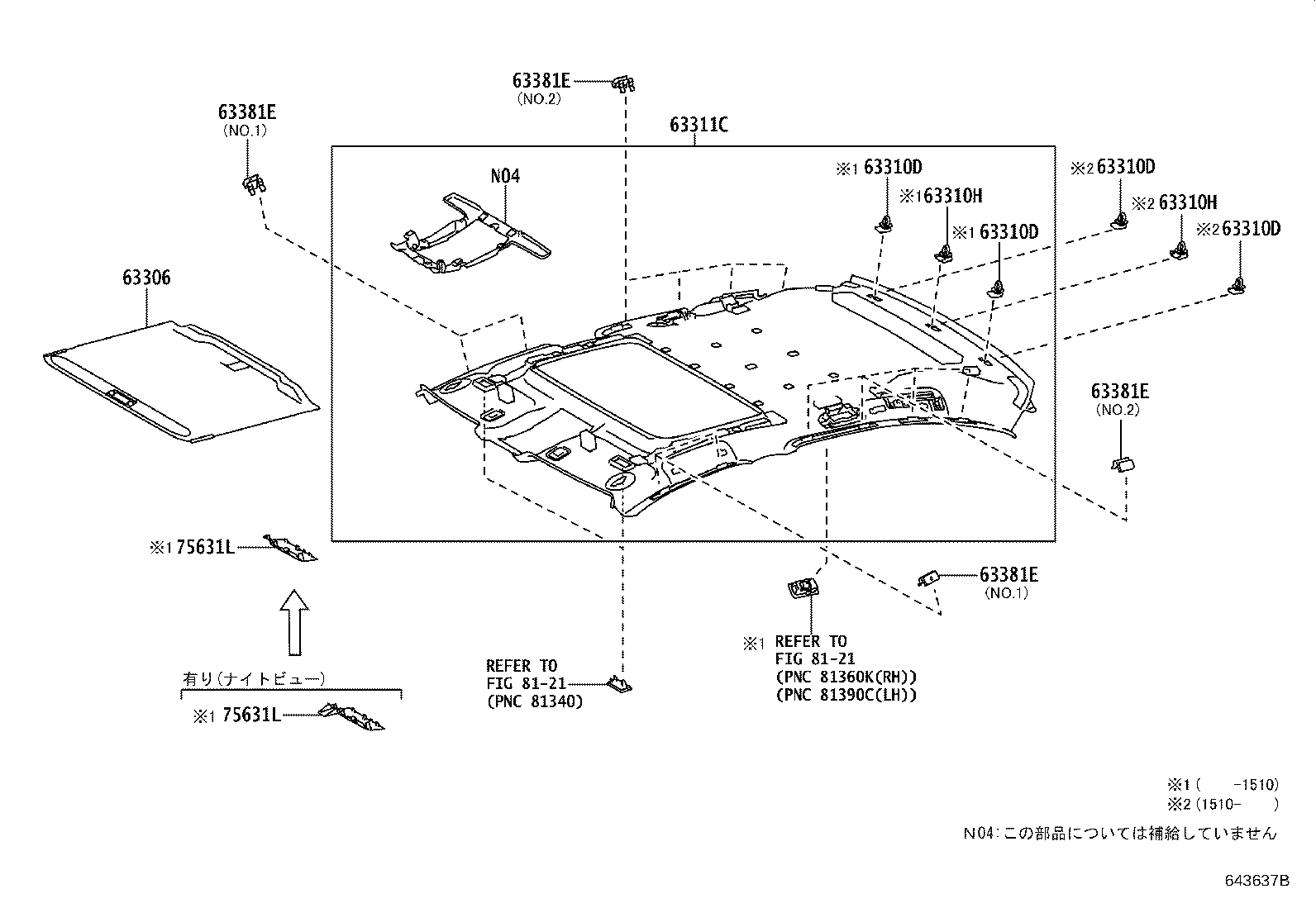

ﾑｰﾝﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-30170C1 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,24,25,3#,54,55 |
1 | ||
| 63306-30170B1 |
GRL10..8FC;AWL10,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63306-30170A1 |
GRL10..8FC;AWL10,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63306-30170C1 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63306-30171C1 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63306-30171B1 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63306-30171A1 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63310-30T80A0 |
GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 63310-30T90A0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310-30T80B0 |
GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-30T90C0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30T90B0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63310-30U00B0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 63311-30480C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30T90C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30U10A0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式,IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310-30U00C0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-30T90A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310-30T90B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63310-30U00C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30U00A0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 63311-30480A0 |
GRL1#,GWL10 IVORY,TRIM0#,5# |
1 | ||
| 63310-30U10C0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30U10C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480A0 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 63310-30U10A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310-30U10B0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63311-30470A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63311-30480A0 |
GRL11,15,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 63311-30470B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63310-30U10B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63310-30U00B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 63311-30470B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 63311-30480B0 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63311-30470B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63311-30470C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30U00A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 63311-30470C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30470A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 63311-30480C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30470A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63311-30470C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.2 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.2 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.2 |
8 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30091 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
4 | ||
| 63381-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.2 |
8 | ||
| 75631L - GARNISH, ROOF TOP, FRONT | ||||
| 75631-30170A0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170B0 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30110A0 |
GRL1#,GWL10 IVORY,TRIM0#,5# |
1 | ||
| 75631-30120A0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30110B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 75631-30130B0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30120C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130A0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30130A0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30130B0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30130A0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30120C0 |
AWL10,GRL1#,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130B0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30120B0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30120B0 |
AWL10,GRL1#,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30120A0 |
GRL11,15,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30170B0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30170C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30170A0 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631L - GARNISH, ROOF TOP, FRONT | ||||
| 75631-30170A0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170B0 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30110A0 |
GRL1#,GWL10 IVORY,TRIM0#,5# |
1 | ||
| 75631-30120A0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30110B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 75631-30130B0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30120C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130A0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30130A0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30130B0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30130A0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30120C0 |
AWL10,GRL1#,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130B0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30120B0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30120B0 |
AWL10,GRL1#,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30120A0 |
GRL11,15,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30170B0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30170C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30170A0 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
(1409- )

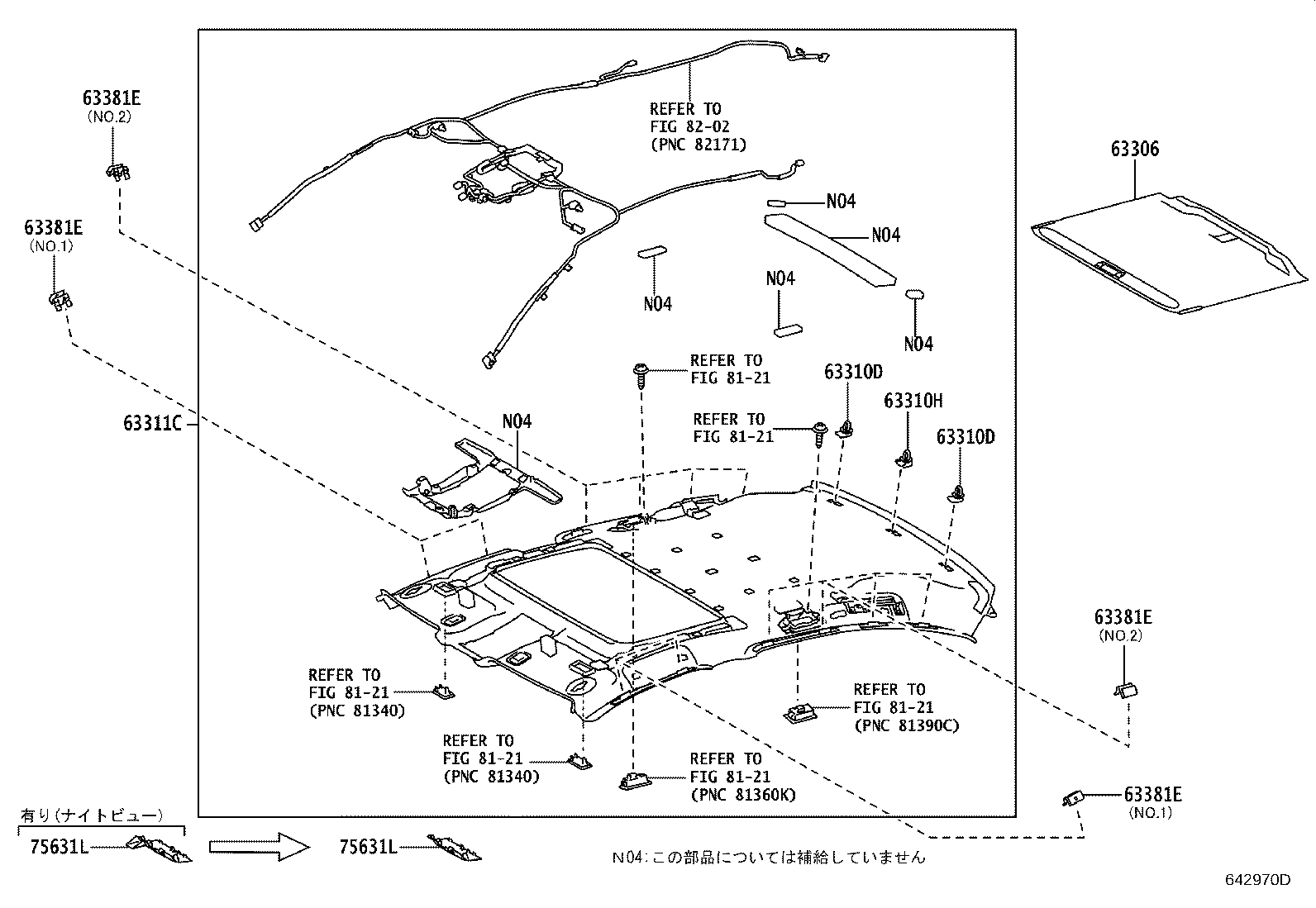

ﾑｰﾝﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-30170C1 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,24,25,3#,54,55 |
1 | ||
| 63306-30170B1 |
GRL10..8FC;AWL10,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63306-30170A1 |
GRL10..8FC;AWL10,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63306-30170C1 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63306-30171C1 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63306-30171B1 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63306-30171A1 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63310-30T80A0 |
GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM0# |
1 | ||
| 63310-30T90A0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310-30T80B0 |
GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-30T90C0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30T90B0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63310-30U00B0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 63311-30480C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30T90C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30U10A0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式,IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310-30U00C0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 63310-30T90A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310-30T90B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63310-30U00C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30U00A0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 63311-30480A0 |
GRL1#,GWL10 IVORY,TRIM0#,5# |
1 | ||
| 63310-30U10C0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30U10C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30480A0 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 63310-30U10A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63310-30U10B0 |
GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63311-30470A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63311-30480A0 |
GRL11,15,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 63311-30470B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63310-30U10B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63310-30U00B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 63311-30470B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 63311-30480B0 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63311-30470B0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 63311-30470C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63310-30U00A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 63311-30470C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30470A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 63311-30480C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63311-30470A0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 63311-30470C0 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.2 |
8 | ||
| 63381-30091 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
4 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.2 |
8 | ||
| 63381-30091 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
4 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.2 |
8 | ||
| 63381-30091 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
4 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.2 |
8 | ||
| 63381-30091 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
4 | ||
| 75631L - GARNISH, ROOF TOP, FRONT | ||||
| 75631-30170A0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170B0 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30110A0 |
GRL1#,GWL10 IVORY,TRIM0#,5# |
1 | ||
| 75631-30120A0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30110B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 75631-30130B0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30120C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130A0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30130A0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30130B0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30130A0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30120C0 |
AWL10,GRL1#,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130B0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30120B0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30120B0 |
AWL10,GRL1#,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30120A0 |
GRL11,15,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30170B0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30170C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30170A0 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631L - GARNISH, ROOF TOP, FRONT | ||||
| 75631-30170A0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170B0 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30110A0 |
GRL1#,GWL10 IVORY,TRIM0#,5# |
1 | ||
| 75631-30120A0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30110B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 75631-30130B0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30120C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130A0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30130A0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30130B0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30130A0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,IVORY,TRIM00,01,02,50,51,52 |
1 | ||
| 75631-30120C0 |
AWL10,GRL1#,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130B0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,LT.GRAY,TRIM20,21,22,4# |
1 | ||
| 75631-30120B0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30120B0 |
AWL10,GRL1#,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30120A0 |
GRL11,15,GWL10 ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 75631-30170C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30170B0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 75631-30170C0 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
AWL10,GRL1#,GWL10 ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
GRL1#,GWL10 version L&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30130C0 |
GRL1#,GWL10 F SPORT&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 75631-30170A0 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
