GWL10-BEXQB (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

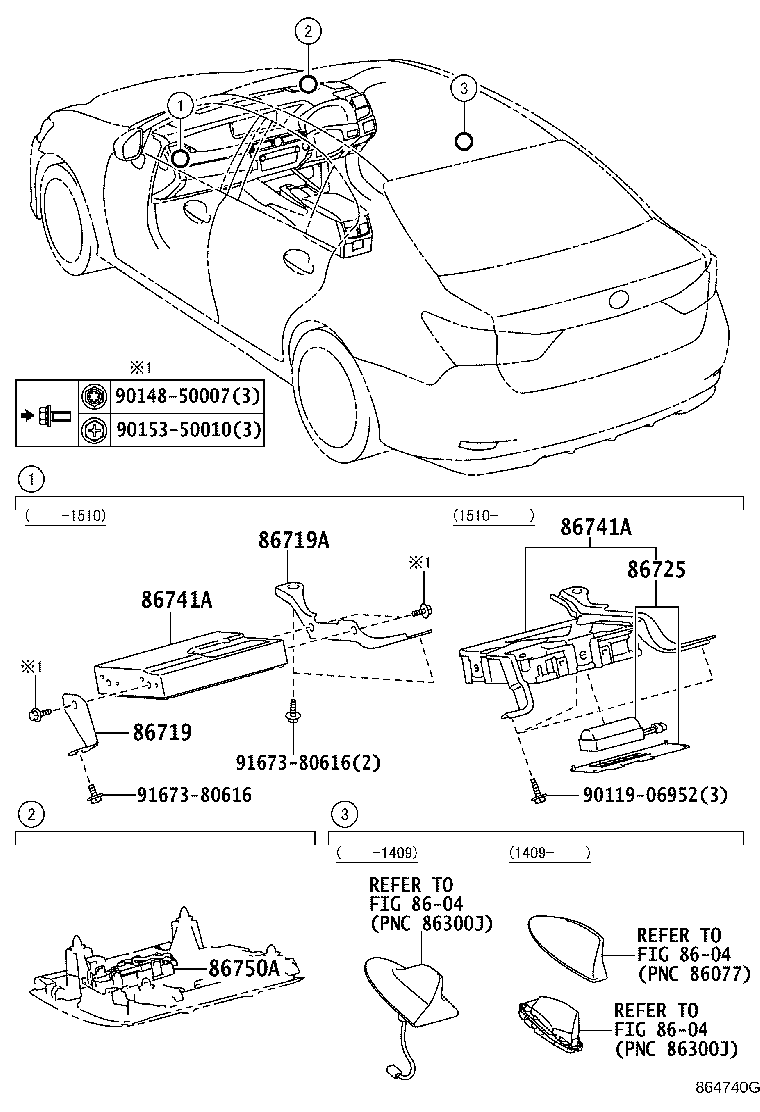

Click highlighted areas on diagram

diagram 8604 8604 8604 86719 86719A 86725 86741A 86741A 86750A 9011906952 9014850007 9015350010 9167380616 9167380616
Part # Description Qty Price
86719 - BRACKET, TELEPHONE
86719-30370

GRL1#,GWL10

 1
86719A - BRACKET, TELEPHONE NO.1
86719-30380

GRL1#,GWL10

 1
86725 - BATTERY, MOBILEPHONE
86725-48010

ARL10,AWL10,GRL1#,GWL10

 1
86741A - TRANSCEIVER, TELEMATICS
86740-30210

ARL10,AWL10,GRL1#,GWL10

 1
86741-30041

GRL1#,GWL10

 1
86741A - TRANSCEIVER, TELEMATICS
86740-30210

ARL10,AWL10,GRL1#,GWL10

 1
86741-30041

GRL1#,GWL10

 1
86750A - SWITCH ASSY, MAYDAY
84170-30030C0

GRL1#,GWL10

BLACK,TRIM04,05,24,25,3#,54,55

 1
84170-30030A1

ARL10,AWL10,GRL1#,GWL10

ECRU,TRIM0#,1#,2#,50,51,52,53,6#

 1
84170-30030C0

ARL10,AWL10,GRL12,16,GWL10

BLACK,TRIM25,26,27,3#,4#,55,56

 1
Common parts
90119-06952
90148-50007
90153-50010
91673-80616
Linked diagrams
8604
