GWL10-BEXQB (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

Click highlighted areas on diagram

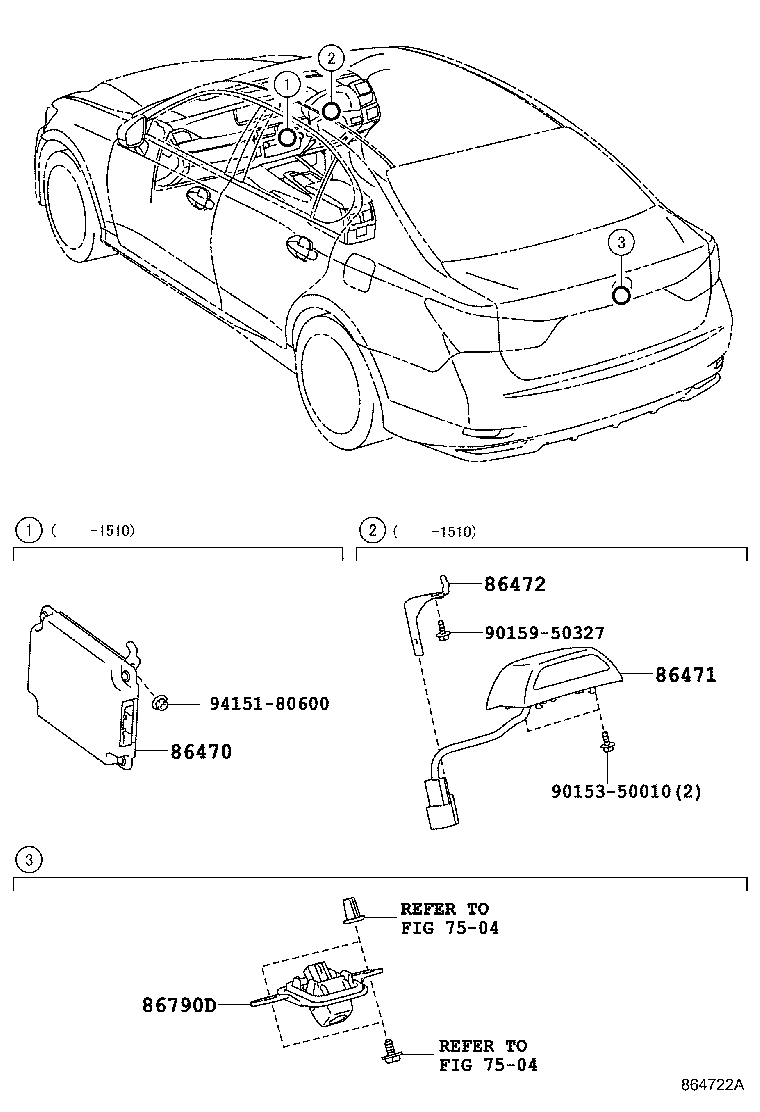

diagram 7504 7504 86470 86471 86472 86790D 9015350010 9015950327 9415180600
Part # Description Qty Price
86470 - COMPUTER ASSY, DRIVER MONITOR
86470-30030

GRL10..8FC;AWL10,GRL11,15,GWL10

ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き)

 1
86471 - CAMERA, DRIVER MONITOR
86471-30030C0

GRL10..8FC;AWL10,GRL11,15,GWL10

ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),BLACK

 1
86472 - BRACKET, DRIVER MONITOR
86472-30030

GRL10..8FC;AWL10,GRL11,15,GWL10

ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き)

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-30150

GRL1#,GWL10

 1
86790-30230

ARL10,AWL10,GRL1#,GWL10

 1
Common parts
90153-50010
90159-50327
94151-80600
Linked diagrams
7504
