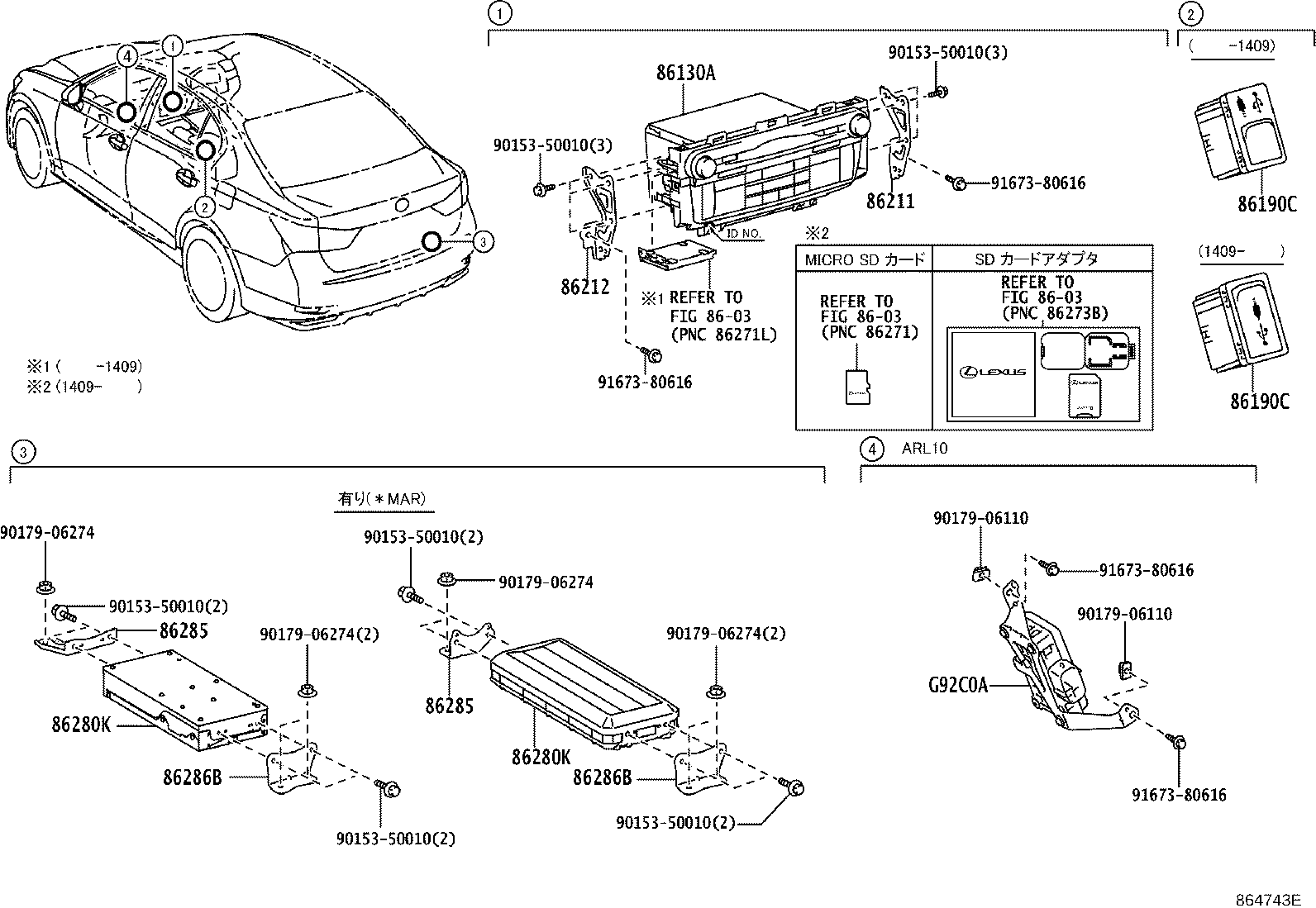

Toyota Lexus gs series GWL10 RADIO RECEIVER & AMPLIFIER & CONDENSER

Part #	Description	Period	Qty
86130A - RECEIVER ASSY, MULTI-MEDIA MODULE
86804-30130	GRL1#,GWL10 PIONEER,ID=P10101	12/2011 - 11/2012	1
86804-30140	GRL1#,GWL10 PIONEER,ID=P10105,ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅrｹﾞｰｼｮﾝ	12/2011 - 11/2012	1
86804-30E90	AWL10,GRL1#,GWL10 AISIN AW,ID=B9087	10/2015 - 09/2016	1
86804-30F00	AWL10,GRL1#,GWL10 AISIN AW,ID=B9087,ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅrｹﾞｰｼｮﾝ	10/2015 - 09/2016	1
86804-30K60	ARL10,AWL10,GRL1#,GWL10 AISIN AW,ID=B9120	09/2016 - 07/2020	1
86804-30K70	ARL10,AWL10,GRL1#,GWL10 AISIN AW,ID=B9119,ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅrｹﾞｰｼｮﾝ	09/2016 - 07/2020	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-30030	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 09/2014	1
86190-53051	ARL10,AWL10,GRL1#,GWL10	10/2015 - 09/2019	1
86190-30040	ARL10,AWL10,GRL1#,GWL10	09/2019 - 07/2020	1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-30030	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 09/2014	1
86190-53051	ARL10,AWL10,GRL1#,GWL10	10/2015 - 09/2019	1
86190-30040	ARL10,AWL10,GRL1#,GWL10	09/2019 - 07/2020	1
86211 - BRACKET, RADIO, NO.1
86211-30390	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
86211-30390	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
86212 - BRACKET, RADIO, NO.2
86212-30350	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
86212-30350	AWL10,GRL1#,GWL10	12/2011 - 10/2015	1
86280K - AMPLIFIER ASSY, STEREO COMPONENT
86280-30670	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 09/2014	1
86280-0WD81	ARL10,AWL10,GRL1#,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	07/2017 - 09/2019	1
86280-0WD80	ARL10,AWL10,GRL1#,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	10/2015 - 06/2017	1
86280-30681	ARL10,AWL10,GRL1#,GWL10	11/2017 - 07/2020	1
86280-30810	ARL10,AWL10,GRL1#,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	10/2019 - 07/2020	1
86280-0WA10	GRL10..8FC;AWL10,GRL11,15,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	12/2011 - 09/2014	1
86280-30680	ARL10,AWL10,GRL1#,GWL10	10/2015 - 10/2017	1
86280K - AMPLIFIER ASSY, STEREO COMPONENT
86280-30670	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 09/2014	1
86280-0WD81	ARL10,AWL10,GRL1#,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	07/2017 - 09/2019	1
86280-0WD80	ARL10,AWL10,GRL1#,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	10/2015 - 06/2017	1
86280-30681	ARL10,AWL10,GRL1#,GWL10	11/2017 - 07/2020	1
86280-30810	ARL10,AWL10,GRL1#,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	10/2019 - 07/2020	1
86280-0WA10	GRL10..8FC;AWL10,GRL11,15,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	12/2011 - 09/2014	1
86280-30680	ARL10,AWL10,GRL1#,GWL10	10/2015 - 10/2017	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-30370	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
86285-30380	GRL10..8FC;AWL10,GRL11,15,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	12/2011 - 10/2015	1
86285-30370	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
86285-30380	ARL10,AWL10,GRL1#,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	10/2015 - 07/2020	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-30370	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
86285-30380	GRL10..8FC;AWL10,GRL11,15,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	12/2011 - 10/2015	1
86285-30370	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
86285-30380	ARL10,AWL10,GRL1#,GWL10 ｵｰﾃﾞｨｵ−17ｽﾋﾟｰｶ & *MAR & ﾅﾋﾞｹﾞｰｼｮﾝ	10/2015 - 07/2020	1
86286B - BRACKET, AMPLIFIER, NO.2
86286-30100	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
86286-30100	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
86286B - BRACKET, AMPLIFIER, NO.2
86286-30100	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
86286-30100	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
Common parts
90153-50010
90179-06110
90179-06274
91673-80616
Linked diagrams
8603

GWL10-BEXQB (2015)

ILLUST NO. 1 OF 2(1112- )

ILLUST NO. 2 OF 2(1112- )

Part Price Details

Part #	Description	Period	Qty

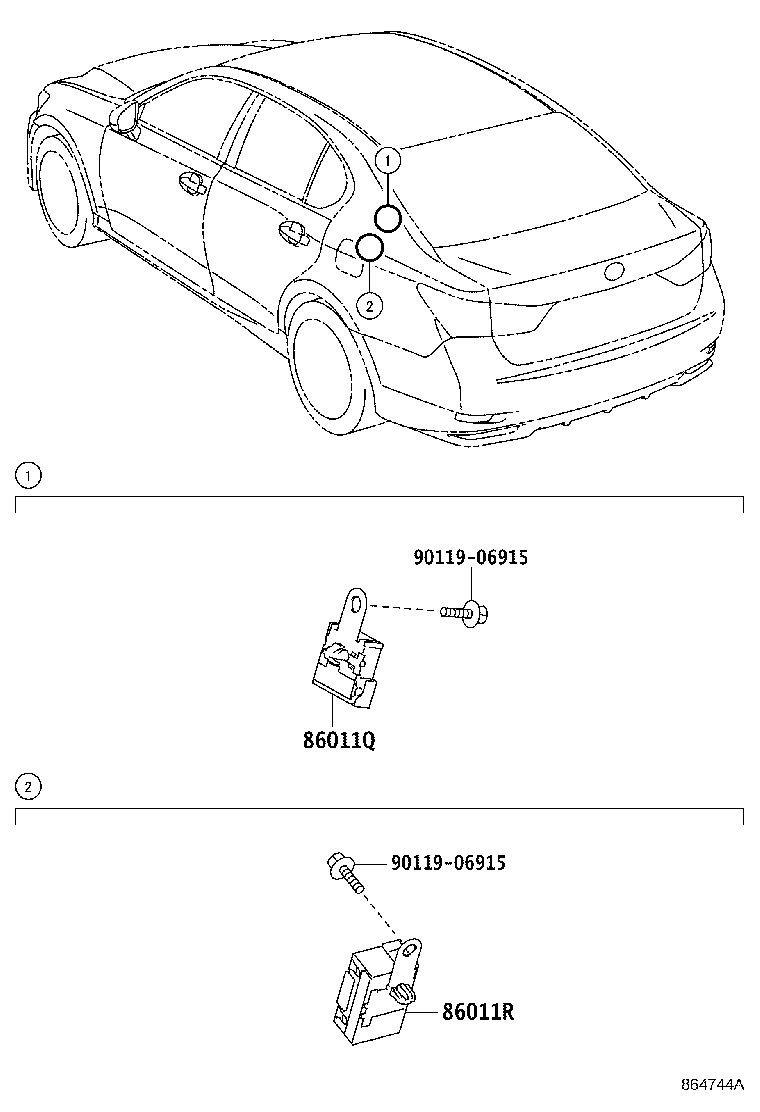

86011Q - CONDENSER, RADIO SETTING
90980-04189	AWL10,GRL1#,GWL10	12/2011 - 10/2015	1
90980-04189	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
86011R - CONDENSER, RADIO SETTING
90980-04204	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
90980-04204	AWL10,GRL1#,GWL10	12/2011 - 10/2015	1
Common parts
90119-06915
