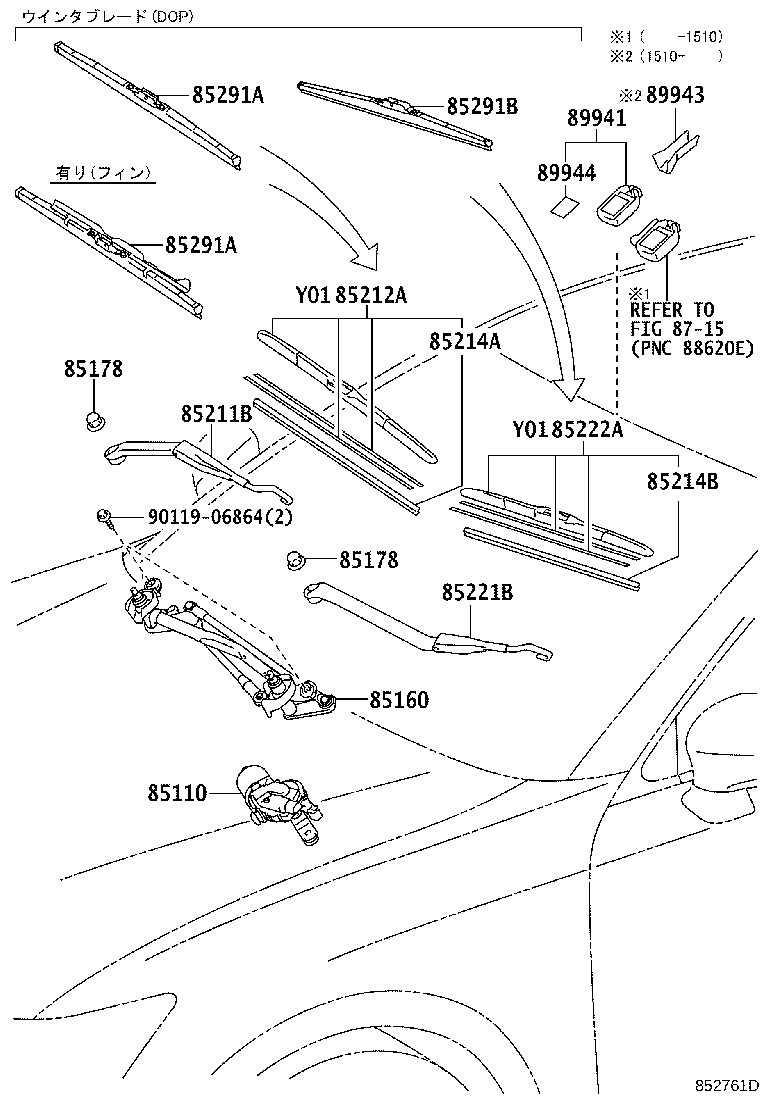

Toyota Lexus gs series GWL10 WINDSHIELD WIPER

Part #	Description	Period	Qty
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30610	ARL10,AWL10,GRL1#,GWL10 寒冷地仕様	10/2015 - 07/2020	1
85110-30650	AWL10,GRL1#,GWL10 寒冷地仕様	12/2011 - 09/2014	1
85110-30660	AWL10,GRL1#,GWL10	12/2011 - 09/2014	1
85110-30621	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30720	GRL10..8FC;AWL10,GRL11,15,GWL10 寒冷地仕様	12/2011 - 10/2015	1
85150-30720	ARL10,AWL10,GRL1#,GWL10 寒冷地仕様	10/2015 - 07/2020	1
85150-30730	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
85150-30730	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	2
90176-10005	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-10005	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	2
90176-10005	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
85211B - ARM, FRONT WIPER, RH
85211-30780	GRL10..8FC;AWL10,GRL11,15,GWL10 寒冷地仕様	12/2011 - 10/2015	1
85211-30780	ARL10,AWL10,GRL1#,GWL10 寒冷地仕様	10/2015 - 07/2020	1
85211-30770	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
85211-30770	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
85212A - BLADE, FR WIPER, RH
85212-3047079	ARL10,AWL10,GRL1#,GWL10	10/2015 - 12/2999	1
85214A - RUBBER, WIPER, RH
85214-68020	GRL1#,GWL10	12/2011 - 10/2012	1
85214-52110	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
85214B - RUBBER, WIPER, LH
85214-33180	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
85214-33180	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
85221B - ARM, FRONT WIPER, LH
85221-30590	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
85221-30670	GRL10..8FC;AWL10,GRL11,15,GWL10 寒冷地仕様	12/2011 - 10/2015	1
85221-30590	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
85221-30670	ARL10,AWL10,GRL1#,GWL10 寒冷地仕様	10/2015 - 07/2020	1
85222A - BLADE, FR WIPER, LH
85222-3066079	AWL10,GRL1#,GWL10	12/2011 - 10/2015	1
85222-3066079	ARL10,AWL10,GRL1#,GWL10	10/2015 - 12/2999	1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-1209079	AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)	12/2011 - 10/2015	1
85291-3007079	ARL10,AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)	10/2015 - 12/2999	1
85291-1209079	ARL10,AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)	10/2015 - 12/2999	1
85291-3007079	AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)	12/2011 - 10/2015	1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-1209079	AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)	12/2011 - 10/2015	1
85291-3007079	ARL10,AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)	10/2015 - 12/2999	1
85291-1209079	ARL10,AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)	10/2015 - 12/2999	1
85291-3007079	AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)	12/2011 - 10/2015	1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-3305079	ARL10,AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)	10/2015 - 12/2999	1
85291-3305079	AWL10,GRL1#,GWL10 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)	12/2011 - 10/2015	1
89941 - SENSOR, RAIN
89941-30030	GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式	12/2011 - 09/2013	1
89941-52010	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89943 - COVER, RAIN SENSOR
89943-33050	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89944 - TAPE, RAIN SENSOR
89944-42010	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89944-42010	GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式	12/2011 - 09/2013	1
Common parts
90119-06864
Linked diagrams
8715

GWL10-BEXQB (2015)

(1112- )

(1510- )

Part Price Details

Part #	Description	Period	Qty
85213B - RUBBER, WIPER BLADE, RH(FOR GLASS COAT)
85213-30280	ARL10,AWL10,GRL12,16,GWL10	10/2015 - 07/2020	1
85213C - RUBBER, WIPER BLADE, LH(FOR GLASS COAT)
85213-30290	ARL10,AWL10,GRL12,16,GWL10	10/2015 - 07/2020	1
