Toyota Lexus gs series GWL10 AIR BAG

Part #	Description	Period	Qty
89170 - SENSOR ASSY, AIR BAG
89170-30G00	AWL10,GWL10 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ)	10/2015 - 07/2020	1
89170-30G10	AWL10,GWL10	10/2015 - 07/2020	1
89173A - SENSOR, AIR BAG, FRONT RH
89173-59286	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89173-59286	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
89174A - SENSOR, AIR BAG, FRONT LH
89173-59286	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
89173-59286	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89178-33050	AWL10,GRL1#,GWL10	12/2011 - 10/2015	1
89833 - SENSOR, AIR BAG, REAR RH
89831-30040	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2013	1
89831-30050	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89834 - SENSOR, AIR BAG, REAR LH
89831-30040	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2013	1
89831-30050	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-68010	GRL1#,GWL10	12/2011 - 08/2013	1
89831-68030	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-68010	GRL1#,GWL10	12/2011 - 08/2013	1
89831-68030	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
Common parts
90119-08C89
91553-80618
91553-A0622
94151-80800

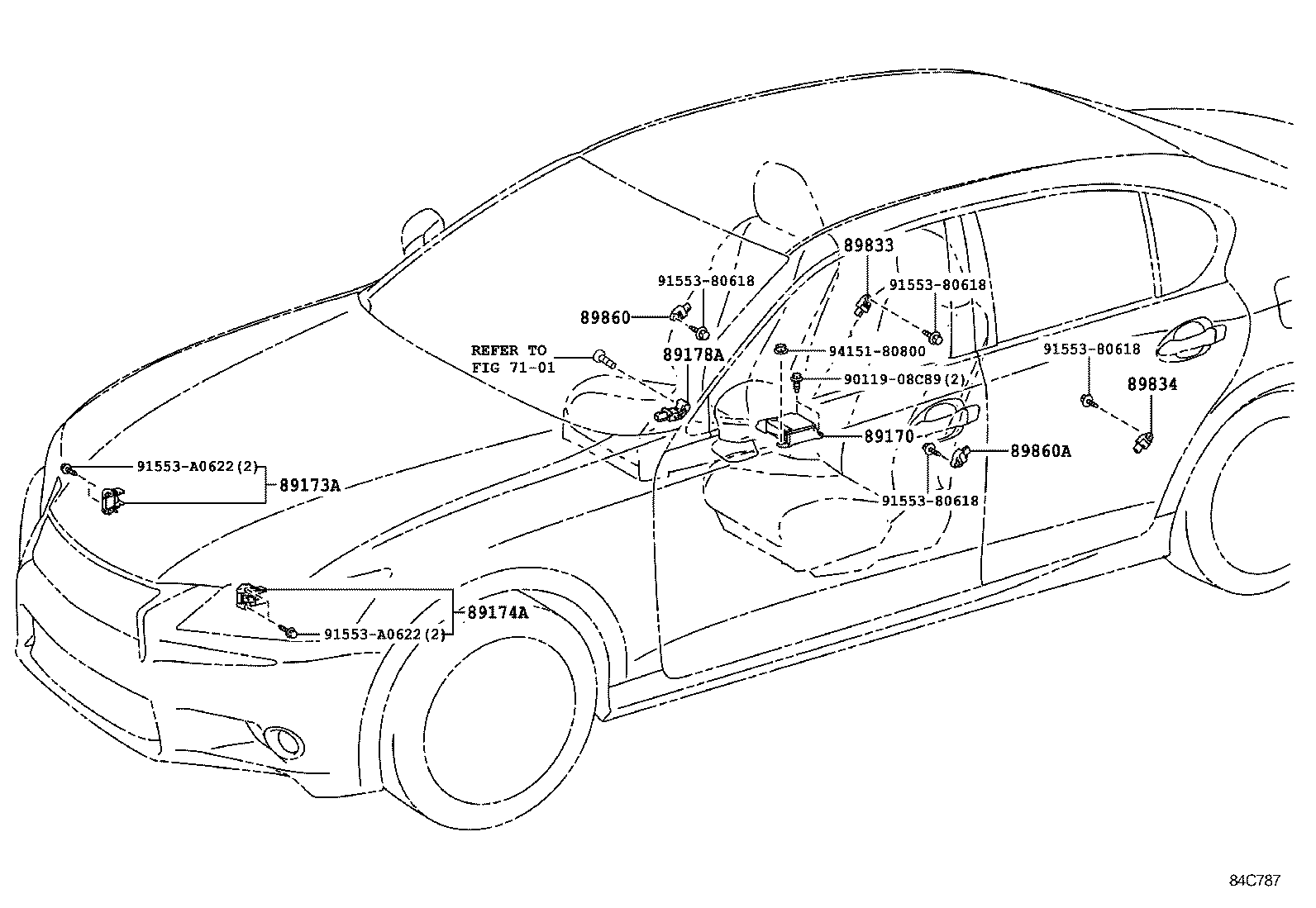

Linked diagrams
7101

GWL10-BEXQB (2015)
