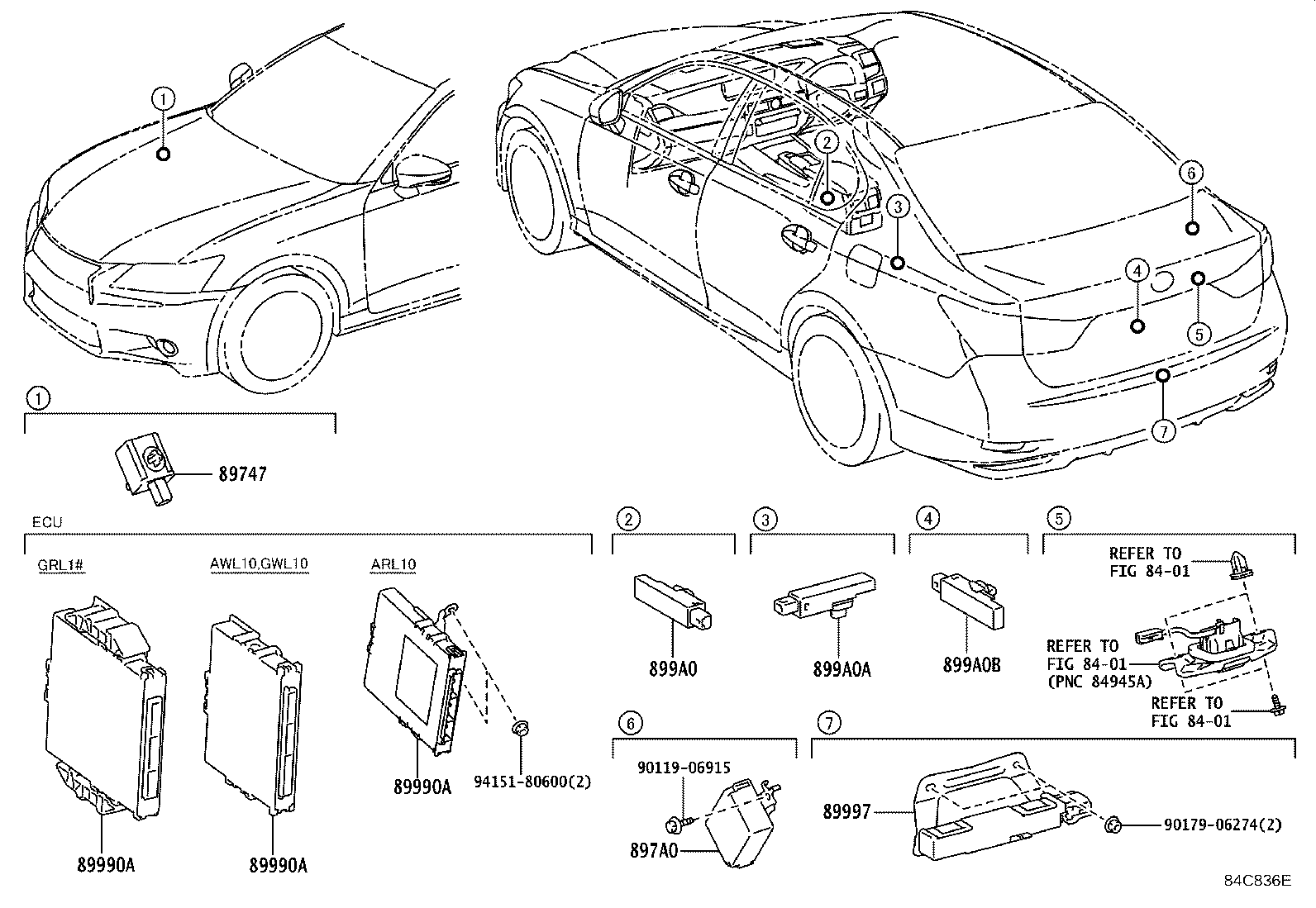

Toyota Lexus gs series GWL10 WIRELESS DOOR LOCK

Part #	Description	Period	Qty
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
89747-30040	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
897A0 - RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING S
897B0-30020	GRL1#,GWL10	12/2011 - 09/2013	1
897B0-30070	GRL1#,GWL10 version L	12/2011 - 09/2013	1
897B0-30130	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89990A - COMPUTER ASSY, SMART KEY
89990-30470	AWL10,GWL10	10/2015 - 02/2016	1
89990-30471	AWL10,GWL10	03/2016 - 05/2017	1
89990-30472	AWL10,GWL10	06/2017 - 06/2019	1
89990-30473	AWL10,GWL10	07/2019 - 07/2020	1
89990A - COMPUTER ASSY, SMART KEY
89990-30470	AWL10,GWL10	10/2015 - 02/2016	1
89990-30471	AWL10,GWL10	03/2016 - 05/2017	1
89990-30472	AWL10,GWL10	06/2017 - 06/2019	1
89990-30473	AWL10,GWL10	07/2019 - 07/2020	1
89990A - COMPUTER ASSY, SMART KEY
89990-30470	AWL10,GWL10	10/2015 - 02/2016	1
89990-30471	AWL10,GWL10	03/2016 - 05/2017	1
89990-30472	AWL10,GWL10	06/2017 - 06/2019	1
89990-30473	AWL10,GWL10	07/2019 - 07/2020	1
89997 - ANTENNA, ELECTRICAL KEY
89997-30080	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89997-30080	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
899A0-47010	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A1-60010	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
899A1-60010	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-60010	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
899A0-60010	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
Common parts
90119-06915
90179-06274
94151-80600
Linked diagrams
8401

GWL10-BEXQB (2015)

(1112- )
