GWL10-BEXQB (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

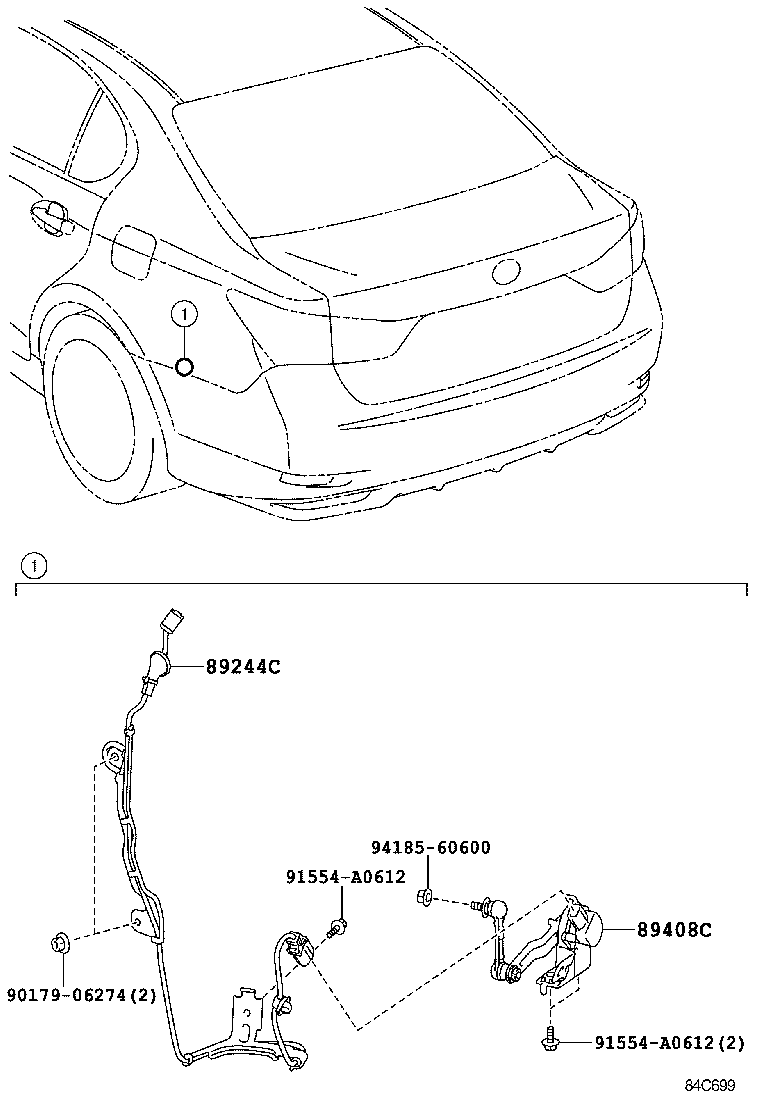

Click highlighted areas on diagram

diagram 89244C 89408C 9017906274 91554A0612 91554A0612 9418560600
Part # Description Qty Price
89244C - WIRE, ABSORBER CONTROL
89244-30020

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
89244-24020

ARL10,AWL10,GRL1#,GWL10

 1
89244-30020

ARL10,AWL10,GRL1#,GWL10

 1
89408C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH
89408-30150

ARL10,AWL10,GRL1#,GWL10

 1
89408-30150

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
Common parts
90179-06274
91554-A0612
94185-60600
