GWL10-BEXQB (2015)
Toyota Lexus Gs Series
ILLUST NO. 7 OF12(1112- )
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-30010 |
GRL10..8FC;AWL10,GWL10 version L&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ & ﾘﾔｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ付き)&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｼｰﾄｻｲﾄﾞ) |
1 | ||
| 82176-30010 |
GRL10..8FC;AWL10,GWL10 version L&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ & ﾘﾔｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｼｰﾄｻｲﾄﾞ) |
1 | ||
| 82176-30010 |
GRL10,GWL10 version L&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄｼｰﾄのみ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ付き)&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｼｰﾄｻｲﾄﾞ) |
1 | ||
| 82176-30010 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82176-30010 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ﾚｰｻﾞｰｶｯﾄｳｯﾄﾞ&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ& ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82176-30010 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｳｫｰﾙﾅｯﾄ(ｵｰﾌﾟﾝﾎﾟｱ仕上)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-30630 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82191-30640 |
AWL10,GRL1#,GWL10 ｼｰﾄ表皮−本革 |
1 | ||
| 82191-30680 |
AWL10,GRL10,11,GWL10 ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY |
1 | ||
| 82191-30640 |
ARL10,AWL10,GRL1#,GWL10 ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｳｫｰﾙﾅｯﾄ(ｵｰﾌﾟﾝﾎﾟｱ仕上)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ) |
1 | ||
| 82191-30630 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82191-30690 |
AWL10,GRL10,11,GWL10 ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ) |
1 | ||
| 82191-30680 |
ARL10,AWL10,GRL1#,GWL10 F SPORT&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY |
1 | ||
| 82191-30640 |
ARL10,AWL10,GRL1#,GWL10 ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ) |
1 | ||
| 82191-30690 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82191-30640 |
ARL10,AWL10,GRL1#,GWL10 ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｳｫｰﾙﾅｯﾄ(ｵｰﾌﾟﾝﾎﾟｱ仕上)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82191-30680 |
ARL10,AWL10,GRL1#,GWL10 F SPORT&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｱﾙﾐ&ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY |
1 | ||
| 82191-30640 |
ARL10,AWL10,GRL1#,GWL10 ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82191-30680 |
ARL10,AWL10,GRL1#,GWL10 F SPORT&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82191-30690 |
AWL10,GRL10,11,GWL10 ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ付き) |
1 | ||
| 82191-30680 |
ARL10,AWL10,GRL1#,GWL10 F SPORT&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｱﾙﾐ&ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82191-30690 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｳｫｰﾙﾅｯﾄ(ｵｰﾌﾟﾝﾎﾟｱ仕上)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82191-30680 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−F SPORT(CFRP ｱﾙｶﾝﾀｰﾗ)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82191-30690 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ﾚｰｻﾞｰｶｯﾄｳｯﾄﾞ&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ& ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82191-30680 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−F SPORT(CFRP ｱﾙｶﾝﾀｰﾗ)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-30470 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82192-30480 |
AWL10,GRL1#,GWL10 ｼｰﾄ表皮−本革 |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 F SPORT&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｱﾙﾐ&ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 F SPORT&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｱﾙﾐ&ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82192-30490 |
AWL10,GRL10,11,GWL10 ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ) |
1 | ||
| 82192-30480 |
AWL10,GRL10,11,GWL10 ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 F SPORT&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 F SPORT&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(F SPORT用)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82192-30470 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82192-30490 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ) |
1 | ||
| 82192-30490 |
AWL10,GRL10,11,GWL10 ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ付き) |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｳｫｰﾙﾅｯﾄ(ｵｰﾌﾟﾝﾎﾟｱ仕上)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82192-30490 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ﾚｰｻﾞｰｶｯﾄｳｯﾄﾞ&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ& ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−F SPORT(CFRP ｱﾙｶﾝﾀｰﾗ)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｳｫｰﾙﾅｯﾄ(ｵｰﾌﾟﾝﾎﾟｱ仕上)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ) |
1 | ||
| 82192-30480 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−F SPORT(CFRP ｱﾙｶﾝﾀｰﾗ)&ｼｰﾄ表皮−本革(ｽﾑｰｽﾚｻﾞｰ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−運転席:16WAY/助手席:10WAY&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82192-30490 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｳｫｰﾙﾅｯﾄ(ｵｰﾌﾟﾝﾎﾟｱ仕上)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-30060 |
GRL10,GWL10 version L&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄｼｰﾄのみ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ付き)&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｼｰﾄｻｲﾄﾞ) |
1 | ||
| 82193-30070 |
GRL10..8FC;AWL10,GWL10 version L&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ & ﾘﾔｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｼｰﾄｻｲﾄﾞ) |
1 | ||
| 82193-30070 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ﾚｰｻﾞｰｶｯﾄｳｯﾄﾞ&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ& ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82193-30070 |
GRL10..8FC;AWL10,GWL10 version L&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ｼｰﾄﾋｰﾀ−有り(ﾌﾛﾝﾄ & ﾘﾔｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ付き)&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｼｰﾄｻｲﾄﾞ) |
1 | ||
| 82193-30070 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−本杢(ﾊﾞﾝﾌﾞｰ OR 縞杢)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82193-30070 |
ARL10,AWL10,GRL11,12,GWL10 version L&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−ｳｫｰﾙﾅｯﾄ(ｵｰﾌﾟﾝﾎﾟｱ仕上)&ｼｰﾄ表皮−本革(ｾﾐｱﾆﾘﾝ)&ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席 & ﾘﾔｻｲﾄﾞ) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-30B80 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666-30B80 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-30B90 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666-30B90 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
ILLUST NO. 3 OF12(1112- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

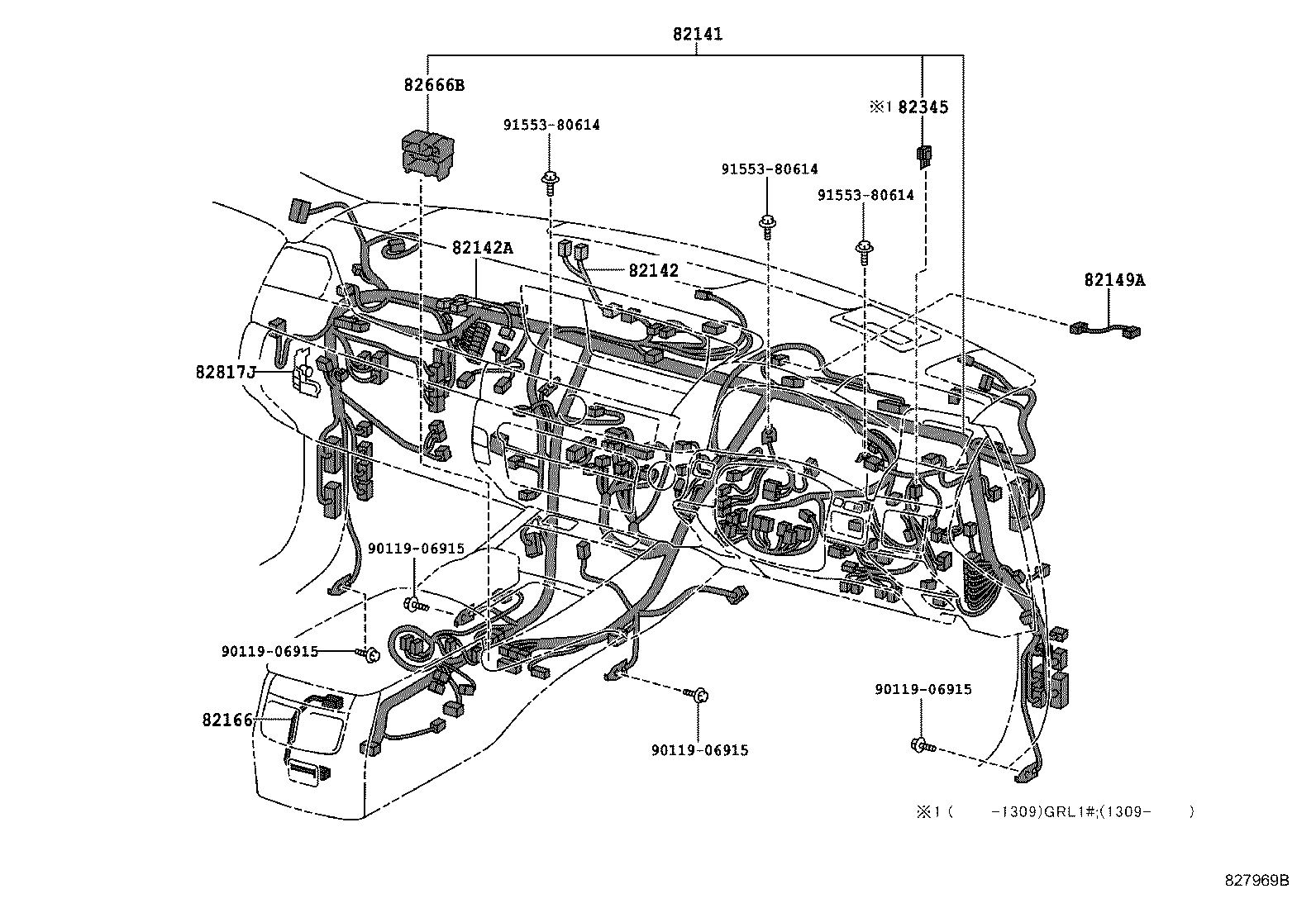

| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3FB90 |
GWL10 F SPORT&LDH−有り |
1 | ||
| 82141-3FB91 |
GWL10 F SPORT&LDH−有り |
1 | ||
| 82141-3FB61 |
AWL10,GWL10 |
1 | ||
| 82141-3FB92 |
GWL10 F SPORT&LDH−有り |
1 | ||
| 82141-3FB60 |
AWL10,GWL10 |
1 | ||
| 82141-3FB62 |
AWL10,GWL10 |
1 | ||
| 82141-3FB63 |
GWL10 寒冷地仕様&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FB93 |
GWL10 F SPORT&LDH−有り |
1 | ||
| 82141-3FB63 |
GWL10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FB93 |
GWL10 F SPORT&寒冷地仕様&LDH−有り |
1 | ||
| 82141-3FB64 |
GWL10 寒冷地仕様&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FB64 |
GWL10 寒冷地仕様 |
1 | ||
| 82141-3FB63 |
GWL10 寒冷地仕様 |
1 | ||
| 82141-3FB93 |
GWL10 F SPORT&LDH−有り&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FB93 |
GWL10 F SPORT&寒冷地仕様&LDH−有り&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FB94 |
GWL10 F SPORT&LDH−有り&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FC60 |
GWL10 |
1 | ||
| 82141-3FB64 |
GWL10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FB94 |
GWL10 F SPORT&LDH−有り |
1 | ||
| 82141-3FC61 |
GWL10 |
1 | ||
| 82141-3FB94 |
GWL10 F SPORT&寒冷地仕様&LDH−有り |
1 | ||
| 82141-3FB94 |
GWL10 “Eternal Touring”&寒冷地仕様&LDH−有り&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FB94 |
GWL10 F SPORT&寒冷地仕様&LDH−有り&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FB94 |
GWL10 “Eternal Touring”&寒冷地仕様&LDH−有り |
1 | ||
| 82141-3FB94 |
GWL10 “Eternal Touring”&LDH−有り&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-3FB94 |
GWL10 “Eternal Touring”&LDH−有り |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-30100 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82142-30140 |
GWL10;GRL10..8FC F SPORT |
1 | ||
| 82142-30200 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-30020 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82140-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-30070 |
GRL1#,GWL10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82149-30130 |
ARL10,AWL10,GRL1#,GWL10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30180 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82166-30180 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-30B20 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666-30B20 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-30V40 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82817-30V40 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-80614 | ||||
ILLUST NO. 8 OF12(1112- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-22800 | ||||
| 82715-30A40 | ||||
| 82715-30A50 | ||||
| 82715-30A60 | ||||
| 82715-30A70 | ||||
| 82715-30A80 | ||||
| 82715-30A90 | ||||
| 82715-30B00 | ||||
| 82715-30C10 | ||||
| 82715-30E60 | ||||
| 82715-30F20 | ||||
| 82715-30F30 | ||||
| 82715-30F40 | ||||
| 82715-30G30 | ||||
| 82715-30M90 | ||||
| 82715-30P40 | ||||
| 82715-30P50 | ||||
| 82715-30Q10 | ||||
| 82715-30R20 | ||||
| 82715-30R30 | ||||
| 82715-30R40 | ||||
| 82715-30R50 | ||||
| 82715-30R61 | ||||
| 82715-30R70 | ||||
| 82715-30R80 | ||||
| 82715-30S10 | ||||
| 82715-30S20 | ||||
| 82715-30S40 | ||||
| 82715-30T10 | ||||
| 82715-30U00 | ||||
| 82715-30W10 | ||||
| 82715-30W20 | ||||
| 82715-30W40 | ||||
| 82715-30W50 | ||||
| 82715-30W60 | ||||
| 82715-30X00 | ||||
| 90119-06375 | ||||
| 90126-06028 | ||||
| 91512-61050 | ||||
| 91551-A0612 | ||||
| 91621-J0614 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||

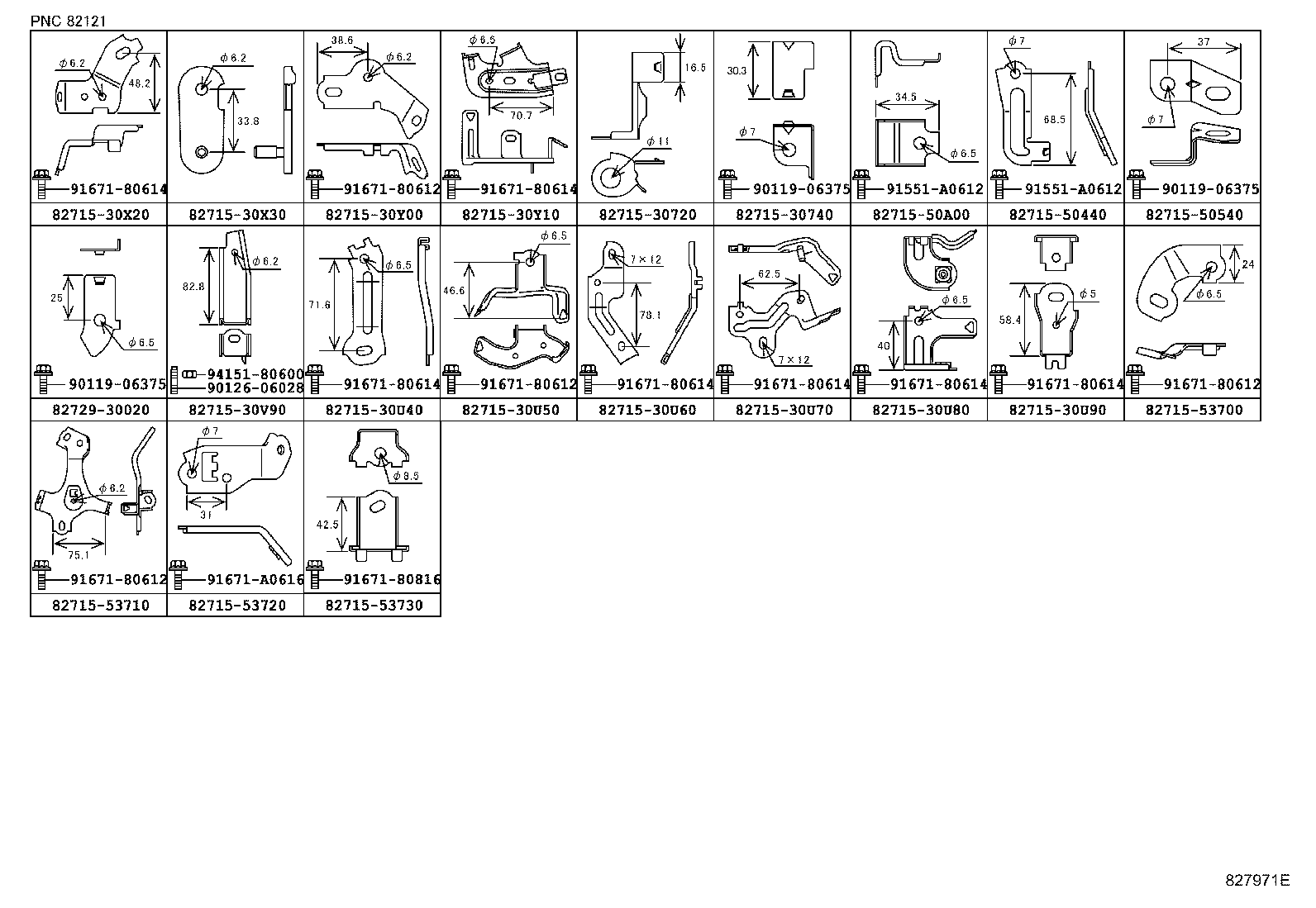

ILLUST NO. 9 OF12(1112- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-30720 | ||||
| 82715-30740 | ||||
| 82715-30U40 | ||||
| 82715-30U50 | ||||
| 82715-30U60 | ||||
| 82715-30U70 | ||||
| 82715-30U80 | ||||
| 82715-30U90 | ||||
| 82715-30V90 | ||||
| 82715-30X20 | ||||
| 82715-30X30 | ||||
| 82715-30Y00 | ||||
| 82715-30Y10 | ||||
| 82715-50440 | ||||
| 82715-50540 | ||||
| 82715-50A00 | ||||
| 82715-53700 | ||||
| 82715-53710 | ||||
| 82715-53720 | ||||
| 82715-53730 | ||||
| 82729-30020 | ||||
| 90119-06375 | ||||
| 90126-06028 | ||||
| 91551-A0612 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-A0616 | ||||
| 94151-80600 | ||||

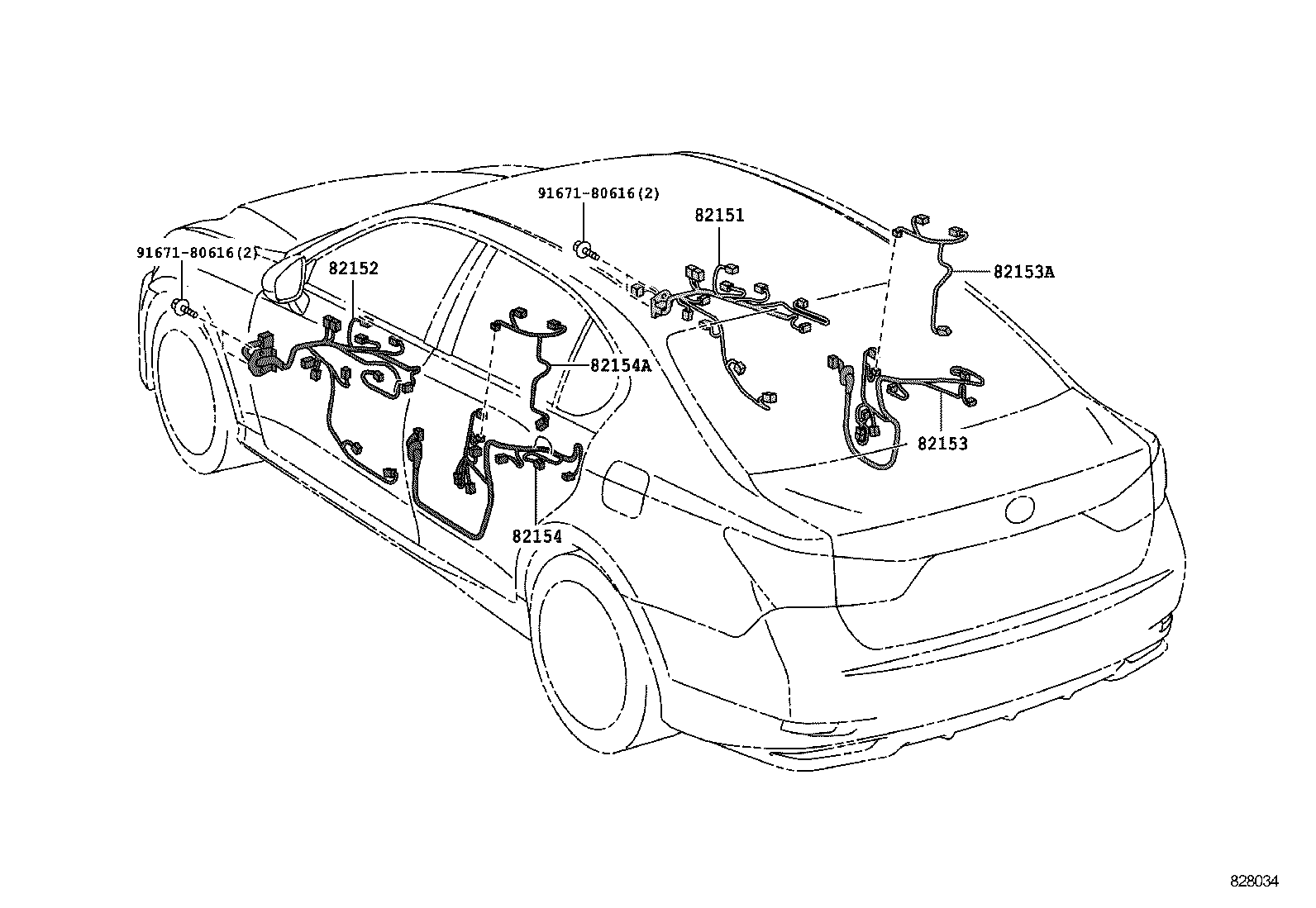

ILLUST NO. 4 OF12(1112- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-30D10 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82151-30D10 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30C70 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82152-30D00 |
GRL10..8FC;AWL10,GRL11,GWL10 ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ付き) |
1 | ||
| 82152-30D00 |
GRL10..8FC;AWL10,GRL11,GWL10 ﾌﾛﾝﾄｼｰﾄｱｼﾞｬｽﾀ−18WAY & 助手席(肩口ｽｲｯﾁ & ｵｯﾄﾏﾝ) |
1 | ||
| 82152-30C70 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82152-30D00 |
ARL10,AWL10,GRL1#,GWL10 version L |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30711 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82153-30710 |
GRL1#,GWL10 |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-30030 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82157-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30630 |
GRL1#,GWL10 |
1 | ||
| 82154-30631 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82158-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82158-30030 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
ILLUST NO.11 OF12(1112- )

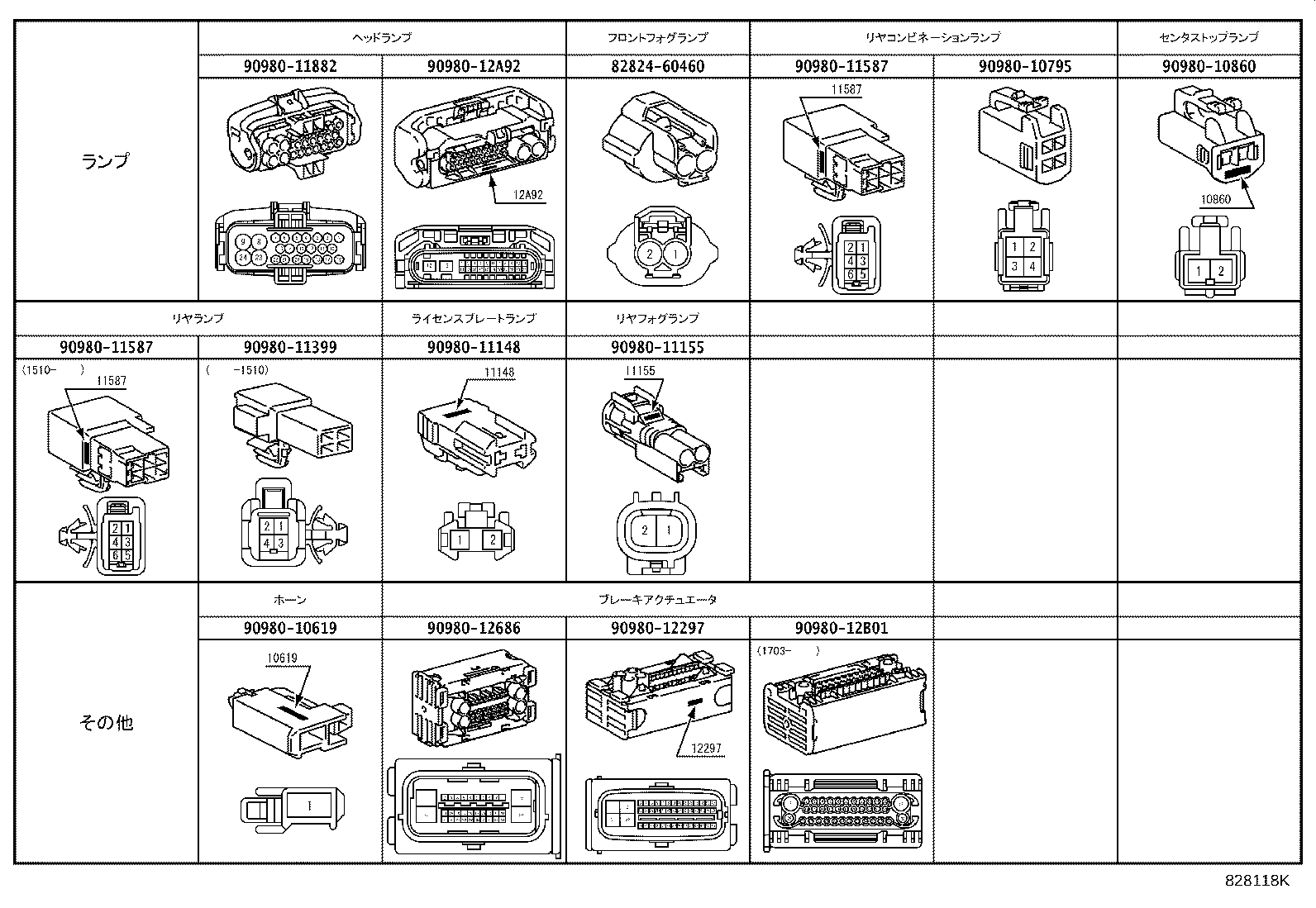

ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10860 | ||||
| 90980-11148 | ||||
| 90980-11155 | ||||
| 90980-11399 | ||||
| 90980-11587 | ||||
| 90980-11882 | ||||
| 90980-12297 | ||||
| 90980-12686 | ||||
| 90980-12A92 | ||||
| 90980-12B01 | ||||
ILLUST NO.12 OF12(1112- )

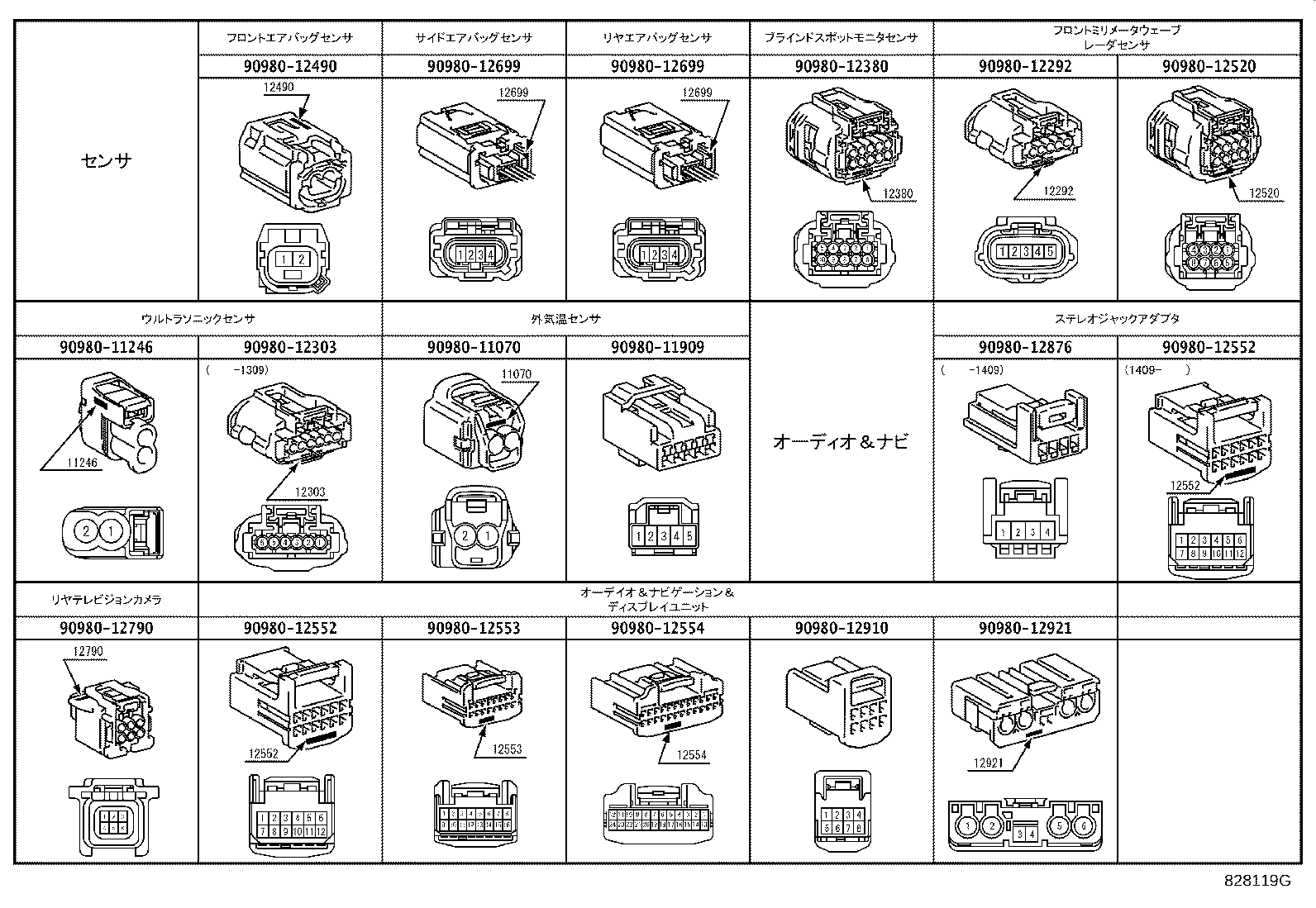

ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-11070 | ||||
| 90980-11246 | ||||
| 90980-11909 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12380 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12876 | ||||
| 90980-12910 | ||||
| 90980-12921 | ||||

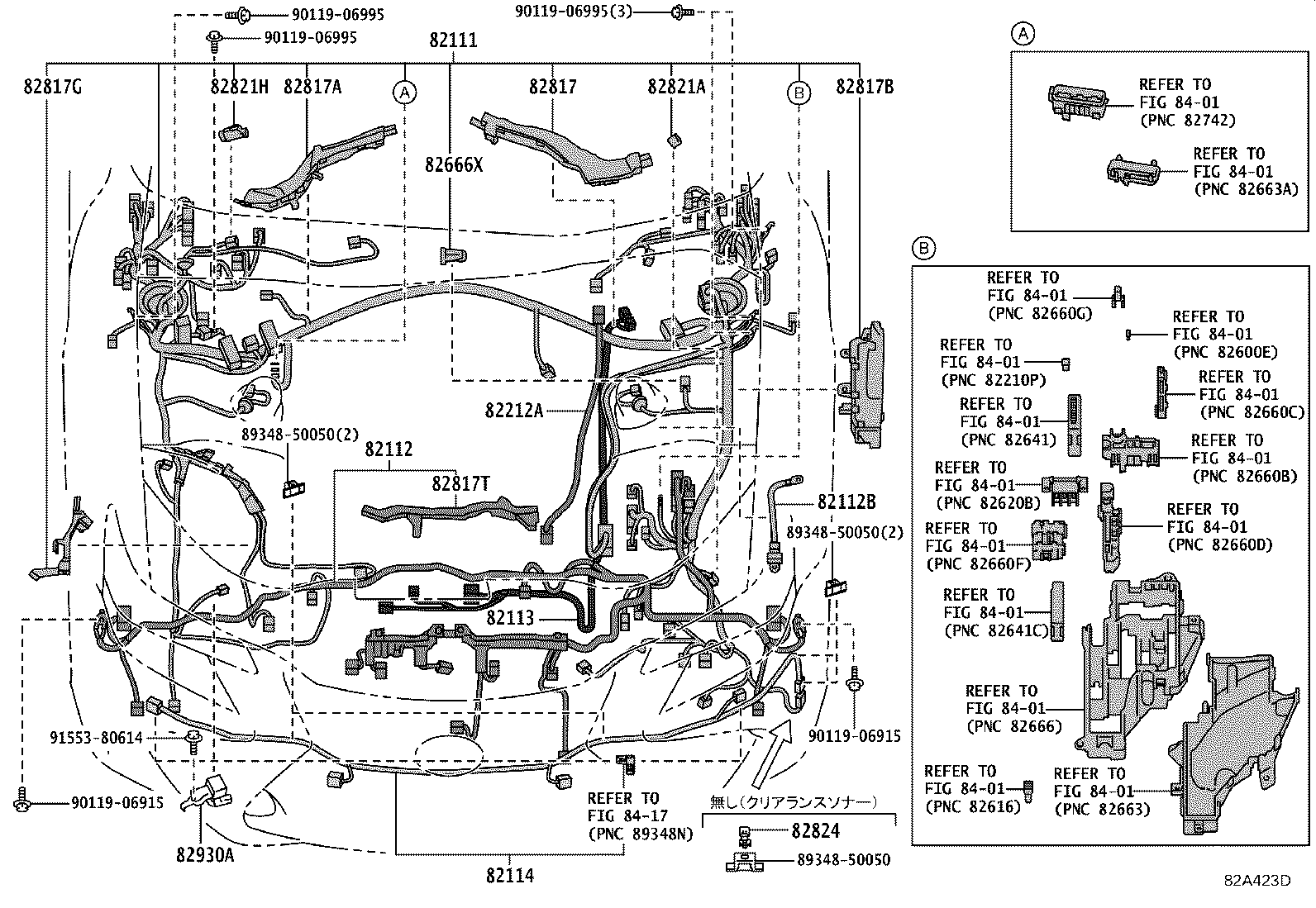

ILLUST NO. 1 OF12(1510- )AWL10,GWL10
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3AW00 |
GWL10 |
1 | ||
| 82111-3AW01 |
GWL10 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30S70 |
AWL10,GWL10 |
1 | ||
| 82112-30S60 |
AWL10,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED(三眼ﾌﾙLED) & 有り(*AHS) |
1 | ||
| 82112B - WIRE, ENGINE ROOM, NO.2 | ||||
| 82119-30010 |
AWL10,GWL10 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30730 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 82113-30830 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-30200 |
GRL1#,GWL10 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82114-30290 |
ARL10,AWL10,GRL1#,GWL10 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82212A - HARNESS, AIR CONDITIONER | ||||
| 82212-30040 |
GWL10 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-53060 |
AWL10,GWL10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30K40 |
AWL10,GWL10 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30K30 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82817-30K30 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-30Q30 |
AWL10,GWL10 |
1 | ||
| 82817-3AK30 |
AWL10,GWL10 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30W40 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-30Q70 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82817-30Q70 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-35040 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82821-35040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-22120 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-50430 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82114-22050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82930A - CONDENSER ASSY, WIRING HARNESS, NO.2 | ||||
| 82930-30070 |
AWL10,GWL10 |
1 | ||
| Common parts | ||||
| 89348-50050 | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 5 OF12(1112- )ARL10,GRL1#,GWL10
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-3AM41 |
GWL10 |
1 | ||
| 82161-3AM40 |
GWL10 |
1 | ||
| 82161-3AM42 |
GWL10 |
1 | ||
| 82161C - CONDENSER | ||||
| 90980-04206 |
AWL10,GWL10 |
2 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-3AD80 |
GWL10 F SPORT&ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82162-3AD60 |
GWL10 ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82162-3AD70 |
GWL10 F SPORT |
1 | ||
| 82162-3AD51 |
GWL10 |
1 | ||
| 82162-3AD71 |
GWL10 F SPORT |
1 | ||
| 82162-3AD81 |
GWL10 F SPORT&ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82162-3AD52 |
GWL10 |
1 | ||
| 82162-3AD72 |
GWL10 F SPORT |
1 | ||
| 82162-3AD82 |
GWL10 F SPORT&ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82162-3AD61 |
GWL10 ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82162-3AD62 |
GWL10 ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82162-3AD50 |
GWL10 |
1 | ||
| 82162-3AD72 |
GWL10 “Eternal Touring” |
1 | ||
| 82162-3AD82 |
GWL10 “Eternal Touring”&ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-30150 |
AWL10,GWL10 “Eternal Touring”&寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾞﾙﾌﾞﾀｲﾌﾟ(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| 82164-30150 |
AWL10,GWL10 F SPORT&寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾞﾙﾌﾞﾀｲﾌﾟ(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| 82164-30150 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾞﾙﾌﾞﾀｲﾌﾟ(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| 82164-30150 |
AWL10,GRL1#,GWL10 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾞﾙﾌﾞﾀｲﾌﾟ(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| 82166C - WIRE, BATTERY PACK, NO.2 | ||||
| 82166-30290 |
GWL10 |
1 | ||
| 82166-30300 |
GWL10 version L |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30J40 |
GRL1#,GWL10 |
1 | ||
| 82171-30J50 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 82171-30J70 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 82171-30J60 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 82171-30J80 |
GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ) |
1 | ||
| 82171-30K00 |
GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 82171-30J90 |
GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 82171-30K10 |
GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ)&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 82171-30Q50 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82171-30Q51 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82171-30Q70 |
AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ) |
1 | ||
| 82171-30Q52 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82171-30Q72 |
ARL10,AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ) |
1 | ||
| 82171-30Q71 |
ARL10,AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-30450 |
ARL10,AWL10,GRL1#,GWL10 ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82181-30320 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82181-30330 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82181-30460 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82181-30461 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82181-30451 |
ARL10,AWL10,GRL1#,GWL10 ﾊﾟﾜｰﾄﾗﾝｸﾘｯﾄﾞｼｽﾃﾑ−有り |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-30150 |
ARL10,AWL10,GRL1#,GWL10 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82183-30110 |
GRL1#,GWL10 ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82223H - WIRE, FUSE BLOCK | ||||
| 82223-30130 |
AWL10,GWL10 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30020 |
AWL10,GWL10 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30B30 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666-30B30 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-30B50 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666-30B50 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-30B60 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666-30B60 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-30B70 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666-30B70 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-21040 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666-21040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-26080 |
GRL1#,GWL10 |
2 | ||
| 82666-26080 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-42020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666-42020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-60220 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666-60220 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-42020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26130 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666-26130 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-26080 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-30U90 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82817-30U90 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-53240 |
GRL1#,GWL10 |
1 | ||
| 82817-30N30 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-30N40 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 82817-53250 |
GRL1#,GWL10 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-60730 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 61824-30170 | ||||
| 61824-30180 | ||||
| 61824-30190 | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90179-06274 | ||||
| 90980-12697 | ||||
| 91553-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||

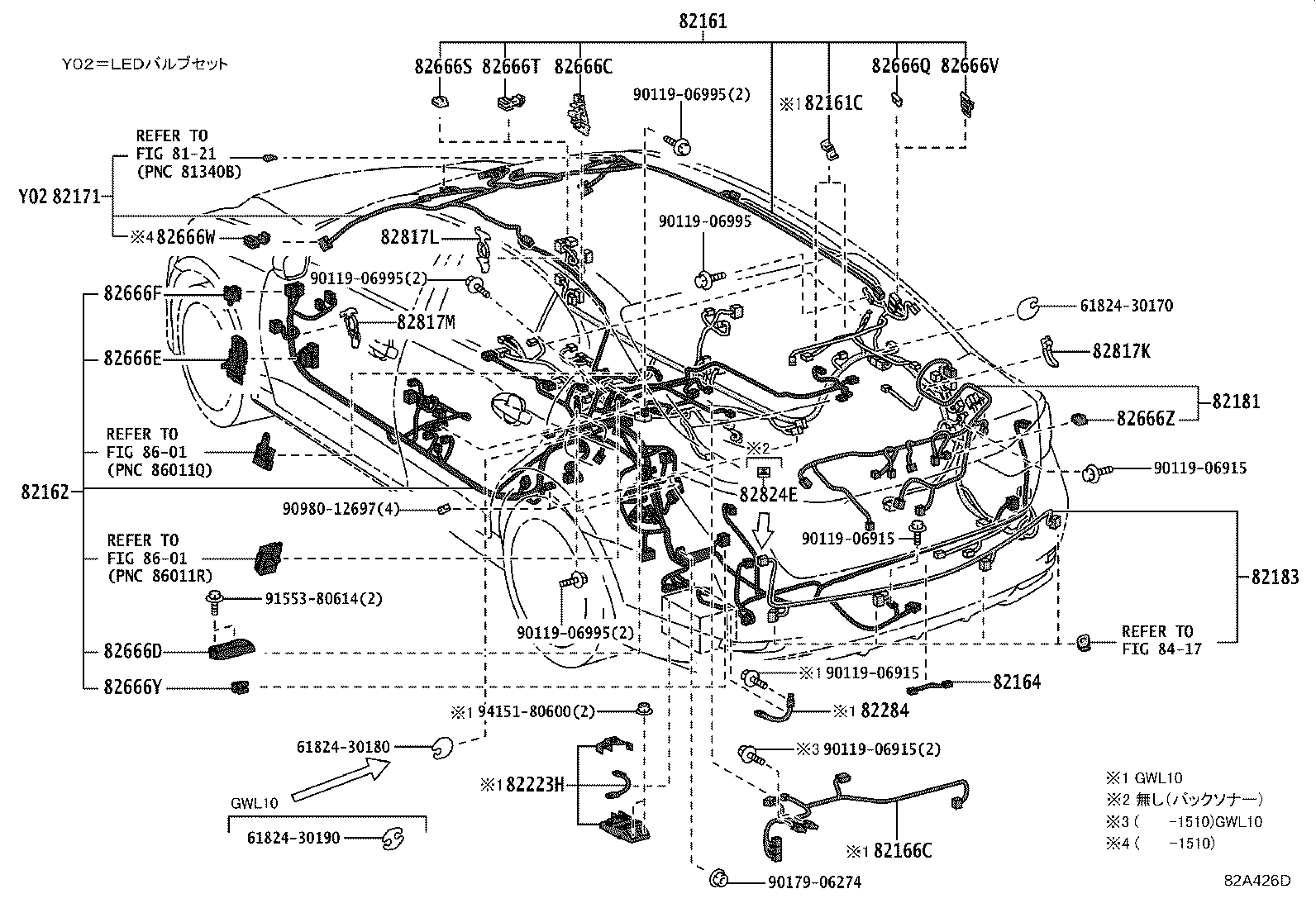

ILLUST NO.10 OF12(1112- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30A20 | ||||
| 82715-24390 | ||||
| 82715-30B80 | ||||
| 82715-30E70 | ||||
| 82715-30K90 | ||||
| 82715-30N20 | ||||
| 82715-30P10 | ||||
| 82715-30P90 | ||||
| 82715-30Q00 | ||||
| 82715-30Q40 | ||||
| 82715-30S00 | ||||
| 82715-30V40 | ||||
| 82715-30X10 | ||||
| 82715-53610 | ||||
| 82715-78110 | ||||
| 82729-30040 | ||||
| 90119-06915 | ||||
| 90178-06012 | ||||
| 91553-80614 | ||||
| 91621-B0616 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-80816 | ||||
| 91673-A0620 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
