GWL10-BEXQB (2015)
Toyota Lexus Gs Series
(1112- )

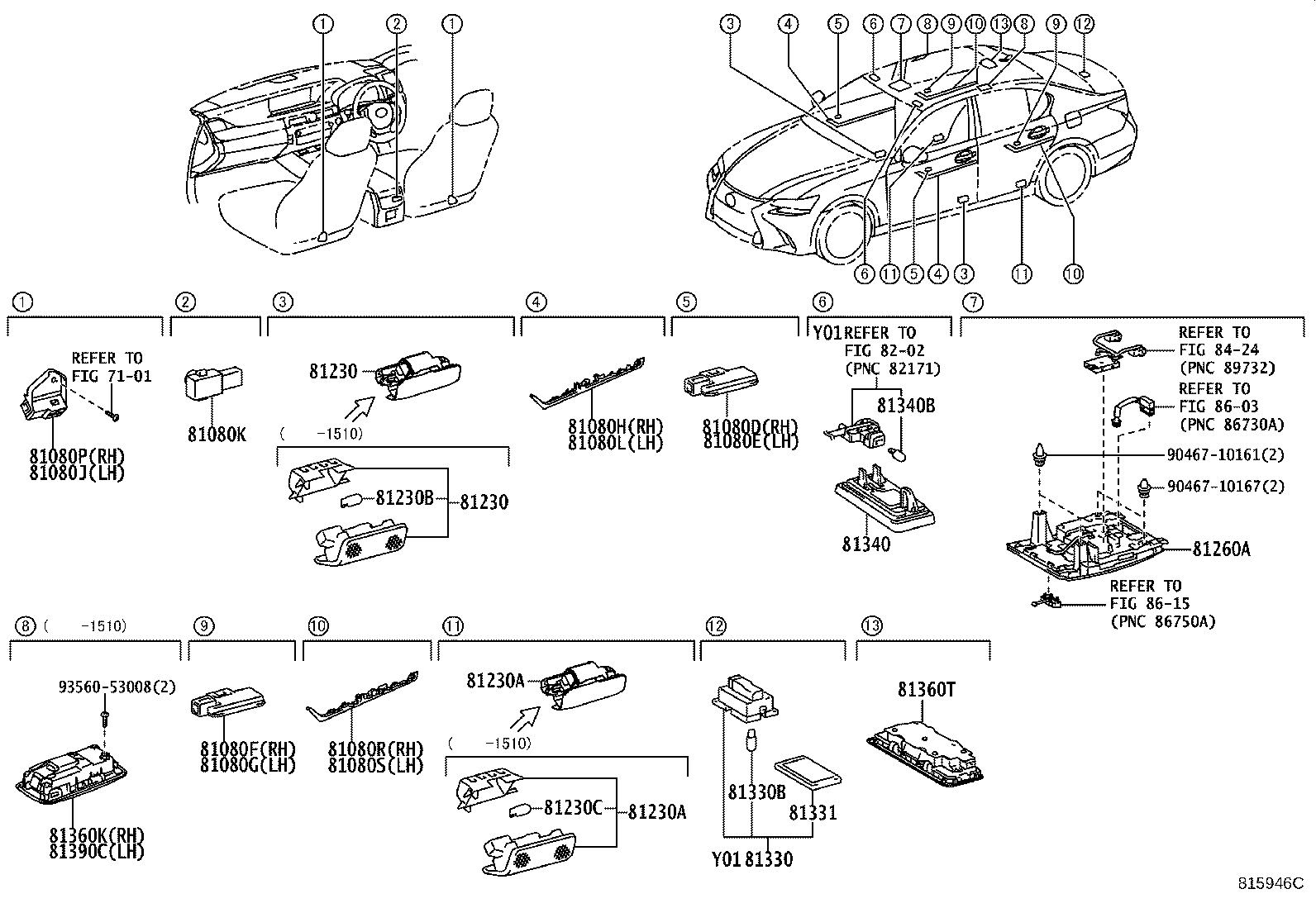

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080D - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-30140 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81080-30140 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81080E - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-30150 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81080-30150 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81080F - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-30140 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81080-30140 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81080G - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-30150 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81080-30150 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81090-30030 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81090-30080 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”&ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ)&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−F SPORT(CFRP ｱﾙｶﾝﾀｰﾗ) |
1 | ||
| 81090-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81090-30071 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81090-30070 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81090-30070 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION | ||||
| 81080-30010 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81080-30010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81080-30170 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81090-30040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81090-30040 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81090-30090 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”&ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ)&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−F SPORT(CFRP ｱﾙｶﾝﾀｰﾗ) |
1 | ||
| 81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-30131 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81080-30130 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81080-30130 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81080R - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81090-30050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81090-30050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81090-30100 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”&ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ)&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−F SPORT(CFRP ｱﾙｶﾝﾀｰﾗ) |
1 | ||
| 81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81090-30060 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81090-30060 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81090-30110 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”&ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ)&ﾄﾞｱﾄﾘﾑｵｰﾅﾒﾝﾄ−F SPORT(CFRP ｱﾙｶﾝﾀｰﾗ) |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30190 |
AWL10,GRL1#,GWL10 |
2 | ||
| 81230-50070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-30190 |
AWL10,GRL1#,GWL10 |
2 | ||
| 81230-50070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 81230A - LAMP ASSY, COURTESY, NO.2 | ||||
| 81230-30190 |
AWL10,GRL1#,GWL10 |
2 | ||
| 81230-50070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 81230A - LAMP ASSY, COURTESY, NO.2 | ||||
| 81230-30190 |
AWL10,GRL1#,GWL10 |
2 | ||
| 81230-50070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-1107179 |
AWL10,GRL1#,GWL10 12V 5W |
2 | ||
| 81230C - BULB(FOR COURTESY LAMP NO.2) | ||||
| 90981-1107179 |
AWL10,GRL1#,GWL10 12V 5W |
2 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81206-30030A0 |
GRL10,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 81206-30030C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 81206-30040A0 |
GRL10,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 81206-30030B0 |
GRL10..8FC;AWL10,GRL15,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 81206-30150C0 |
ARL10,AWL10,GRL12,16,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM25,26,3#,4#,55,56 |
1 | ||
| 81206-30040B0 |
GRL10..8FC;AWL10,GRL15,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 81206-30200C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM25,26,3#,4#,55,56 |
1 | ||
| 81206-30200A0 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 81206-30150A0 |
ARL10,AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 81206-30040C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 81206-30201A0 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 81206-30151C0 |
ARL10,AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),BLACK,TRIM25,26,27,3#,55,56 |
1 | ||
| 81206-30201C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM25,26,27,3#,55,56 |
1 | ||
| 81206-30151A0 |
ARL10,AWL10,GRL1#,GWL10 ﾑｰﾝﾙｰﾌ−有り(ﾁﾙﾄ & ｽﾗｲﾄﾞ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-50021 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 81330-50021 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-1102079 |
ARL10,AWL10,GRL1#,GWL10 12V 3.8W |
1 | ||
| 90981-1102079 |
AWL10,GRL1#,GWL10 12V 3.8W |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-50010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 81331-50010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30110 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 81340-30110 |
AWL10,GRL1#,GWL10 |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-1106279 |
AWL10,GRL1#,GWL10 12V 8W |
2 | ||
| 90981-1106279 |
ARL10,AWL10,GRL1#,GWL10 12V 8W |
2 | ||
| 81360K - LAMP ASSY, SPOT, RH | ||||
| 81360-30070A0 |
GRL10..6FC;GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 81360-30070C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 81360-30070B0 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-30090C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM25,26,3#,4#,55,56 |
1 | ||
| 81360-30090C1 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM25,26,27,3#,55,56 |
1 | ||
| 81360-30090A0 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 81390C - LAMP ASSY, SPOT, LH | ||||
| 81390-30020B0 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 81390-30020A0 |
GRL10..6FC;GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 81390-30020C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 93560-53008 | ||||
| Linked diagrams | ||||
| 7101 | ||||
| 8202 | ||||
| 8424 | ||||
| 8603 | ||||
| 8615 | ||||
