GWL10-BEXQB (2015)
Toyota Lexus Gs Series
Production
Oct 2015
-
Jul 2020
Engine
2GRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )

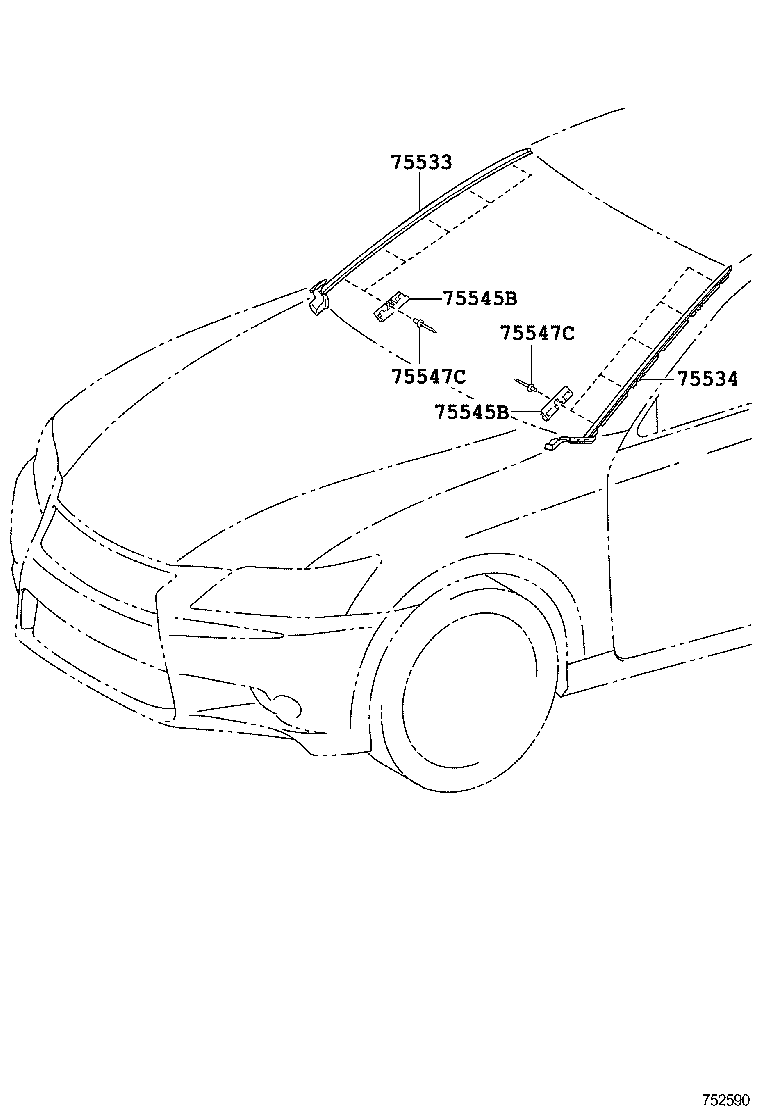

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75533 - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 75551-30510 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 75551-30510 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 75534 - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 75552-30510 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 75552-30510 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75545-30170 |
ARL10,AWL10,GRL1#,GWL10 |
10 | ||
| 75545-30170 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
10 | ||
| 75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75545-30170 |
ARL10,AWL10,GRL1#,GWL10 |
10 | ||
| 75545-30170 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
10 | ||
| 75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 | ||||
| 75547-51021 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
10 | ||
| 75547-51021 |
ARL10,AWL10,GRL1#,GWL10 |
10 | ||
| 75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 | ||||
| 75547-51021 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
10 | ||
| 75547-51021 |
ARL10,AWL10,GRL1#,GWL10 |
10 | ||
