GWL10-BEXQB (2015)
Toyota Lexus Gs Series
ILLUST NO. 1 OF 3(1112- )
ｴﾝｼﾞﾝﾙｰﾑ & ｶﾞｲｿｳﾊﾟﾈﾙ(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11285A - LABEL, COOLANT SYSTEM NOTICE | ||||
| 11285-31030 |
2GR#..GRL12,16,GWL10 |
1 | ||
| 11296C - LABEL, ENGINE SERVICE INFORMATION | ||||
| 11293-36070 |
2ARFSE,2GRFXE..AWL10,GWL10 |
1 | ||
| 11296D - LABEL, ENGINE SERVICE INFORMATION | ||||
| 11296-47080 |
2ARFSE,8ARFTS,2GR#..ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 11296-31200 |
2ARFSE,2GRFXE..AWL10,GWL10 |
1 | ||
| 45248A - LABEL, STEERING ACTUATOR CAUTION | ||||
| 45248-30020 |
GRL12,GWL10 F SPORT&LDH−有り |
1 | ||
| 45248-30020 |
GRL12,GWL10 “Eternal Touring”&LDH−有り |
1 | ||
| 45248-30020 |
GWL10;GRL10..8FC F SPORT&LDH−有り |
1 | ||
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-2B300 |
ARL10,AWL10,GRL1#,GWL10 *111 |
1 | ||
| 74511-2B300 |
GRL10..8FC;AWL10,GRL11,15,GWL10 *111 |
1 | ||
| 74515A - PLATE, THEFT WARNING | ||||
| 74515-30040 |
GRL1#,GWL10 |
2 | ||
| 74579A - LABEL, UNLEADED FUEL INFORMATION | ||||
| 74579-24010 |
ARL10,GRL1#,GWL10 |
1 | ||
| 74579-24010 |
GRL10..8FC;GRL11,GWL10 |
1 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-30C50 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 42661-30B10 |
GRL12,GWL10 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ− 235/40R19+265/35R19SM SE&ｽﾍﾟｱﾀｲﾔ−応急用(T145/70D18,ｱﾙﾐ) |
1 | ||
| 42661-30B10 |
ARL10,AWL10,GRL1#,GWL10 ｽﾍﾟｱﾀｲﾔ−応急用(T155/70D17) |
1 | ||
| 42661-30B10 |
GRL12,GWL10 ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−235/40R19+265/35R19 ｻﾏｰﾀｲﾔ&ｽﾍﾟｱﾀｲﾔ−応急用(T145/70D18,ｱﾙﾐ) |
1 | ||
| 88723E - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-48171 |
GWL10 |
1 | ||
| G9275 - LABEL, BATTERY CAUTION, NO.1 | ||||
| G9275-30010 |
AWL10,GWL10 |
1 | ||
ILLUST NO. 3 OF 3(1112- )
ﾅｲｿｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45248A - LABEL, STEERING ACTUATOR CAUTION | ||||
| 45248-30020 |
GRL12,GWL10 F SPORT&LDH−有り |
1 | ||
| 45248-30020 |
GRL12,GWL10 “Eternal Touring”&LDH−有り |
1 | ||
| 45248-30020 |
GWL10;GRL10..8FC F SPORT&LDH−有り |
1 | ||
| 74541B - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-42010 |
GRL12,GWL10 ﾌﾛﾝﾄﾎｲｰﾙﾌﾞﾚｰｷ−18ｲﾝﾁﾃﾞｨｽｸ(ｵﾚﾝｼﾞ塗装)&ｽﾍﾟｱﾀｲﾔ−応急用(T145/70D18,ｱﾙﾐ) |
1 | ||
| 42668-42010 |
GRL12,GWL10 ﾌﾛﾝﾄﾎｲｰﾙﾌﾞﾚｰｷ−18ｲﾝﾁﾃﾞｨｽｸ&ｽﾍﾟｱﾀｲﾔ−応急用(T145/70D18,ｱﾙﾐ) |
1 | ||
| 42668-42010 |
ARL10,AWL10,GRL1#,GWL10 ｽﾍﾟｱﾀｲﾔ−応急用(T155/70D17) |
1 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-30010 |
GRL10,GWL10 ｽﾍﾟｱﾀｲﾔ−応急用(T145/70D18,ｱﾙﾐﾆｳﾑ) |
1 | ||
| 42668-30010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ｽﾍﾟｱﾀｲﾔ−応急用(T155/70D17) |
1 | ||
| 74598A - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 74598-20010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| G9288A - LABEL, BATTERY CARGING NOTICE | ||||
| G9288-50010 |
AWL10,GWL10 |
1 | ||

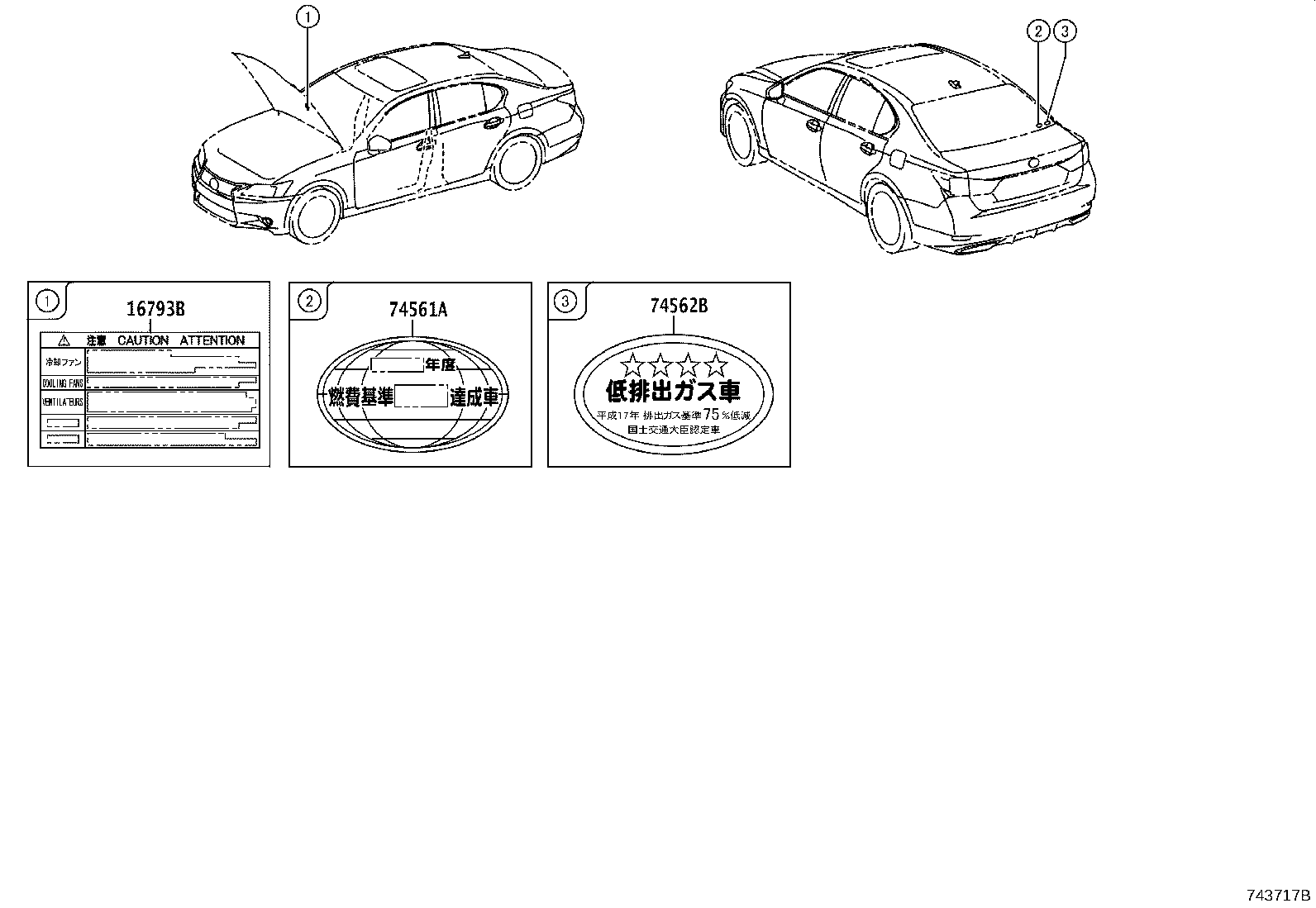

ILLUST NO. 2 OF 3(1112- )
ｴﾝｼﾞﾝﾙｰﾑ & ｶﾞｲｿｳﾊﾟﾈﾙ(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 16793-28040 |
2ARFSE,2GR#..AWL10,GRL12,16,GWL10 |
1 | ||
| 74561A - LABEL, FUEL CONSUMPTION INFORMATION | ||||
| 74561-30430 |
GWL10 平成32年度 燃費基準+30%達成車,燃費ｽﾃｯｶ−平成32年度燃費基準+30%達ｬ車 |
1 | ||
| 74561-48170 |
GWL10 平成32年度 燃費基準+20%達成車,指定自動車適合−排ｶﾞｽ検査証 |
1 | ||
| 74561-30520 |
GWL10 2020年度 燃費基準+20%達成車 |
1 | ||
| 74561-30520 |
GWL10 2020年度 燃費基準+20%達成車,指定自動車適合−排ｶﾞｽ検査証 |
1 | ||
| 74561-48170 |
GWL10 平成32年度 燃費基準+20%達成車 |
1 | ||
| 74561-30530 |
GWL10 2020年度 燃費基準+30%達成車,燃費ｽﾃｯｶ−平成32年度燃費基準+30%達ｬ車 |
1 | ||
| 74561-48170 |
GWL10 平成32年度 燃費基準+20%達成車,指定自動車適合−排ｶﾞｽ検査証&燃費ｽﾃｯｶ−ｽ成32年度燃費基準+30%達成車 |
1 | ||
| 74561-30520 |
GWL10 2020年度 燃費基準+20%達成車,指定自動車適合−排ｶﾞｽ検査証&燃費ｽﾃｯｶ−ｽ成32年度燃費基準+30%達成車 |
1 | ||
| 74562B - LABEL, EMISSION INFORMATION | ||||
| 74562-47010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 H17 排出ｶﾞｽ75%低減 |
1 | ||
| 74562-47010 |
ARL10,AWL10,GRL1#,GWL10 H17 排出ｶﾞｽ75%低減 |
1 | ||
