GWL10-BEXQB (2015)
Toyota Lexus Gs Series

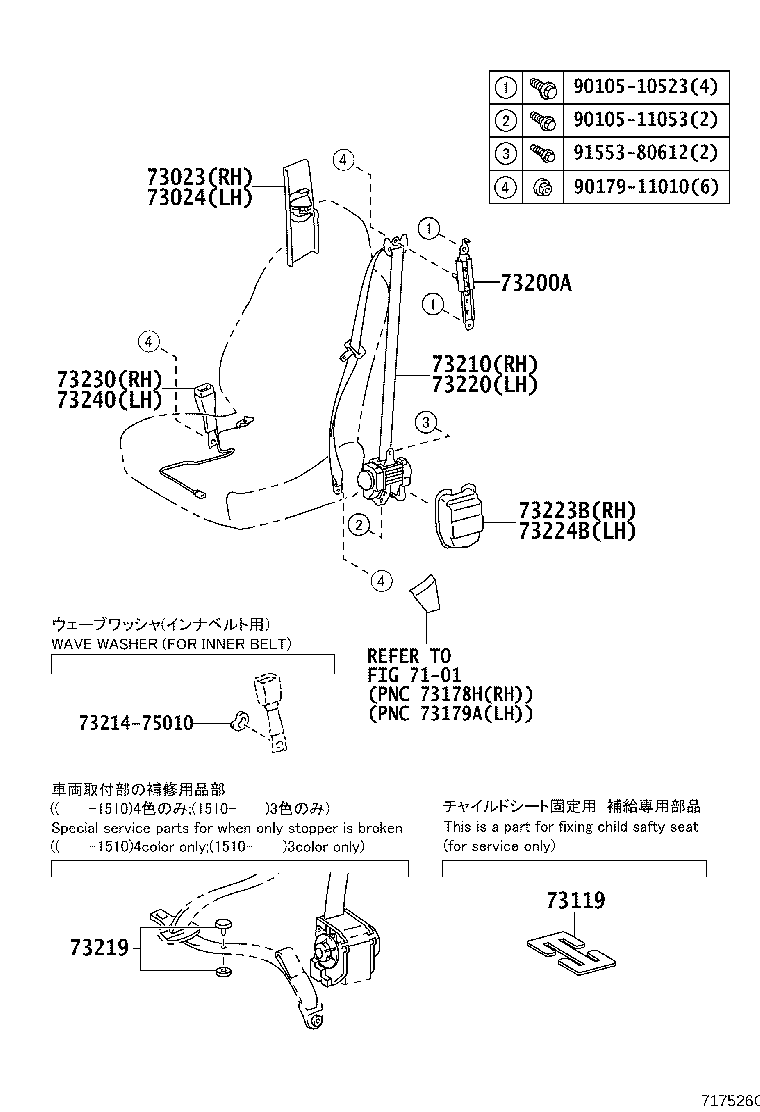

ILLUST NO. 1 OF 2(1112- )
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-33030C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 73023-33030B1 |
GRL10..8FC;AWL10,GRL11,15,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 73023-33030A1 |
GRL10..8FC;AWL10,GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 73023-33030A2 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 73023-33030C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-33030C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 73024-33030A1 |
GRL10..8FC;AWL10,GRL11,15,GWL10 IVORY,TRIM00,01,02,03,50,51,52 |
1 | ||
| 73024-33030C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 73024-33030A2 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 73024-33030B1 |
GRL10..8FC;AWL10,GRL11,15,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 73119-22010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-12070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 73200-53010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-30E90C0 |
GRL10,15,GWL10 IVORY/BLACK/BLACK,TRIM50,51,52,53 |
1 | ||
| 73210-30F00A0 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,IVORY/IVORY/IVORY,TRIM00,01,02,03 |
1 | ||
| 73210-30E90C2 |
GRL1#,GWL10 BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 73210-30E90B0 |
GRL1#,GWL10 LT.GRAY/LT.GRAY/GRAY,TRIM1# |
1 | ||
| 73210-30E90A0 |
GRL10,15,GWL10 IVORY/IVORY/IVORY,TRIM00,01,02,03 |
1 | ||
| 73210-30E90C1 |
GRL10,15,GWL10 LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4# |
1 | ||
| 73210-30F00A0 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),IVORY/IVORY/IVORY,TRIM00,01,02,03 |
1 | ||
| 73210-30F00C1 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4# |
1 | ||
| 73210-30F00B0 |
GRL1#,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),LT.GRAY/LT.GRAY/GRAY,TRIM1# |
1 | ||
| 73210-30F00B0 |
GRL1#,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,LT.GRAY/LT.GRAY/GRAY,TRIM1# |
1 | ||
| 73210-30F00C0 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),IVORY/BLACK/BLACK,TRIM50,51,52,53 |
1 | ||
| 73210-30F00C0 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,IVORY/BLACK/BLACK,TRIM50,51,52,53 |
1 | ||
| 73210-30F00C2 |
GRL1#,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 73210-30F00C1 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4# |
1 | ||
| 73210-30F00C2 |
GRL1#,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 73210-30E92C2 |
ARL10,AWL10,GRL1#,GWL10 BLACK/BLACK/BLACK,TRIM25,26,3#,55,56 |
1 | ||
| 73210-30E92C3 |
ARL10,AWL10,GRL1#,GWL10 ECRU/BLACK/BLACK,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 73210-30E93C3 |
ARL10,AWL10,GRL1#,GWL10 BLACK/ECRU/BLACK,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 73210-30E93C2 |
ARL10,AWL10,GRL1#,GWL10 BLACK/BLACK/BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ｸﾞﾚｰ |
1 | ||
| 73219-50010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾒﾛｳ ﾎﾜｲﾄ |
1 | ||
| 73219-33010 |
ARL10,AWL10,GRL1#,GWL10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
ARL10,AWL10,GRL1#,GWL10 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33030 |
ARL10,AWL10,GRL1#,GWL10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-30A30B0 |
GRL1#,GWL10 LT.GRAY/LT.GRAY/GRAY,TRIM1# |
1 | ||
| 73220-30A30C1 |
GRL10,15,GWL10 LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4# |
1 | ||
| 73220-30A30A0 |
GRL10,15,GWL10 IVORY/IVORY/IVORY,TRIM00,01,02,03 |
1 | ||
| 73220-30A30C0 |
GRL10,15,GWL10 IVORY/BLACK/BLACK,TRIM50,51,52,53 |
1 | ||
| 73220-30D60B0 |
GRL1#,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),LT.GRAY/LT.GRAY/GRAY,TRIM1# |
1 | ||
| 73220-30D60A0 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,IVORY/IVORY/IVORY,TRIM00,01,02,03 |
1 | ||
| 73220-30A30C2 |
GRL1#,GWL10 BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 73220-30D60A0 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),IVORY/IVORY/IVORY,TRIM00,01,02,03 |
1 | ||
| 73220-30D60C0 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,IVORY/BLACK/BLACK,TRIM50,51,52,53 |
1 | ||
| 73220-30D60C2 |
GRL1#,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 73220-30D60C0 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),IVORY/BLACK/BLACK,TRIM50,51,52,53 |
1 | ||
| 73220-30D60B0 |
GRL1#,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,LT.GRAY/LT.GRAY/GRAY,TRIM1# |
1 | ||
| 73220-30D60C1 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り,LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4# |
1 | ||
| 73220-30D60C1 |
GRL10,15,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),LT.GRAY/BLACK/BLACK,TRIM20,21,22,23,4# |
1 | ||
| 73220-30D60C2 |
GRL1#,GWL10 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き),BLACK/BLACK/BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 73220-30A32C2 |
ARL10,AWL10,GRL1#,GWL10 BLACK/BLACK/BLACK,TRIM25,26,3#,55,56 |
1 | ||
| 73220-30A33C3 |
ARL10,AWL10,GRL1#,GWL10 BLACK/ECRU/BLACK,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 73220-30A32C3 |
ARL10,AWL10,GRL1#,GWL10 ECRU/BLACK/BLACK,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 73220-30A33C2 |
ARL10,AWL10,GRL1#,GWL10 BLACK/BLACK/BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-30150 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 73223-30150 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 73224B - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73223-30150 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 73223-30150 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-30B10A0 |
GRL1#,GWL10 IVORY,TRIM00,01,02,03 |
1 | ||
| 73230-30B10C0 |
GRL1#,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
1 | ||
| 73230-30B10B0 |
GRL1#,GWL10 LT.GRAY,TRIM1# |
1 | ||
| 73230-30B11C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-30B60B0 |
GRL1#,GWL10 LT.GRAY,TRIM1# |
1 | ||
| 73230-30B60C0 |
GRL11,15,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
1 | ||
| 73230-30B61C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 73230-30B60A0 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03 |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-10523 | ||||
| 90105-11053 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 7101 | ||||

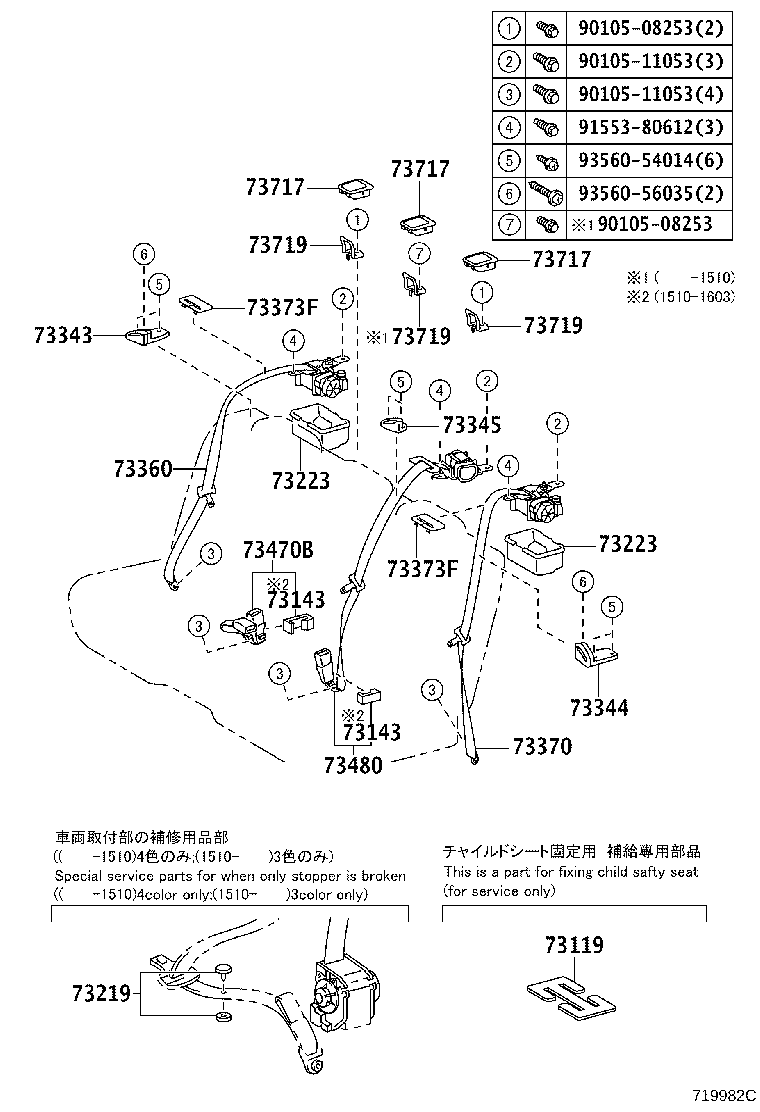

ILLUST NO. 2 OF 2(1112- )
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 73119-22010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-30010 |
AWL10,GRL1#,GWL10 右側 |
1 | ||
| 73143-30020 |
AWL10,GRL1#,GWL10 左側 |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-30010 |
AWL10,GRL1#,GWL10 右側 |
1 | ||
| 73143-30020 |
AWL10,GRL1#,GWL10 左側 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ｸﾞﾚｰ |
1 | ||
| 73219-50010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾒﾛｳ ﾎﾜｲﾄ |
1 | ||
| 73219-33010 |
ARL10,AWL10,GRL1#,GWL10 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
ARL10,AWL10,GRL1#,GWL10 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73219-33030 |
ARL10,AWL10,GRL1#,GWL10 ﾍﾞｰｼﾞｭ |
1 | ||
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-30160 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 73223-30160 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 73223 - COVER, SEAT BELT RETRACTOR | ||||
| 73223-30160 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 73223-30160 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73330-33010C0 |
GRL10..6FC;GRL11,15,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
1 | ||
| 73330-33010A6 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03,04,05,06 |
1 | ||
| 73330-33010B5 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1# |
1 | ||
| 73330-33010C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73340-33010A8 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03,04,05,06 |
1 | ||
| 73340-33010C0 |
GRL10..6FC;GRL11,15,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
1 | ||
| 73340-33010B4 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1# |
1 | ||
| 73340-33010C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73344-30050C0 |
GRL10..6FC;GRL11,15,GWL10 BLACK,TRIM04,05,2#,3#,4#,5# |
1 | ||
| 73344-30050C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 73344-30050A2 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03,04,05,06 |
1 | ||
| 73344-30050B2 |
AWL10,GRL1#,GWL10 LT.GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-30520A0 |
GRL10,15,GWL10 IVORY,TRIM00,01,02,03 |
1 | ||
| 73360-30520C0 |
GRL1#,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
1 | ||
| 73360-30500C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 73360-30523C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,5#,6# |
1 | ||
| 73360-30520B0 |
GRL1#,GWL10 GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-30330C0 |
GRL1#,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
1 | ||
| 73370-30333C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,5#,6# |
1 | ||
| 73370-30310C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 73370-30330B0 |
GRL1#,GWL10 GRAY,TRIM1# |
1 | ||
| 73370-30330A0 |
GRL10,15,GWL10 IVORY,TRIM00,01,02,03 |
1 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-33010A3 |
GRL10..8FC;AWL10,GRL11,15,GWL10 IVORY,TRIM00,01,02,03 |
2 | ||
| 73373-33010C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
2 | ||
| 73373-33010B5 |
GRL10..8FC;AWL10,GRL11,15,GWL10 LT.GRAY,TRIM1# |
2 | ||
| 73373-33010C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
2 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-33010A3 |
GRL10..8FC;AWL10,GRL11,15,GWL10 IVORY,TRIM00,01,02,03 |
2 | ||
| 73373-33010C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
2 | ||
| 73373-33010B5 |
GRL10..8FC;AWL10,GRL11,15,GWL10 LT.GRAY,TRIM1# |
2 | ||
| 73373-33010C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-30110C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 73470-30070A0 |
GRL1#,GWL10 IVORY,TRIM00,01,02,03 |
1 | ||
| 73470-30070B0 |
GRL1#,GWL10 GRAY,TRIM1# |
1 | ||
| 73470-30070C0 |
GRL1#,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
1 | ||
| 73470-30072C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,5#,6# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-30310A1 |
GRL11,15,GWL10 IVORY,TRIM00,01,02,03 |
1 | ||
| 73480-30310C1 |
GRL11,15,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
1 | ||
| 73480-30312C1 |
AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,5#,6# |
1 | ||
| 73480-30380C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 73480-30310B1 |
GRL1#,GWL10 GRAY,TRIM1# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50020A3 |
GRL10..8FC;AWL10,GRL11,15,GWL10 IVORY,TRIM00,01,02,03 |
3 | ||
| 73717-50020C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
3 | ||
| 73717-50020C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,5#,6#,右側 & 左側 |
2 | ||
| 73717-50020B6 |
GRL10..8FC;AWL10,GRL11,15,GWL10 LT.GRAY,TRIM1# |
3 | ||
| 73717-30010C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,ｾﾝﾀ |
1 | ||
| 73717-50020C1 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,右側 & 左側 |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50020A3 |
GRL10..8FC;AWL10,GRL11,15,GWL10 IVORY,TRIM00,01,02,03 |
3 | ||
| 73717-50020C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
3 | ||
| 73717-50020C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,5#,6#,右側 & 左側 |
2 | ||
| 73717-50020B6 |
GRL10..8FC;AWL10,GRL11,15,GWL10 LT.GRAY,TRIM1# |
3 | ||
| 73717-30010C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,ｾﾝﾀ |
1 | ||
| 73717-50020C1 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,右側 & 左側 |
2 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50020A3 |
GRL10..8FC;AWL10,GRL11,15,GWL10 IVORY,TRIM00,01,02,03 |
3 | ||
| 73717-50020C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM04,05,06,2#,3#,4#,5# |
3 | ||
| 73717-50020C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,5#,6#,右側 & 左側 |
2 | ||
| 73717-50020B6 |
GRL10..8FC;AWL10,GRL11,15,GWL10 LT.GRAY,TRIM1# |
3 | ||
| 73717-30010C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,ｾﾝﾀ |
1 | ||
| 73717-50020C1 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,右側 & 左側 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
3 | ||
| 73719-30030 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
3 | ||
| 73719-30030 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
3 | ||
| 73719-30030 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90105-11053 | ||||
| 91553-80612 | ||||
| 93560-54014 | ||||
| 93560-56035 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
