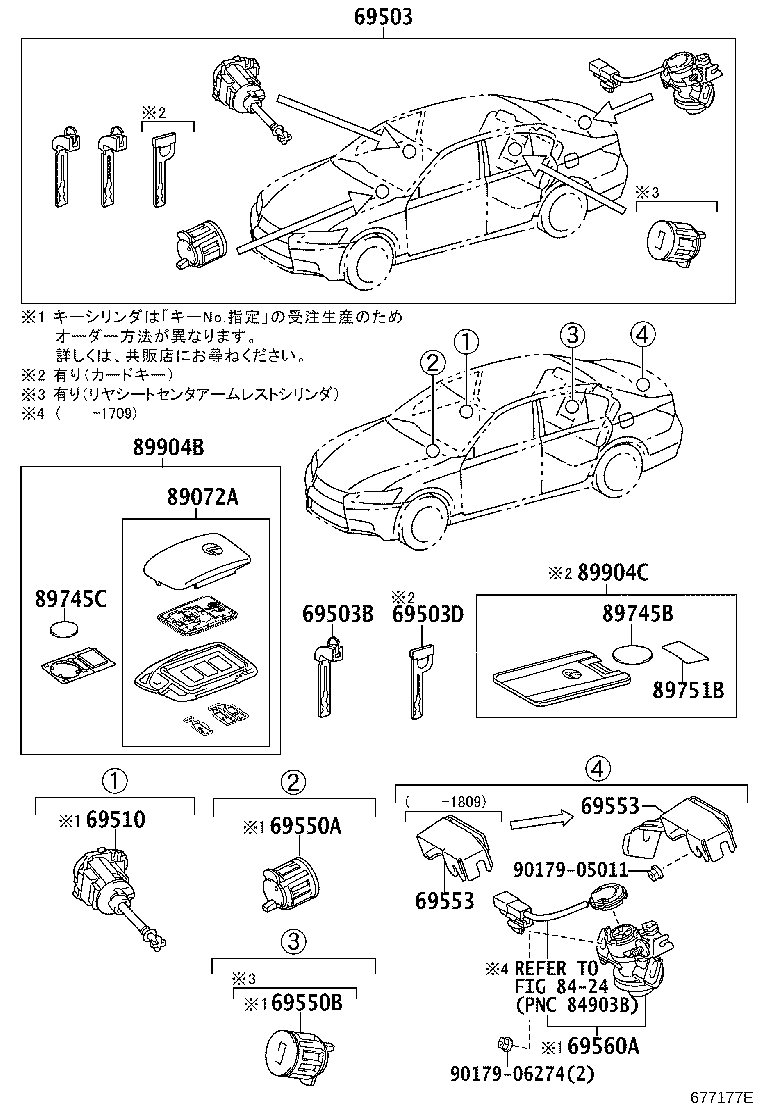

Toyota Lexus gs series GWL10 LOCK CYLINDER SET

Part #	Description	Period	Qty
69503 - CYLINDER SET, LOCK
69005-30F41	AWL10,GWL10	09/2017 - 07/2020	1
69005-30F40	AWL10,GWL10	10/2015 - 09/2017	1
69503B - KEY, CUT
69515-30370	ARL10,AWL10,GRL1#,GWL10 ﾏｽﾀｰｷｰ,W(*68)	10/2015 - 07/2020	2
69515-30370	AWL10,GRL1#,GWL10 ﾏｽﾀｰｷｰ,W(*68)	12/2011 - 10/2015	2
69503D - KEY, CUT(CARD KEY)
69515-30330	ARL10,AWL10,GRL1#,GWL10 ﾏｽﾀｰｷｰ	10/2015 - 07/2020	1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30300	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
69510-30300	AWL10,GRL1#,GWL10	12/2011 - 10/2015	1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-50040	AWL10,GRL1#,GWL10	12/2011 - 10/2015	1
69550-50040	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
69550B - CYLINDER ASSY, REAR SEAT CENTER ARMREST DOOR LOCK
69550-50040	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
69553 - PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
69553-30010	ARL10,AWL10,GRL1#,GWL10	10/2015 - 09/2018	1
69553-30010	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
69553-30021	ARL10,AWL10,GRL1#,GWL10	09/2018 - 07/2020	1
69553 - PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
69553-30010	ARL10,AWL10,GRL1#,GWL10	10/2015 - 09/2018	1
69553-30010	GRL10..8FC;AWL10,GRL11,15,GWL10	12/2011 - 10/2015	1
69553-30021	ARL10,AWL10,GRL1#,GWL10	09/2018 - 07/2020	1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30360	ARL10,AWL10,GRL1#,GWL10	10/2015 - 09/2017	1
69560-30370	ARL10,AWL10,GRL1#,GWL10	09/2017 - 07/2020	1
69560-30360	AWL10,GRL1#,GWL10	12/2011 - 10/2015	1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-30690	AWL10,GWL10	10/2015 - 07/2020	2
89745B - BATTERY, TRANSMITTER(CARD KEY)
89745-50030	ARL10,AWL10,GRL1#,GWL10 CR2412	10/2015 - 07/2020	1
89745C - BATTERY, TRANSMITTER
89745-45010	ARL10,AWL10,GRL1#,GWL10 CR2032	10/2015 - 07/2020	1
89745-45010	GRL10..8FC;AWL10,GRL11,15,GWL10 CR2032	12/2011 - 10/2015	1
89751B - COVER, TRANSMITTER HOUSING
8975B-50020	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-30K10	AWL10,GWL10	10/2015 - 07/2020	2
89904C - TRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
89904-30800	AWL10,GWL10	10/2015 - 07/2020	1
Common parts
90179-05011
90179-06274
Linked diagrams
8424

GWL10-BEXQB (2015)

(1112- )
