GWL10-BEXQB (2015)
Toyota Lexus Gs Series
(1112- )

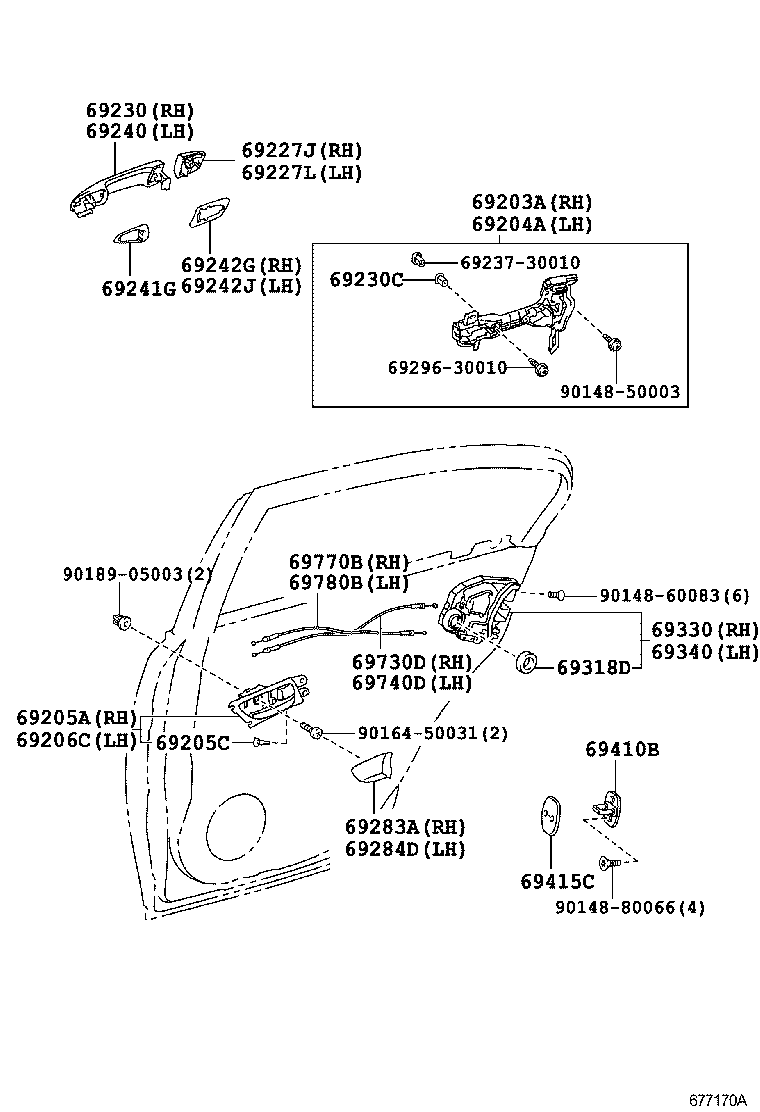

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-30072 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69203-30071 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69203-30070 |
GRL1#,GWL10 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-30072 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69204-30071 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69204-30070 |
GRL1#,GWL10 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69270-30030C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 69270-30050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 90541-04014 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69280-30050C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 69280-30070 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-48010A2 |
ARL10,AWL10,GRL1#,GWL10 WHITE NOVA GF.,083 |
1 | ||
| 69227-48010E4 |
ARL10,AWL10,GRL1#,GWL10 AMBER CS.,4X2 |
1 | ||
| 69227-48010B0 |
ARL10,AWL10,GRL1#,GWL10 DK.GRAY MC.,1G0 |
1 | ||
| 69227-48010C3 |
ARL10,AWL10,GRL1#,GWL10 GRAPHITE BLACK GF.,223 |
1 | ||
| 69227-48010B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69227-48010B5 |
ARL10,AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69227-48010J5 |
ARL10,AWL10,GRL1#,GWL10 DEEP BLUE MC.,8X5 |
1 | ||
| 69227-48010J4 |
AWL10,GRL1#,GWL10 METEOR BLUE M.M.,8W3 |
1 | ||
| 69227-48010D0 |
ARL10,AWL10,GRL1#,GWL10 RED MC.CS.,3R1 |
1 | ||
| 69227-48010B7 |
ARL10,AWL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 69227-48010J6 |
ARL10,AWL10,GRL1#,GWL10 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69227-48010C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 69227-48010E3 |
GRL1#,GWL10 SLEEK ECRU ME.,4U7 |
1 | ||
| 69227-48010B5 |
AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69227-48010C1 |
AWL10,GRL1#,GWL10 BLACK OPAL MC.,214 |
1 | ||
| 69227-48010A0 |
AWL10,GRL1#,GWL10 WHITE PEARL CS.,077 |
1 | ||
| 69227-48010B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69227-48010C2 |
AWL10,GRL1#,GWL10 STARLIGHT BLACK GF.,217 |
1 | ||
| 69227-48010D1 |
AWL10,GRL1#,GWL10 CRIMSON CS. GF.,3S8 |
1 | ||
| 69227-48010C0 |
AWL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 69227-48010E2 |
AWL10,GRL1#,GWL10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69227-48010A3 |
ARL10,AWL10,GRL1#,GWL10 SONIC QUARTZ,085 |
1 | ||
| 69227-48010J3 |
AWL10,GRL1#,GWL10 LAPIS LAZULI MC.,8V3 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69228-48010E3 |
GRL1#,GWL10 SLEEK ECRU ME.,4U7 |
1 | ||
| 69228-48010A0 |
AWL10,GRL1#,GWL10 WHITE PEARL CS.,077 |
1 | ||
| 69228-48010B5 |
AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69228-48010C2 |
AWL10,GRL1#,GWL10 STARLIGHT BLACK GF.,217 |
1 | ||
| 69228-48010D1 |
AWL10,GRL1#,GWL10 CRIMSON CS. GF.,3S8 |
1 | ||
| 69228-48010A2 |
ARL10,AWL10,GRL1#,GWL10 WHITE NOVA GF.,083 |
1 | ||
| 69228-48010B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69228-48010J3 |
AWL10,GRL1#,GWL10 LAPIS LAZULI MC.,8V3 |
1 | ||
| 69228-48010C0 |
AWL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 69228-48010C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 69228-48010E2 |
AWL10,GRL1#,GWL10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69228-48010B5 |
ARL10,AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69228-48010B7 |
ARL10,AWL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 69228-48010C1 |
AWL10,GRL1#,GWL10 BLACK OPAL MC.,214 |
1 | ||
| 69228-48010B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69228-48010C3 |
ARL10,AWL10,GRL1#,GWL10 GRAPHITE BLACK GF.,223 |
1 | ||
| 69228-48010D0 |
ARL10,AWL10,GRL1#,GWL10 RED MC.CS.,3R1 |
1 | ||
| 69228-48010B0 |
ARL10,AWL10,GRL1#,GWL10 DK.GRAY MC.,1G0 |
1 | ||
| 69228-48010A3 |
ARL10,AWL10,GRL1#,GWL10 SONIC QUARTZ,085 |
1 | ||
| 69228-48010J6 |
ARL10,AWL10,GRL1#,GWL10 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69228-48010J5 |
ARL10,AWL10,GRL1#,GWL10 DEEP BLUE MC.,8X5 |
1 | ||
| 69228-48010J4 |
AWL10,GRL1#,GWL10 METEOR BLUE M.M.,8W3 |
1 | ||
| 69228-48010E4 |
ARL10,AWL10,GRL1#,GWL10 AMBER CS.,4X2 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-48040C0 |
AWL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 69210-48040E3 |
GRL1#,GWL10 SLEEK ECRU ME.,4U7 |
1 | ||
| 69210-48040B5 |
AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69210-48040D1 |
AWL10,GRL1#,GWL10 CRIMSON CS. GF.,3S8 |
1 | ||
| 69210-48040B5 |
ARL10,AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69210-48040E2 |
AWL10,GRL1#,GWL10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69210-48040A2 |
ARL10,AWL10,GRL1#,GWL10 WHITE NOVA GF.,083 |
1 | ||
| 69210-48040J3 |
AWL10,GRL1#,GWL10 LAPIS LAZULI MC.,8V3 |
1 | ||
| 69210-48040C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 69210-48040J4 |
AWL10,GRL1#,GWL10 METEOR BLUE M.M.,8W3 |
1 | ||
| 69210-48040A3 |
ARL10,AWL10,GRL1#,GWL10 SONIC QUARTZ,085 |
1 | ||
| 69210-48040C1 |
AWL10,GRL1#,GWL10 BLACK OPAL MC.,214 |
1 | ||
| 69210-48040B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-48040B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69210-48040E4 |
ARL10,AWL10,GRL1#,GWL10 AMBER CS.,4X2 |
1 | ||
| 69210-48040A0 |
AWL10,GRL1#,GWL10 WHITE PEARL CS.,077 |
1 | ||
| 69210-48040C2 |
AWL10,GRL1#,GWL10 STARLIGHT BLACK GF.,217 |
1 | ||
| 69210-48040J5 |
ARL10,AWL10,GRL1#,GWL10 DEEP BLUE MC.,8X5 |
1 | ||
| 69210-48040C3 |
ARL10,AWL10,GRL1#,GWL10 GRAPHITE BLACK GF.,223 |
1 | ||
| 69210-48040B7 |
ARL10,AWL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 69210-48040D0 |
ARL10,AWL10,GRL1#,GWL10 RED MC.CS.,3R1 |
1 | ||
| 69210-48040B0 |
ARL10,AWL10,GRL1#,GWL10 DK.GRAY MC.,1G0 |
1 | ||
| 69210-48040J6 |
ARL10,AWL10,GRL1#,GWL10 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 69239-30010 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 69239-30010 |
AWL10,GRL1#,GWL10 |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-48040C0 |
AWL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 69220-48040A0 |
AWL10,GRL1#,GWL10 WHITE PEARL CS.,077 |
1 | ||
| 69220-48040J3 |
AWL10,GRL1#,GWL10 LAPIS LAZULI MC.,8V3 |
1 | ||
| 69220-48040E2 |
AWL10,GRL1#,GWL10 FIRE AGATE M.M.,4V3 |
1 | ||
| 69220-48040E3 |
GRL1#,GWL10 SLEEK ECRU ME.,4U7 |
1 | ||
| 69220-48040C1 |
AWL10,GRL1#,GWL10 BLACK OPAL MC.,214 |
1 | ||
| 69220-48040B5 |
AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69220-48040B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-48040C2 |
AWL10,GRL1#,GWL10 STARLIGHT BLACK GF.,217 |
1 | ||
| 69220-48040A2 |
ARL10,AWL10,GRL1#,GWL10 WHITE NOVA GF.,083 |
1 | ||
| 69220-48040B5 |
ARL10,AWL10,GRL1#,GWL10 SONIC SILVER,1J2 |
1 | ||
| 69220-48040B4 |
AWL10,GRL1#,GWL10 MERCURY GRAY MC.,1H9 |
1 | ||
| 69220-48040C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,212 |
1 | ||
| 69220-48040A3 |
ARL10,AWL10,GRL1#,GWL10 SONIC QUARTZ,085 |
1 | ||
| 69220-48040J4 |
AWL10,GRL1#,GWL10 METEOR BLUE M.M.,8W3 |
1 | ||
| 69220-48040B7 |
ARL10,AWL10,GRL1#,GWL10 SONIC TITANIUM,1J7 |
1 | ||
| 69220-48040C3 |
ARL10,AWL10,GRL1#,GWL10 GRAPHITE BLACK GF.,223 |
1 | ||
| 69220-48040J6 |
ARL10,AWL10,GRL1#,GWL10 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69220-48040J5 |
ARL10,AWL10,GRL1#,GWL10 DEEP BLUE MC.,8X5 |
1 | ||
| 69220-48040E4 |
ARL10,AWL10,GRL1#,GWL10 AMBER CS.,4X2 |
1 | ||
| 69220-48040B0 |
ARL10,AWL10,GRL1#,GWL10 DK.GRAY MC.,1G0 |
1 | ||
| 69220-48040D0 |
ARL10,AWL10,GRL1#,GWL10 RED MC.CS.,3R1 |
1 | ||
| 69220-48040D1 |
AWL10,GRL1#,GWL10 CRIMSON CS. GF.,3S8 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-48030 |
AWL10,GRL1#,GWL10 右側 |
1 | ||
| 69241-48030 |
ARL10,AWL10,GRL1#,GWL10 右側 |
1 | ||
| 69242-48030 |
ARL10,AWL10,GRL1#,GWL10 左側 |
1 | ||
| 69242-48030 |
AWL10,GRL1#,GWL10 左側 |
1 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69241-48041 |
GRL1#,GWL10 |
1 | ||
| 69241-48050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69242J - PAD, REAR DOOR OUTSIDE HANDLE, REAR LH | ||||
| 69242-48041 |
GRL1#,GWL10 |
1 | ||
| 69242-48050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30050C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 69283-30050C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30050C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 69284-30050C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 69318-51010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-33120 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69050-33120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-33120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 69060-33120 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-30060 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 69410-30060 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-60020 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 69415-33010 |
GRL1#,GWL10 |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-30180 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 69730-30180 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-30180 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69730-30180 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-30310 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69770-30310 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-30310 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 69770-30310 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| Common parts | ||||
| 69237-30010 | ||||
| 69296-30010 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
