GWL10-BEXQB (2015)
Toyota Lexus Gs Series
(1112- )

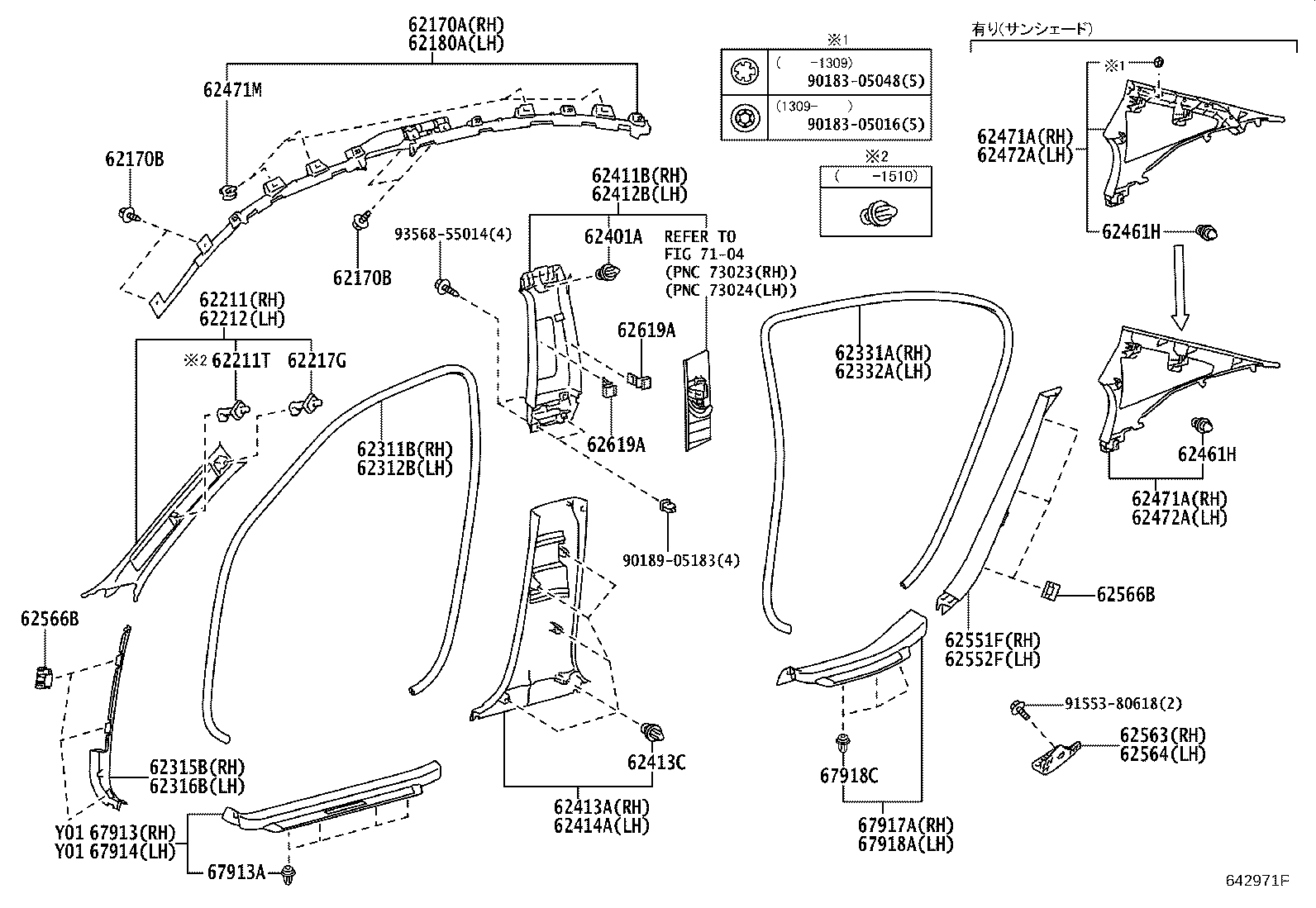

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-30120 |
GRL1#,GWL10 |
1 | ||
| 62170-30160 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
8 | ||
| 90119-06869 |
ARL10,AWL10,GRL1#,GWL10 |
8 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
8 | ||
| 90119-06869 |
ARL10,AWL10,GRL1#,GWL10 |
8 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-30120 |
GRL1#,GWL10 |
1 | ||
| 62180-30160 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-30530A0 |
GRL1#,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62211-30530C0 |
GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62211-30530B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62211-30560C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62211-30560A0 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 62217-24030 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 90467-10161 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-30540B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62212-30540A0 |
GRL1#,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62212-30570C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62212-30570A0 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62212-30540C0 |
GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-30040 |
GRL1#,GWL10 |
2 | ||
| 62217-24020 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-30260 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 62311-30260 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-30250 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 62312-30250 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 62315B - COVER, FRONT DOOR OPENING TRIM, RH | ||||
| 62315-30121C0 |
ARL10,AWL10,GRL12,16,GWL10 F SPORT,BLACK,TRIM2#,3#,5# |
1 | ||
| 62315-30120C0 |
GRL1#,GWL10 BLACK,TRIM0#,1#,2#,4#,5# |
1 | ||
| 62315-30121C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,4#,5#,6# |
1 | ||
| 62315-30120C0 |
GRL1#,GWL10 F SPORT,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 62315-30121C0 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”,BLACK,TRIM2#,3#,5# |
1 | ||
| 62316B - COVER, FRONT DOOR OPENING TRIM, LH | ||||
| 62316-30110C0 |
GRL1#,GWL10 F SPORT,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 62316-30110C0 |
GRL1#,GWL10 BLACK,TRIM0#,1#,2#,4#,5# |
1 | ||
| 62316-30111C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,4#,5#,6# |
1 | ||
| 62316-30111C0 |
ARL10,AWL10,GRL12,16,GWL10 F SPORT,BLACK,TRIM2#,3#,5# |
1 | ||
| 62316-30111C0 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”,BLACK,TRIM2#,3#,5# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-30190 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 62331-30190 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-30190 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 62332-30190 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 62217-13010 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 90467-10167 |
AWL10,GRL1#,GWL10 |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-30470B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62411-30470A0 |
GRL1#,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62411-30550A0 |
AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62411-30551C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62411-30551A0 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62411-30470C0 |
GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62411-30550C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM25,26,3#,55,56 |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-30470C0 |
GRL1#,GWL10 BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62412-30500C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM25,26,3#,55,56 |
1 | ||
| 62412-30470B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62412-30500A0 |
AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62412-30470A0 |
GRL1#,GWL10 IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62412-30501C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62412-30501A0 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-30260C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 62413-30260C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
ARL10,AWL10,GRL1#,GWL10 |
10 | ||
| 90467-10161 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
10 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-30190C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 62414-30190C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-09236 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
8 | ||
| 90467-09236 |
ARL10,AWL10,GRL1#,GWL10 |
8 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-09236 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
8 | ||
| 90467-09236 |
ARL10,AWL10,GRL1#,GWL10 |
8 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-30560B0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62471-30560C0 |
GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62471-30570B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62471-30560C0 |
GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62471-30560A0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62471-30560A0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62471-30570A0 |
GRL1#,GWL10 IVORY,TRIM0# |
1 | ||
| 62471-30560B0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62471-30580A1 |
ARL10,AWL10,GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62471-30590C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM4# |
1 | ||
| 62471-30580C1 |
ARL10,AWL10,GRL12,16,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62471-30580C1 |
ARL10,AWL10,GRL12,16,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62471-30580A1 |
ARL10,AWL10,GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62471-30590A1 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,5#,6# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-30560B0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62471-30560C0 |
GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62471-30570B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62471-30560C0 |
GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62471-30560A0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62471-30560A0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62471-30570A0 |
GRL1#,GWL10 IVORY,TRIM0# |
1 | ||
| 62471-30560B0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62471-30580A1 |
ARL10,AWL10,GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62471-30590C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM4# |
1 | ||
| 62471-30580C1 |
ARL10,AWL10,GRL12,16,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62471-30580C1 |
ARL10,AWL10,GRL12,16,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62471-30580A1 |
ARL10,AWL10,GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62471-30590A1 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,5#,6# |
1 | ||
| 62471M - CLIP | ||||
| 90467-18017 |
ARL10,AWL10,GRL1#,GWL10 |
8 | ||
| 62184-06010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
8 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-30520B0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62472-30520B0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62472-30520A0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62472-30530B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62472-30520A0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62472-30520C0 |
GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62472-30520C0 |
GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62472-30530A0 |
GRL1#,GWL10 IVORY,TRIM0# |
1 | ||
| 62472-30550C1 |
ARL10,AWL10,GRL12,16,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62472-30560C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM4# |
1 | ||
| 62472-30560A1 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,5#,6# |
1 | ||
| 62472-30550A1 |
ARL10,AWL10,GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62472-30550A1 |
ARL10,AWL10,GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62472-30550C1 |
ARL10,AWL10,GRL12,16,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-30520B0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62472-30520B0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),LT.GRAY,TRIM1#,20,21,22,23,4# |
1 | ||
| 62472-30520A0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62472-30530B0 |
GRL1#,GWL10 LT.GRAY,TRIM1#,2#,4# |
1 | ||
| 62472-30520A0 |
GRL10,15,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),IVORY,TRIM00,01,02,03,50,51,52,53 |
1 | ||
| 62472-30520C0 |
GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62472-30520C0 |
GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56 |
1 | ||
| 62472-30530A0 |
GRL1#,GWL10 IVORY,TRIM0# |
1 | ||
| 62472-30550C1 |
ARL10,AWL10,GRL12,16,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62472-30560C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM4# |
1 | ||
| 62472-30560A1 |
ARL10,AWL10,GRL1#,GWL10 ECRU,TRIM0#,1#,2#,5#,6# |
1 | ||
| 62472-30550A1 |
ARL10,AWL10,GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62472-30550A1 |
ARL10,AWL10,GRL1#,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ & ﾘﾔﾄﾞｱｳｨﾝﾄﾞｳ),ECRU,TRIM0#,1#,2#,50,51,52,53,6# |
1 | ||
| 62472-30550C1 |
ARL10,AWL10,GRL12,16,GWL10 ｻﾝｼｪｰﾄﾞ−有り(ﾊﾞｯｸｳｨﾝﾄﾞｳ),BLACK,TRIM25,26,27,3#,4#,55,56 |
1 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-30341C0 |
AWL10,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-30301C0 |
AWL10,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 62563 - PROTECTOR, ROCKER PANEL, INNER REAR RH | ||||
| 62563-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 62563-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 62564 - PROTECTOR, ROCKER PANEL, INNER REAR LH | ||||
| 62564-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 62564-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-30010 |
ARL10,AWL10,GRL1#,GWL10 |
6 | ||
| 62566-30010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
6 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62566-30010 |
ARL10,AWL10,GRL1#,GWL10 |
6 | ||
| 62566-30010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
6 | ||
| 62619A - PLATE, SIDE TRIM SET | ||||
| 62619-30030 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 62619-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 62619A - PLATE, SIDE TRIM SET | ||||
| 62619-30030 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 62619-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-30070C0 |
GRL1#,GWL10 BLACK,TRIM0#,1#,2#,4#,5# |
1 | ||
| 67910-30080C0 |
GRL1#,GWL10 F SPORT,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 67910-30071C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,5#,6# |
1 | ||
| 67910-30082C0 |
ARL10,AWL10,GRL1#,GWL10 F SPORT,BLACK,TRIM2#,3#,5# |
1 | ||
| 67910-30082C0 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”,BLACK,TRIM2#,3#,5# |
1 | ||
| 67910-30081C0 |
AWL10,GRL1#,GWL10 F SPORT,BLACK,TRIM2#,3#,5# |
1 | ||
| 67910-30072C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,4#,5#,6# |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-10162 |
ARL10,AWL10,GRL1#,GWL10 |
8 | ||
| 90467-10162 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
8 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-30080C0 |
GRL1#,GWL10 F SPORT,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 67920-30070C0 |
GRL1#,GWL10 BLACK,TRIM0#,1#,2#,4#,5# |
1 | ||
| 67920-30071C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,5#,6# |
1 | ||
| 67920-30082C0 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”,BLACK,TRIM2#,3#,5# |
1 | ||
| 67920-30081C0 |
AWL10,GRL1#,GWL10 F SPORT,BLACK,TRIM2#,3#,5# |
1 | ||
| 67920-30082C0 |
ARL10,AWL10,GRL1#,GWL10 F SPORT,BLACK,TRIM2#,3#,5# |
1 | ||
| 67920-30072C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,4#,5#,6# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-30060C0 |
GRL1#,GWL10 F SPORT,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 67930-30050C0 |
GRL1#,GWL10 BLACK,TRIM0#,1#,2#,4#,5# |
1 | ||
| 67930-30051C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,4#,5#,6# |
1 | ||
| 67930-30061C0 |
ARL10,AWL10,GRL1#,GWL10 F SPORT,BLACK,TRIM2#,3#,5# |
1 | ||
| 67930-30061C0 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”,BLACK,TRIM2#,3#,5# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-30050C0 |
GRL1#,GWL10 BLACK,TRIM0#,1#,2#,4#,5# |
1 | ||
| 67940-30051C0 |
ARL10,AWL10,GRL12,16,GWL10 BLACK,TRIM0#,1#,2#,4#,5#,6# |
1 | ||
| 67940-30061C0 |
ARL10,AWL10,GRL1#,GWL10 “Eternal Touring”,BLACK,TRIM2#,3#,5# |
1 | ||
| 67940-30060C0 |
GRL1#,GWL10 F SPORT,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 67940-30061C0 |
ARL10,AWL10,GRL1#,GWL10 F SPORT,BLACK,TRIM2#,3#,5# |
1 | ||
| 67918C - CLIP(FOR REAR SCUFF PLATE) | ||||
| 90467-10162 |
ARL10,AWL10,GRL1#,GWL10 |
6 | ||
| 90467-10162 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
6 | ||
| Common parts | ||||
| 90183-05016 | ||||
| 90183-05048 | ||||
| 90189-05183 | ||||
| 91553-80618 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
