GWL10-BEXQB (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

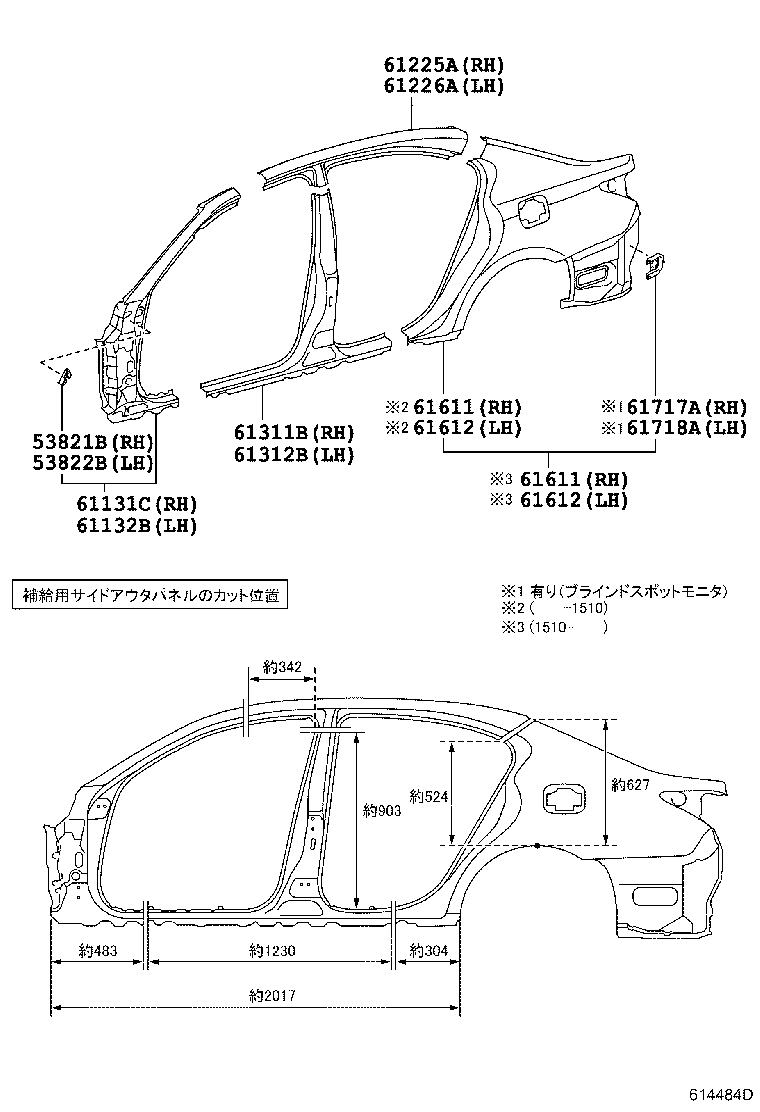

ILLUST NO. 1 OF 2(1112- )

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ

diagram 53821B 53822B 61131C 61132B 61225A 61226A 61311B 61312B 61611 61611 61612 61612 61717A 61718A
Part # Description Qty Price
53821B - BRACKET, FRONT FENDER, REAR RH
53821-30140

ARL10,AWL10,GRL1#,GWL10

 1
53821-30140

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
53822B - BRACKET, FRONT FENDER, REAR LH
53822-30150

ARL10,AWL10,GRL1#,GWL10

 1
53822-30150

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61131C - PILLAR, FRONT BODY, OUTER RH
61131-30321

ARL10,AWL10,GRL1#,GWL10

 1
61131-30320

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61132B - PILLAR, FRONT BODY, OUTER LH
61132-30340

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61132-30341

ARL10,AWL10,GRL1#,GWL10

 1
61225A - RAIL, ROOF SIDE OUTER UPPER NO.1, RH
61225-30060

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61225-30060

ARL10,AWL10,GRL1#,GWL10

 1
61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH
61226-30060

ARL10,AWL10,GRL1#,GWL10

 1
61226-30060

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-30290

ARL10,AWL10,GRL1#,GWL10

 1
61311-30290

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-30390

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61312-30390

ARL10,AWL10,GRL1#,GWL10

 1
61611 - PANEL, QUARTER, RH
61611-30A60

ARL10,AWL10,GRL1#,GWL10

ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り

 1
61611-30A20

ARL10,AWL10,GRL1#,GWL10

 1
61611-30A20

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61611 - PANEL, QUARTER, RH
61611-30A60

ARL10,AWL10,GRL1#,GWL10

ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り

 1
61611-30A20

ARL10,AWL10,GRL1#,GWL10

 1
61611-30A20

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61612 - PANEL, QUARTER, LH
61612-30B00

ARL10,AWL10,GRL1#,GWL10

ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り

 1
61612-30A60

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61612-30A60

ARL10,AWL10,GRL1#,GWL10

 1
61612 - PANEL, QUARTER, LH
61612-30B00

ARL10,AWL10,GRL1#,GWL10

ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り

 1
61612-30A60

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
61612-30A60

ARL10,AWL10,GRL1#,GWL10

 1
61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH
61717-30060

ARL10,AWL10,GRL1#,GWL10

ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り

 1
61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH
61717-30060

ARL10,AWL10,GRL1#,GWL10

ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り

 1
