GWL10-BEXQB (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1112- )

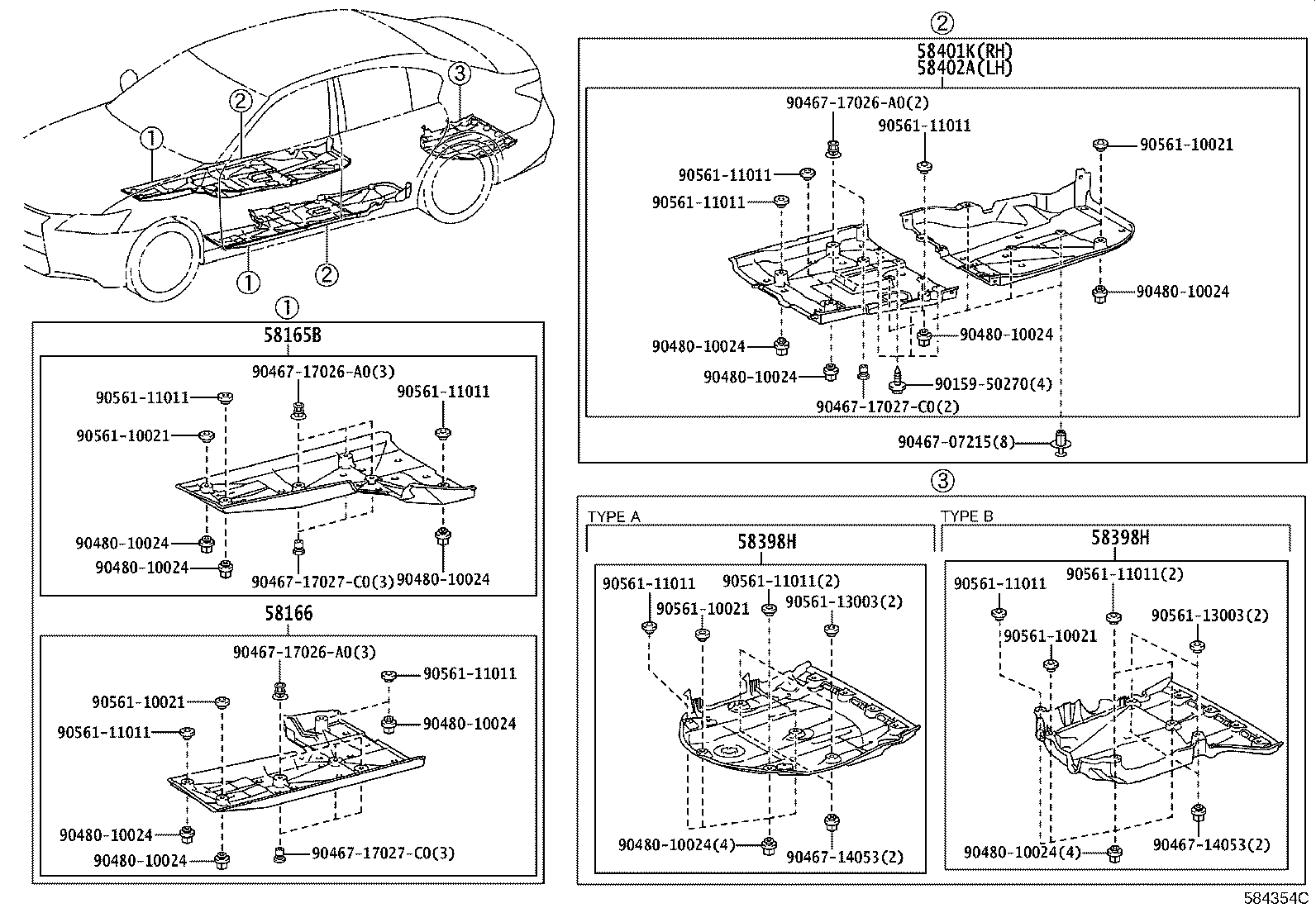

Click highlighted areas on diagram

ﾌﾛｱｱﾝﾀﾞｶﾊﾞｰ

diagram 58165B 58166 58398H 58398H 58401K 58402A 9015950270 9046707215 9046714053 9046714053 9046717026A0 9046717026A0 9046717026A0 9046717027C0 9046717027C0 9046717027C0 9048010024 9048010024 9048010024 9048010024 9048010024 9048010024 9048010024 9048010024 9048010024 9048010024 9048010024 9048010024 9056110021 9056110021 9056110021 9056110021 9056110021 9056111011 9056111011 9056111011 9056111011 9056111011 9056111011 9056111011 9056111011 9056111011 9056111011 9056111011 9056113003 9056113003
Part # Description Qty Price
58165B - COVER, FRONT FLOOR, RH
58165-30110

ARL10,AWL10,GRL1#,GWL10

 1
58165-30110

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
58166 - COVER, FRONT FLOOR, LH
58166-30070

AWL10,GWL10

 1
58398H - COVER, FLOOR UNDER, NO.1
58398-30080

ARL10,AWL10,GWL10

TYPE B:ｲﾗｽﾄ参照

 1
58398H - COVER, FLOOR UNDER, NO.1
58398-30080

ARL10,AWL10,GWL10

TYPE B:ｲﾗｽﾄ参照

 1
58401K - BOARD SUB-ASSY, REAR FLOOR, NO.1
58401-30011

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
58401-30011

ARL10,AWL10,GRL1#,GWL10

 1
58402A - BOARD SUB-ASSY, REAR FLOOR, NO.2
58402-30011

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
58402-30011

ARL10,AWL10,GRL1#,GWL10

 1
Common parts
90159-50270
90467-07215
90467-14053
90467-17026A0
90467-17027C0
90480-10024
90561-10021
90561-11011
90561-13003
