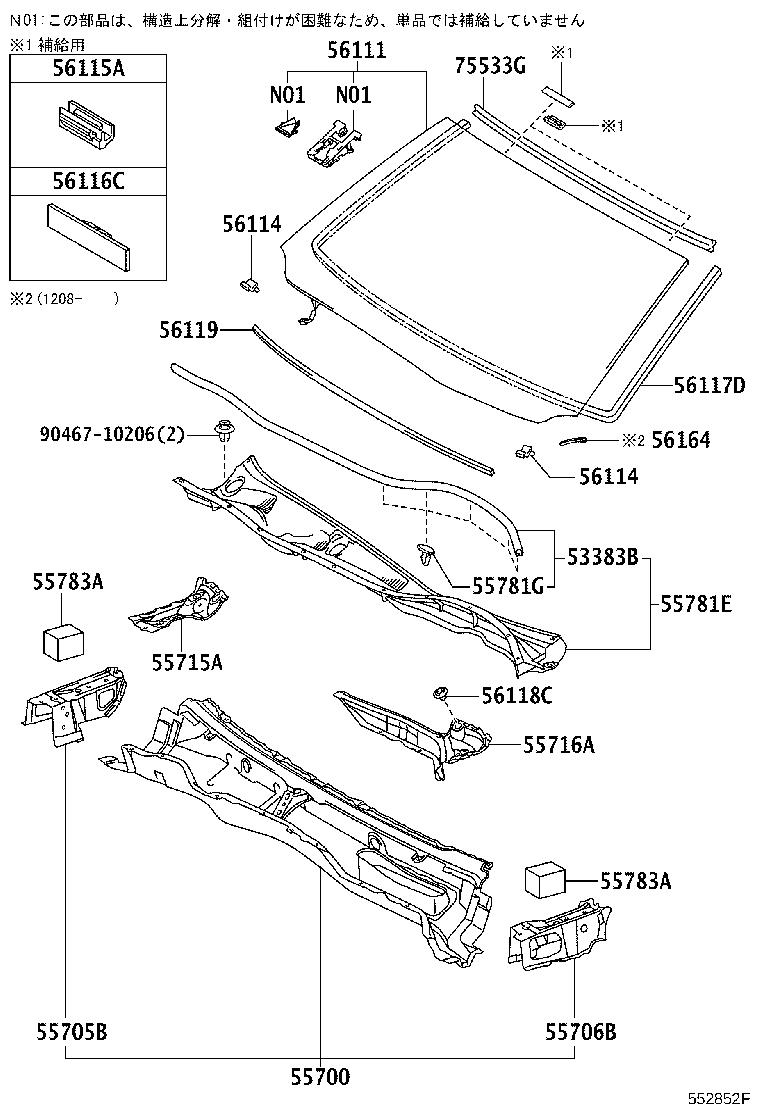

GWL10-BEXQB (2015)
Toyota Lexus Gs Series
(1112-1703)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-30280 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53383-30280 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-30A70 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55700-30A70 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-30100 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55705-30100 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-30100 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55706-30100 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-30160 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55715-30160 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-30180 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55716-30180 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-30210 |
GRL10..8FC;AWL10,GRL11,15,GWL10 寒冷地仕様 |
1 | ||
| 55708-30211 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様 |
1 | ||
| 55708-30200 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55708-30201 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-08108 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
5 | ||
| 90467-08108 |
ARL10,AWL10,GRL1#,GWL10 |
5 | ||
| 55783A - PAD, COWL TOP SILENCER | ||||
| 55783-30110 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 55783-30110 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 55783A - PAD, COWL TOP SILENCER | ||||
| 55783-30110 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 55783-30110 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-30933 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 56101-30929 |
GRL1#,GWL10 |
1 | ||
| 56101-30930 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 56101-30934 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56101-30937 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-30932 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-30939 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56101-30938 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 56101-30935 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56101-30940 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56101-30936 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 56101-3A921 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-3A947 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56101-3A920 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様 |
1 | ||
| 56101-3A948 |
ARL10,AWL10,GRL1#,GWL10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-3A949 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様 |
1 | ||
| 56101-3A950 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-3A919 |
ARL10,AWL10,GRL1#,GWL10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-3A940 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-50020 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 56114-50020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-50020 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 56114-50020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56115-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 56116-22050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−Lり&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−Lり&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−Lり |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56117-64010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 *D,L=2919 |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾚｰﾝLｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56117-64010 |
ARL10,AWL10,GRL1#,GWL10 *D,L=2919,寒冷地仕様 |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−Lり |
1 | ||
| 56117-64010 |
ARL10,AWL10,GRL1#,GWL10 *D,L=2919,ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56117-64010 |
ARL10,AWL10,GRL1#,GWL10 *D,L=2919,寒冷地仕様&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾅｲﾄrｭｰ−有り |
1 | ||
| 56117-64010 |
ARL10,AWL10,GRL1#,GWL10 *D,L=2919 |
1 | ||
| 56118C - RETAINER, WINDSHIELD GLASS, NO.2 | ||||
| 56118-30120 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56118-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 56118-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 寒冷地仕様 |
1 | ||
| 56119 - SEAL, WINDSHIELD GLASS | ||||
| 56119-30040 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 56119-30040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56164 - COVER, FRONT WINDOW INNER MOULDING, RH | ||||
| 56164-30010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-30410 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 75533-30410 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| Common parts | ||||
| 90467-10206 | ||||
(1703- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-30280 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53383-30280 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-30A70 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55700-30A70 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-30100 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55705-30100 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-30100 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55706-30100 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-30160 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55715-30160 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-30180 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55716-30180 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-30210 |
GRL10..8FC;AWL10,GRL11,15,GWL10 寒冷地仕様 |
1 | ||
| 55708-30211 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様 |
1 | ||
| 55708-30200 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 55708-30201 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-08108 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
5 | ||
| 90467-08108 |
ARL10,AWL10,GRL1#,GWL10 |
5 | ||
| 55783A - PAD, COWL TOP SILENCER | ||||
| 55783-30110 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 55783-30110 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 55783A - PAD, COWL TOP SILENCER | ||||
| 55783-30110 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 55783-30110 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-30933 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 56101-30929 |
GRL1#,GWL10 |
1 | ||
| 56101-30930 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 56101-30934 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56101-30937 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-30932 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-30939 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56101-30938 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 56101-30935 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56101-30940 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56101-30936 |
GRL1#,GWL10 寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 56101-3A921 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-3A947 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56101-3A920 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様 |
1 | ||
| 56101-3A948 |
ARL10,AWL10,GRL1#,GWL10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-3A949 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様 |
1 | ||
| 56101-3A950 |
ARL10,AWL10,GRL1#,GWL10 寒冷地仕様&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-3A919 |
ARL10,AWL10,GRL1#,GWL10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56101-3A940 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-50020 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 56114-50020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-50020 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 56114-50020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56115-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 56116-22050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−Lり&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−Lり&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−Lり |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56117-64010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 *D,L=2919 |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾚｰﾝLｰﾋﾟﾝｸﾞｱｼｽﾄ−有り |
1 | ||
| 56117-64010 |
ARL10,AWL10,GRL1#,GWL10 *D,L=2919,寒冷地仕様 |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,寒冷地仕様&間欠ﾜｲﾊﾟ−雨滴感応式&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−Lり |
1 | ||
| 56117-64010 |
ARL10,AWL10,GRL1#,GWL10 *D,L=2919,ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56117-64010 |
ARL10,AWL10,GRL1#,GWL10 *D,L=2919,寒冷地仕様&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 56117-64010 |
GRL1#,GWL10 *D,L=2919,間欠ﾜｲﾊﾟ−雨滴感応式&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ﾅｲﾄrｭｰ−有り |
1 | ||
| 56117-64010 |
ARL10,AWL10,GRL1#,GWL10 *D,L=2919 |
1 | ||
| 56118C - RETAINER, WINDSHIELD GLASS, NO.2 | ||||
| 56118-30120 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56118-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 56118-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 寒冷地仕様 |
1 | ||
| 56119 - SEAL, WINDSHIELD GLASS | ||||
| 56119-30040 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 56119-30040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 56164 - COVER, FRONT WINDOW INNER MOULDING, RH | ||||
| 56164-30010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-30410 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 75533-30410 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| Common parts | ||||
| 90467-10206 | ||||
| Linked diagrams | ||||
| 8617 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
