GWL10-BEXQB (2015)
Toyota Lexus Gs Series
(1112- )

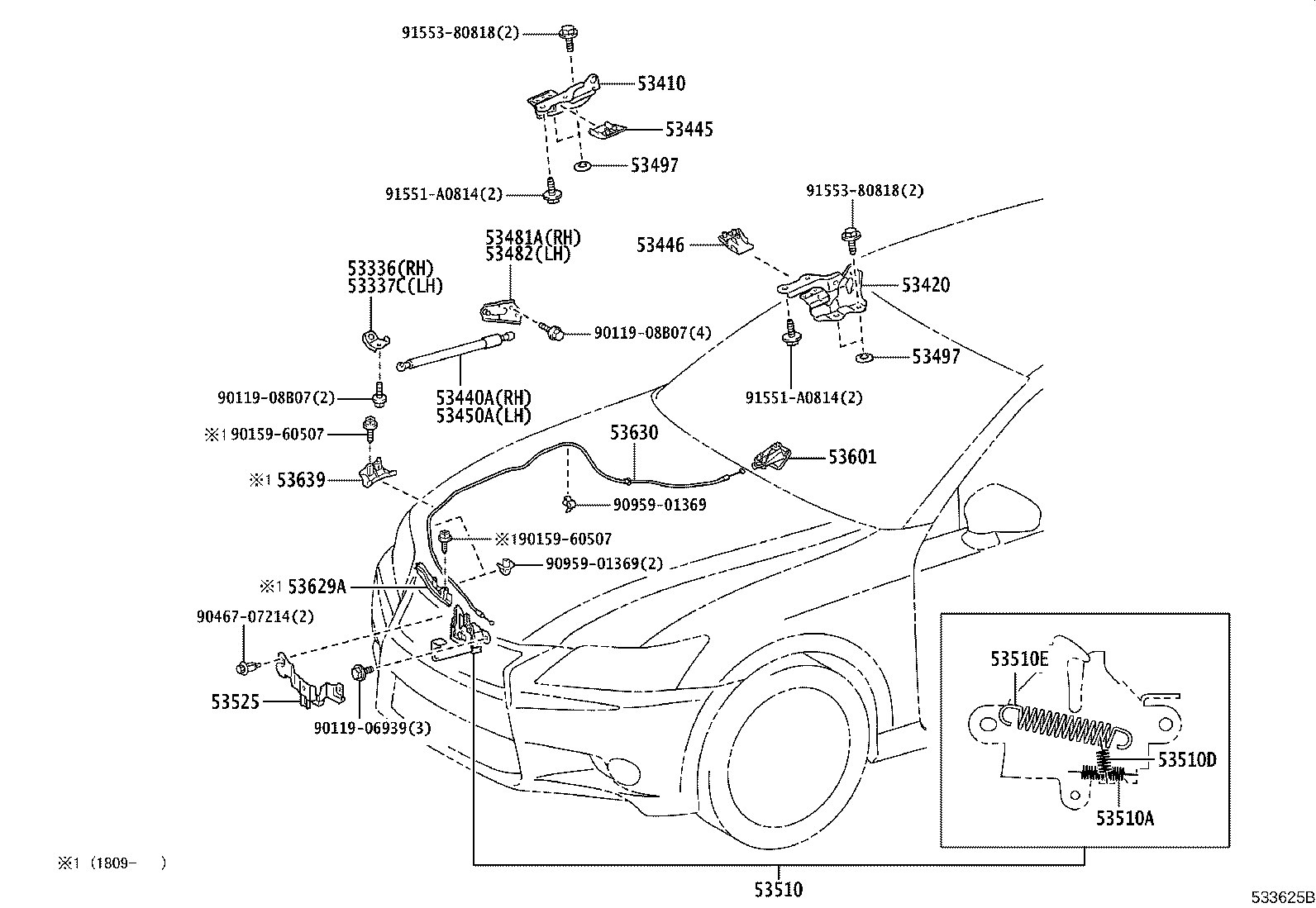

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53336 - BRACKET, HOOD STAY, RH | ||||
| 53336-30060 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53336-30060 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53337C - BRACKET, HOOD STAY, LH | ||||
| 53337-30040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53337-30040 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-30450 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53410-30450 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-30460 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53420-30460 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-0W251 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53445 - COVER, HOOD HINGE, RH | ||||
| 53445-30010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53445-30010 |
AWL10,GRL1#,GWL10 |
1 | ||
| 53446 - COVER, HOOD HINGE, LH | ||||
| 53446-30010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53446-30010 |
AWL10,GRL1#,GWL10 |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-0W221 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53481A - BRACKET, HOOD SUPPORT, RH | ||||
| 53481-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53481-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53482 - BRACKET, HOOD SUPPORT, LH | ||||
| 53482-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53482-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-20070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 厚さ=2.0 |
4 | ||
| 53497-50020 |
ARL10,AWL10,GRL1#,GWL10 厚さ=1.0 |
2 | ||
| 53497-42010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 厚さ=0.5 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-20070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 厚さ=2.0 |
4 | ||
| 53497-50020 |
ARL10,AWL10,GRL1#,GWL10 厚さ=1.0 |
2 | ||
| 53497-42010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 厚さ=0.5 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-30350 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53510-30351 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53510-30350 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
GRL10..8FC;AWL10,GRL11,15,GWL10 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 90506-09055 |
ARL10,AWL10,GRL1#,GWL10 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
ARL10,AWL10,GRL1#,GWL10 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 90506-12063 |
GRL10..8FC;AWL10,GRL11,15,GWL10 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-14086 |
GRL10..8FC;AWL10,GRL11,15,GWL10 線径=1.4,ｺｲﾙ巻数=15 |
1 | ||
| 90506-14086 |
ARL10,AWL10,GRL1#,GWL10 線径=1.4,ｺｲﾙ巻数=15 |
1 | ||
| 53525 - PROTECTOR, HOOD LOCK RELEASE LEVER | ||||
| 53525-30080 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53525-30130 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-30090C0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 53601-30090C1 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5#,6# |
1 | ||
| 53601-30090C0 |
ARL10,AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,5#,6# |
1 | ||
| 53629A - COVER, HOOD LOCK CONTROL CABLE | ||||
| 53629-30100 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-30340 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 53630-30340 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 53639 - COVER, HOOD LOCK CONTROL CABLE, NO.2 | ||||
| 53639-30010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 90119-06939 | ||||
| 90119-08B07 | ||||
| 90159-60507 | ||||
| 90467-07214 | ||||
| 90959-01369 | ||||
| 91551-A0814 | ||||
| 91553-80818 | ||||
