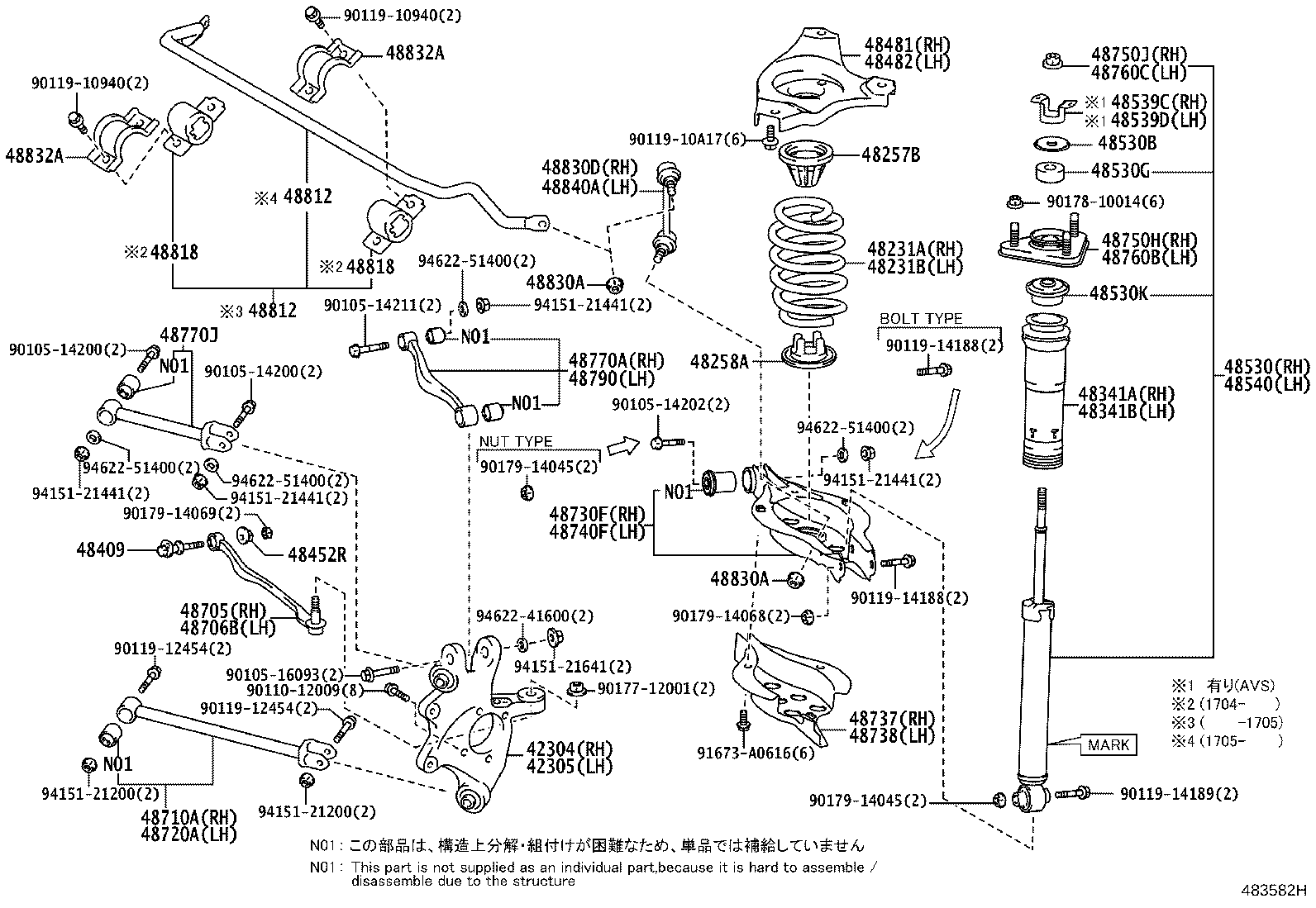

GWL10-BEXQB (2015)
Toyota Lexus Gs Series
(1112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-30130 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 42304-30130 |
AWL10,GRL1#,GWL10 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-30130 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 42305-30130 |
AWL10,GRL1#,GWL10 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-30F31 |
GWL10 |
1 | ||
| 48231-30F30 |
GWL10 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-30F31 |
GWL10 |
1 | ||
| 48231-30F30 |
GWL10 |
1 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-30080 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48257-30080 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-30050 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48258-30050 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-30160 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48341-30160 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-30160 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48341-30160 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-30031 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48409-30031 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-30051 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48452-30051 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-30010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48481-30010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48482 - SEAT, REAR SPRING, UPPER LH | ||||
| 48482-30030 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48482-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80779 |
GWL10 ﾏｰｸ 48530−30D70 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 90948-03021 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01101 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 90948-01104 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01102 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 90948-01105 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48539C - BRACKET, ACTUATOR SUPPORT, REAR RH | ||||
| 48539-30030 |
GWL10 |
1 | ||
| 48539D - BRACKET, ACTUATOR SUPPORT, REAR LH | ||||
| 48539-30030 |
GWL10 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80779 |
GWL10 ﾏｰｸ 48530−30D70 |
1 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-30120 |
GRL12,GWL10 “Eternal Touring” |
1 | ||
| 48705-30120 |
GWL10;GRL10..8FC F SPORT |
1 | ||
| 48705-30120 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48705-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48705-30120 |
GRL12,GWL10 F SPORT |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48706-30050 |
GWL10;GRL10..8FC F SPORT |
1 | ||
| 48706-30050 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48706-30050 |
GRL12,GWL10 F SPORT |
1 | ||
| 48706-30050 |
GRL12,GWL10 “Eternal Touring” |
1 | ||
| 48706-30050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-30240 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48710-30240 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-30240 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48710-30240 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-30140 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48730-30140 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48737-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48737-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48738-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48738-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-30140 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48740-30140 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-30200 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48750-30200 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-12127 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 90179-12127 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-30200 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48750-30200 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-12127 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 90179-12127 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48790-30130 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48790-30130 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48770J - ARM ASSY, UPPER CONTROL, REAR NO.1 | ||||
| 48770-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48770-30151 |
ARL10,AWL10,GRL1#,GWL10 左側 |
1 | ||
| 48770-30151 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48770-30160 |
ARL10,AWL10,GRL1#,GWL10 右側 |
1 | ||
| 48770-30150 |
AWL10,GRL1#,GWL10 |
2 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-30140 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48790-30140 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-30570 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48812-30571 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48805-30070 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48805-30070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-30570 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48812-30571 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48805-30070 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48805-30070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-30260 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-30260 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 90179-12151 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 90179-12151 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-30100 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48830-30100 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-30070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48832-30070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-30070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48832-30070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-30030 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48840-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| Common parts | ||||
| 90105-14200 | ||||
| 90105-14202 | ||||
| 90105-14211 | ||||
| 90105-16093 | ||||
| 90110-12009 | ||||
| 90119-10940 | ||||
| 90119-10A17 | ||||
| 90119-12454 | ||||
| 90119-14188 | ||||
| 90119-14189 | ||||
| 90177-12001 | ||||
| 90178-10014 | ||||
| 90179-14045 | ||||
| 90179-14068 | ||||
| 90179-14069 | ||||
| 91673-A0616 | ||||
| 94151-21200 | ||||
| 94151-21441 | ||||
| 94151-21641 | ||||
| 94622-41600 | ||||
| 94622-51400 | ||||

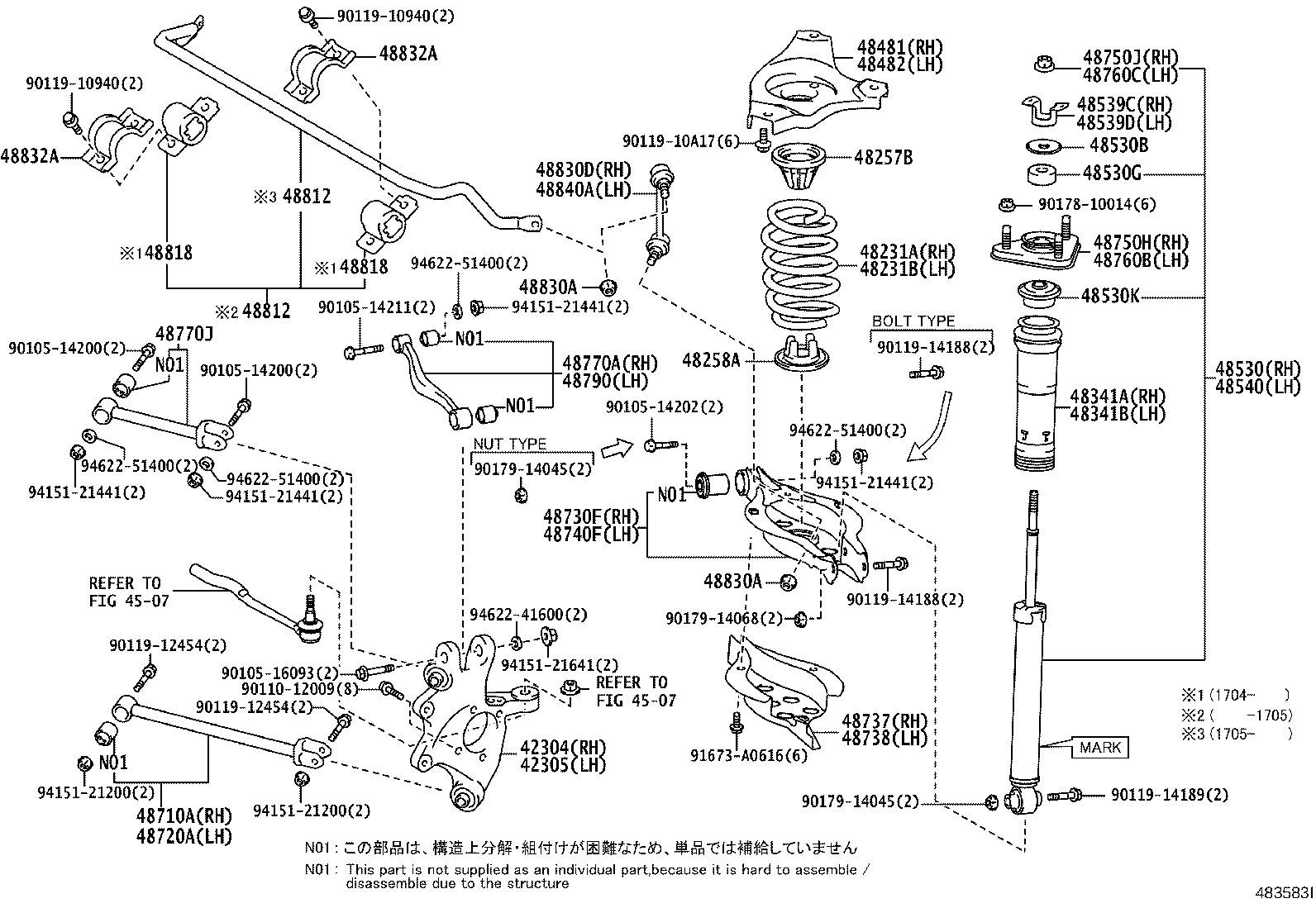

(1112- )GRL10,12,GWL10
ｱﾘ(LDH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-30130 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 42304-30130 |
AWL10,GRL1#,GWL10 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-30130 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 42305-30130 |
AWL10,GRL1#,GWL10 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-30F31 |
GWL10 |
1 | ||
| 48231-30F30 |
GWL10 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-30F31 |
GWL10 |
1 | ||
| 48231-30F30 |
GWL10 |
1 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-30080 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48257-30080 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-30050 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48258-30050 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-30160 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48341-30160 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-30160 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48341-30160 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-30010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48481-30010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48482 - SEAT, REAR SPRING, UPPER LH | ||||
| 48482-30030 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48482-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80779 |
GWL10 ﾏｰｸ 48530−30D70 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 90948-03021 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01101 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 90948-01104 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01102 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 90948-01105 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48539C - BRACKET, ACTUATOR SUPPORT, REAR RH | ||||
| 48539-30030 |
GWL10 |
1 | ||
| 48539D - BRACKET, ACTUATOR SUPPORT, REAR LH | ||||
| 48539-30030 |
GWL10 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80779 |
GWL10 ﾏｰｸ 48530−30D70 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-30240 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48710-30240 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-30240 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48710-30240 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-30140 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48730-30140 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48737 - COVER, REAR SUSPENSION ARM, RH | ||||
| 48737-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48737-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48738 - COVER, REAR SUSPENSION ARM, LH | ||||
| 48738-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48738-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-30140 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48740-30140 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-30200 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48750-30200 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-12127 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 90179-12127 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-30200 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48750-30200 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-12127 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 90179-12127 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48790-30130 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48790-30130 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48770J - ARM ASSY, UPPER CONTROL, REAR NO.1 | ||||
| 48770-30120 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48770-30151 |
ARL10,AWL10,GRL1#,GWL10 左側 |
1 | ||
| 48770-30151 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48770-30160 |
ARL10,AWL10,GRL1#,GWL10 右側 |
1 | ||
| 48770-30150 |
AWL10,GRL1#,GWL10 |
2 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-30140 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48790-30140 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-30570 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48812-30571 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48805-30070 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48805-30070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-30570 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48812-30571 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48805-30070 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48805-30070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-30260 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-30260 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 90179-12151 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 90179-12151 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-30100 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48830-30100 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-30070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48832-30070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-30070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48832-30070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-30030 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48840-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| Common parts | ||||
| 90105-14200 | ||||
| 90105-14202 | ||||
| 90105-14211 | ||||
| 90105-16093 | ||||
| 90110-12009 | ||||
| 90119-10940 | ||||
| 90119-10A17 | ||||
| 90119-12454 | ||||
| 90119-14188 | ||||
| 90119-14189 | ||||
| 90178-10014 | ||||
| 90179-14045 | ||||
| 90179-14068 | ||||
| 91673-A0616 | ||||
| 94151-21200 | ||||
| 94151-21441 | ||||
| 94151-21641 | ||||
| 94622-41600 | ||||
| 94622-51400 | ||||
| Linked diagrams | ||||
| 4507 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
