GWL10-BEXQB (2015)
Toyota Lexus Gs Series
(1112- )ARL10,AWL10,GRL10,11,12,GWL10

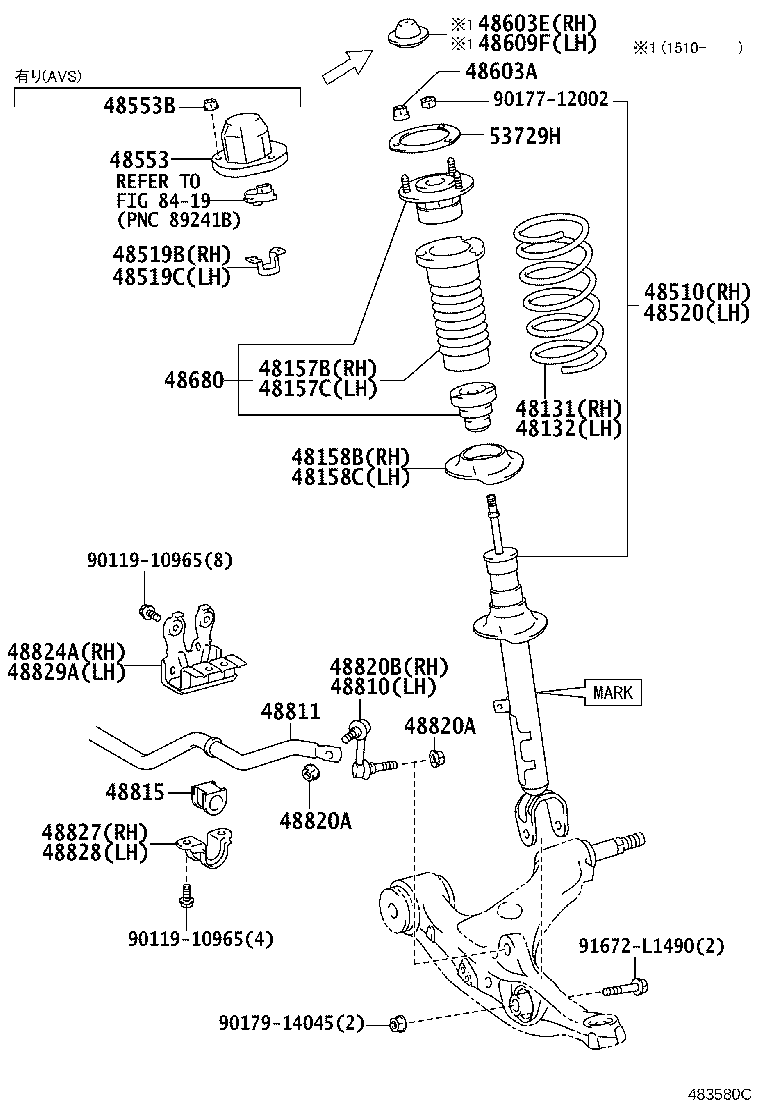

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-30F00 |
GWL10 |
1 | ||
| 48131-30F01 |
GWL10 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-30F01 |
GWL10 |
1 | ||
| 48131-30F00 |
GWL10 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-30050 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48157-30090 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-30050 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48157-30090 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48158-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-30020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48158-30020 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80789 |
GWL10 ﾏｰｸ 48510−30D80 |
1 | ||
| 48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH | ||||
| 48519-30030 |
GWL10 |
1 | ||
| 48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH | ||||
| 48519-30030 |
GWL10 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80465 |
GWL10 ﾏｰｸ 48520−30780 |
1 | ||
| 48553 - CAP, SHOCK ABSORBER, UPPER | ||||
| 48553-30100 |
GWL10 |
2 | ||
| 48553B - NUT(FOR FRONT SHOCK ABSORBER CAP) | ||||
| 90179-10174 |
GWL10 |
6 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10014 |
ARL10,AWL10,GRL1#,GWL10 |
6 | ||
| 90178-10014 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
6 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-24100 |
GWL10 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-30090 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48810-30090 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-30800 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48811-30840 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30650 |
GRL10..8FC;AWL10,GRL11,GWL10 |
2 | ||
| 48815-24100 |
ARL10,AWL10,GRL11,12,GWL10 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 94151-21241 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21241 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 94151-21241 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-30110 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48820-30110 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48809-30130 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48809-30130 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48824-30150 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48824-30150 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48824-30150 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48824-30150 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48809-30130 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48809-30130 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 | ||||
| 53729-53020 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 53729-53020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| Common parts | ||||
| 90119-10965 | ||||
| 90177-12002 | ||||
| 90179-14045 | ||||
| 91672-L1490 | ||||
| Linked diagrams | ||||
| 8419 | ||||
