GWL10-BEXQB (2015)
Toyota Lexus Gs Series
(1112- )ARL10,AWL10,GRL10,11,12,GWL10

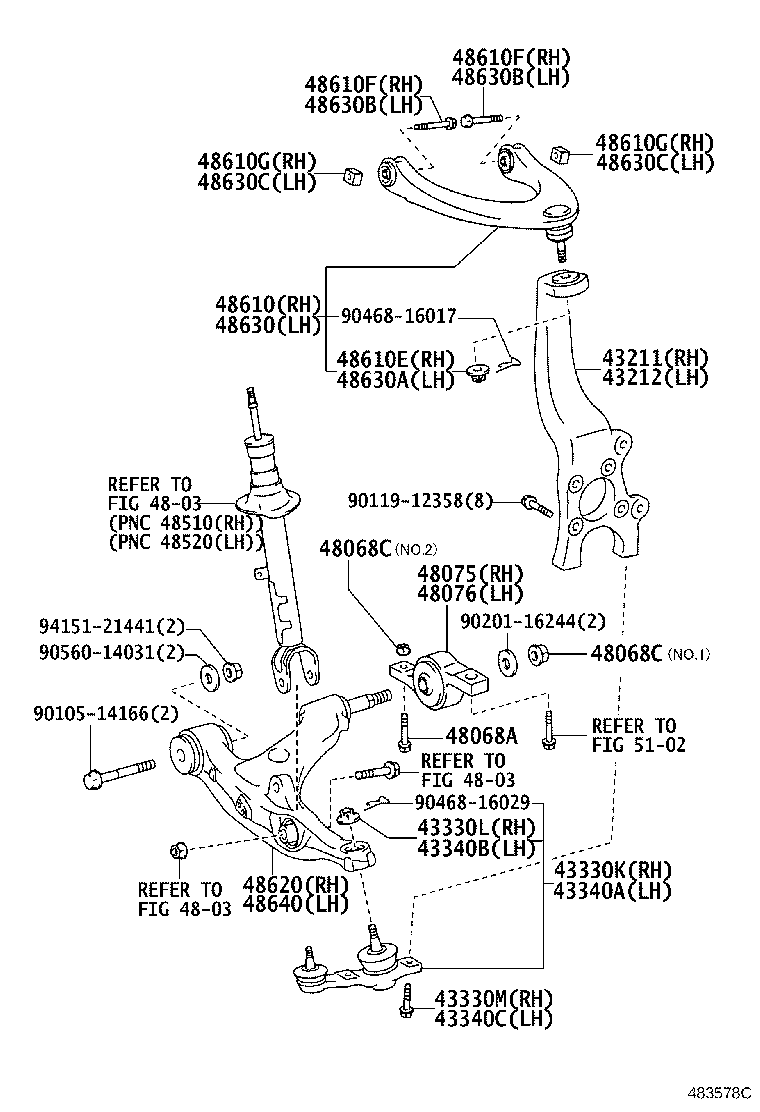

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43201-30030 |
AWL10,GRL10,11,GWL10 |
1 | ||
| 43201-30030 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-30040 |
AWL10,GRL10,11,GWL10 |
1 | ||
| 43202-30040 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-39865 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 43330-39865 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14014 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 90171-14014 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 91552-L1455 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 91552-L1455 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-39625 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 43340-39625 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14014 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 90171-14014 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 91552-L1455 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 91552-L1455 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 91552-L1265 |
ARL10,AWL10,GRL11,12,GWL10 |
2 | ||
| 91552-L1265 |
GRL10..8FC;AWL10,GRL11,GWL10 |
2 | ||
| 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 94151-21601 |
GRL10..8FC;AWL10,GRL11,GWL10 NO.1 |
2 | ||
| 94151-21240 |
GRL10..8FC;AWL10,GRL11,GWL10 NO.2 |
2 | ||
| 94151-21240 |
ARL10,AWL10,GRL11,12,GWL10 NO.2 |
2 | ||
| 94151-21601 |
ARL10,AWL10,GRL11,12,GWL10 NO.1 |
2 | ||
| 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 94151-21601 |
GRL10..8FC;AWL10,GRL11,GWL10 NO.1 |
2 | ||
| 94151-21240 |
GRL10..8FC;AWL10,GRL11,GWL10 NO.2 |
2 | ||
| 94151-21240 |
ARL10,AWL10,GRL11,12,GWL10 NO.2 |
2 | ||
| 94151-21601 |
ARL10,AWL10,GRL11,12,GWL10 NO.1 |
2 | ||
| 48075 - BRACKET SUB-ASSY, LWR ARM, NO,1 | ||||
| 48075-30060 |
GRL10..8FC;AWL10,GRL11,GWL10 ｵﾌｾｯﾄ:0,修理書 参照 |
1 | ||
| 48075-24070 |
ARL10,AWL10,GRL11,12,GWL10 ｵﾌｾｯﾄ:0,修理書 参照 |
1 | ||
| 48075-30090 |
GRL10..8FC;AWL10,GRL11,GWL10 ｵﾌｾｯﾄ:−20,修理書 参照 |
1 | ||
| 48075-24100 |
ARL10,AWL10,GRL11,12,GWL10 ｵﾌｾｯﾄ:+20,修理書 参照 |
1 | ||
| 48075-30080 |
GRL10..8FC;AWL10,GRL11,GWL10 ｵﾌｾｯﾄ:+20,修理書 参照 |
1 | ||
| 48075-24110 |
ARL10,AWL10,GRL11,12,GWL10 ｵﾌｾｯﾄ:−20,修理書 参照 |
1 | ||
| 48076 - BRACKET SUB-ASSY, LWR ARM, NO.2 | ||||
| 48076-24070 |
ARL10,AWL10,GRL11,12,GWL10 ｵﾌｾｯﾄ:+20,修理書 参照 |
1 | ||
| 48076-30080 |
GRL10..8FC;AWL10,GRL11,GWL10 ｵﾌｾｯﾄ:+20,修理書 参照 |
1 | ||
| 48076-30060 |
GRL10..8FC;AWL10,GRL11,GWL10 ｵﾌｾｯﾄ:0,修理書 参照 |
1 | ||
| 48076-30090 |
GRL10..8FC;AWL10,GRL11,GWL10 ｵﾌｾｯﾄ:−20,修理書 参照 |
1 | ||
| 48076-24080 |
ARL10,AWL10,GRL11,12,GWL10 ｵﾌｾｯﾄ:−20,修理書 参照 |
1 | ||
| 48076-24040 |
ARL10,AWL10,GRL11,12,GWL10 ｵﾌｾｯﾄ:0,修理書 参照 |
1 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-39185 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48610-39185 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90171-12012 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 90171-12012 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 91672-G1070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 91672-G1070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 91672-G1070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 91672-G1070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90173-10012 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 90173-10012 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90173-10012 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 90173-10012 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH | ||||
| 48620-30320 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48620-30320 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-39115 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48630-39115 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90171-12012 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 90171-12012 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 91672-G1070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 91672-G1070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 91672-G1070 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 91672-G1070 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90173-10012 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 90173-10012 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90173-10012 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 90173-10012 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH | ||||
| 48640-30320 |
GRL10..8FC;AWL10,GRL11,GWL10 |
1 | ||
| 48640-30320 |
ARL10,AWL10,GRL11,12,GWL10 |
1 | ||
| Common parts | ||||
| 90105-14166 | ||||
| 90119-12358 | ||||
| 90201-16244 | ||||
| 90468-16017 | ||||
| 90468-16029 | ||||
| 90560-14031 | ||||
| 94151-21441 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 5102 | ||||
