GWL10-BEXQB (2015)
Toyota Lexus Gs Series
ILLUST NO. 1 OF 2(1112- )GRL10,12,GWL10
ｹｰﾌﾞﾙ,ｱﾘ(LDH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-30010 |
GWL10 F SPORT |
1 | ||
| 46300-30020 |
GWL10 |
1 | ||
| 46300-30010 |
GWL10 “Eternal Touring” |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-30260 |
GRL10..8FC;GRL11,15,GWL10 NO.2 |
1 | ||
| 46451-30250 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
1 | ||
| 46451-30260 |
GRL1#,GWL10 NO.2 |
1 | ||
| 46451-30240 |
GWL10 “Eternal Touring”,NO.2 |
1 | ||
| 46451-30240 |
GWL10 F SPORT,NO.2 |
1 | ||
| 46451-30250 |
ARL10,AWL10,GRL1#,GWL10 NO.1 |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-30260 |
GRL10..8FC;GRL11,15,GWL10 NO.2 |
1 | ||
| 46451-30250 |
GRL10..8FC;AWL10,GRL11,15,GWL10 NO.1 |
1 | ||
| 46451-30260 |
GRL1#,GWL10 NO.2 |
1 | ||
| 46451-30240 |
GWL10 “Eternal Touring”,NO.2 |
1 | ||
| 46451-30240 |
GWL10 F SPORT,NO.2 |
1 | ||
| 46451-30250 |
ARL10,AWL10,GRL1#,GWL10 NO.1 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-30220 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 46451-30220 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-30270 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 46451-30270 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46451G - BRACKET, CABLE SUPPORT | ||||
| 46451-30280 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 46451-30280 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46451-30230 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 46451-30230 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46529 - BRACKET, CABLE CLAMP | ||||
| 46529-30010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 46529-30010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 90119-08681 | ||||
| 90179-06178 | ||||
| 90179-06264 | ||||
| 90179-08200 | ||||
| 91673-80816 | ||||

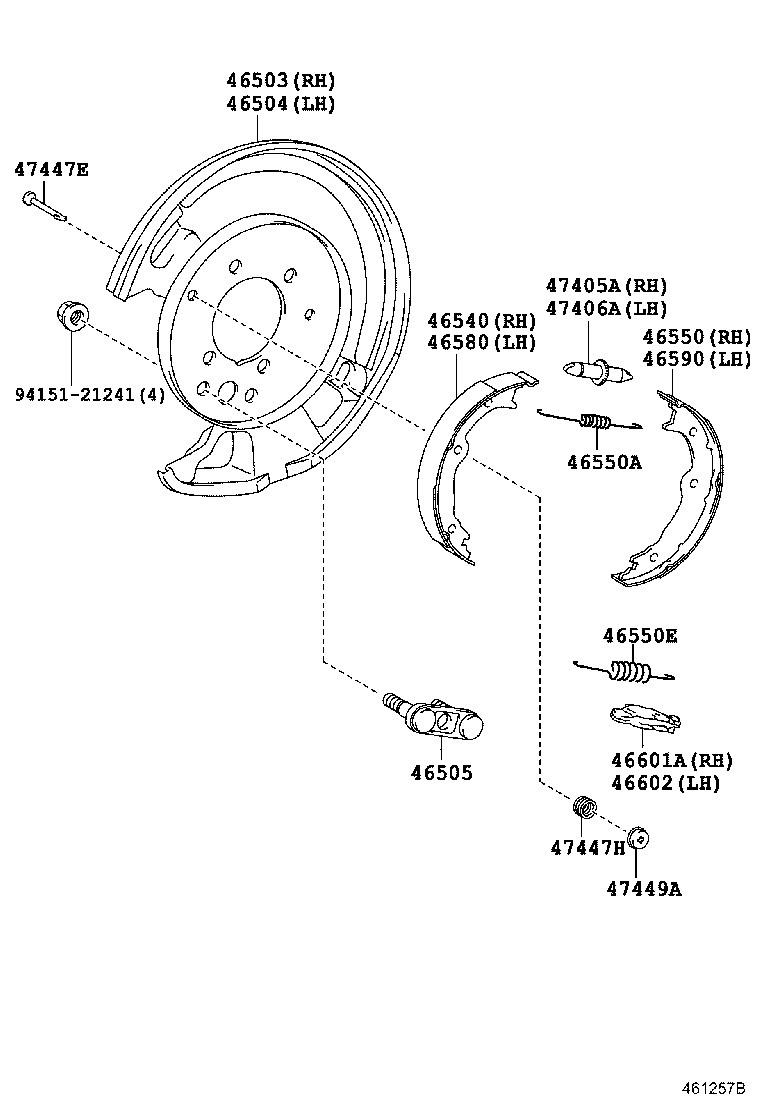

ILLUST NO. 2 OF 2(1112- )
ﾌﾞﾚｰｷｼｭ- & ﾚﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30250 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46503-30250 |
AWL10,GRL1#,GWL10 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30250 |
AWL10,GRL1#,GWL10 |
1 | ||
| 46504-30250 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46505 - BLOCK SUB-ASSY, PARKING BRAKE ANCHOR | ||||
| 46505-30230 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 46505-30230 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-30040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-30040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90015-DY014 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 90015-DY014 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23052 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 90506-23052 |
ARL10,AWL10,GRL1#,GWL10 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46530-30040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46530-30040 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46601A - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH | ||||
| 46601-50050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 46601-50050 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 46602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH | ||||
| 46602-50050 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 46602-50050 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-32010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 47405-32010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-32010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 47406-32010 |
ARL10,AWL10,GRL1#,GWL10 |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-10020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 47447-10020 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 90501-16118 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
ARL10,AWL10,GRL1#,GWL10 |
4 | ||
| 47449-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
4 | ||
| Common parts | ||||
| 94151-21241 | ||||
