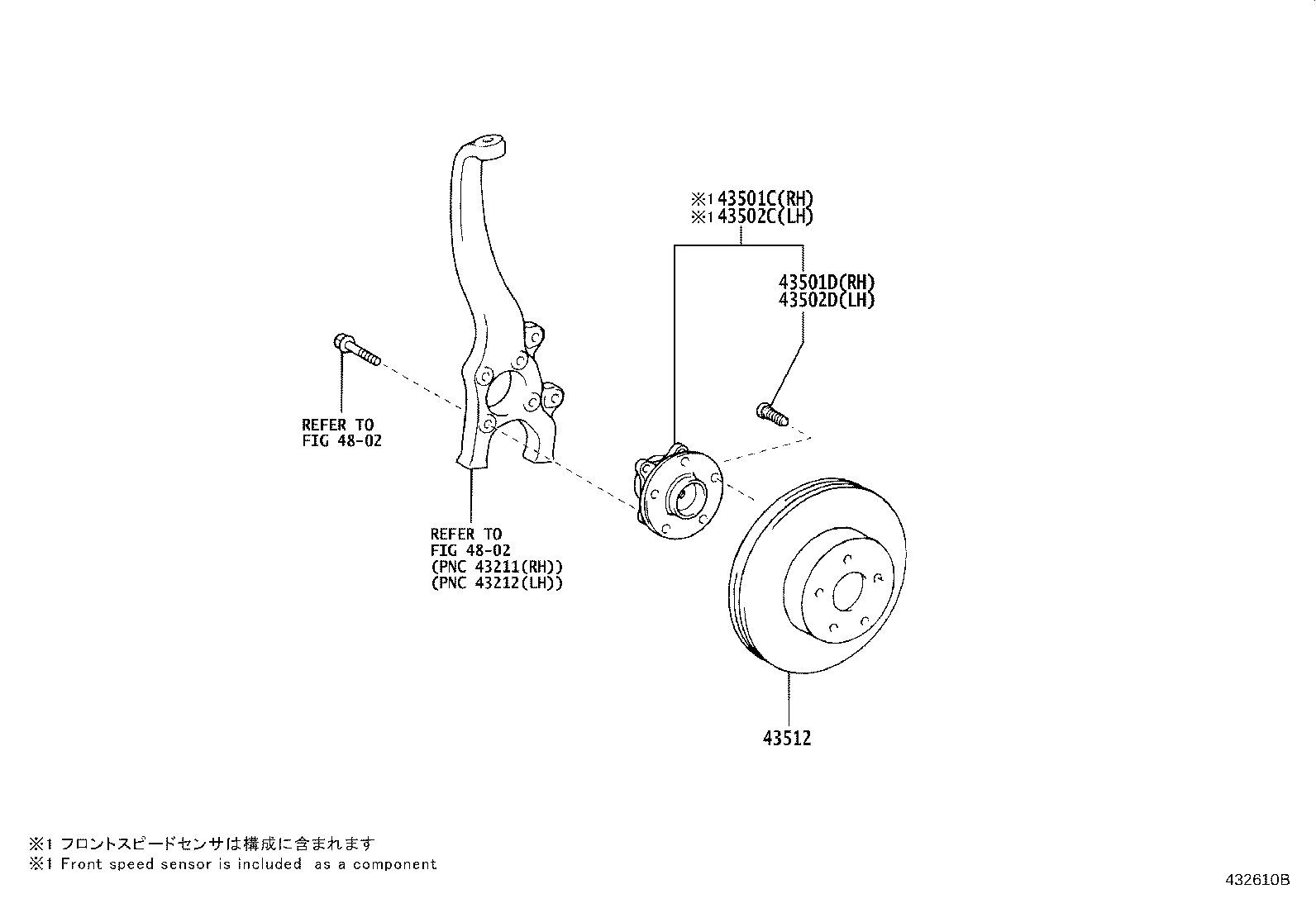

Toyota Lexus gs series GWL10 FRONT AXLE HUB

Part #	Description	Period	Qty
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-30050	AWL10,GRL10,11,GWL10	12/2011 - 04/2015	1
43550-30051	ARL10,AWL10,GRL11,12,GWL10	10/2015 - 07/2020	1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02070	GRL10..8FC;AWL10,GRL11,GWL10	12/2011 - 04/2015	5
90942-02049	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	5
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43550-30050	AWL10,GRL10,11,GWL10	12/2011 - 04/2015	1
43550-30051	ARL10,AWL10,GRL11,12,GWL10	10/2015 - 07/2020	1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02070	GRL10..8FC;AWL10,GRL11,GWL10	12/2011 - 04/2015	5
90942-02049	ARL10,AWL10,GRL1#,GWL10	10/2015 - 07/2020	5
43512 - DISC, FRONT
43516-30060	GWL10;GRL10..8FC F SPORT,左側	12/2011 - 11/2013	1
43516-30040	GRL10..8FC;AWL10,GRL11,15,GWL10 左側	12/2011 - 10/2015	1
43512-30350	GRL10..8FC;AWL10,GRL11,15,GWL10 右側	12/2011 - 10/2015	1
43512-30370	GWL10;GRL10..8FC F SPORT,右側	12/2011 - 11/2013	1
43512-30371	GRL12,GWL10 ﾌﾛﾝﾄﾎｲｰﾙﾌﾞﾚｰｷ−18ｲﾝﾁﾃﾞｨｽｸ(ｵﾚﾝｼﾞ塗装),右側	10/2015 - 07/2020	1
43512-30350	ARL10,AWL10,GRL1#,GWL10 右側	10/2015 - 07/2020	1
43516-30061	GRL12,GWL10 ﾌﾛﾝﾄﾎｲｰﾙﾌﾞﾚｰｷ−18ｲﾝﾁﾃﾞｨｽｸ,左側	10/2015 - 07/2020	1
43516-30040	ARL10,AWL10,GRL1#,GWL10 左側	10/2015 - 07/2020	1
43516-30061	GRL12,GWL10 ﾌﾛﾝﾄﾎｲｰﾙﾌﾞﾚｰｷ−18ｲﾝﾁﾃﾞｨｽｸ(ｵﾚﾝｼﾞ塗装),左側	10/2015 - 07/2020	1
43512-30371	GRL12,GWL10 ﾌﾛﾝﾄﾎｲｰﾙﾌﾞﾚｰｷ−18ｲﾝﾁﾃﾞｨｽｸ,右側	10/2015 - 07/2020	1
Linked diagrams
4802

GWL10-BEXQB (2015)

(1112- )ARL10,AWL10,GRL10,11,12,GWL10
