GWL10-BEXQB (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )2GRFSE,2GRFXE,4GRFSE

Click highlighted areas on diagram

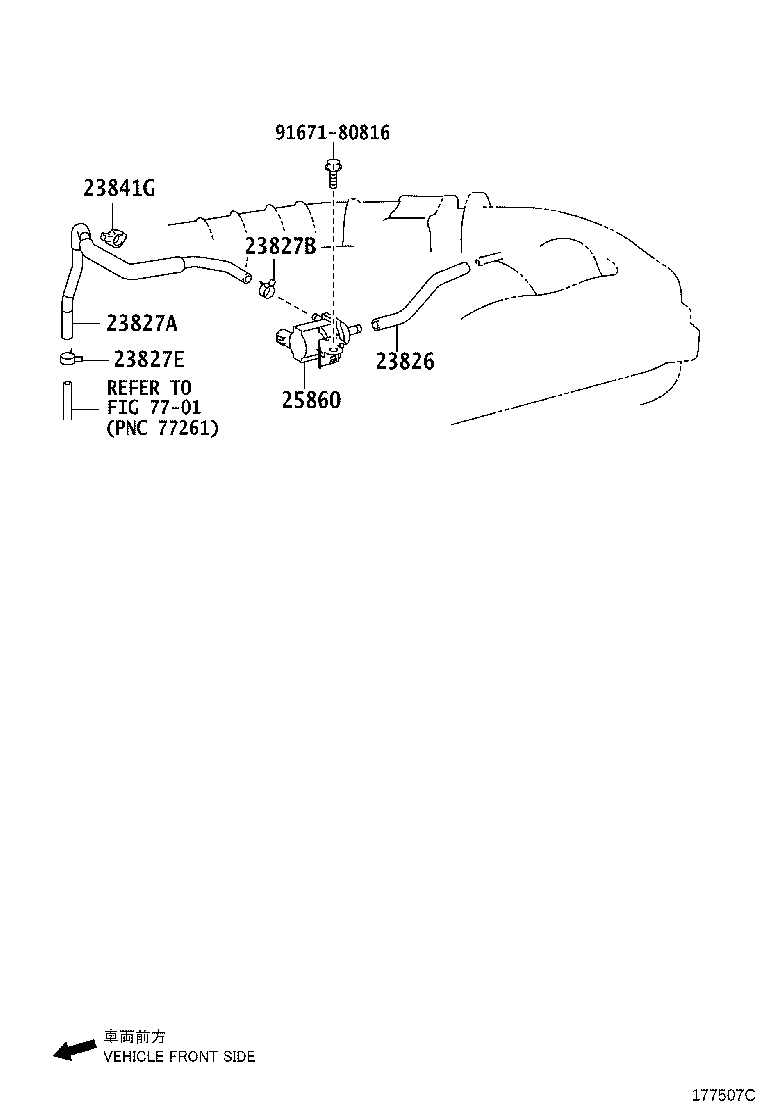

diagram 23826 23827A 23827B 23827E 23841G 25860 7701 9167180816
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31190

2GRFXE..GWL10

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-31160

2GRFXE..GWL10

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-51300

2GR#,4GRFSE..GRL1#,GWL10

 1
96132-51300

2GR#..GRL12,16,GWL10

 1
23827E - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90467-15022

2GR#,4GRFSE..GRL1#,GWL10

 1
90467-15022

2GR#,4GRFSE..GRL1#,GWL10

 1
23841G - CLAMP, FUEL HOSE
23841-31100

2GRFXE,4GRFSE..GRL11,GWL10

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31090

2GR#..GRL12,16,GWL10

 1
Common parts
91671-80816
Linked diagrams
7701
