GWL10-BEXQB (2015)
Toyota Lexus Gs Series
Production
Oct 2015
-
Jul 2020
Engine
2GRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )2GRFSE,2GRFXE,4GRFSE

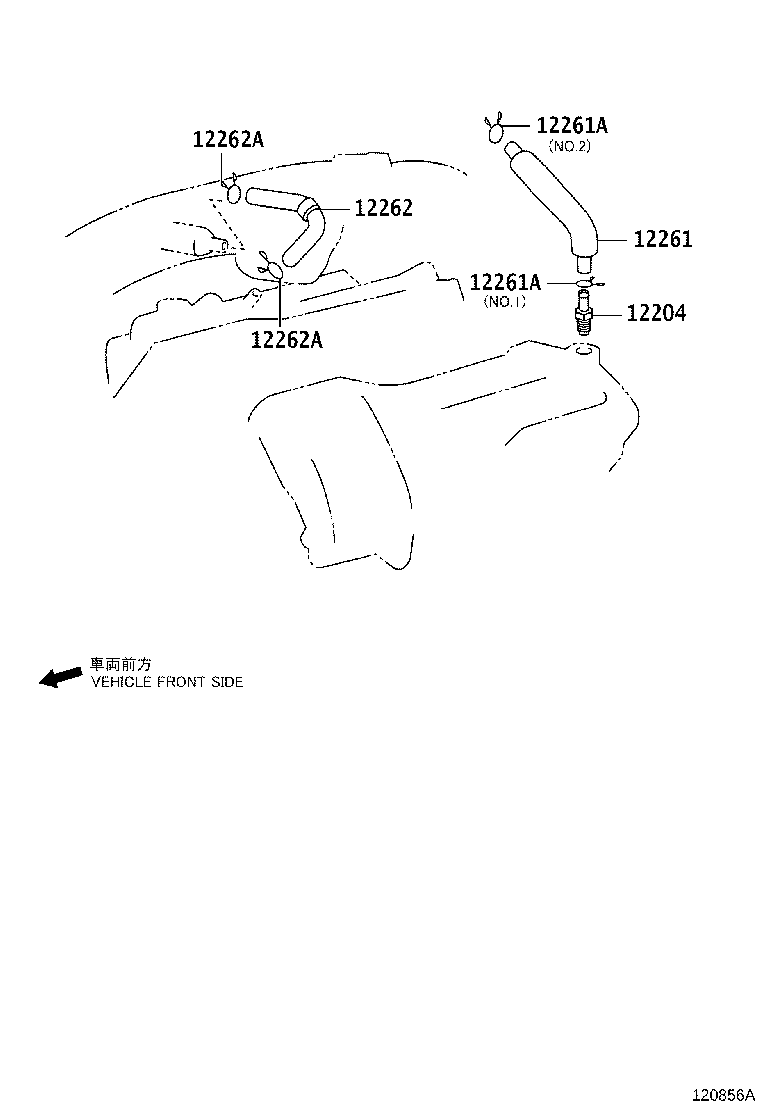

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-31140 |
2GRFXE..GWL10 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-31180 |
2GRFXE..GWL10 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14017 |
2GR#..GRL12,16,GWL10 NO.1 |
1 | ||
| 90467-15120 |
2GR#..GRL12,16,GWL10 NO.2 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-14017 |
2GR#..GRL12,16,GWL10 NO.1 |
1 | ||
| 90467-15120 |
2GR#..GRL12,16,GWL10 NO.2 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-31150 |
2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10 |
1 | ||
| 12262-31150 |
2GR#,4GRFSE..GRL1#,GWL10 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21004 |
2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10 |
2 | ||
| 90467-21004 |
2GR#,4GRFSE..GRL1#,GWL10 |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-21004 |
2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10 |
2 | ||
| 90467-21004 |
2GR#,4GRFSE..GRL1#,GWL10 |
2 | ||
