GRL16-BETQH (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )GRL12,16

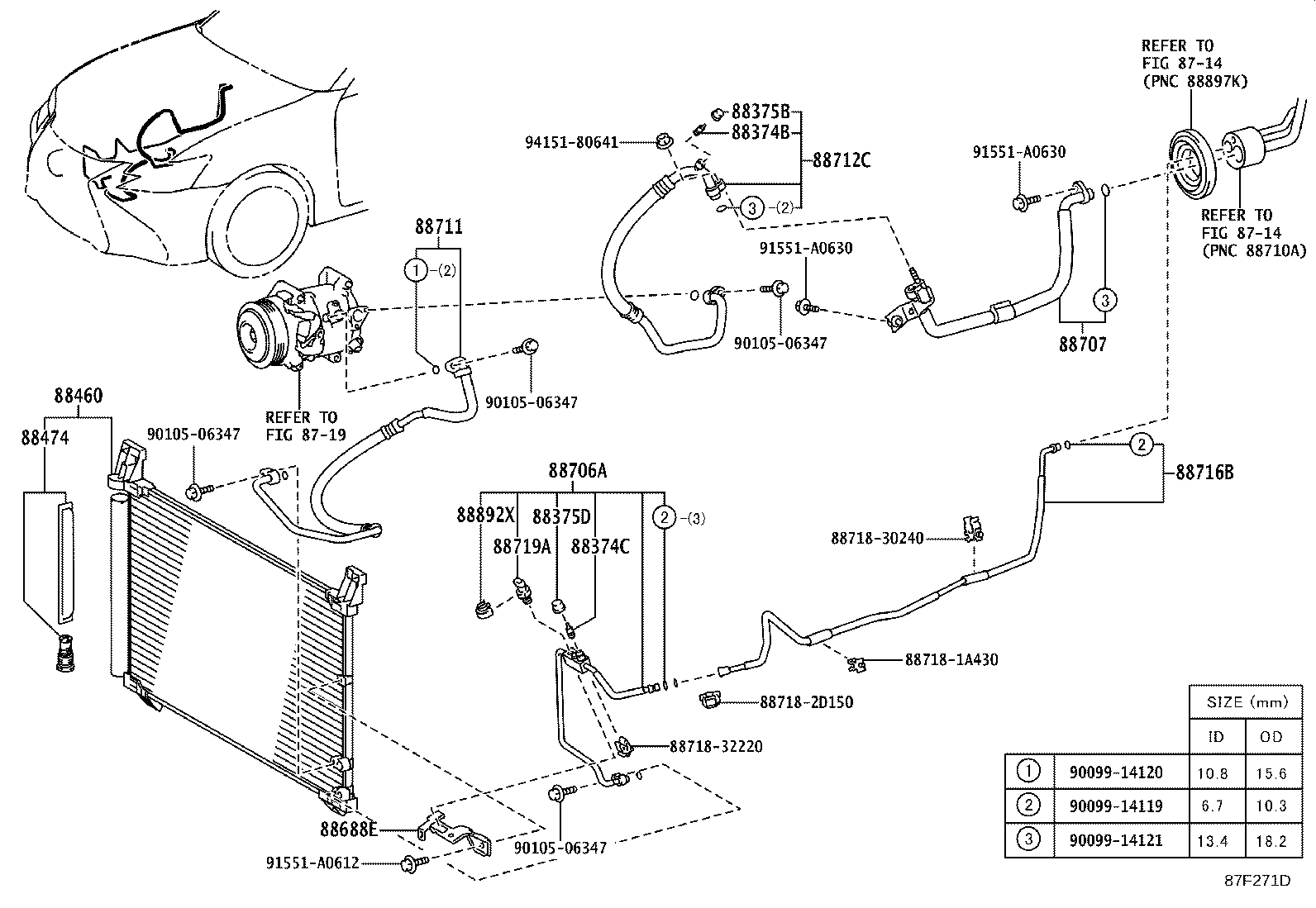

Click highlighted areas on diagram

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88688E 88706A 88707 88711 88712C 88716B 887181A430 887182D150 8871830240 8871832220 88719A 88892X 9009914119 9009914120 9009914121 9010506347 9010506347 9010506347 9010506347 91551A0612 91551A0630 91551A0630 9415180641
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ARL10,AWL10,GRL1#,GWL10

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ARL10,AWL10,GRL1#,GWL10

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ARL10,AWL10,GRL1#,GWL10

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ARL10,AWL10,GRL1#,GWL10

 1
88460 - CONDENSER ASSY, COOLER
88460-30B40

GRL1#

 1
88460-30B20

GRL12,16

 1
88474 - DRYER, COOLER
88474-12010

ARL10,GRL12,16

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-3F020

ARL10,AWL10,GRL1#,GWL10

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-3A590

GRL1#

 1
88706-30A20

GRL12,16

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-30A40

GRL1#

 1
88707-30A41

GRL1#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-30A30

GRL12,16

 1
88712C - HOSE, SUCTION
88712-30A10

GRL16

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-30070

GRL1#

 1
88716-30B10

GRL12,16

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ARL10,AWL10,GRL1#,GWL10

 1
88892X - COVER, COOLER, NO.2
88892-50120

ARL10,AWL10,GRL1#,GWL10

 1
Common parts
88718-1A430
88718-2D150
88718-30240
88718-32220
90099-14119
90099-14120
90099-14121
90105-06347
91551-A0612
91551-A0630
94151-80641
Linked diagrams
8714
8719
