GRL15-BETQH (2011)
Toyota Lexus Gs Series
(1112-1309)GRL10 ; (1112- )GRL11,15,16
A760E,A760H,A960E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

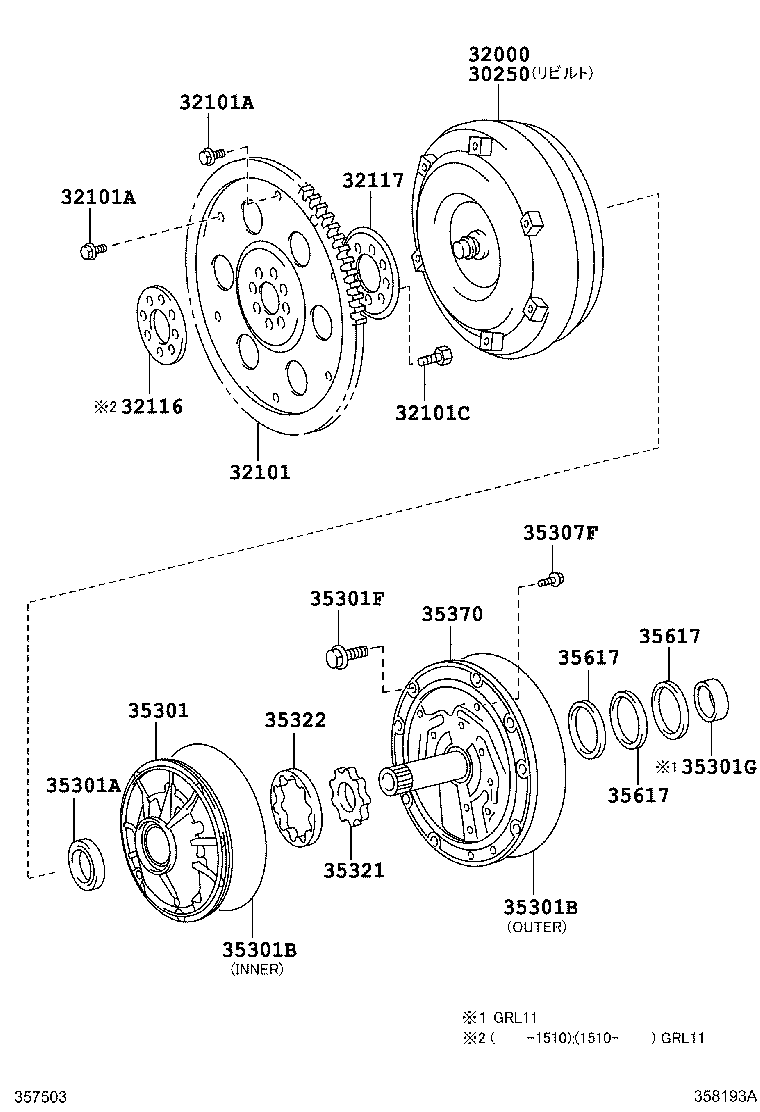

| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-30440 |
GRL15 |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-30440 |
GRL15 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-30081 |
GRL11,15;GRL10..8FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-09005 |
GRL11,15;GRL10..8FC *9−1.25PX11−8,ﾌﾞﾗｯｸ |
1 | ||
| 90105-09006 |
GRL11,15;GRL10..8FC *9−1.25PX11−8.5,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-09005 |
GRL11,15;GRL10..8FC *9−1.25PX11−8,ﾌﾞﾗｯｸ |
1 | ||
| 90105-09006 |
GRL11,15;GRL10..8FC *9−1.25PX11−8.5,ｼﾙﾊﾞ− ﾎﾜｲﾄ |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
GRL11,15;GRL10..8FC *10−1.25PX18−13 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-32020 |
GRL11,15;GRL10..8FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-30030 |
GRL11,15;GRL10..8FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-60030 |
GRL15 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38083 |
GRL11,15 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99139 |
GRL15 外側 |
1 | ||
| 35697-60010 |
GRL15 外側 |
1 | ||
| 90301-99148 |
GRL15 内側 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99139 |
GRL15 外側 |
1 | ||
| 35697-60010 |
GRL15 外側 |
1 | ||
| 90301-99148 |
GRL15 内側 |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08451 |
GRL15 *8−1.25PX40−30 |
10 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60079 |
GRL11,15 |
14 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-50030 |
GRL15 厚さ=10.750−10.756 |
1 | ||
| 35321-50070 |
GRL15 厚さ=10.778−10.784 |
1 | ||
| 35321-50040 |
GRL15 厚さ=10.757−10.763 |
1 | ||
| 35321-50020 |
GRL15 厚さ=10.743−10.749 |
1 | ||
| 35321-50060 |
GRL15 厚さ=10.771−10.777 |
1 | ||
| 35321-50010 |
GRL15 厚さ=10.736−10.742 |
1 | ||
| 35321-50050 |
GRL15 厚さ=10.764−10.770 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-50020 |
GRL15 厚さ=10.743−10.749 |
1 | ||
| 35322-50010 |
GRL15 厚さ=10.736−10.742 |
1 | ||
| 35322-50060 |
GRL15 厚さ=10.771−10.777 |
1 | ||
| 35322-50050 |
GRL15 厚さ=10.764−10.770 |
1 | ||
| 35322-50030 |
GRL15 厚さ=10.750−10.756 |
1 | ||
| 35322-50040 |
GRL15 厚さ=10.757−10.763 |
1 | ||
| 35322-50070 |
GRL15 厚さ=10.778−10.784 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-50030 |
GRL15 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
GRL11,15 |
3 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
GRL11,15 |
3 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
GRL11,15 |
3 | ||
