Toyota Lexus gs series GRL15 MANIFOLD

Part #	Description	Period	Qty
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31780	2GRFSE..GRL15	12/2011 - 10/2015	1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31780	2GRFSE..GRL15	12/2011 - 10/2015	1
17111 - MANIFOLD, INTAKE
17111-31171	2GRFSE..GRL15;2GRFSE..GRL10..8FC	12/2011 - 10/2015	1
17126 - STAY, SURGE TANK, NO.2
17126-31050	2GRFSE..GRL15;2GRFSE..GRL10..8FC	12/2011 - 10/2015	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31020	2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10	12/2011 - 10/2015	1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31020	2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10	12/2011 - 10/2015	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31120	2GRFSE..GRL15	12/2011 - 10/2015	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31061	2GRFSE..GRL15;2GRFSE..GRL10..8FC	12/2011 - 10/2015	2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31061	2GRFSE..GRL15;2GRFSE..GRL10..8FC	12/2011 - 10/2015	2
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31170	2GRFSE..GRL15	12/2011 - 10/2015	1
17190B - BRACKET, INTAKE AIR SURGE TANK, NO.2
11254-31020	2GRFSE..GRL15;2GRFSE..GRL10..8FC	12/2011 - 10/2015	2
Common parts
90110-06035
90126-06030
90339-09003
90467-14003
91551-80845
91671-80820
94151-80600
94151-80800
94151-80841

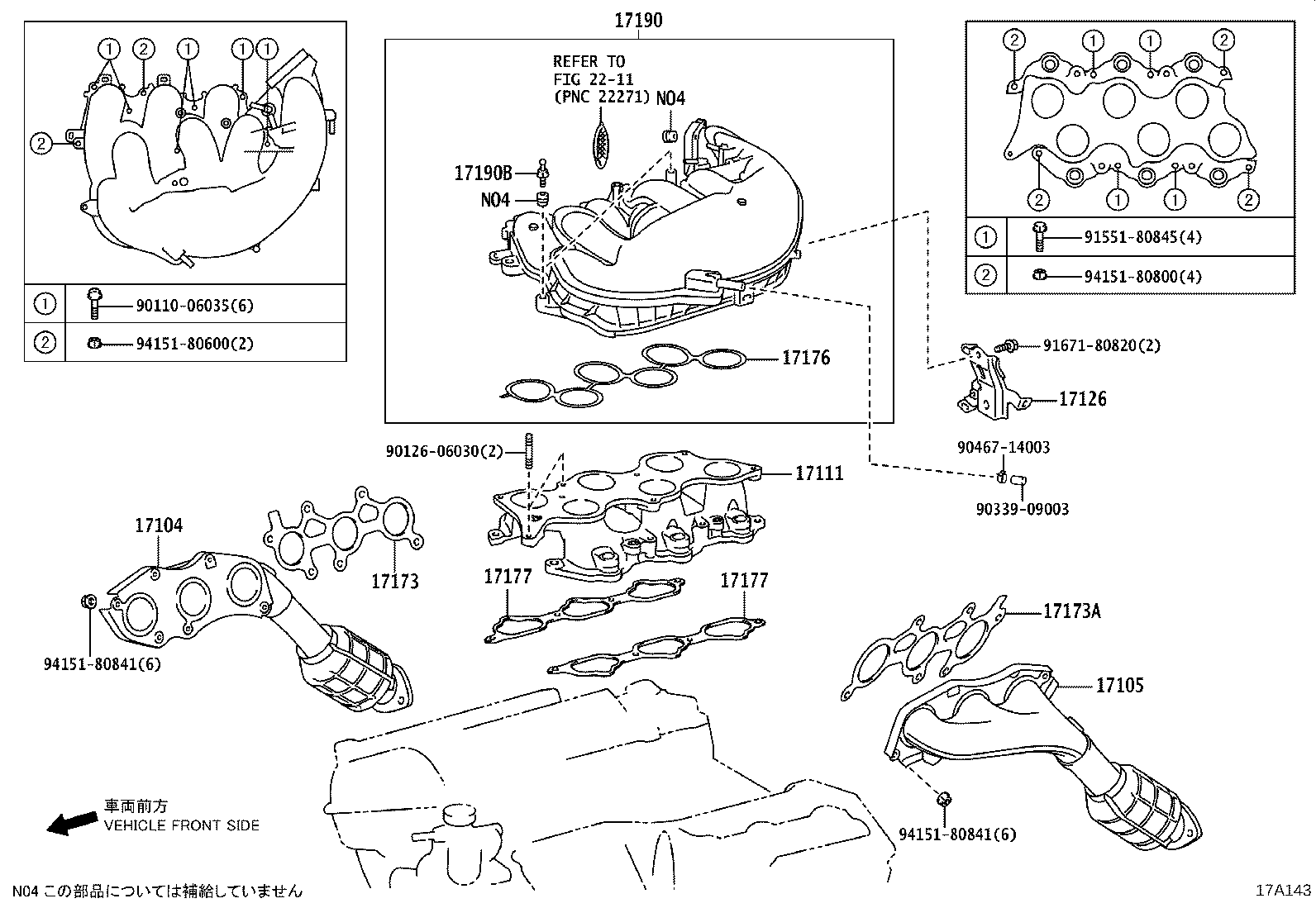

Linked diagrams
2211

GRL15-BETQH (2011)
