GRL11-BETQH (2015)
Toyota Lexus Gs Series
ILLUST NO. 5 OF10(1510- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-30620 |
GRL1#,GWL10 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-30F80 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ) |
1 | ||
| 84010-30F60 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F60 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30G40 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F60 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30G40 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F60 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F80 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ) |
1 | ||
| 84010-30G60 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ) |
1 | ||
| 84010-30G40 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS& *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30G60 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS& *AHB & ﾅｲﾄﾋﾞｭｰ) |
1 | ||
| 84010-30G40 |
GRL10,11 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30B00 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30B00 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30B80 |
GRL11;GRL10..8FC ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30C00 |
GRL11;GRL10..8FC |
1 | ||
| 84010-30B20 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84010-30B20 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84010-30B20 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84010-30F60 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F60 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30B00 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F60 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F60 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F80 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB) |
1 | ||
| 84010-30F60 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED &有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30G40 |
GRL11;GRL10..8FC ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F60 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30F80 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB) |
1 | ||
| 84010-30F80 |
GRL11;GRL10..8FC ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB) |
1 | ||
| 84010-30G40 |
GRL11;GRL10..8FC ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 84010-30G60 |
GRL11;GRL10..8FC ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB) |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-30540 |
GRL11,15;GRL10..8FC ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 84120 - SWITCH ASSY, HEAD UP DISPLAY | ||||
| 84120-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 84270H - SWITCH ASSY, PARKING LAMP | ||||
| 84332-30340 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-30030 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30250 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-30080 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30120 |
GRL1# |
1 | ||
| 89611-30122 |
GRL1# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30120 |
GRL1# |
1 | ||
| 89611-30122 |
GRL1# |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
ILLUST NO. 7 OF10(1510- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30380 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−LEDﾀｲﾌﾟ |
1 | ||
| 84140-30380 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−ﾊﾞﾙﾌﾞﾀｲﾌﾟ(ﾊﾞﾝﾊﾟ付け) |
1 | ||
| 84140-30370 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-30251B0 |
GRL11,15;GRL10..8FC ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(高速ACC),SILVER,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 84250-30261B0 |
GRL1# ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(高速ACC)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,SILVER,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 84250-30231B0 |
GRL10..8FC;AWL10,GRL11,15,GWL10 SILVER,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 84250-30251B0 |
GRL11 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(高速ACC),SILVER,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 84250-30261B0 |
GRL11 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(高速ACC)&ﾚｰﾝｷｰﾋﾟﾝｸﾞｱｼｽﾄ−有り,SILVER,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-53020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84308-53010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-30150 |
GRL11 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(高速ACC)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84307-30150 |
GRL11 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(高速ACC)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84307-30150 |
GRL11 ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−有り(ﾄﾞﾗｲﾊﾞﾓﾆﾀ付き)&ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り(高速ACC)&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ)&SRSｴｱﾊﾞｯｸﾞ−有り(ﾘﾔｼｰﾄｻｲﾄﾞ) |
1 | ||
| 84307-30150 |
GRL11 ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84307-30150 |
GRL11 ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ−有り&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−本杢&革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84307-30150 |
GRL10..8FC;AWL10,GRL11,15,GWL10 ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻,有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 84307-30130 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-30010 |
AWL10,GRL1#,GWL10 |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-30100 |
AWL10,GRL1#,GWL10 左側 |
1 | ||
| 84610-30110 |
AWL10,GRL1#,GWL10 右側 |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-30100 |
AWL10,GRL1#,GWL10 左側 |
1 | ||
| 84610-30110 |
AWL10,GRL1#,GWL10 右側 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30670 |
GRL1#,GWL10 間欠ﾜｲﾊﾟ−雨滴感応式 |
1 | ||
| 84652-30660 |
GRL1#,GWL10 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-39045 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
ILLUST NO. 3 OF10(1510- )ARL10,GRL1#
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08299 |
AWL10,GRL1#,GWL10 40A−40A−40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
GRL1# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08301 |
AWL10,GRL1#,GWL10 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08300 |
AWL10,GRL1# 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08305 |
AWL10,GRL1#,GWL10 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08294 |
GRL1# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08303 |
AWL10,GRL1#,GWL10 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08304 |
AWL10,GRL1#,GWL10 60A,ﾒｽ端子,黄 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
AWL10,GRL1#,GWL10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09019 |
AWL10,GRL1#,GWL10 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
AWL10,GRL1#,GWL10 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
AWL10,GRL1#,GWL10 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWL10,GRL1#,GWL10 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
AWL10,GRL1#,GWL10 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09025 |
AWL10,GRL1#,GWL10 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30280 |
GRL1# |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-30330 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-30320 |
GRL1# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30B90 |
GRL1# |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-30B60 |
GRL1# |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-30C00 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30880 |
GRL11,15;GRL10..8FC |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30A00 |
GRL1# |
1 | ||
| 82662-30F30 |
GRL11 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30310 |
GRL1# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30320 |
GRL1# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30C00 |
GRL1# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-58010 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90987-04004 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
2 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
GRL10..8FC;GRL11,15,GWL10 寒冷地仕様 |
2 | ||
| 89650E - RELAY, ELECTRIC POWER STEERING | ||||
| 90987-02025 |
GRL10..8FC;AWL10,GRL11,15 |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

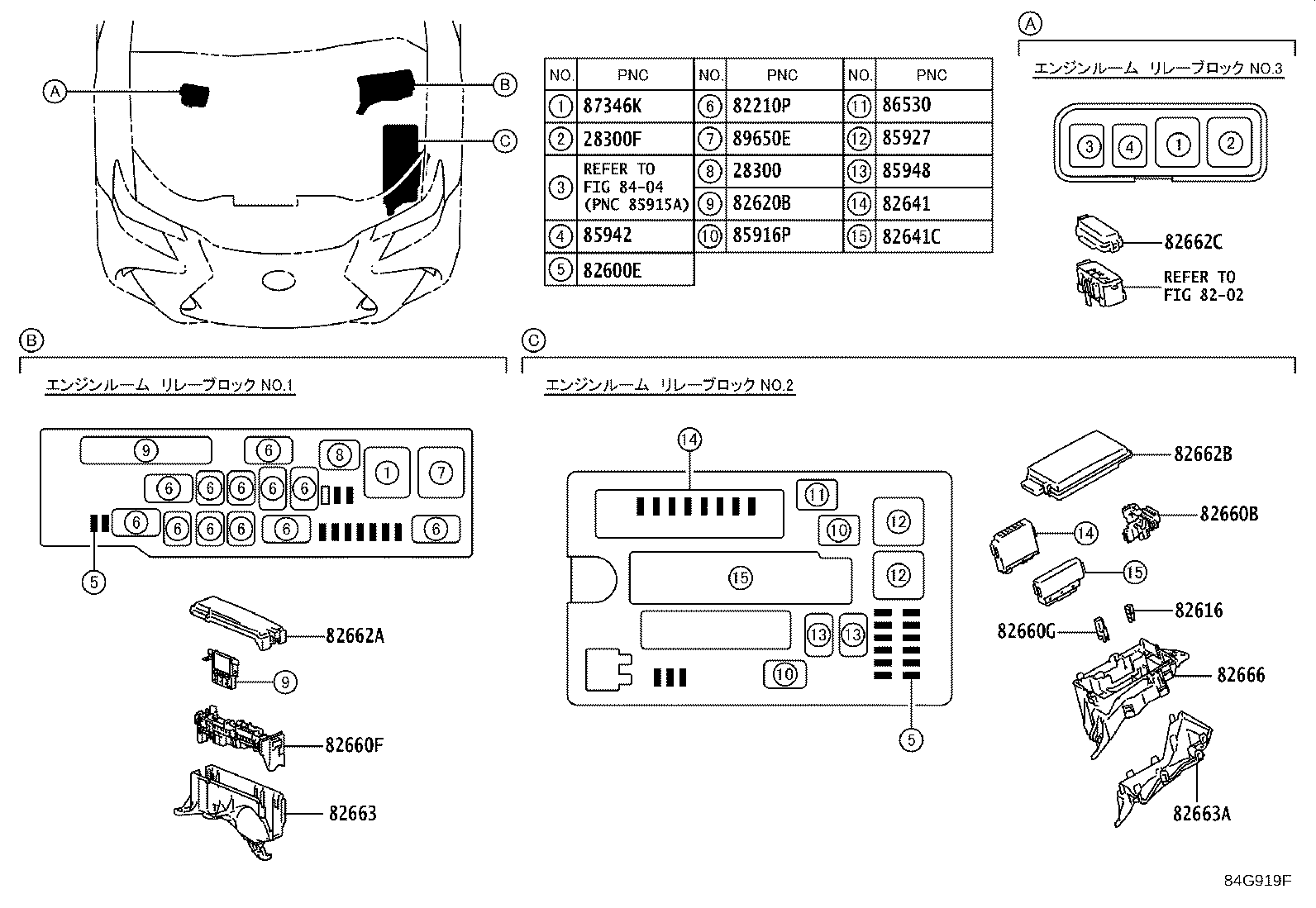

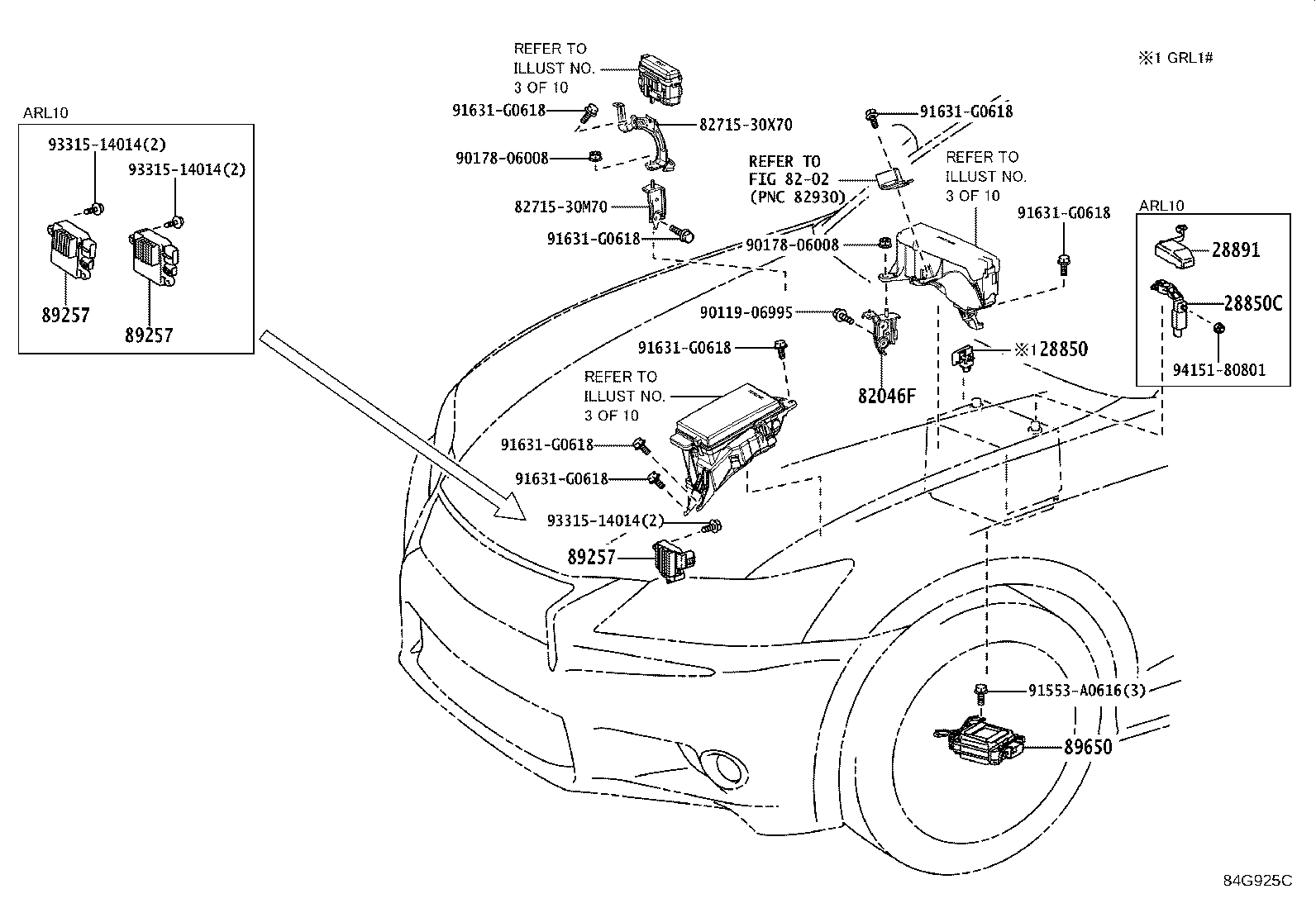

ILLUST NO. 2 OF10(1510- )ARL10,GRL1#
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-31020 |
2GRFSE,4GRFSE..GRL1# |
1 | ||
| 82046F - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30110 |
GRL11,15;GRL10..8FC |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30090 |
GRL11,GWL10 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30090 |
GRL11,GWL10 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30090 |
GRL11,GWL10 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30870 |
GRL1# JTEKT/DENSO |
1 | ||
| 89650-30A50 |
GRL11,15 JTEKT/DENSO,F SPORT |
1 | ||
| Common parts | ||||
| 82715-30M70 | ||||
| 82715-30X70 | ||||
| 90119-06995 | ||||
| 90178-06008 | ||||
| 91553-A0616 | ||||
| 91631-G0618 | ||||
| 93315-14014 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8202 | ||||
