GRL11-BETQH (2011)

Toyota Lexus Gs Series

Production Dec 2011 - Oct 2015

Engine 4GRFSE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1112-1510)

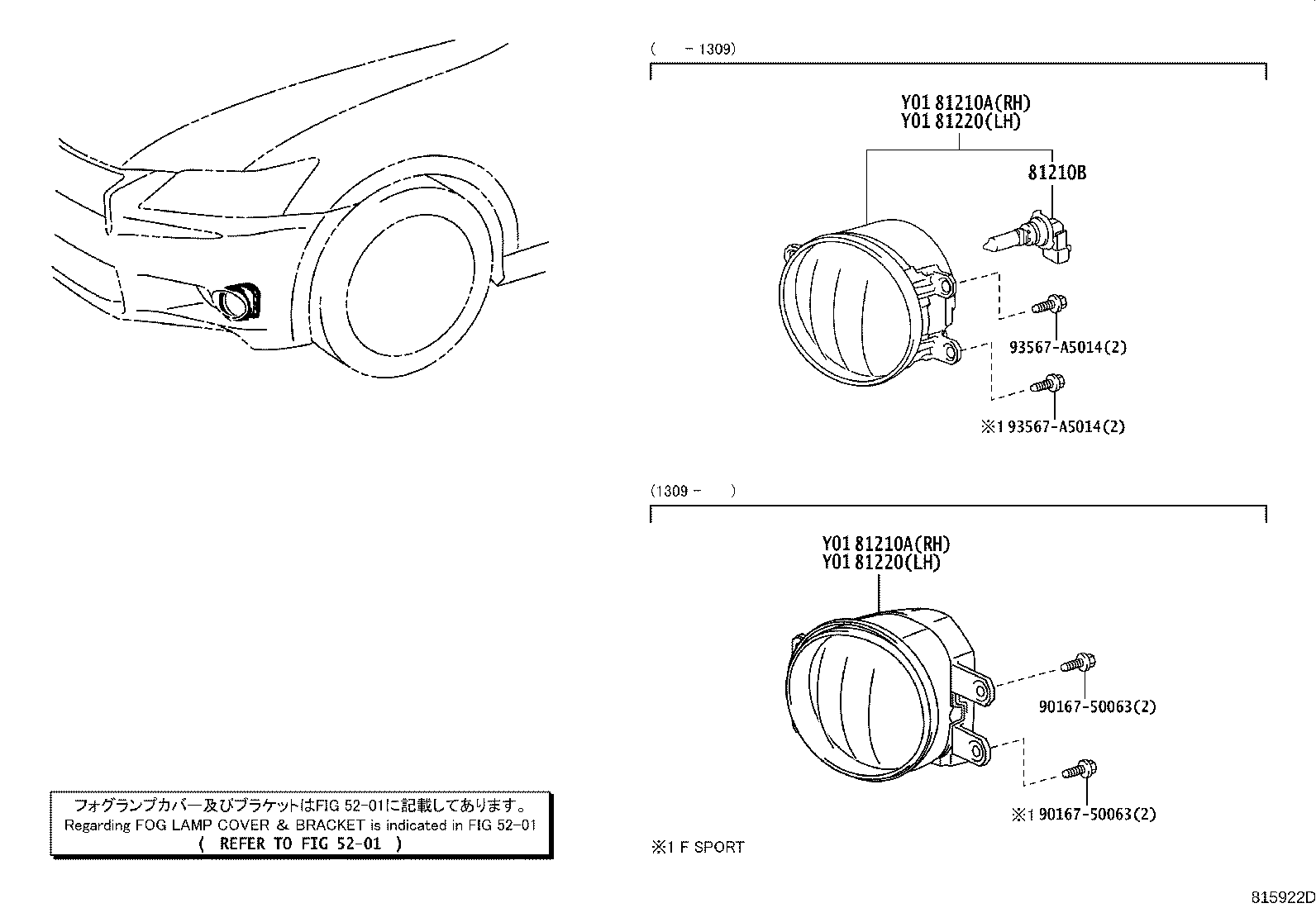

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81210A - LAMP ASSY, FOG, RH
81210-0D042	GRL1#,GWL10	12/2011 - 09/2013	1
81210-48050	AWL10,GRL1#,GWL10	09/2013 - 10/2015	1
81210A - LAMP ASSY, FOG, RH
81210-0D042	GRL1#,GWL10	12/2011 - 09/2013	1
81210-48050	AWL10,GRL1#,GWL10	09/2013 - 10/2015	1
81210B - BULB, FOG LAMP
90981-1307579	GRL10..6FC;GRL11,15,GWL10 12V 55W,ﾊﾛｹﾞﾝ	12/2011 - 09/2013	2
81220 - LAMP ASSY, FOG, LH
81220-0D042	GRL1#,GWL10	12/2011 - 09/2013	1
81220-48050	AWL10,GRL1#,GWL10	09/2013 - 10/2015	1
81220 - LAMP ASSY, FOG, LH
81220-0D042	GRL1#,GWL10	12/2011 - 09/2013	1
81220-48050	AWL10,GRL1#,GWL10	09/2013 - 10/2015	1
Common parts
90167-50063
93567-A5014
Linked diagrams
5201
