Toyota Lexus gs series GRL11 EXHAUST PIPE

GRL11-BETQH (2011)

Toyota Lexus Gs Series

Production Dec 2011 - Oct 2015

Engine 4GRFSE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

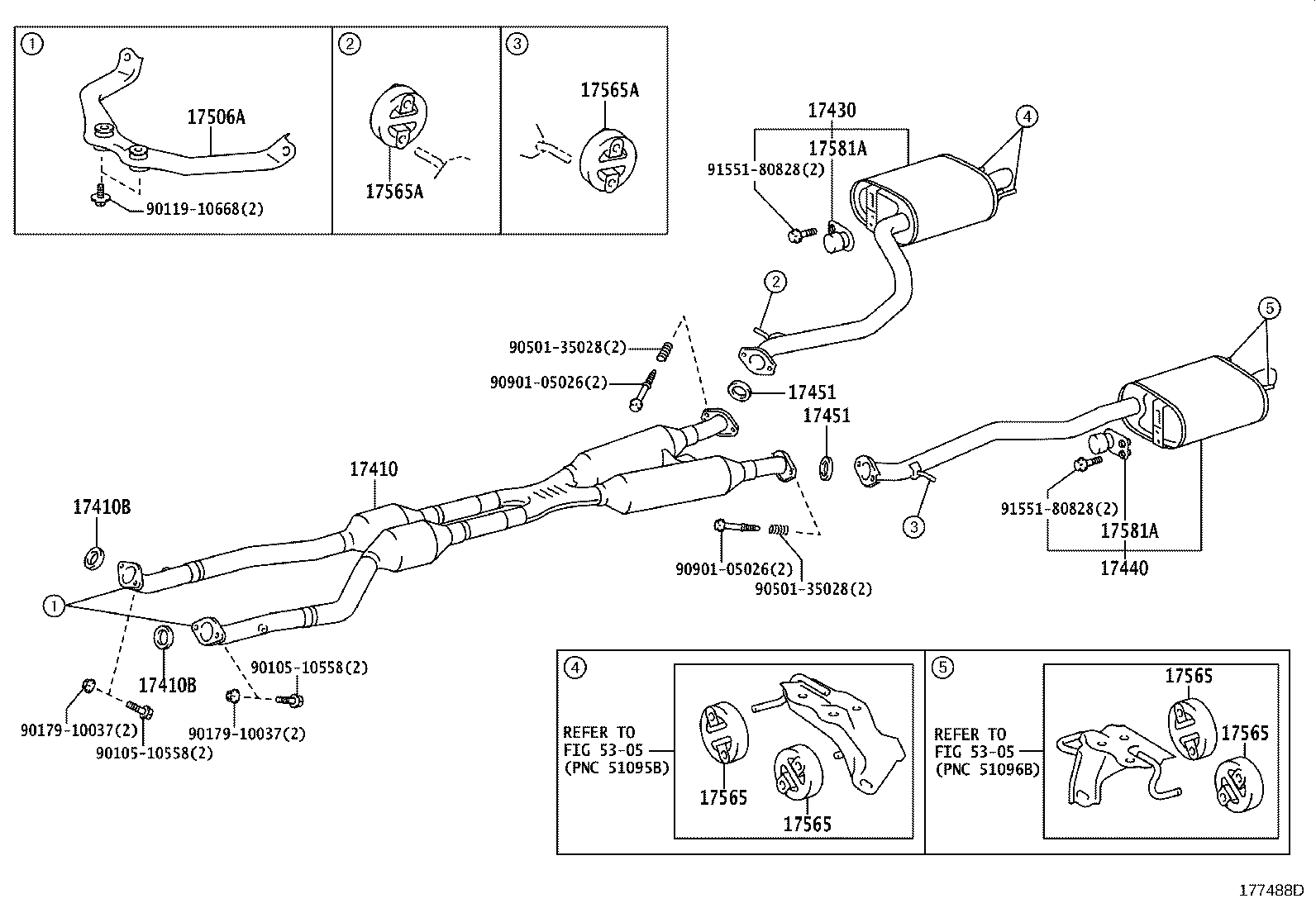

(1311- )2GRFSE,4GRFSE..GRL11,15

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31D50	4GRFSE..GRL11 *114=TOYOTA/RA4/Y	09/2013 - 10/2015	1
17410-31D40	4GRFSE..GRL11 *114=TOYOTA/RA4/Y	12/2011 - 09/2013	1
17410B - GASKET, EXHAUST PIPE
90917-06078	2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10	12/2011 - 10/2015	2
17410B - GASKET, EXHAUST PIPE
90917-06078	2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10	12/2011 - 10/2015	2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31B20	2GRFSE,4GRFSE..GRL11,15	12/2011 - 09/2013	1
17430-31C80	2GRFSE,4GRFSE..GRL11,15	11/2013 - 10/2015	1
17430-31B40	2GRFSE,4GRFSE..GRL11,15	09/2013 - 11/2013	1
17440 - PIPE, EXHAUST TAIL, LH
17440-31100	2GRFSE,4GRFSE..GRL11,15	09/2013 - 11/2013	1
17440-31160	2GRFSE,4GRFSE..GRL11,15	11/2013 - 10/2015	1
17440-31080	2GRFSE,4GRFSE..GRL11,15	12/2011 - 09/2013	1
17451 - GASKET, EXHAUST PIPE
17451-28032	2GRFSE..GRL10..8FC;2ARFSE,2GR#,4GRFSE..AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
17451 - GASKET, EXHAUST PIPE
17451-28032	2GRFSE..GRL10..8FC;2ARFSE,2GR#,4GRFSE..AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31030	4GRFSE..GRL11	12/2011 - 10/2015	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10	12/2011 - 10/2015	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10	12/2011 - 10/2015	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10	12/2011 - 10/2015	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10	12/2011 - 10/2015	4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010	2GRFSE..GRL10..8FC;2ARFSE,2GR#,4GRFSE..AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010	2GRFSE..GRL10..8FC;2ARFSE,2GR#,4GRFSE..AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
17581A - DAMPER, EXHAUST PIPE
17581-46120	2GRFSE,4GRFSE..GRL11,15	11/2013 - 10/2015	2
17581A - DAMPER, EXHAUST PIPE
17581-46120	2GRFSE,4GRFSE..GRL11,15	11/2013 - 10/2015	2
Common parts
90105-10558
90119-10668
90179-10037
90501-35028
90901-05026
91551-80828
Linked diagrams
5305

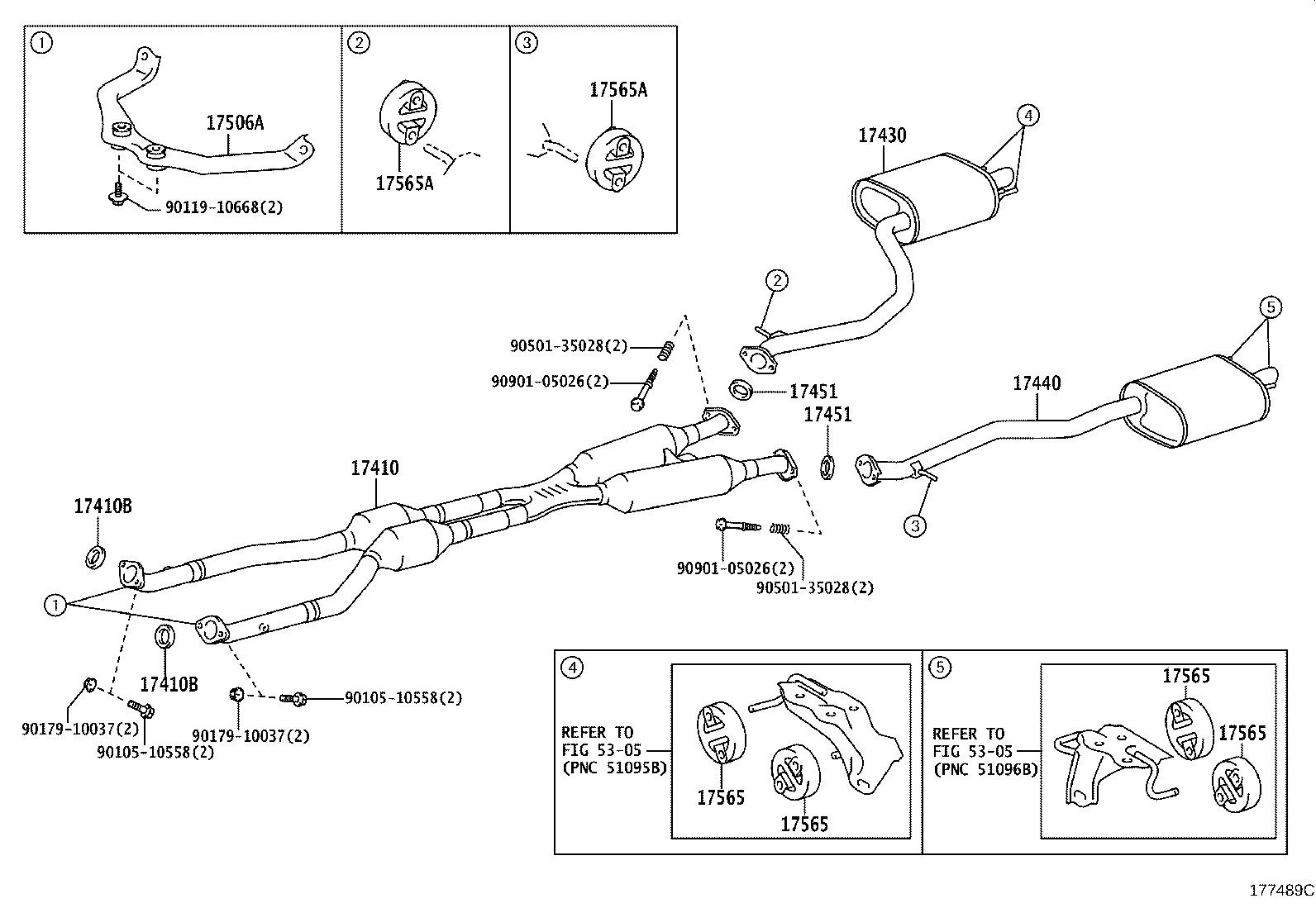

(1112-1311)2GRFSE,4GRFSE..GRL11,15

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31D50	4GRFSE..GRL11 *114=TOYOTA/RA4/Y	09/2013 - 10/2015	1
17410-31D40	4GRFSE..GRL11 *114=TOYOTA/RA4/Y	12/2011 - 09/2013	1
17410B - GASKET, EXHAUST PIPE
90917-06078	2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10	12/2011 - 10/2015	2
17410B - GASKET, EXHAUST PIPE
90917-06078	2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10	12/2011 - 10/2015	2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31B20	2GRFSE,4GRFSE..GRL11,15	12/2011 - 09/2013	1
17430-31C80	2GRFSE,4GRFSE..GRL11,15	11/2013 - 10/2015	1
17430-31B40	2GRFSE,4GRFSE..GRL11,15	09/2013 - 11/2013	1
17440 - PIPE, EXHAUST TAIL, LH
17440-31100	2GRFSE,4GRFSE..GRL11,15	09/2013 - 11/2013	1
17440-31160	2GRFSE,4GRFSE..GRL11,15	11/2013 - 10/2015	1
17440-31080	2GRFSE,4GRFSE..GRL11,15	12/2011 - 09/2013	1
17451 - GASKET, EXHAUST PIPE
17451-28032	2GRFSE..GRL10..8FC;2ARFSE,2GR#,4GRFSE..AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
17451 - GASKET, EXHAUST PIPE
17451-28032	2GRFSE..GRL10..8FC;2ARFSE,2GR#,4GRFSE..AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31030	4GRFSE..GRL11	12/2011 - 10/2015	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10	12/2011 - 10/2015	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10	12/2011 - 10/2015	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10	12/2011 - 10/2015	4
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-22040	2ARFSE,2GR#,4GRFSE..AWL10,GRL1#,GWL10	12/2011 - 10/2015	4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010	2GRFSE..GRL10..8FC;2ARFSE,2GR#,4GRFSE..AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-28010	2GRFSE..GRL10..8FC;2ARFSE,2GR#,4GRFSE..AWL10,GRL11,15,GWL10	12/2011 - 10/2015	2
Common parts
90105-10558
90119-10668
90179-10037
90501-35028
90901-05026
Linked diagrams
5305

GRL11-BETQH (2011)

(1311- )2GRFSE,4GRFSE..GRL11,15

(1112-1311)2GRFSE,4GRFSE..GRL11,15
