GRL10-BEZQH (2013)
Toyota Lexus Gs Series
(1112-1510)

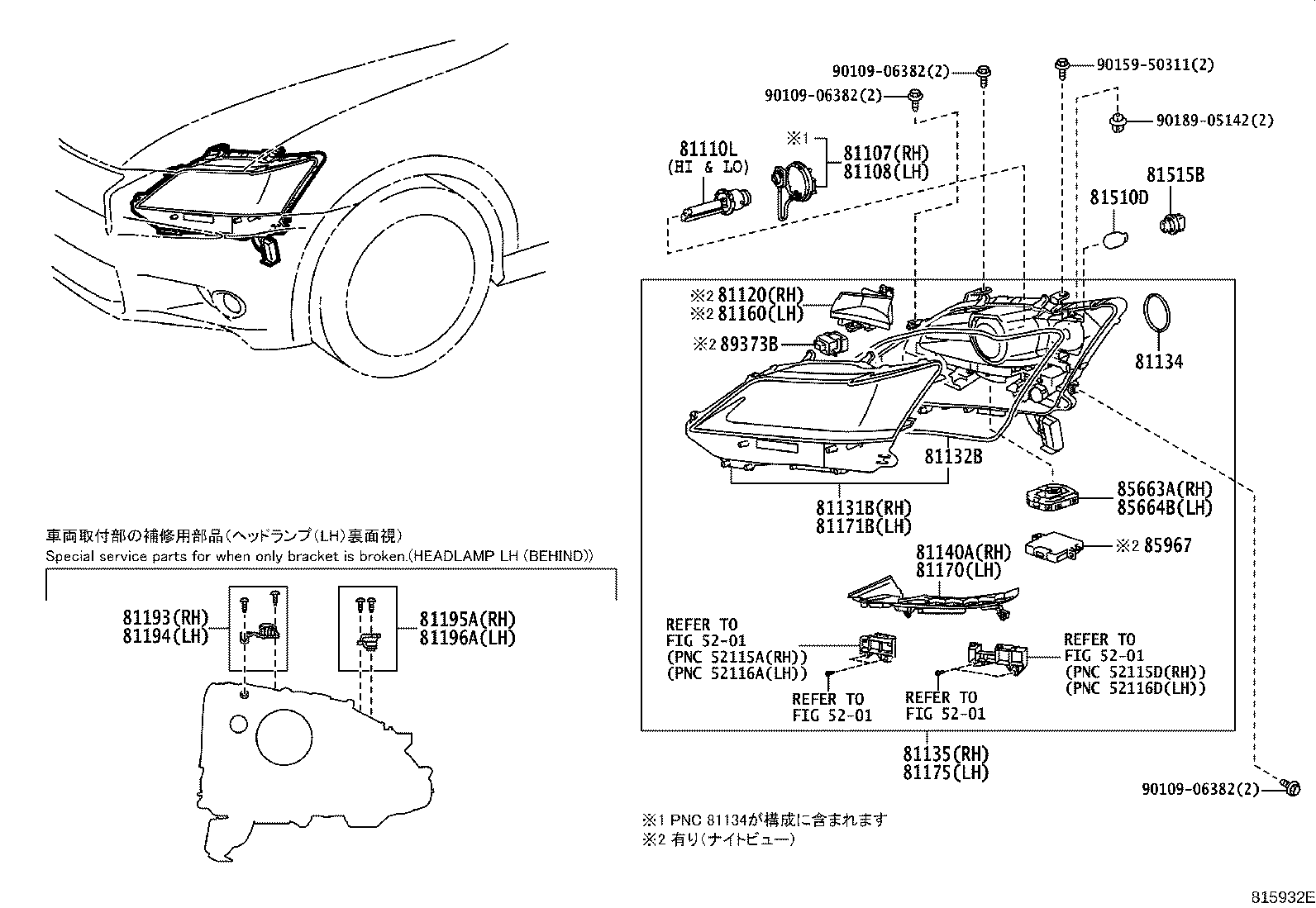

ﾃﾞｨｽﾁｬｰｼﾞ ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-75020 |
GRL1# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-75020 |
GRL1# |
1 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-2002479 |
GRL1# 42V 35W |
2 | ||
| 81120 - HEADLAMP SUB-ASSY, RH | ||||
| 81120-30G00 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81120-30G70 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81120-30G00 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81120-30G70 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81131-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81131-30F60 |
GRL1# |
1 | ||
| 81131-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81131-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81131-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30E30 |
GRL1# |
1 | ||
| 81131-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50590 |
AWL10,GRL1#,GWL10 |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23002 |
GRL1# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-30F60 |
GRL1# |
1 | ||
| 81145-30E30 |
GRL1# |
1 | ||
| 81145-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81145-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81145-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81145-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81140A - UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, RH | ||||
| 81140-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81140-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81140-30F70 |
GRL1# |
1 | ||
| 81140-30K20 |
GRL1# |
1 | ||
| 81140-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81140-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81140-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81140-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81140-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81140-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160 - HEADLAMP SUB-ASSY, LH | ||||
| 81160-30G00 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160-30G00 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160-30G70 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160-30G70 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81170 - UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, LH | ||||
| 81170-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81170-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81170-30K20 |
GRL1# |
1 | ||
| 81170-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81170-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81170-30F70 |
GRL1# |
1 | ||
| 81170-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81170-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81170-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81170-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30F60 |
GRL1# |
1 | ||
| 81171-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81171-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81171-30E70 |
GRL1# |
1 | ||
| 81171-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81171-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81171-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-30E70 |
GRL1# |
1 | ||
| 81185-30F60 |
GRL1# |
1 | ||
| 81185-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81185-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81185-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81185-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-30090 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-30090 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-30050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-30050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-1502179 |
AWL10,GRL1#,GWL10 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
GRL1# |
2 | ||
| 85663A - MOTOR, HEADLAMP SWIVEL, RH | ||||
| 85663-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 85664B - MOTOR, HEADLAMP SWIVEL, LH | ||||
| 85664-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,品番ﾗﾍﾞﾙ=W5967−30070 |
4 | ||
| 85967-30060 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
4 | ||
| 85967-30060 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
4 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30060 |
2 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30060 |
2 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
4 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 89373B - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30390 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| 89373-30390 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5201 | ||||
(1112-1510)

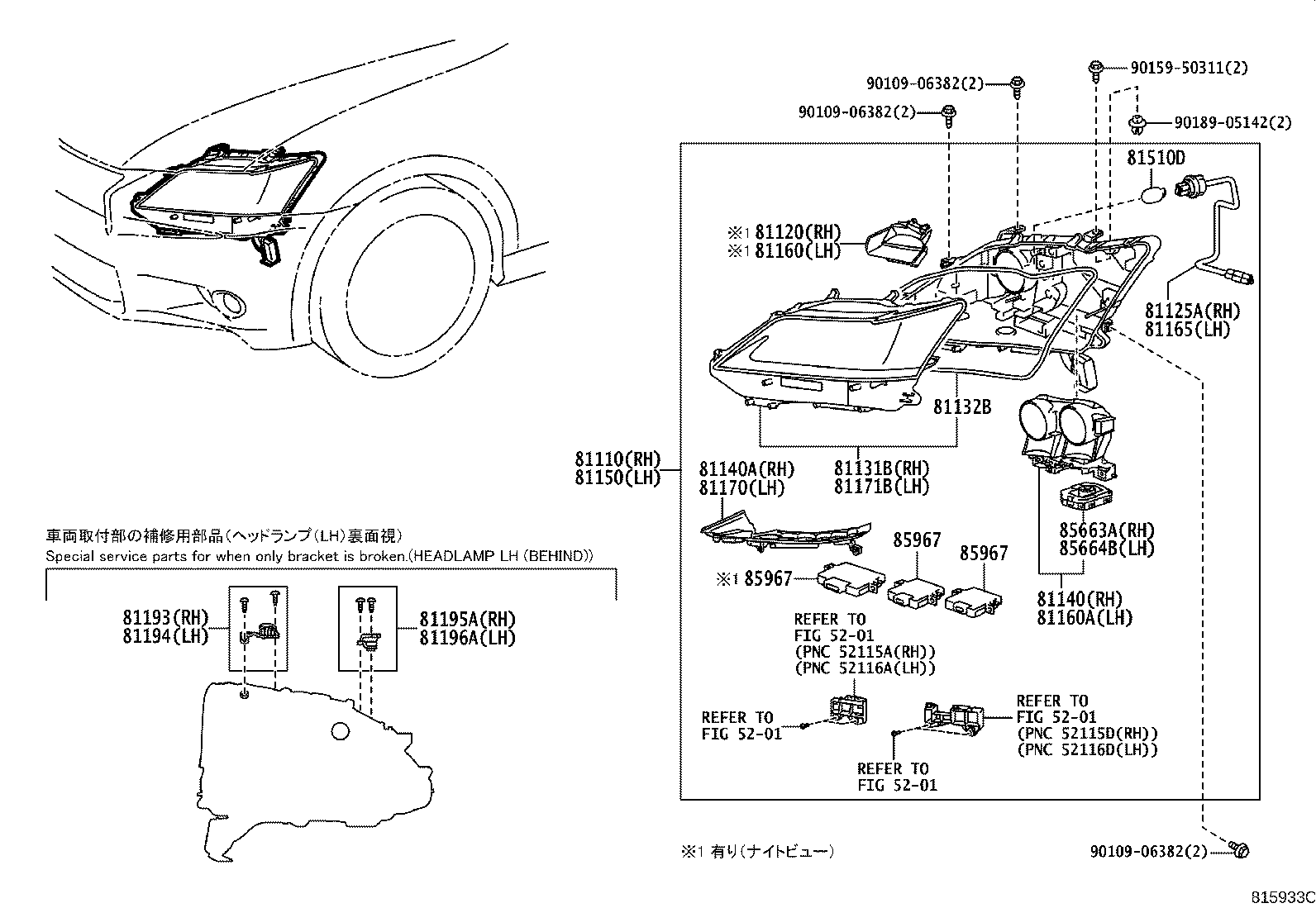

LED ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81110-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81110-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81110-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81110-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81110-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81110-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81110-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81120 - HEADLAMP SUB-ASSY, RH | ||||
| 81120-30G00 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81120-30G70 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81120-30G00 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81120-30G70 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81125-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81125-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81125-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81131B - HEAD LAMP LENS, RH | ||||
| 81131-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81131-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81131-30F60 |
GRL1# |
1 | ||
| 81131-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81131-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81131-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81131-30E30 |
GRL1# |
1 | ||
| 81131-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50590 |
AWL10,GRL1#,GWL10 |
2 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81140-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81140-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81140-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81140A - UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, RH | ||||
| 81140-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81140-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81140-30F70 |
GRL1# |
1 | ||
| 81140-30K20 |
GRL1# |
1 | ||
| 81140-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81140-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81140-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81140-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81140-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81140-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81150-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81150-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81150-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81150-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81150-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81150-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81150-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160 - HEADLAMP SUB-ASSY, LH | ||||
| 81160-30G00 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160-30G00 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160-30G70 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160-30G70 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81160-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81160-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81165-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81165-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81165-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81165-30G60 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81170 - UNIT ASSY, HEADLAMP DAYTIME RUNNING LIGHT, LH | ||||
| 81170-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81170-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81170-30K20 |
GRL1# |
1 | ||
| 81170-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81170-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81170-30F70 |
GRL1# |
1 | ||
| 81170-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81170-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81170-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81170-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81171B - HEAD LAMP LENS, LH | ||||
| 81171-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30F70 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30F60 |
GRL1# |
1 | ||
| 81171-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS) |
1 | ||
| 81171-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81171-30E70 |
GRL1# |
1 | ||
| 81171-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30G60 |
GRL1#,GWL10 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30K20 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30G50 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB) |
1 | ||
| 81171-30K30 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
1 | ||
| 81171-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81171-30K40 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-30090 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-30090 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-30050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-30050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-1502179 |
AWL10,GRL1#,GWL10 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 85663A - MOTOR, HEADLAMP SWIVEL, RH | ||||
| 85663-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 85664B - MOTOR, HEADLAMP SWIVEL, LH | ||||
| 85664-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-30060 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
4 | ||
| 85967-30060 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
4 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30060 |
2 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30060 |
2 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
4 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,品番ﾗﾍﾞﾙ=W5967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-30060 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
4 | ||
| 85967-30060 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
4 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30060 |
2 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30060 |
2 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
4 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,品番ﾗﾍﾞﾙ=W5967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-30060 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
4 | ||
| 85967-30060 |
GRL1# ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾅｲﾄﾋﾞｭｰ−有り |
2 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り |
4 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30060 |
2 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30060 |
2 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
4 | ||
| 85967-30060 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り,品番ﾗﾍﾞﾙ=W5967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| 85967-30070 |
GRL10,11 ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(AFS & *AHB & ﾅｲﾄﾋﾞｭｰ)&ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ−有り&ﾅｲﾄﾋﾞｭｰ−有り,品番ﾗﾍﾞﾙ=85967−30070 |
4 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5201 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
