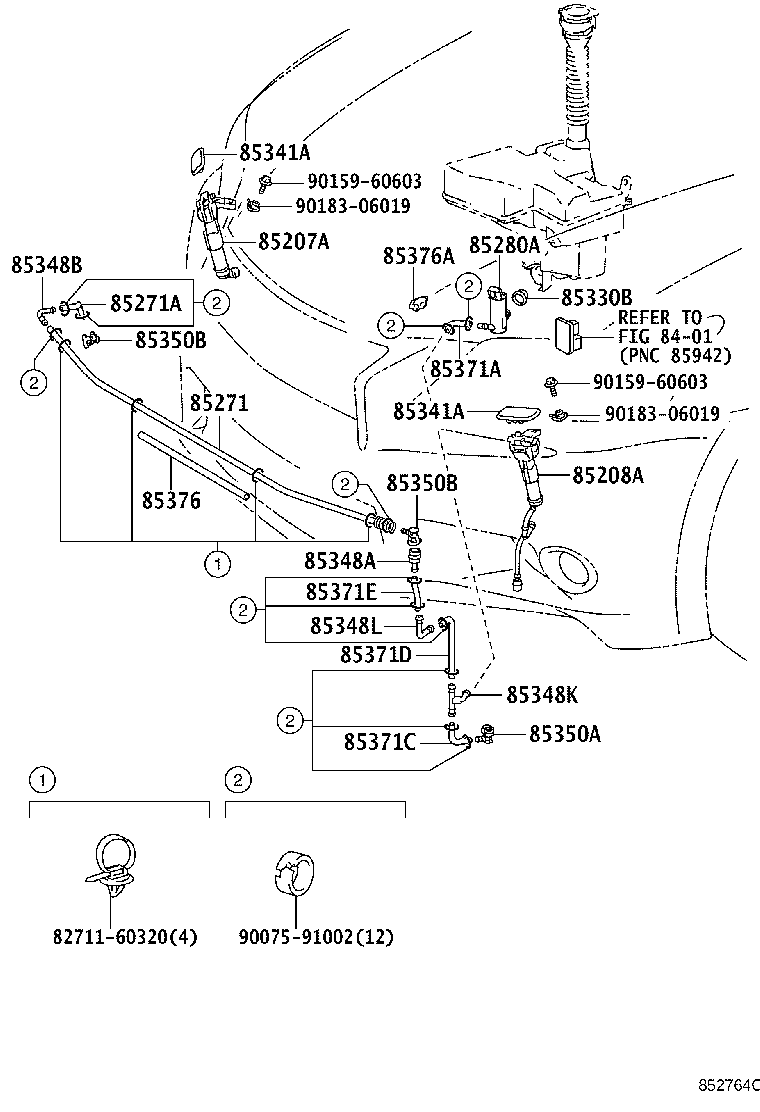

AWL10-BEXQH (2013)
Toyota Lexus Gs Series
(1112-1510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-30100 |
AWL10,GRL15,GWL10 |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-30110 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工) |
1 | ||
| 85208-30110 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 85208-30100 |
AWL10,GRL15,GWL10 |
1 | ||
| 85208-30110 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 85208-30110 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工) |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15087 |
AWL10,GRL15,GWL10 長さ=1250 |
1 | ||
| 90075-15087 |
AWL10,GRL15,GWL10 長さ=1250,F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟ級ﾁ工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 90075-15087 |
AWL10,GRL15,GWL10 長さ=1250,F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工) |
1 | ||
| 90075-15087 |
AWL10,GRL15,GWL10 長さ=1250,F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有りiｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 90075-15087 |
AWL10,GRL15,GWL10 長さ=1250,F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟ級ﾁ工) |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15056 |
AWL10,GRL15,GWL10 長さ=140 |
1 | ||
| 90075-15056 |
AWL10,GRL15,GWL10 長さ=140,F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工) |
1 | ||
| 90075-15056 |
AWL10,GRL15,GWL10 長さ=140,F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(Xﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 90075-15056 |
AWL10,GRL15,GWL10 長さ=140,F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙﾁ工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ) |
1 | ||
| 90075-15056 |
AWL10,GRL15,GWL10 長さ=140,F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙﾁ工) |
1 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-47010 |
AWL10,GRL15,GWL10 |
1 | ||
| 85330B - BUSH, HEADLAMP CLEANER WASHER JAR | ||||
| 90099-32089 |
AWL10,GRL15,GWL10 |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-30120C1 |
AWL10,GRL15,GWL10 BLACK OPAL MC.,214,右側 |
1 | ||
| 85353-30120A1 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),WHITE NOVA GF.,083,右側 |
1 | ||
| 85353-30120B1 |
AWL10,GRL15,GWL10 SONIC SILVER,1J2,右側 |
1 | ||
| 85353-30120B0 |
AWL10,GRL15,GWL10 MERCURY GRAY MC.,1H9,右側 |
1 | ||
| 85353-30120A0 |
AWL10,GRL15,GWL10 WHITE PEARL CS.,077,右側 |
1 | ||
| 85354-30120C1 |
AWL10,GRL15,GWL10 BLACK OPAL MC.,214,左側 |
1 | ||
| 85353-30120A1 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE NOVA GF.,083,右側 |
1 | ||
| 85353-30120C2 |
AWL10,GRL15,GWL10 STARLIGHT BLACK GF.,217,右側 |
1 | ||
| 85353-30120C0 |
AWL10,GRL15,GWL10 BLACK,212,右側 |
1 | ||
| 85353-30120D0 |
AWL10,GRL15,GWL10 CRIMSON CS. GF.,3S8,右側 |
1 | ||
| 85353-30120E1 |
AWL10,GRL15,GWL10 FIRE AGATE M.M.,4V3,右側 |
1 | ||
| 85354-30120A1 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE NOVA GF.,083,左側 |
1 | ||
| 85354-30120A0 |
AWL10,GRL15,GWL10 WHITE PEARL CS.,077,左側 |
1 | ||
| 85353-30120J1 |
AWL10,GRL15,GWL10 METEOR BLUE M.M.,8W3,右側 |
1 | ||
| 85354-30120A1 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),WHITE NOVA GF.,083,左側 |
1 | ||
| 85353-30120J0 |
AWL10,GRL15,GWL10 LAPIS LAZULI MC.,8V3,右側 |
1 | ||
| 85354-30120B0 |
AWL10,GRL15,GWL10 MERCURY GRAY MC.,1H9,左側 |
1 | ||
| 85354-30120B1 |
AWL10,GRL15,GWL10 SONIC SILVER,1J2,左側 |
1 | ||
| 85354-30120C0 |
AWL10,GRL15,GWL10 BLACK,212,左側 |
1 | ||
| 85354-30120C2 |
AWL10,GRL15,GWL10 STARLIGHT BLACK GF.,217,左側 |
1 | ||
| 85354-30120E1 |
AWL10,GRL15,GWL10 FIRE AGATE M.M.,4V3,左側 |
1 | ||
| 85354-30120J0 |
AWL10,GRL15,GWL10 LAPIS LAZULI MC.,8V3,左側 |
1 | ||
| 85353-30120A1 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),WHITE NOVA GF.,083,右側 |
1 | ||
| 85353-30120A1 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE NOVA GF.,083,右側 |
1 | ||
| 85354-30120D0 |
AWL10,GRL15,GWL10 CRIMSON CS. GF.,3S8,左側 |
1 | ||
| 85354-30120J1 |
AWL10,GRL15,GWL10 METEOR BLUE M.M.,8W3,左側 |
1 | ||
| 85353-30120B2 |
AWL10,GRL15,GWL10 SONIC TITANIUM,1J7,右側 |
1 | ||
| 85354-30120A1 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE NOVA GF.,083,左側 |
1 | ||
| 85354-30120A1 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),WHITE NOVA GF.,083,左側 |
1 | ||
| 85354-30120B2 |
AWL10,GRL15,GWL10 SONIC TITANIUM,1J7,左側 |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-30120C1 |
AWL10,GRL15,GWL10 BLACK OPAL MC.,214,右側 |
1 | ||
| 85353-30120A1 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),WHITE NOVA GF.,083,右側 |
1 | ||
| 85353-30120B1 |
AWL10,GRL15,GWL10 SONIC SILVER,1J2,右側 |
1 | ||
| 85353-30120B0 |
AWL10,GRL15,GWL10 MERCURY GRAY MC.,1H9,右側 |
1 | ||
| 85353-30120A0 |
AWL10,GRL15,GWL10 WHITE PEARL CS.,077,右側 |
1 | ||
| 85354-30120C1 |
AWL10,GRL15,GWL10 BLACK OPAL MC.,214,左側 |
1 | ||
| 85353-30120A1 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE NOVA GF.,083,右側 |
1 | ||
| 85353-30120C2 |
AWL10,GRL15,GWL10 STARLIGHT BLACK GF.,217,右側 |
1 | ||
| 85353-30120C0 |
AWL10,GRL15,GWL10 BLACK,212,右側 |
1 | ||
| 85353-30120D0 |
AWL10,GRL15,GWL10 CRIMSON CS. GF.,3S8,右側 |
1 | ||
| 85353-30120E1 |
AWL10,GRL15,GWL10 FIRE AGATE M.M.,4V3,右側 |
1 | ||
| 85354-30120A1 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE NOVA GF.,083,左側 |
1 | ||
| 85354-30120A0 |
AWL10,GRL15,GWL10 WHITE PEARL CS.,077,左側 |
1 | ||
| 85353-30120J1 |
AWL10,GRL15,GWL10 METEOR BLUE M.M.,8W3,右側 |
1 | ||
| 85354-30120A1 |
AWL10,GRL15,GWL10 F SPORT&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),WHITE NOVA GF.,083,左側 |
1 | ||
| 85353-30120J0 |
AWL10,GRL15,GWL10 LAPIS LAZULI MC.,8V3,右側 |
1 | ||
| 85354-30120B0 |
AWL10,GRL15,GWL10 MERCURY GRAY MC.,1H9,左側 |
1 | ||
| 85354-30120B1 |
AWL10,GRL15,GWL10 SONIC SILVER,1J2,左側 |
1 | ||
| 85354-30120C0 |
AWL10,GRL15,GWL10 BLACK,212,左側 |
1 | ||
| 85354-30120C2 |
AWL10,GRL15,GWL10 STARLIGHT BLACK GF.,217,左側 |
1 | ||
| 85354-30120E1 |
AWL10,GRL15,GWL10 FIRE AGATE M.M.,4V3,左側 |
1 | ||
| 85354-30120J0 |
AWL10,GRL15,GWL10 LAPIS LAZULI MC.,8V3,左側 |
1 | ||
| 85353-30120A1 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),WHITE NOVA GF.,083,右側 |
1 | ||
| 85353-30120A1 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE NOVA GF.,083,右側 |
1 | ||
| 85354-30120D0 |
AWL10,GRL15,GWL10 CRIMSON CS. GF.,3S8,左側 |
1 | ||
| 85354-30120J1 |
AWL10,GRL15,GWL10 METEOR BLUE M.M.,8W3,左側 |
1 | ||
| 85353-30120B2 |
AWL10,GRL15,GWL10 SONIC TITANIUM,1J7,右側 |
1 | ||
| 85354-30120A1 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),有り(ｽﾃｱﾘﾝｸﾞﾋｰﾀ),WHITE NOVA GF.,083,左側 |
1 | ||
| 85354-30120A1 |
AWL10,GRL15,GWL10 F SPORT X Line&ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ−革巻(ﾃﾞｨﾝﾌﾟﾙ加工),WHITE NOVA GF.,083,左側 |
1 | ||
| 85354-30120B2 |
AWL10,GRL15,GWL10 SONIC TITANIUM,1J7,左側 |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17012 |
AWL10,GRL15,GWL10 |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17013 |
AWL10,GRL15,GWL10 |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17010 |
AWL10,GRL15,GWL10 |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17013 |
AWL10,GRL15,GWL10 |
1 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17009 |
AWL10,GRL15,GWL10 |
1 | ||
| 85350B - JOINT, HEADLAMP CLEANER ELBOW, NO.4 | ||||
| 90075-17009 |
AWL10,GRL15,GWL10 |
2 | ||
| 85350B - JOINT, HEADLAMP CLEANER ELBOW, NO.4 | ||||
| 90075-17009 |
AWL10,GRL15,GWL10 |
2 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 90075-15059 |
AWL10,GRL15,GWL10 長さ=80 |
1 | ||
| 85371C - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15055 |
AWL10,GRL15,GWL10 長さ=100 |
1 | ||
| 85371D - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 90075-15058 |
AWL10,GRL15,GWL10 長さ=120 |
1 | ||
| 85371E - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15074 |
AWL10,GRL15,GWL10 長さ=80 |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85277-50040 |
AWL10,GRL15,GWL10 |
1 | ||
| 85376A - PROTECTOR, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 85277-30050 |
AWL10,GRL15,GWL10 |
1 | ||
| Common parts | ||||
| 82711-60320 | ||||
| 90075-91002 | ||||
| 90159-60603 | ||||
| 90183-06019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
