AWL10-BEXQH (2013)

Toyota Lexus Gs Series

Production Sep 2013 - Oct 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

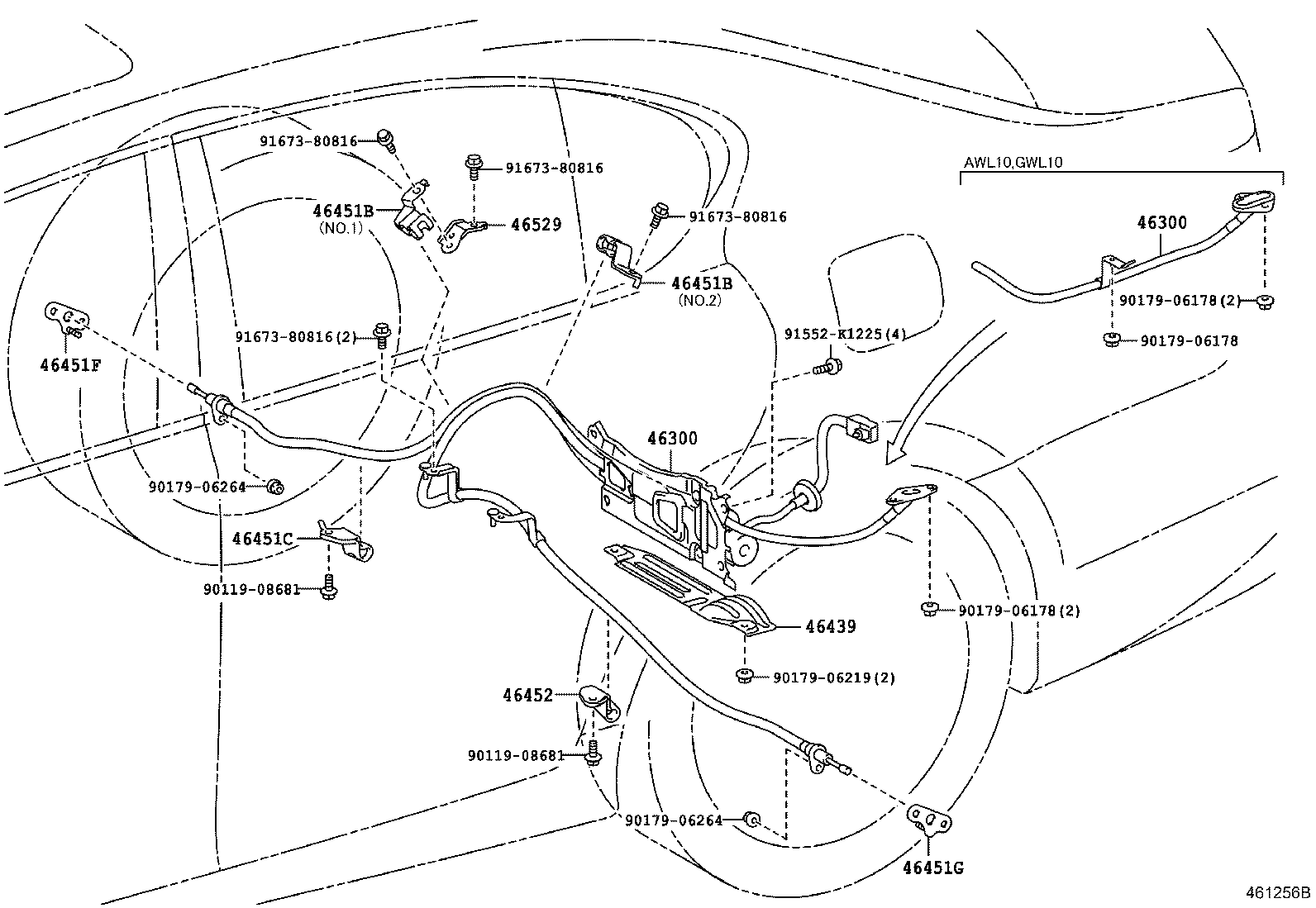

ILLUST NO. 1 OF 2(1112- )GRL1#,GWL10 ; (1309-1409)AWL10

Click highlighted areas on diagram

ｹｰﾌﾞﾙ,ﾅｼ(LDH)

diagram 46300 46300 46439 46451B 46451B 46451C 46451F 46451G 46452 46529 9011908681 9011908681 9017906178 9017906178 9017906178 9017906219 9017906264 9017906264 91552K1225 9167380816 9167380816 9167380816 9167380816
Part # Description Qty Price
46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET
46300-30010

AWL10

 1
46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET
46300-30010

AWL10

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-30020

AWL10

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-30240

AWL10

NO.2

 1
46451-30260

AWL10

NO.2

 1
46451-30250

GRL10..8FC;AWL10,GRL11,15,GWL10

NO.1

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-30240

AWL10

NO.2

 1
46451-30260

AWL10

NO.2

 1
46451-30250

GRL10..8FC;AWL10,GRL11,15,GWL10

NO.1

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-30220

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
46451F - BRACKET, CABLE SUPPORT
46451-30270

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
46451G - BRACKET, CABLE SUPPORT
46451-30280

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46451-30230

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
46529 - BRACKET, CABLE CLAMP
46529-30010

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
Common parts
90119-08681
90179-06178
90179-06219
90179-06264
91552-K1225
91673-80816

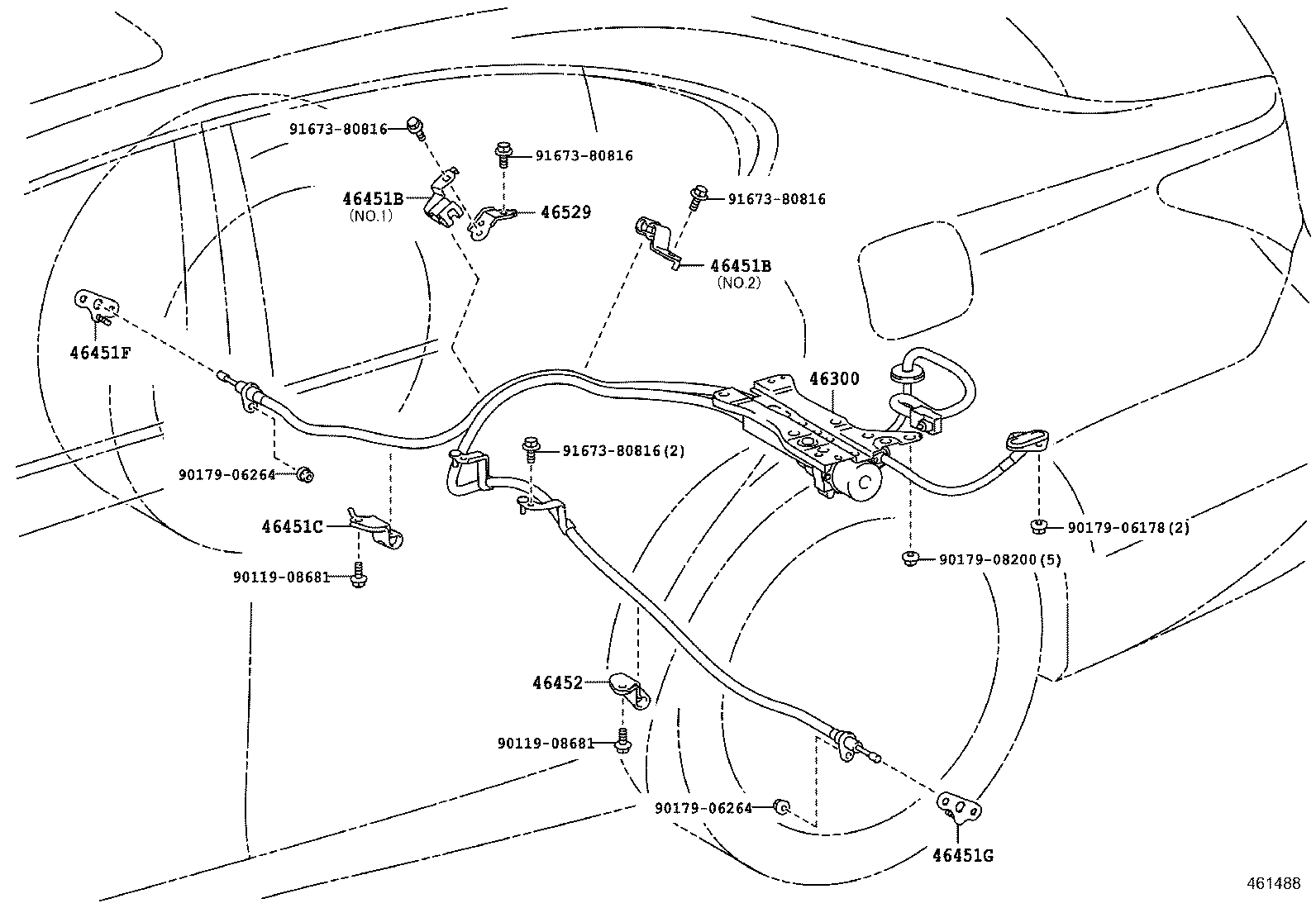

ILLUST NO. 1 OF 2(1409- )ARL10,AWL10

Click highlighted areas on diagram

ｹｰﾌﾞﾙ

diagram 46300 46451B 46451B 46451C 46451F 46451G 46452 46529 9011908681 9011908681 9017906178 9017906264 9017906264 9017908200 9167380816 9167380816 9167380816 9167380816
Part # Description Qty Price
46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET
46300-30010

AWL10

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-30240

AWL10

NO.2

 1
46451-30260

AWL10

NO.2

 1
46451-30250

GRL10..8FC;AWL10,GRL11,15,GWL10

NO.1

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-30240

AWL10

NO.2

 1
46451-30260

AWL10

NO.2

 1
46451-30250

GRL10..8FC;AWL10,GRL11,15,GWL10

NO.1

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-30220

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
46451F - BRACKET, CABLE SUPPORT
46451-30270

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
46451G - BRACKET, CABLE SUPPORT
46451-30280

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46451-30230

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
46529 - BRACKET, CABLE CLAMP
46529-30010

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
Common parts
90119-08681
90179-06178
90179-06264
90179-08200
91673-80816
