Toyota Lexus gs f URL10 CLEARANCE & BACK SONAR

Part #	Description	Period	Qty
84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
84490-30031	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	10/2015 - 07/2020	1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-30220	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	10/2015 - 07/2020	1
89341A - SENSOR, ULTRASONIC, NO.1
89341-78010E3	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAVA ORANGE CS.,4W7	10/2015 - 09/2017	6
89341-78010B0	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 ,1K7	10/2015 - 09/2016	6
89341-78010J3	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,HEAT BLUE CONTRAST LAYERI,8X1	10/2015 - 07/2020	6
89341-78010D0	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1	10/2015 - 07/2020	6
89341-78010B2	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SONIC TITANIUM,1J7	10/2015 - 07/2020	6
89341-78010B3	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SONIC SILVER,1J2	10/2015 - 07/2020	6
89341-78010B5	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0	09/2016 - 07/2020	6
89341-78010B0	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 ,1K7	05/2018 - 09/2019	6
89341-78010A1	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083	10/2015 - 07/2020	6
89341-78010C3	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAPHITE BLACK GF.,223	10/2015 - 07/2020	6
89341-78010F1	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,NAPLES YELLOW,5C1	05/2018 - 07/2020	6
89341A - SENSOR, ULTRASONIC, NO.1
89341-78010E3	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,LAVA ORANGE CS.,4W7	10/2015 - 09/2017	6
89341-78010B0	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 ,1K7	10/2015 - 09/2016	6
89341-78010J3	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,HEAT BLUE CONTRAST LAYERI,8X1	10/2015 - 07/2020	6
89341-78010D0	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,RED MC.CS.,3R1	10/2015 - 07/2020	6
89341-78010B2	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SONIC TITANIUM,1J7	10/2015 - 07/2020	6
89341-78010B3	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SONIC SILVER,1J2	10/2015 - 07/2020	6
89341-78010B5	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY MC.,1G0	09/2016 - 07/2020	6
89341-78010B0	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,MERCURY GRAY MC.,1H9 ,1K7	05/2018 - 09/2019	6
89341-78010A1	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE NOVA GF.,083	10/2015 - 07/2020	6
89341-78010C3	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GRAPHITE BLACK GF.,223	10/2015 - 07/2020	6
89341-78010F1	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,NAPLES YELLOW,5C1	05/2018 - 07/2020	6
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	10/2015 - 07/2020	1
89348N - CLIP, ULTRASONIC SENSOR, NO.1
89348-35030	URL10 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	10/2015 - 07/2020	4

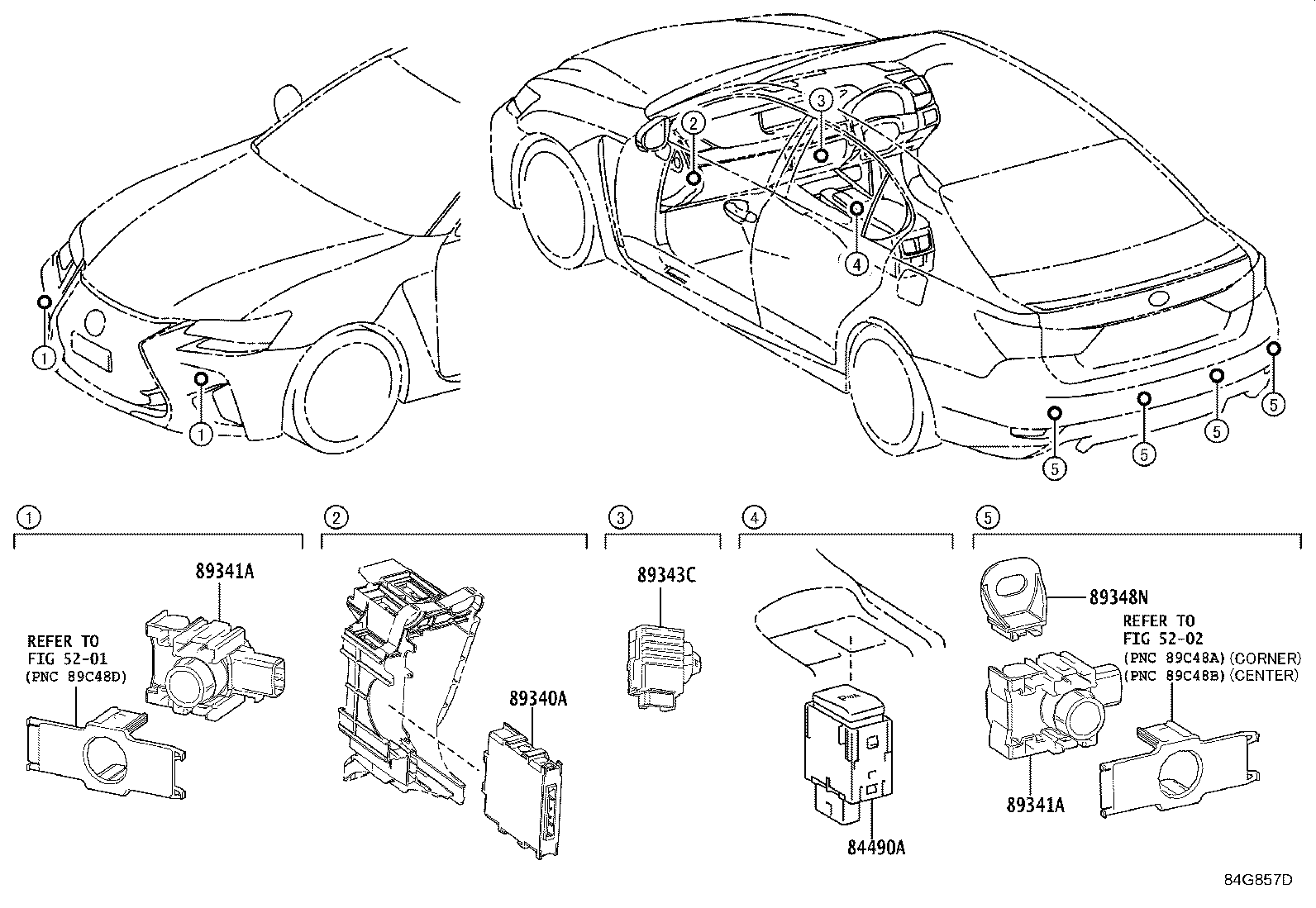

Linked diagrams
5201
5202

URL10-FEZRH (2015)

(1510- )
