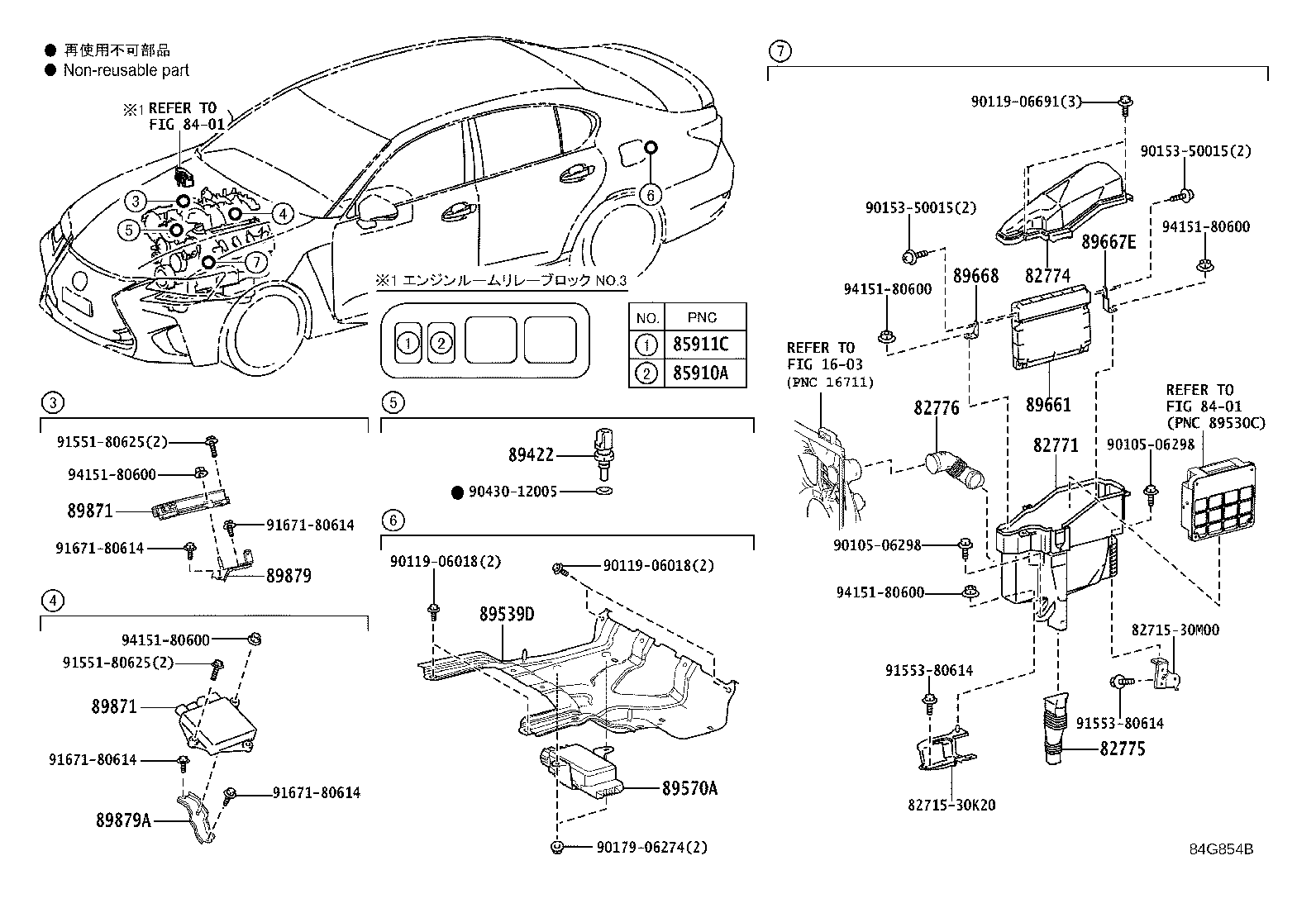

Toyota Lexus gs f URL10 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
82771 - BOX, ENGINE ROOM ECU
82771-30060	URL10	10/2015 - 07/2020	1
82774 - COVER, ENGINE ROOM ECU
82774-30060	URL10	10/2015 - 07/2020	1
82775 - DUCT, ENGINE ROOM ECU INLET
82775-30070	URL10	10/2015 - 07/2020	1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-24010	URL10	10/2015 - 07/2020	1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027	URL10	10/2015 - 07/2020	1
85911C - RELAY, EFI 2
90987-02027	URL10	10/2015 - 07/2020	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	URL10	10/2015 - 07/2020	1
89539D - BRACKET, COMPUTER
89539-30160	URL10	10/2015 - 07/2020	1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-30290	URL10	10/2015 - 07/2020	1
89661 - COMPUTER, ENGINE CONTROL
89661-3AC10	URL10 DENSO	10/2015 - 09/2016	1
89661-3AE00	URL10 DENSO	09/2016 - 09/2017	1
89661-3AF90	URL10	09/2017 - 07/2020	1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-30300	URL10	10/2015 - 07/2020	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-30280	URL10	10/2015 - 07/2020	1
89871 - DRIVER, INJECTOR
89871-30040	URL10	10/2015 - 07/2020	2
89871 - DRIVER, INJECTOR
89871-30040	URL10	10/2015 - 07/2020	2
89879 - BRACKET, INJECTOR DRIVER
89879-24010	URL10	10/2015 - 07/2020	1
89879A - BRACKET, INJECTOR DRIVER
89879-24020	URL10	10/2015 - 07/2020	1
Common parts
82715-30K20
82715-30M00
90105-06298
90119-06018
90119-06691
90153-50015
90179-06274
90430-12005
91551-80625
91553-80614
91671-80614
94151-80600
Linked diagrams
1603
8401

URL10-FEZRH (2015)
