GRS196-BETQH (2007)
Toyota Lexus Gs460/430/350

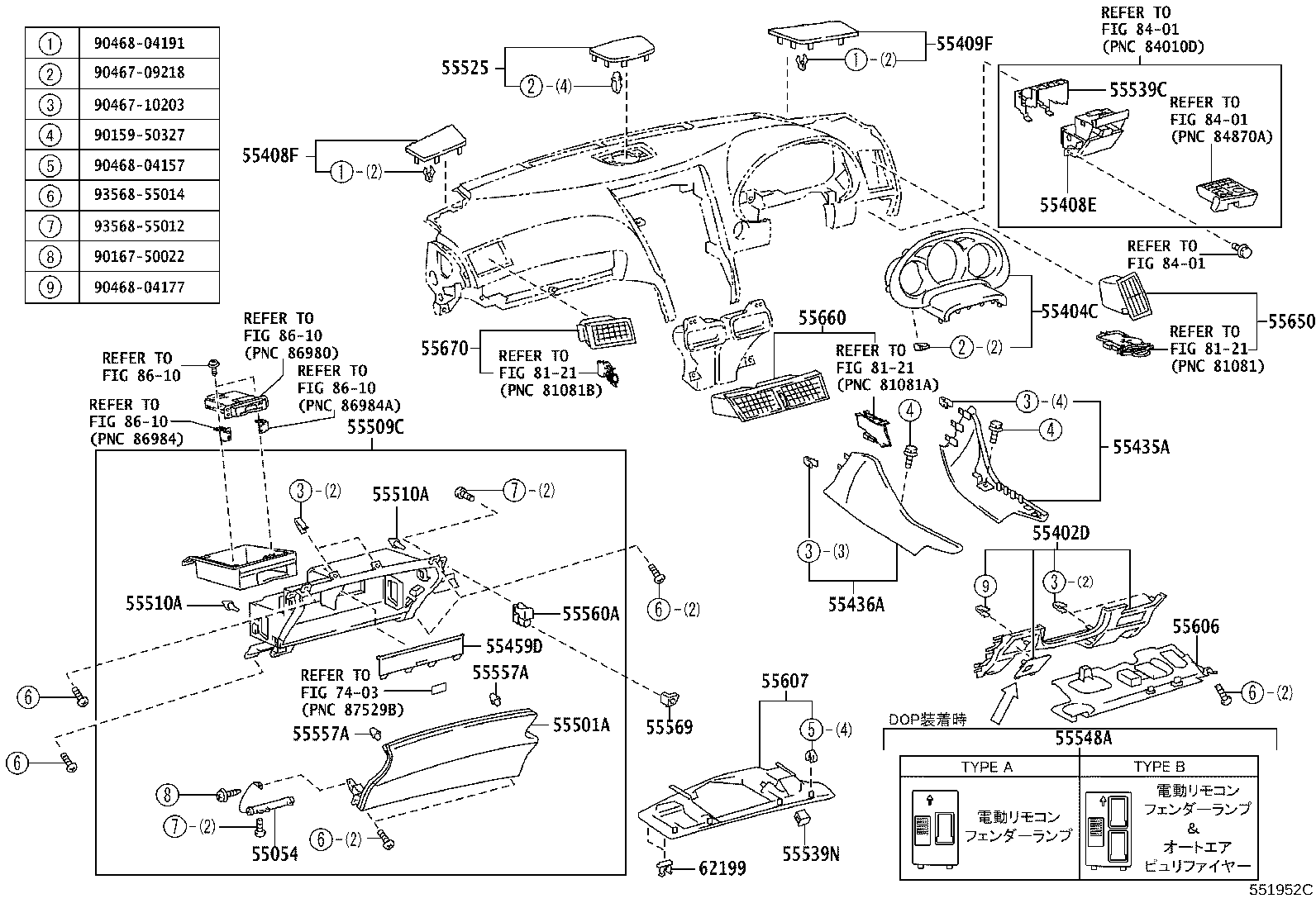

ILLUST NO. 2 OF 2(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-30040 |
GRS19#,URS190 |
1 | ||
| 55054-30040 |
GRS19#,UZS190 |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-30160C0 |
GRS19#,UZS190 BLACK,TRIM28,29 |
1 | ||
| 55402-30180A0 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 55402-30160A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 55402-30160B0 |
GRS19#,UZS190 GRAY,TRIM1# |
1 | ||
| 55402-30180B0 |
GRS19#,URS190 LT.GRAY,TRIM1# |
1 | ||
| 55402-30180C0 |
GRS19#,URS190 BLACK,TRIM2# |
1 | ||
| 55402-30180A1 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-30A01 |
GRS19#,URS190 |
1 | ||
| 55404-30A00 |
GRS19#,UZS190 |
1 | ||
| 55408E - BOX SUB-ASSY, INSTRUMENT PANEL COIN | ||||
| 55408-30150C0 |
GRS19#,UZS190 BLACK,TRIM28,29 |
1 | ||
| 55408-30150B0 |
GRS19#,UZS190 GRAY,TRIM1# |
1 | ||
| 55408-30200B0 |
GRS19#,URS190 LT.GRAY,TRIM1# |
1 | ||
| 55408-30150A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 55408-30151B0 |
GRS19#,UZS190 GRAY,TRIM1#,有り(*AREM) |
1 | ||
| 55408-30151C0 |
GRS19#,UZS190 BLACK,TRIM28,29,有り(*AREM) |
1 | ||
| 55408-30200C0 |
GRS19#,URS190 BLACK,TRIM2# |
1 | ||
| 55408-30200A1 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 55408-30151A0 |
GRS19#,UZS190 IVORY,TRIM0#,有り(*AREM) |
1 | ||
| 55408-30200A0 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-30110E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30110C0 |
GRS19#,UZS190 BLACK,TRIM1#,28,29 |
1 | ||
| 55408-30120C0 |
GRS19#,URS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 55408-30120E0 |
GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30120E0 |
GRS19#,URS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30120C0 |
GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,BLACK,TRIM1#,28,29 |
1 | ||
| 55408-30121C0 |
GRS19#,URS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 55408-30111E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30111C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55408-30110C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55408-30110E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30121E0 |
GRS19#,URS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ORCHID BROWN,TRIM0# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-30220E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30220E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30220C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55409-30230C0 |
GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,BLACK,TRIM1#,28,29 |
1 | ||
| 55409-30230E0 |
GRS19#,UZS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ﾅﾋﾞ,ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30221C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55409-30230C0 |
GRS19#,URS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 55409-30221E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30220C0 |
GRS19#,UZS190 BLACK,TRIM1#,28,29 |
1 | ||
| 55409-30231C0 |
GRS19#,URS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,BLACK,TRIM1#,2# |
1 | ||
| 55409-30230E0 |
GRS19#,URS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30231E0 |
GRS19#,URS190 ｵｰﾃﾞｨｵ−AM/FM,MD,DVDﾁｪﾝｼﾞｬ,*MAR,ORCHID BROWN,TRIM0# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30230A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 55435-30230A0 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 55435-30230B1 |
GRS19#,URS190 LT.GRAY,TRIM1# |
1 | ||
| 55435-30230B0 |
GRS19#,UZS190 GRAY,TRIM1# |
1 | ||
| 55435-30230A3 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 55435-30230C1 |
GRS19#,URS190 Passionate Black Interior *(R),BLACK,RED,TRIM21,23 |
1 | ||
| 55435-30230C4 |
GRS19#,URS190 BLACK,TRIM2# |
1 | ||
| 55435-30230B3 |
GRS19#,URS190 LT.GRAY,TRIM1# |
1 | ||
| 55435-30230C3 |
GRS19#,URS190 “Meteor Black Interior” *(S),BLACK/SILVER,TRIM21,23 |
1 | ||
| 55435-30230C0 |
GRS19#,UZS190 BLACK,TRIM28,29 |
1 | ||
| 55435-30230C0 |
GRS19#,URS190 BLACK,TRIM2# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-30150B0 |
GRS19#,UZS190 GRAY,TRIM1# |
1 | ||
| 55436-30150A3 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 55436-30150C1 |
GRS19#,URS190 Passionate Black Interior *(R),BLACK,RED,TRIM21,23 |
1 | ||
| 55436-30150B1 |
GRS19#,URS190 LT.GRAY,TRIM1# |
1 | ||
| 55436-30150C0 |
GRS19#,UZS190 BLACK,TRIM28,29 |
1 | ||
| 55436-30150C3 |
GRS19#,URS190 “Meteor Black Interior” *(S),BLACK/SILVER,TRIM21,23 |
1 | ||
| 55436-30150A0 |
GRS19#,URS190 IVORY,TRIM0# |
1 | ||
| 55436-30150A0 |
GRS19#,UZS190 IVORY,TRIM0# |
1 | ||
| 55436-30150C0 |
GRS19#,URS190 BLACK,TRIM2# |
1 | ||
| 55436-30150B3 |
GRS19#,URS190 LT.GRAY,TRIM1# |
1 | ||
| 55436-30150C4 |
GRS19#,URS190 BLACK,TRIM2# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
GRS19#,UZS190 |
1 | ||
| 55459-48020 |
GRS19#,URS190 |
1 | ||
| 55459-30060 |
GRS19#,URS190 |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-30210C0 |
GRS19#,UZS190 BLACK,TRIM1# |
1 | ||
| 55501-30210C1 |
GRS19#,UZS190 BLACK,TRIM28,29 |
1 | ||
| 55501-30210E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55501-30210E1 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55501-30210C2 |
GRS19#,URS190 LT.GRAY,TRIM1# |
1 | ||
| 55501-30210C1 |
GRS19#,URS190 BLACK,TRIM2# |
1 | ||
| 55501-30210E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55509-30071C1 |
GRS19#,URS190 BLACK,TRIM2# |
1 | ||
| 55509-30070C1 |
GRS19#,UZS190 BLACK,TRIM28,29 |
1 | ||
| 55509-30071C2 |
GRS19#,URS190 LT.GRAY,TRIM1# |
1 | ||
| 55509-30070E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55509-30072E1 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55509-30072C1 |
GRS19#,URS190 BLACK,TRIM2# |
1 | ||
| 55509-30071E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55509-30070C0 |
GRS19#,UZS190 BLACK,TRIM1# |
1 | ||
| 55509-30072C2 |
GRS19#,URS190 LT.GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
GRS19#,UZS190 |
2 | ||
| 90541-04002 |
GRS19#,URS190 |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
GRS19#,UZS190 |
2 | ||
| 90541-04002 |
GRS19#,URS190 |
2 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55510-30121C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55510-30120E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55510-30120C0 |
GRS19#,UZS190 BLACK,TRIM1#,28,29 |
1 | ||
| 55510-30120C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55510-30120E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55510-30121E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-30330 |
GRS19#,URS190 |
1 | ||
| 55539-30240 |
GRS19#,UZS190 |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
GRS19#,UZS190 |
1 | ||
| 55539-48020 |
GRS19#,URS190 |
1 | ||
| 55539-48020 |
GRS19#,URS190 ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−*MRT&*PSB&*PBA |
1 | ||
| 55539-48020 |
GRS19# “Art Works” *(M)&ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-30190B0 |
GRS19#,URS190 LT.GRAY,TRIM1#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55548-30200C0 |
GRS19#,URS190 BLACK,TRIM2#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55548-30190C0 |
GRS19#,URS190 BLACK,TRIM2#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55548-30190A0 |
GRS19#,URS190 IVORY,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55548-30200B0 |
GRS19#,URS190 LT.GRAY,TRIM1#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55548-30190A1 |
GRS19#,URS190 IVORY,TRIM0#,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 55548-30200A1 |
GRS19#,URS190 IVORY,TRIM0#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55548-30200A0 |
GRS19#,URS190 IVORY,TRIM0#,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-30080 |
GRS19#,URS190 |
2 | ||
| 55557-30080 |
GRS19#,UZS190 |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-30080 |
GRS19#,URS190 |
2 | ||
| 55557-30080 |
GRS19#,UZS190 |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-30061C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55560-30060C0 |
GRS19#,UZS190 BLACK,TRIM1#,28,29 |
1 | ||
| 55560-30060E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55560-30061E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-30030C0 |
GRS19#,UZS190 BLACK,TRIM1#,28,29 |
1 | ||
| 55569-30030E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55569-30031E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55569-30031C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-30240 |
GRS19#,URS190 |
1 | ||
| 55606-30240 |
GRS19#,UZS190 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30300 |
GRS19#,UZS190 |
1 | ||
| 55607-30300 |
GRS19#,URS190 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30290C0 |
GRS19#,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55650-30291C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55650-30291E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55650-30290E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30410C0 |
GRS19#,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55660-30410E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55660-30411C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 55660-30411E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30450C0 |
GRS19#,UZS190 BLACK,TRIM1#,2# |
1 | ||
| 55670-30451E0 |
GRS19#,URS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55670-30450E0 |
GRS19#,UZS190 ORCHID BROWN,TRIM0# |
1 | ||
| 55670-30451C0 |
GRS19#,URS190 BLACK,TRIM1#,2# |
1 | ||
| 62199 - HOLDER, FUSEE | ||||
| 90468-25003 |
GRS19#,UZS190 |
2 | ||
| 90468-25003 |
GRS19#,URS190 |
2 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90167-50022 | ||||
| 90467-09218 | ||||
| 90467-10203 | ||||
| 90468-04157 | ||||
| 90468-04177 | ||||
| 90468-04191 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8121 | ||||
| 8401 | ||||
| 8610 | ||||
