GRS196-BETQH (2005)
Toyota Lexus Gs460/430/350

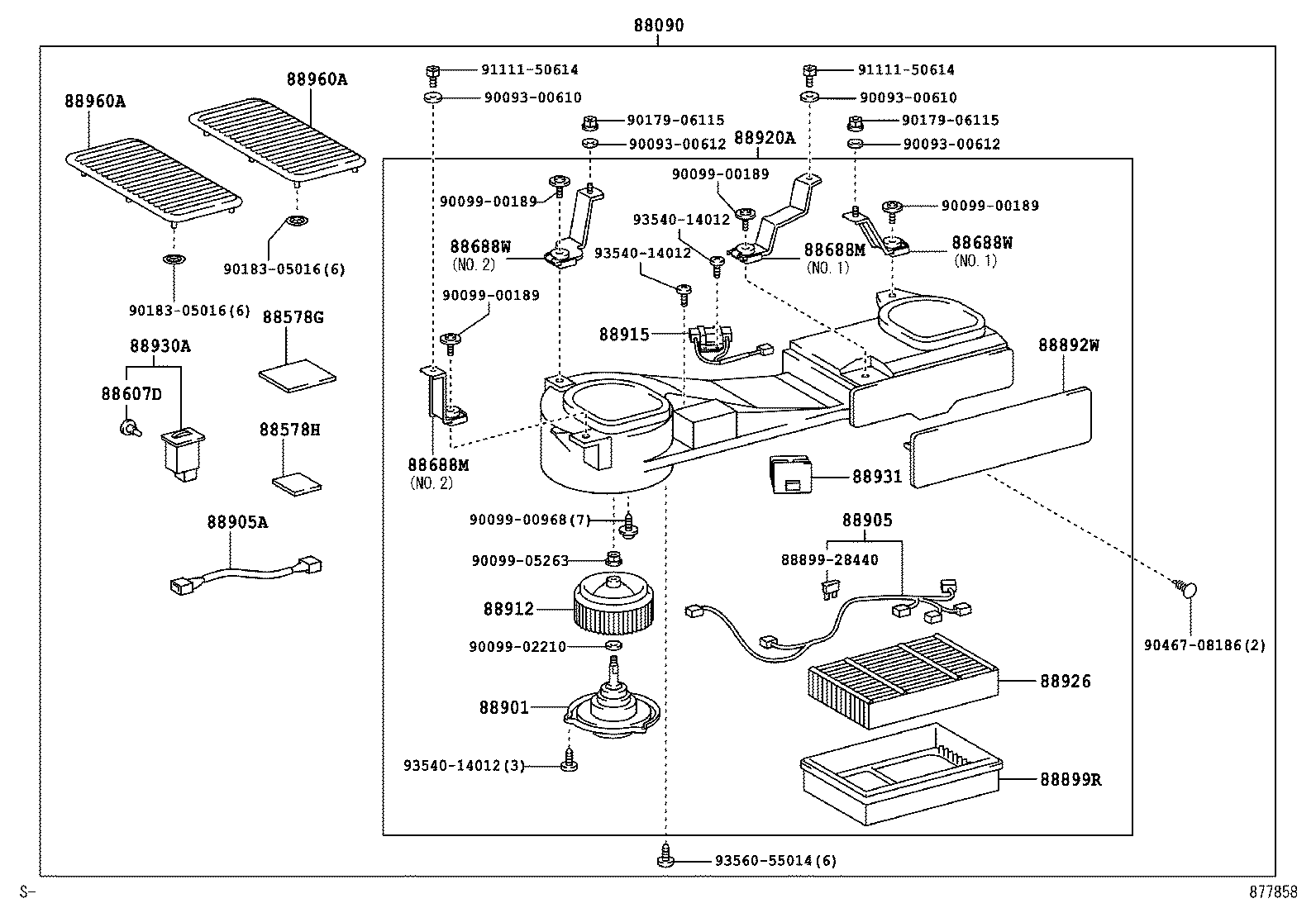

ILLUST NO. 2 OF 2(0508- )
ｸｳｷｾｲｼﾞｮｳｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88090 - AIR PURIFIER & ACCESSORY ASSY | ||||
| 88090-30060B0 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),GRAY,TRIM1# |
1 | ||
| 88090-30060A0 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),IVORY,TRIM0# |
1 | ||
| 88090-30060C0 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),BLACK,TRIM28,29 |
1 | ||
| 88578G - PACKING, AIR PURIFIER, NO.1 | ||||
| 88578-30370 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-51030 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88607D - LAMP SUB-ASSY, AIR PURIFIER SWITCH | ||||
| 90010-03005 |
GRS19#,UZS190 14V 1.8W,ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88688M - BRACKET, AIR PURIFIER, NO.2 | ||||
| 88688-3A730 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),NO.1 |
1 | ||
| 88688-3A740 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),NO.2 |
1 | ||
| 88688M - BRACKET, AIR PURIFIER, NO.2 | ||||
| 88688-3A730 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),NO.1 |
1 | ||
| 88688-3A740 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),NO.2 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-3A720 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),NO.2 |
1 | ||
| 88688-3A710 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),NO.1 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-3A720 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),NO.2 |
1 | ||
| 88688-3A710 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),NO.1 |
1 | ||
| 88892W - COVER, AIR PURIFIER | ||||
| 88891-30710 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88899R - FRAME, AIR PURIFIER | ||||
| 88899-22320 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-22320 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1 | ||||
| 88905-22350 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2 | ||||
| 88905-30280 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 88912-22310 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88915 - RESISTOR, AIR PURIFIER | ||||
| 88915-22310 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-30170 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-22340 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-22390 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-22330 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)) |
1 | ||
| 88960A - GRILLE ASSY, AIR PURIFIER | ||||
| 88960-30060A0 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),IVORY,TRIM0# |
2 | ||
| 88960-30060B0 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),GRAY,TRIM1# |
2 | ||
| 88960-30060C0 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),BLACK,TRIM28,29 |
2 | ||
| 88960A - GRILLE ASSY, AIR PURIFIER | ||||
| 88960-30060A0 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),IVORY,TRIM0# |
2 | ||
| 88960-30060B0 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),GRAY,TRIM1# |
2 | ||
| 88960-30060C0 |
GRS19#,UZS190 ｴｱﾋﾟｭﾘﾌｧｲｱ−有り(ｵｰﾄ(DOP)),BLACK,TRIM28,29 |
2 | ||
| Common parts | ||||
| 88899-28440 | ||||
| 90093-00610 | ||||
| 90093-00612 | ||||
| 90099-00189 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-05263 | ||||
| 90179-06115 | ||||
| 90183-05016 | ||||
| 90467-08186 | ||||
| 91111-50614 | ||||
| 93540-14012 | ||||
| 93560-55014 | ||||

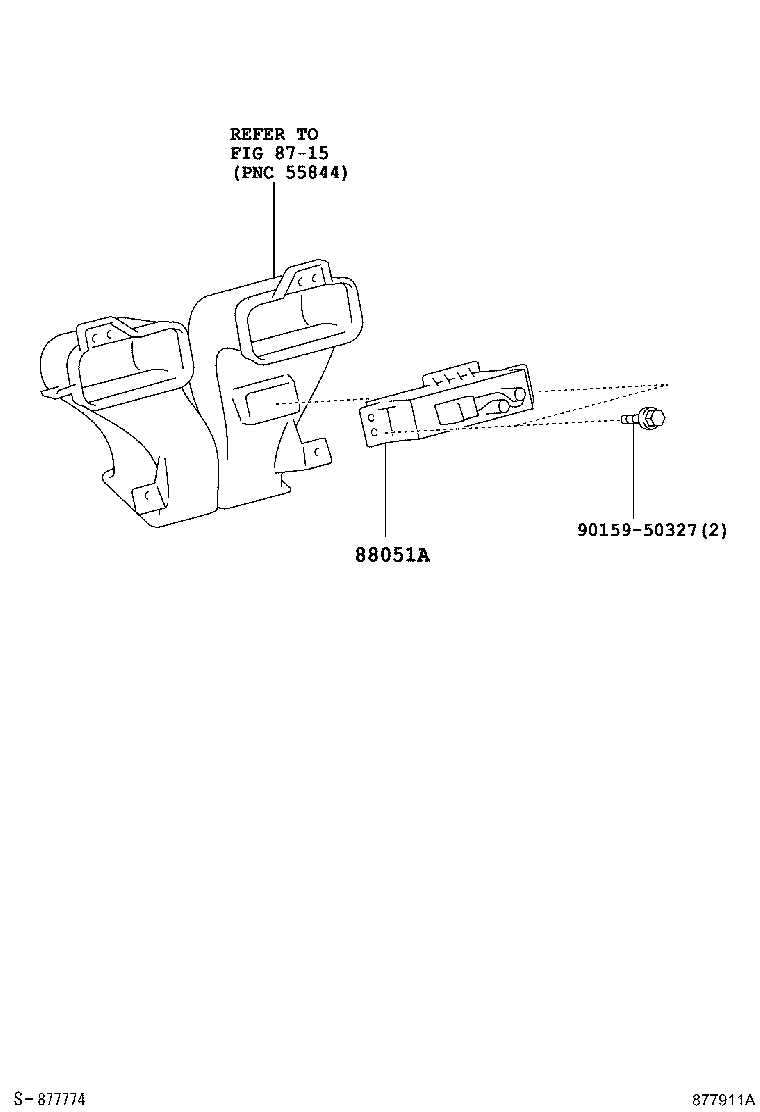

ILLUST NO. 1 OF 2(0508- )
ｼﾞｮｷﾝｲｵﾝ & ﾏｲﾅｽｲｵﾝﾊｯｾｲｿｳﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88051A - GENERATOR SUB-ASSY,ION | ||||
| 88051-22010 |
GRS19#,UZS190 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8715 | ||||
